100M Single Port Single mode dual fiber PoE Media Converter(ONV-POE31001PF)











Description:

This 10/100M PoE media converter can be use between 10Base-T and 10Base-FL or 100Base-TX cable and 100Base-FX fiber cable for data transmission. It provides stand-alone RJ-45 electrical interface port and supply power to others, and can automatically cross connection with switch and hub network. And feature with link loss diagnosis, electrical port link diagnosis and optical port link diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator. Also it can be realize the interconnection between motherboard servers, Repeaters, hubs, switches terminal.



Plug and play design makes easy installation, no on-site adjustment, all the light, electrical interface port is in line with international standards. It can extend the network transmission up to 25km. This dual fiber PoE media converter is suitable for Bad industrial environment or high requirements for lightning protection, intelligent transportation supervisory system (ITS) and safe city, High-speed way supervisory/Telecommunication system, IP network camera, security surveillance system for large corporations, multi-function network system.



Product features:



Supply power to Cat5 Ethernet network surveillance cameras

Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission operational mechanism

Ethernet 10base-T or 100Base-TX 100Base-FX fiber media transmission

Compatible with IEEE802.3af, IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d standard

The electrical interface port supports 100Mbps, 10Mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2XMbps)

Cache size for 512KB, address table size is 4KB

 1x RJ45 port and 1x PoE port; Max each PoE port power is 15.4W



 specifications:

Product Name	100M Single Port Dual Fiber PoE Media Converter
Product  Model	POE31001PF
Interface	1x copper cable RJ45 port +1x PoE port
Transmission Distance	20km
Fiber Description	dual fiber
Wavelength	1310/1550nm
Protocol	IEEE 802.3i IEEE 802.3u IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af
LED Indicator	System, Data Link, PoE working status, Rate Status, Full duplex/half duplex
Power Supply	Total power: 18W External power supply

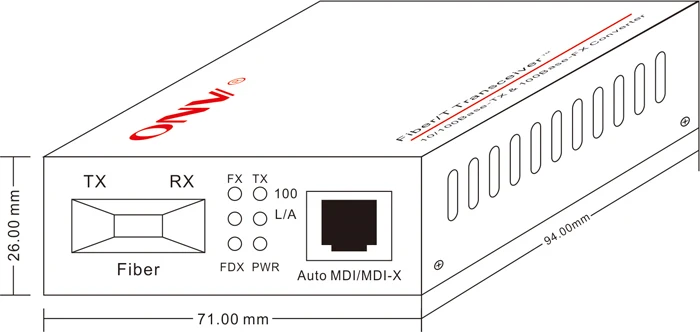

Dimension	Dimension: 71x94x26mm
Working Environment	Working Temperature:-20°~ 55°C Storage Temperature: -20°~ 75°C Working Humidity: 10%~90%, non-condensing Storage Humidity: 10%~95%, non-condensing Operational Altitude: 3000m (10,000ft) Storage Altitude: 3000m (10,000ft)
Radiation	CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety	CE mark, commercial CE/LVD EN60950, RoHS
Warranty	1 year warranty ( 3 years warranty for power adaptor)





Order Information:

Product Model: POE31001PF

Product Description: Single port 10/100M dual fiber Ethernet PoE media converter. Compatible with IEEE802.3af standard (15.4W); power input is AC100V~240V, external power supply (can be customized different power sockets for different countries)

Order Note: Default PoE power supply is end-span (1/2,3/6 line pair), mid-span(4/5, 7/8 line pair) PoE Power supply can be customized



Accessories in the package:

Package List	Dual Fiber PoE Media Converter ( POE31001PF )
	Power Adaptor
	User Guide
	Warranty Card

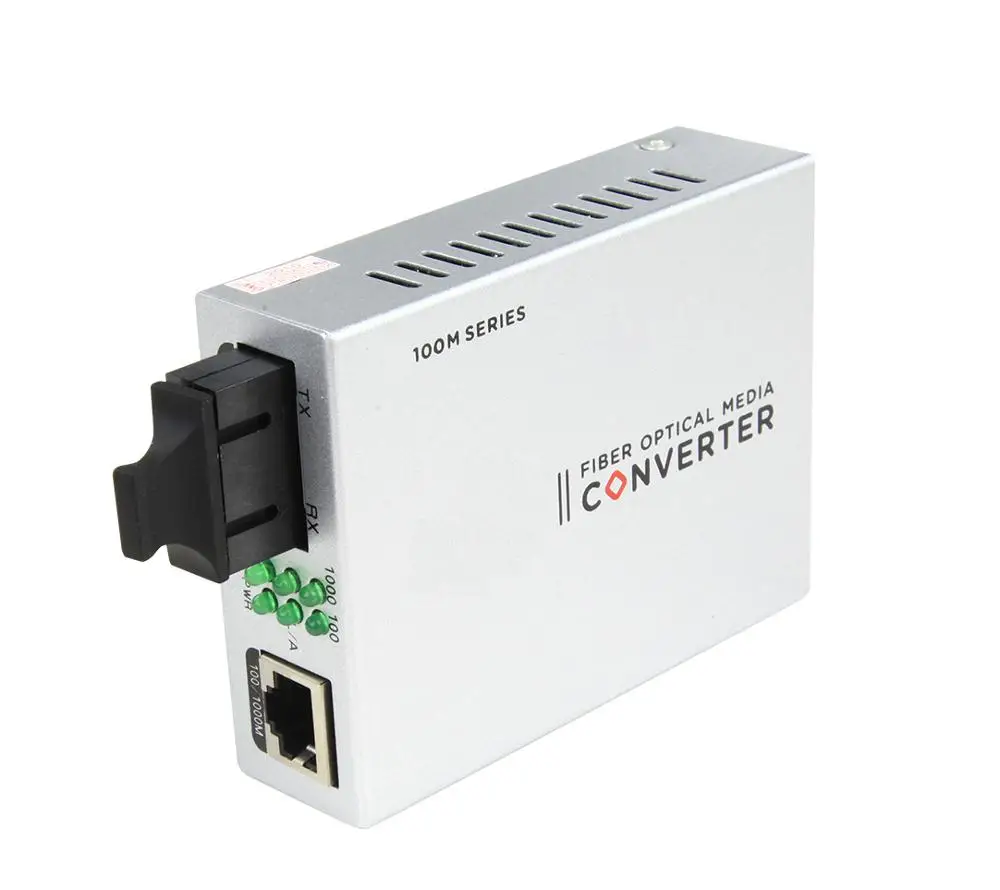

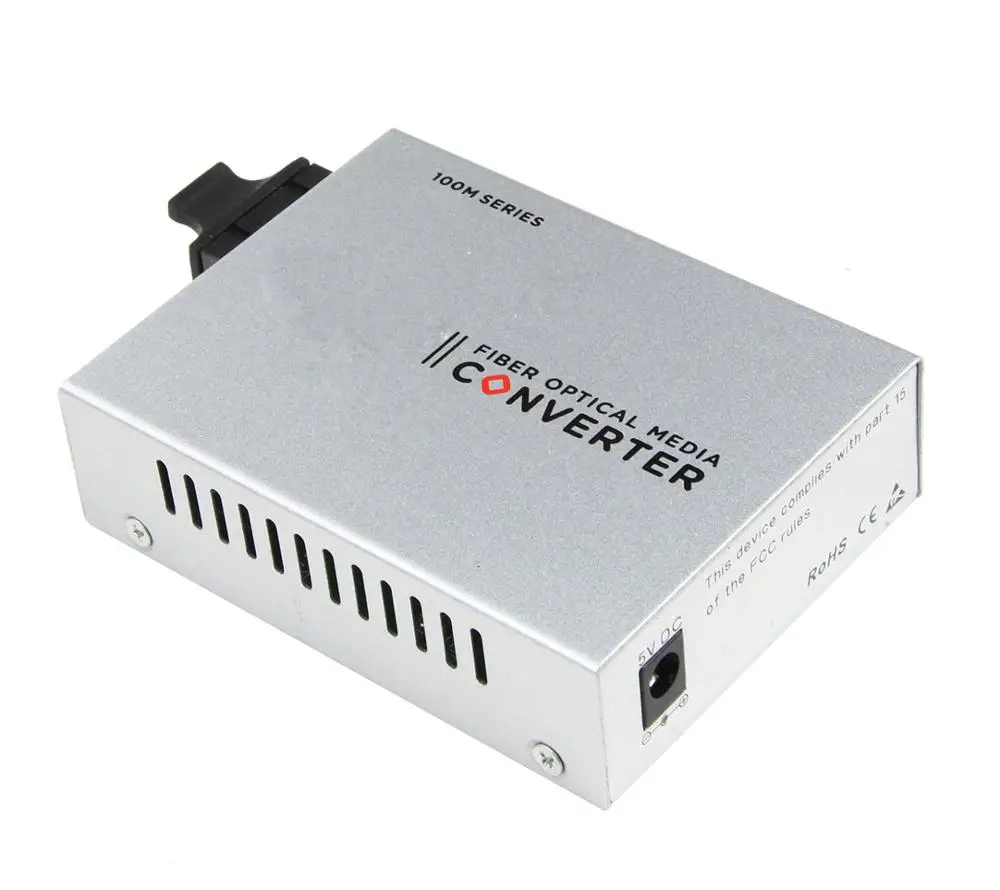

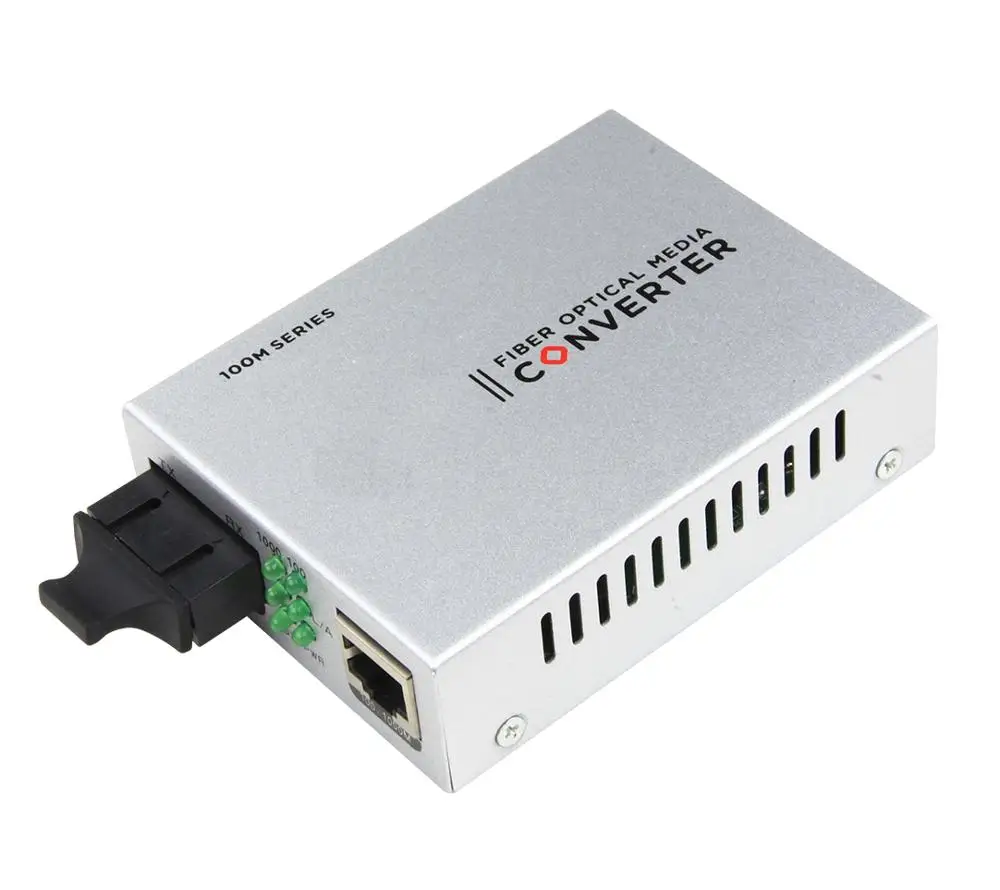

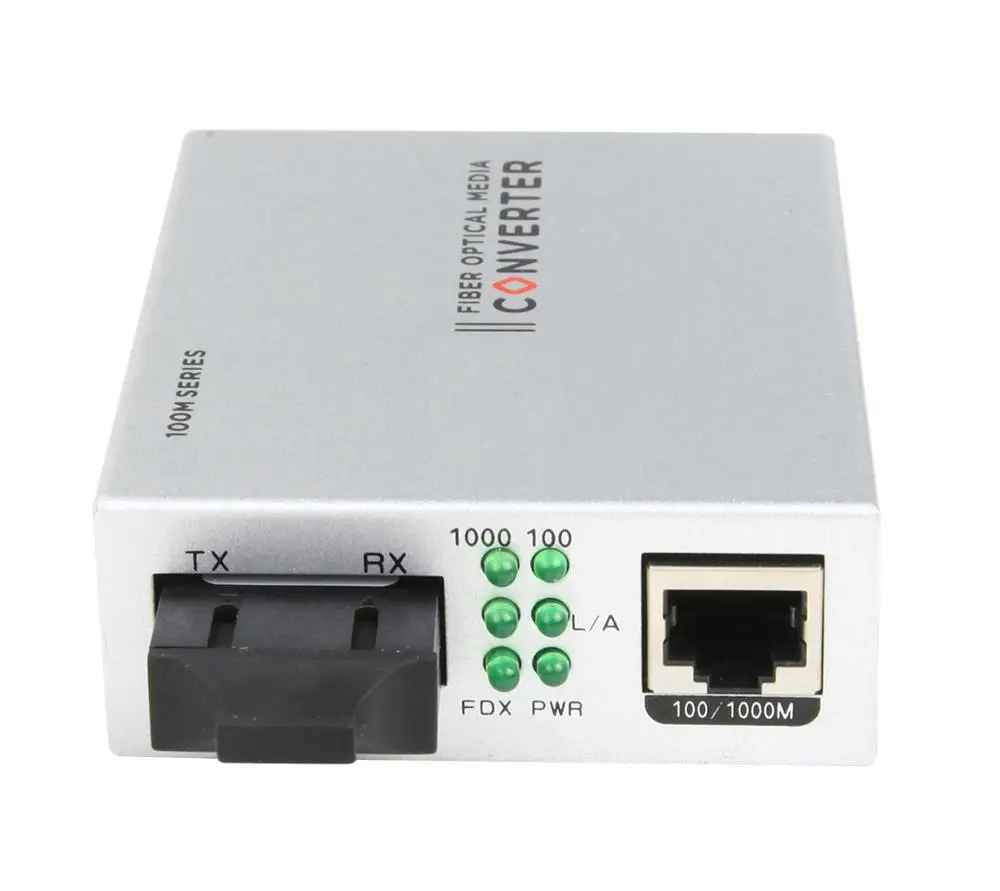

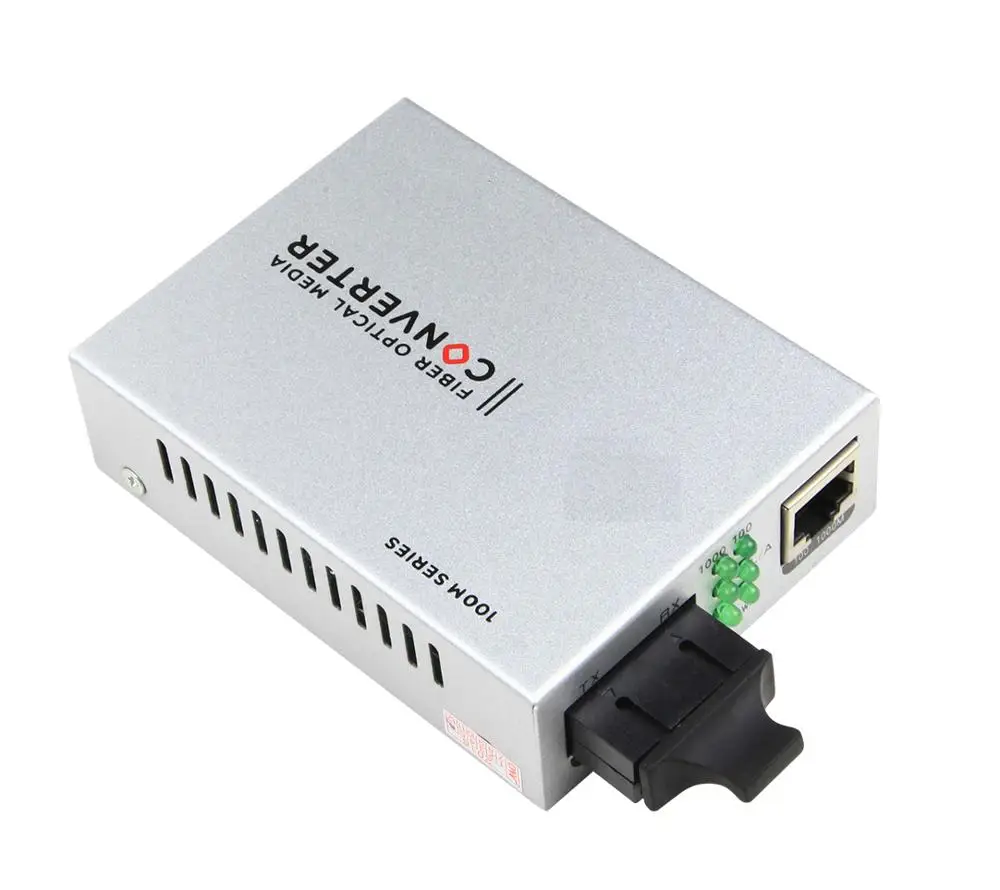

Product Pictures:
