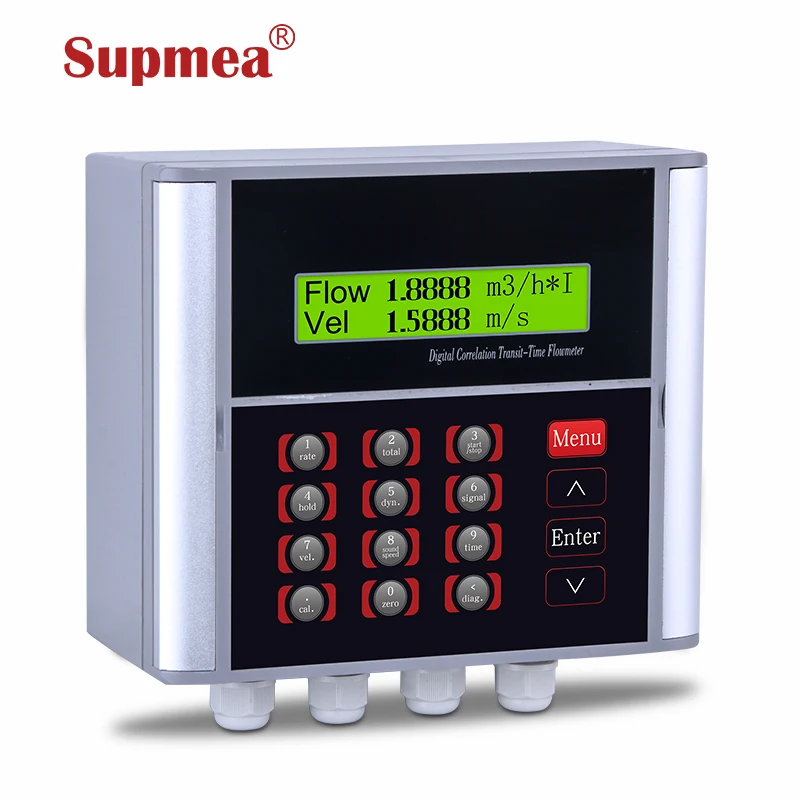

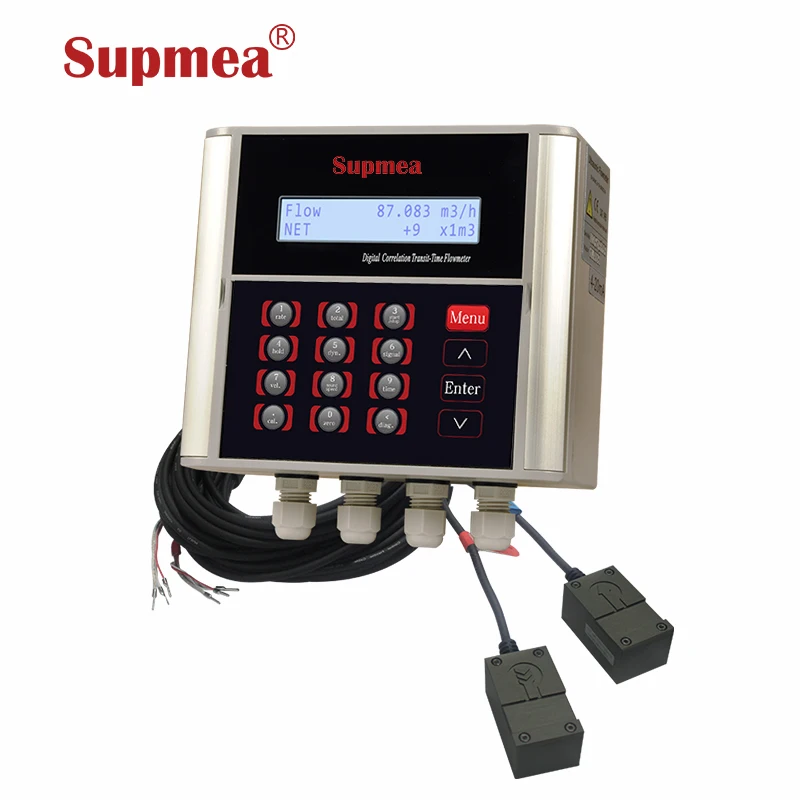

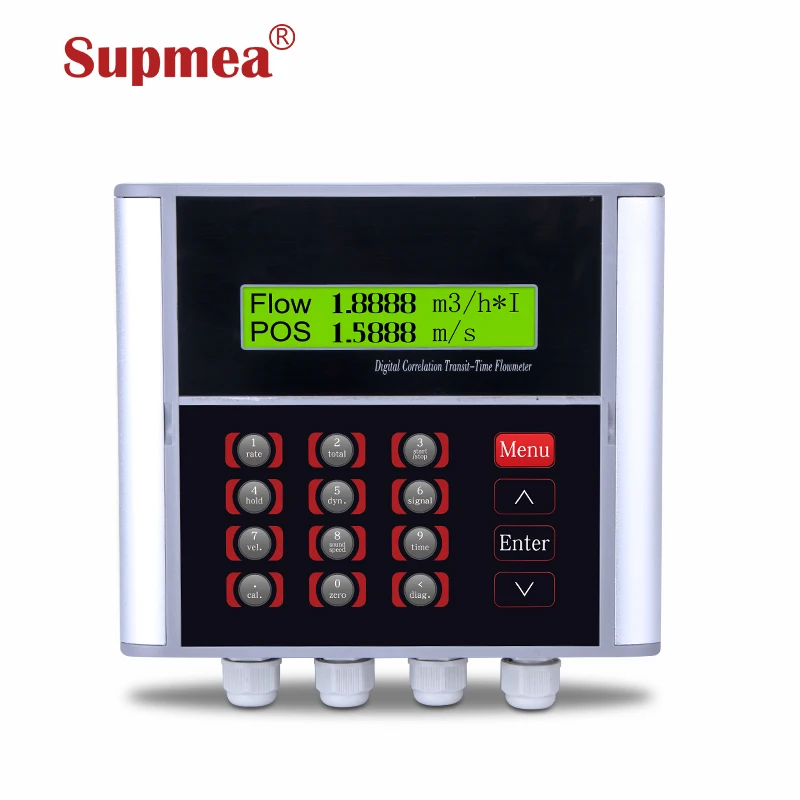

Высококачественный датчик расходомера жидкости недорогой Цифровой ультразвуковой
- Категория: Расходомер >>>
- Поставщик: Hangzhou,Asmik,Sensors,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 476.27 $* | 486.74 $* |
| Jul-19-2025 | 386.15 $* | 394.43 $* |
| Jun-19-2025 | 469.56 $* | 478.44 $* |
| May-19-2025 | 465.43 $* | 474.58 $* |
| Apr-19-2025 | 371.92 $* | 378.82 $* |
| Mar-19-2025 | 458.1 $* | 467.45 $* |
| Feb-19-2025 | 454.94 $* | 463.78 $* |
| Jan-19-2025 | 450.75 $* | 459.79 $* |
Характеристики
Performance specifications | ||
Flow range | 0.03 ~ 16 ft/s ( 0.01 ~ 5.0 m/s ) | |
Accuracy | ± 1.0 % | |
Pipe size | Clamp-on: 1” ~ 48” ( 25mm ~ 1200mm ) | |

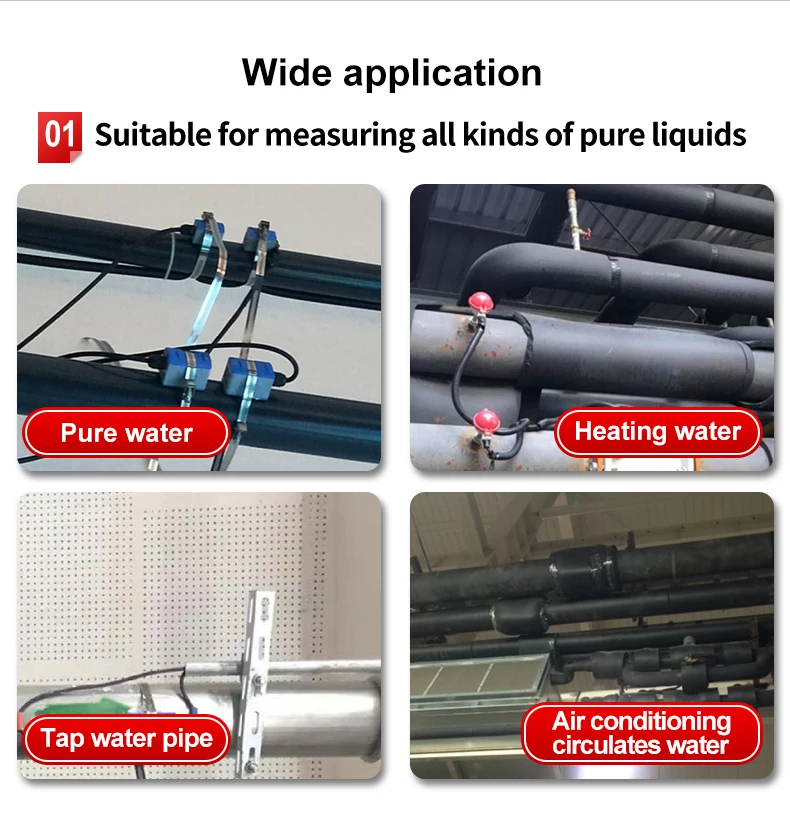

Fluid ater. | Pure liquid | |
Function specifications | ||
Outputs | OCT Pulse output: 0-5000Hz | |
Analog output : 4 ~ 20mA, max load 750Ω | ||
Communication interface | RS485MODBUS | |
Power supply | 10 ~ 36VDC/1A. | |
Keypad | 16 ( 4×4 ) key with tactile action | |
Display | 20×2 lattice alphanumeric, back lit LCD | |
Temperature | Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) | |
Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃ ) | ||
Humidity | Up to 99% RH, non-condensing | |
Physical specifications | ||

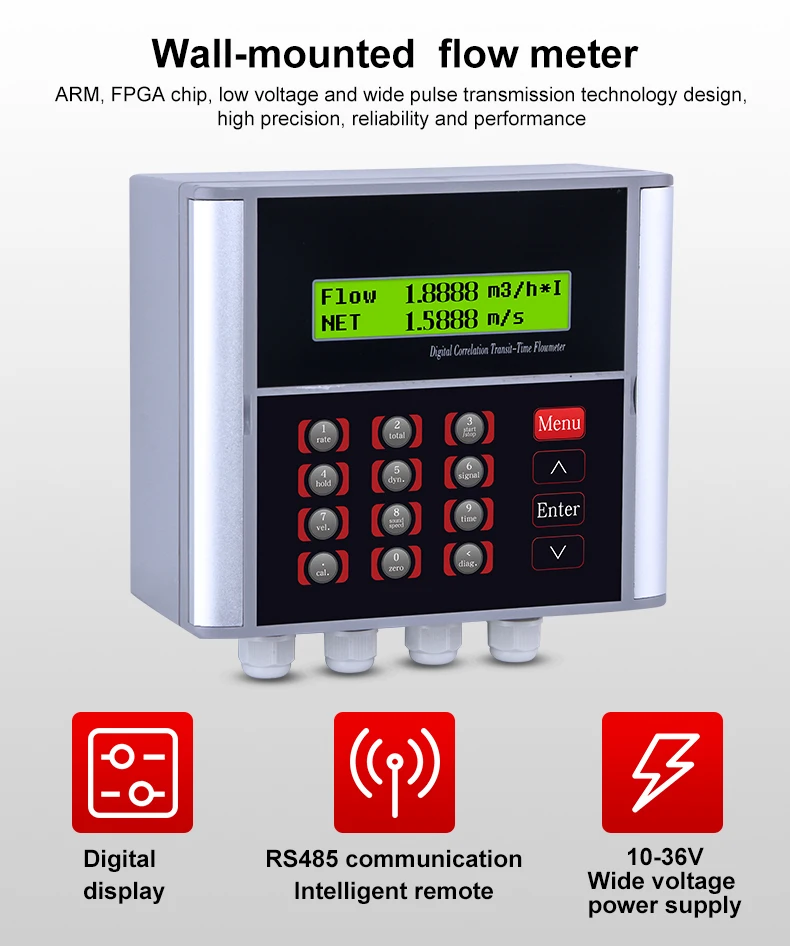

Transmitter | PC/ABS, IP65 | |

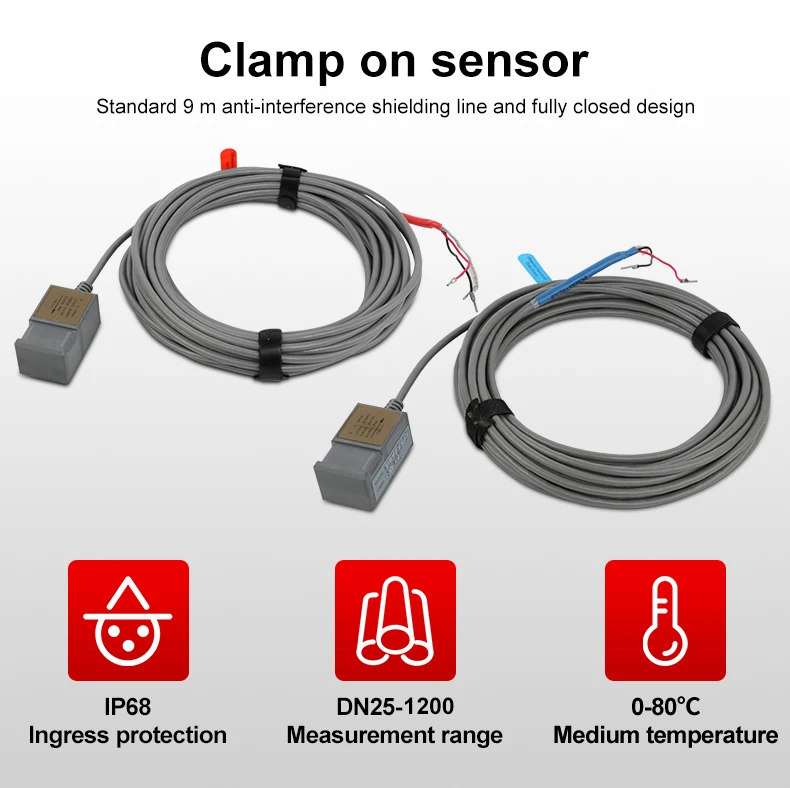

Transducer | Encapsulated design, IP68 | |
Transducer cable | Standard cable length: 30 ft (9m) | |
Weight | Transmitter: approximately 0.7kg; Transducer:approximately 0.4kg | |
