Product Description

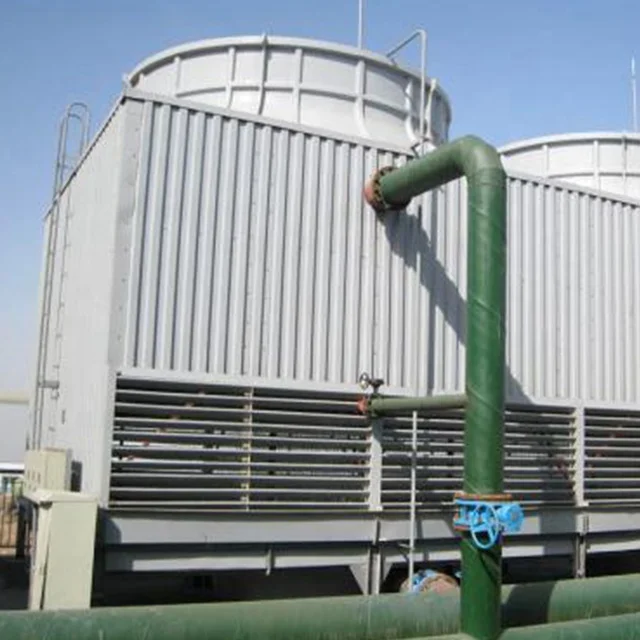

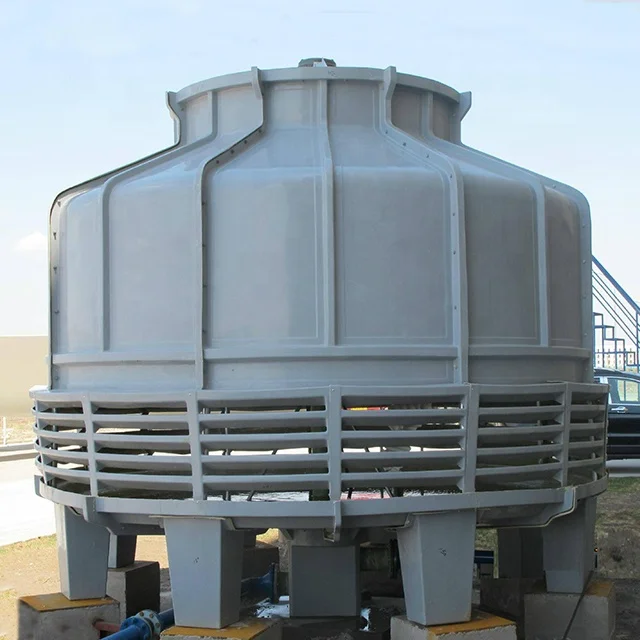

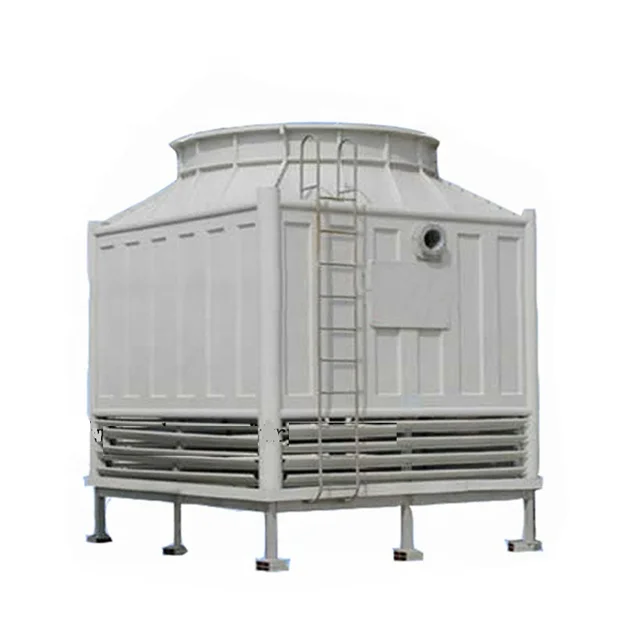

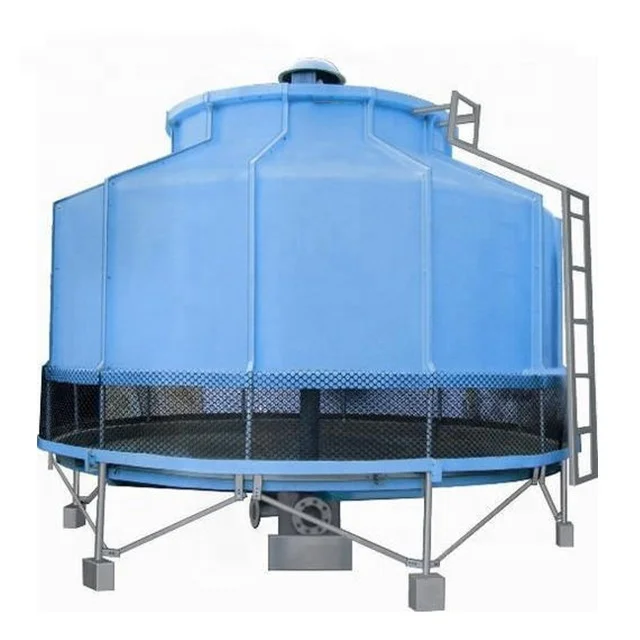

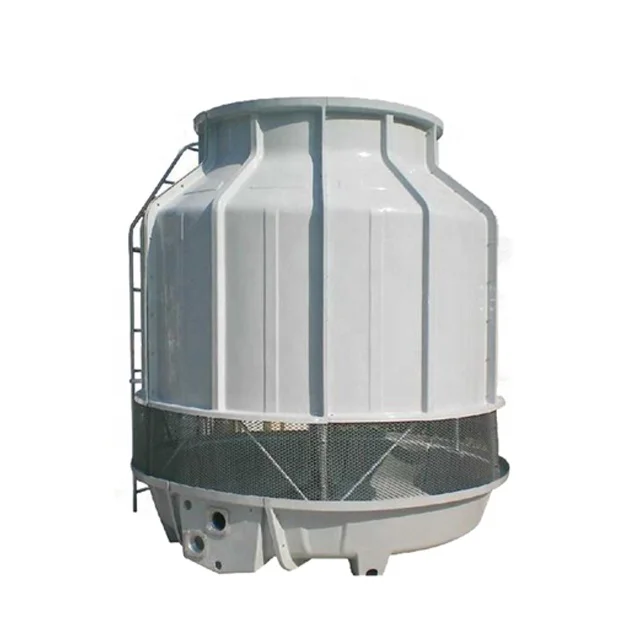

FRP Induced Draft Counter Flow Cooling Tower

FRP cooling tower is fiberglass reinforced plastic cooling tower innovated in a special way for heat exchange,which makes hot water get the lower temperature for circulating use.

Induced draft cooling tower is mainly composed by motor, fan, sprinkler head, filler,casing, basing and air intake louver.


--------------------The Structure of FRP Counter Flow Cooling Tower-------------------

\t
1
\t
Tower body
\t
Reasonable shape, stable airflow, excellent material and bright color.
\t
2
\t
Filler
\t
The modified polyvinyl chloride wave plate,good thermal performance, high temperature resistance of 70 degrees, low temperature of -50 degrees, and good flame retardancy.
\t
3
\t
Rotating water distributor and water pipe
\t
Uniform water distribution, aluminum alloy or fiberglass water pipe.

\t
4
\t
Fan
\t
Fiberglass fan blade,low noise and high efficiency.
\t
5
\t
Motor
\t
Good sealing and waterproof performance.
\t
6
\t
Reduction gear
\t
Resistant to high temperature and high efficiency.
\t
7
\t
Sound absorption facilities
\t
The ultra-low noise cooling tower adds a shield with sound absorbing material outside the air inlet, and is equipped with sound absorbing gratings in the upper and lower parts to achieve maximum noise reduction effect.
\t
8
\t
Inlet air window
\t
It is equipped with FRP louvers to reduce floating water and low airflow resistance.
\t
9
\t
Support
\t
All fasteners are galvanized or stainless steel bolts.

Cooling Tower Fill Media

Cooling Tower Sprinkler

Drift Eliminator

Air Inlet Louvers

---------------------The Features of FRP Counter Flow Cooling Tower-------------------


1. Reliable operation, durable and easily installation.
2. Drain pan be equipped with mannual or automatic make-up water device, drain outlet, overflow outlet etc.
3. Lower cost, light weight, small windage and noise.

From quality to maintenance, FRP cooling tower has made its edge among other cooling towers. Aside from the strength and flexibility a fiberglass has to offer, low maintenance is also of good advantage when it comes to its structure.


------------------Some Specifications of FRP Counter Flow Cooling Tower--------------

\t
Item
\t
Total Height (mm)
\t
Air Flow (m3/h)
\t
Dia. of Fan (mm)
\t
Power (KW)
\t
GFNDP-75
\t
3830
\t
68000
\t
1800
\t
3
\t
GFNDP -500
\t
6440
\t
401000
\t
4200
\t
22
\t
GFNDP-700
\t
7150
\t
560000
\t
4700
\t
30

-------------------The Applications of FRP Counter Flow Cooling Tower-----------------

Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields.
