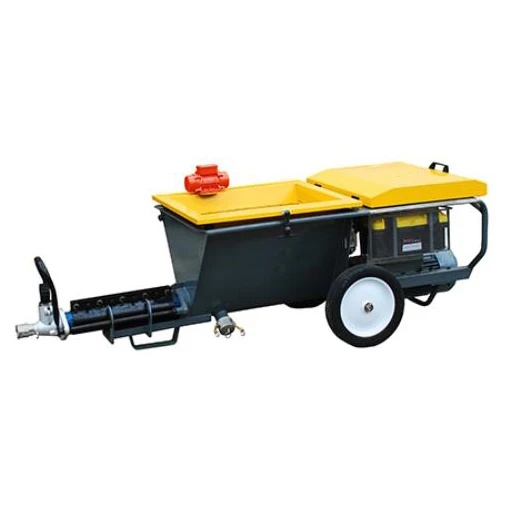

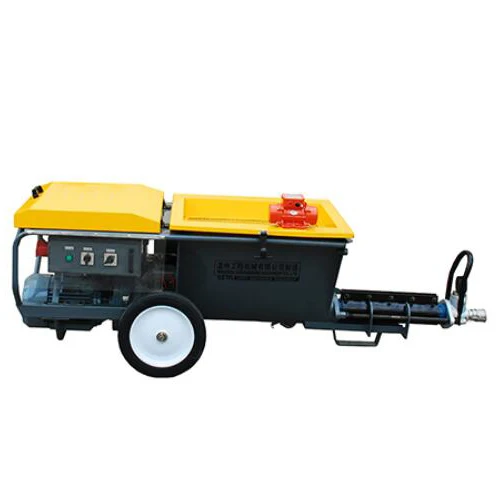

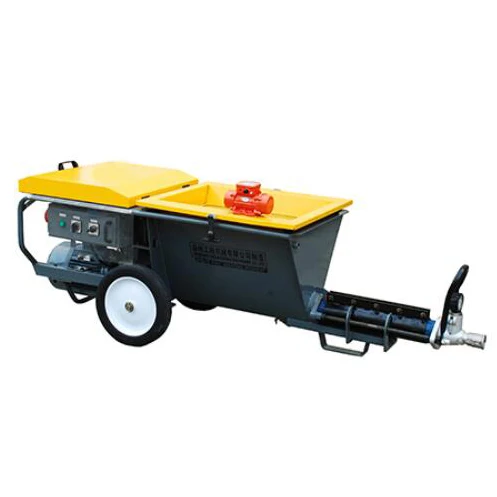

PM60 is a large-displacement mortar spraying machine with functions of pumping, bonding and spraying.

High conveying efficiency, long pumping distance, easy to pump large particle materials, can be used to spray premixed mortar and on-site mixing mortar.
Applicable to all kinds of plastering mortar, thermal insulation mortar, bonding mortar, fiber mortar, facing mortar, interface mortar, floor mortar, fireproof mortar, refractory mortar, self-leveling mortar, masonry mortar, reinforcement mortar, filling mortar, perfusion Mortar transport and spraying.
Set the anti-wear control mechanism of the screw pump; adopt the integrated adjustable screw pump stator to deal with the wear mechanism; have the function of separating the screw pump core shaft and the outer casing directly on the machine; adjust the displacement and remote control function, and integrate the pressure sensing.



Technical parameters



Model	PS60
Power supply	380V 50Hz
Motor Power	4.5kw/5.5kw(Infinitely variable speed motor is optional)
Compressor power	0.9kw
Maximum particle size	6mm
Displacement	60L/min
Delivery pressure	30bar
Horizontal conveying distance	60m
Vertical conveying distance	30m
Feed hopper capacity	100L
weight	240kg
Size (length × width × height)	2040mm×680mm×650mm



Standard configuration
Pump equipment G60 (2L6)	Shockproof pressure gauge assembly YN60-6Mpa
3P 380V (220V) 4.5/5.5KW motor	German air compressor 400V 3P 250L/min 900W
Alloy aluminum die casting spray gun	3P MV60/3 vibration motor
Integrated control box	Toolbox
Φ35mm, φ38mm slurry pipe and quick connector (optional)	Φ13mm air supply pipe and quick connector
