Новый изысканный алюминиевый профиль EJON E8 светодиодный канал буквенные знаки 3D гибочная машина для алюминиевого


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.25 $* 0.44 $*
Aug-16-2025 0.73 $* 0.59 $*
Jul-16-2025 0.41 $* 0.2 $*
Jun-16-2025 0.50 $* 0.76 $*
May-16-2025 0.5 $* 0.58 $*
Apr-16-2025 0.68 $* 0.49 $*
Mar-16-2025 0.40 $* 0.47 $*
Feb-16-2025 0.40 $* 0.24 $*
Jan-16-2025 0.74 $* 0.75 $*

Характеристики


Product Description

Product Application

New EJON E8 Exquisite aluminium profile led Channel Letter Signs 3D Aluminum Profile bending machine
China best bending machine EJON E8 LED signs and channel Letters making tools auto EJON aluminum bending machine

 Exclusive design of aluminum profile bending machine,with both positive and negative double side slotting methods, slotting can be realized at any angle.Independent research and development of the software system, with the material database, arc high, easy to deal with small angle arc, large angle extrusion arc, to achieve the perfect match with the letter.

\t
SPECIFICATIONS
\t
Feeding System
\t
Roller circulation feeding system
\t
Slotting System
\t
Alloy milling cutter slotting system
\t
Bending System
\t
Double roller bearing extruding bending system
\t
Suitable Material
\t
Aluminum plate, Aluminium profile
\t
Material Height
\t
20~130mm

\t
Material Thickness
\t
0.4~1.2mm
\t
Control System
\t
4 axis control system
\t
Min. Bending Angle
\t
R10
\t
File Format
\t
Dxf.Plt.Ai
\t
Power
\t
AC220V,50Hz,2.0Kw
\t
Air Supply
\t
0.6m3/Min
\t
Total Weight
\t
Detailed Images

Machine Parts

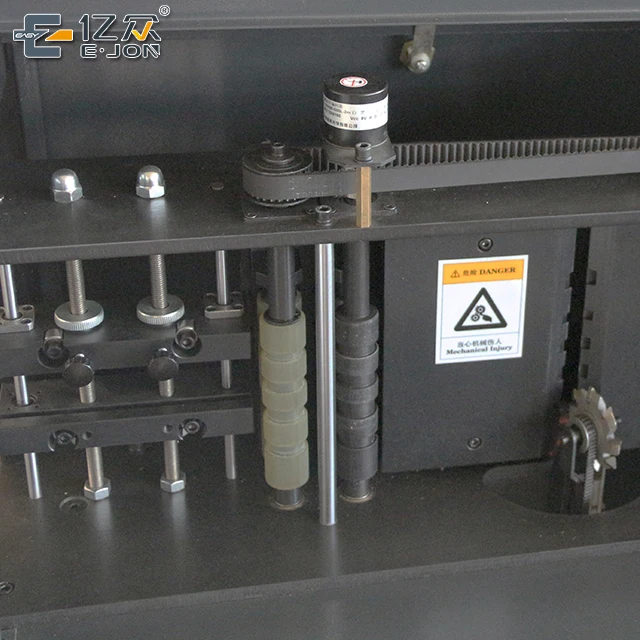

The customized feeding roller ensures the feeding precision, meanwhile does not scratch the material.

Main Features

Alloy milling cutter slotting system for Aluminum plate and Aluminum profiles.

Machine Parts

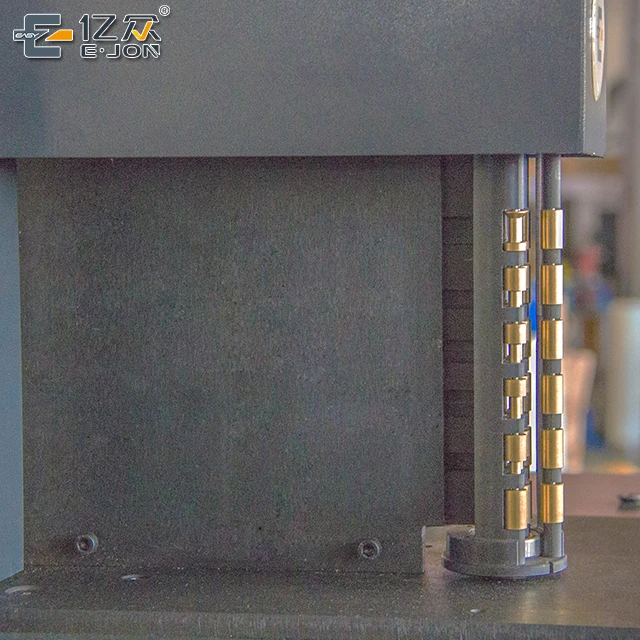

The well-designed bending mechanism improves the molding degree.

Main Features

The motors ensure fast and accurate processing.



Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

Title goes here.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
1320(L) * 720 (W) * 1440(D)
\t
Weight
\t
200KG
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
About us
