Автоматический регулятор напряжения SBW 100 кВА/стабилизатор напряжения/AVR
- Категория: Voltage Regulators\/Stabilizers >>>
- Поставщик: Shenzhen,Xingkerong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1428.50 $* | 1499.83 $* |
| Aug-19-2025 | 1416.22 $* | 1487.44 $* |
| Jul-19-2025 | 1188.58 $* | 1247.25 $* |
| Jun-19-2025 | 1392.43 $* | 1462.14 $* |
| May-19-2025 | 1212.40 $* | 1273.40 $* |
| Apr-19-2025 | 1368.28 $* | 1436.90 $* |
| Mar-19-2025 | 1356.35 $* | 1424.25 $* |
| Feb-19-2025 | 1344.9 $* | 1411.63 $* |
| Jan-19-2025 | 1332.94 $* | 1399.54 $* |
Характеристики
SBW 100kva automatic voltage regulator
Voltage stabilizer/AVR with best price for Philippinesvr
It's Features:
SBW series AC compensation voltage stabilizer(hereinafter referred to as voltage stabilizer). it is an power supply product which is developed by our company and combines the international advanced technology and our nationl condition.it can keep the output voltage stabilized while the input voltage changes.
It's funtions:
Over&low voltage protection,over-heat/load protection,short circuit protection etc.
Advanced design:
LCD display which can show all protection functions more clearly.
Why choose us:
Our this servo motor type's accuracy is 1±%,the response time is 0.1s. effeciency is 98%,
the price is still competitive.This our new improved technology, Choose us, we can help you get
high quality products, Newest R&D technology support ,More newest type product and get more
customer opportunities.
100kva stabilizer/AVR Specifications:
1 | Type | AVR | |
2 | Capacity | 100KVA | |
3 | AC Input voltage | Switch | 3P160A(CHINT brand) |
|
| Phase | Three Phase |
|
| Voltage | 304V-456V |
|
| Frequency | 50/60HZ |
4 | AC Output voltage | Phase | Three Phase |
|
| Voltage | 380V |
|
| Frequency | 50/60HZ |
5 | Rated output current | 151A | |
6 | Voltage Accuracy | ±1-5%V Adjustable(Factory set±1%) | |
7 | Load working | Can continuous working 80% load | |
8 | Efficiency | >98% | |
9 | Insulation strength | 2500V/Min | |
10 | Insulation Class | E class | |
11 | Cooling method | Natural cooling | |
12 | Resist electric strengh | 2500VAC/min | |
13 | Noise | ≤60db(Noclude forced air cooling system) | |
14 | Temperature Rise | ≤75℃ | |
15 | Size: | Length1000 *Width 650* High1100(mm) | |
16 | Weight : | Net weight:380KG Gross weight: 402KG | |

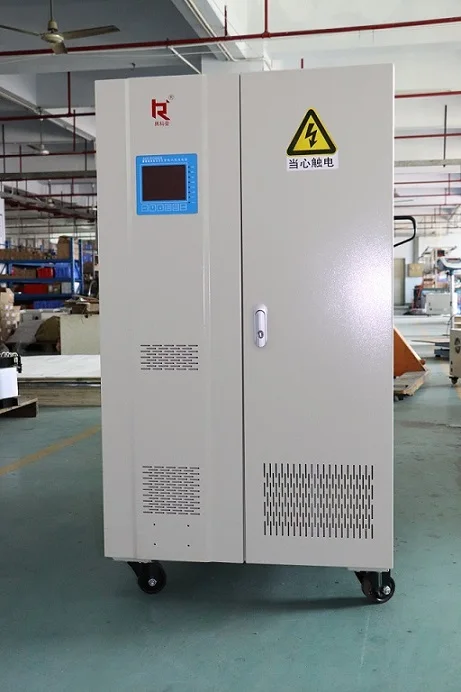

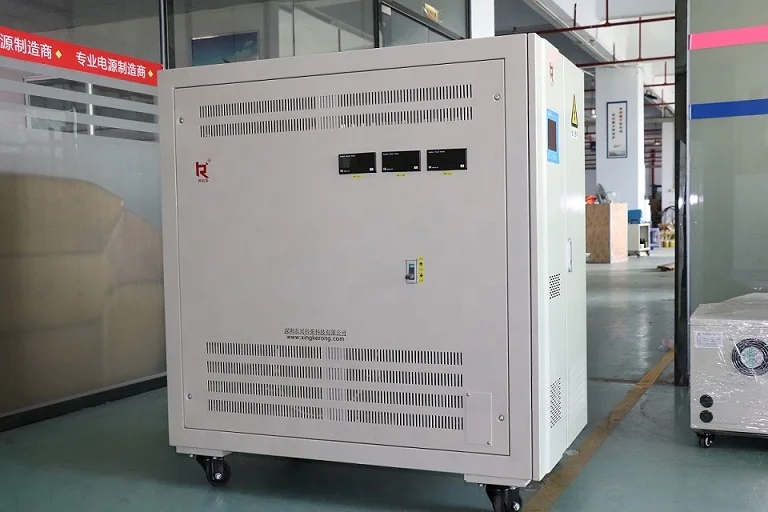

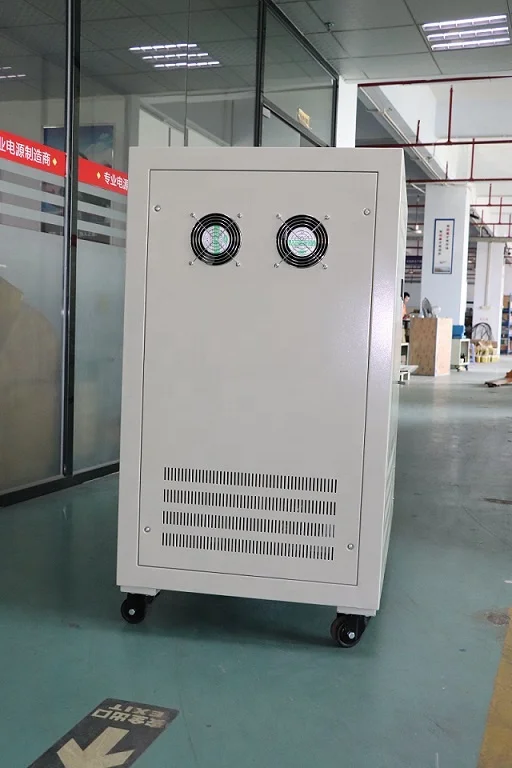

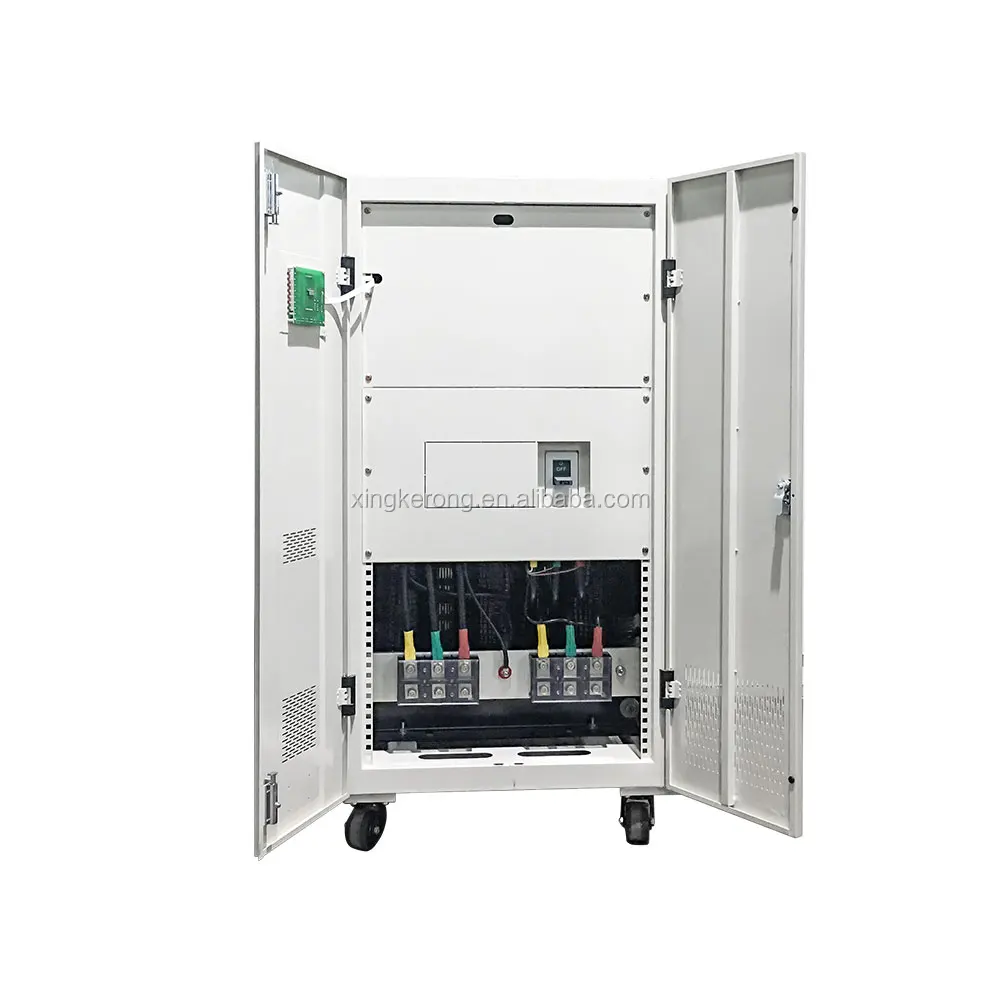

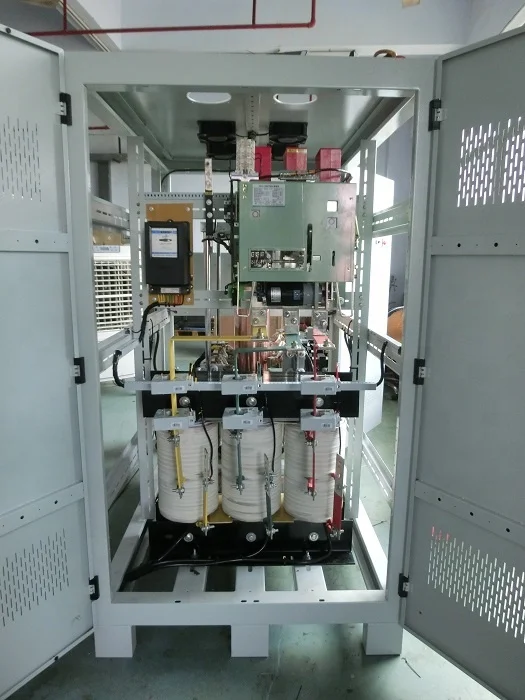

Product detial pictures:
FAQ:
Q 1. what's the payment term?
A. We accept TT,L/C, or alibaba credit order.
Q 2. How is your delivery time ?
A. For bulk order usually it will take about 10-25 days for production.For sample order need 7 days.
Q 3.What's your packaging material?
A. Using strong wooden case for protection.
Q 4.Do you accept to use our logo ?
A.Our logo is R(please kindly find the previous pic to check).If your order has good quantity,it absolute no problem to do OEM.
But you use our logo R will be high appreciated.
Q 5.What's your month capacity?
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 5000pcs and big capacity near 1000pcs.
Q 6. What's the materials ?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your require. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
For transformer,Aluminum or Copper material is accorsing your demind.
Q 7.Could you offer Form A or other original documents?
A. Yes, we can offer. please tell us all your requires after you pay.
Q 8. what kind of certificate you got?
A. Our company already obtained CE,ISO9001, ROHS, SGS,design and technical patents certificates.
Q 9.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10.Do you accept the Customized?
A: Yes,Welcome customized. sending us your requires,we will draw a drawing for you checking soon.
