Машина для производства бумажных

Категория: Оборудование для производства домашних изделий >>>
Поставщик: Ruian,Baolida,Machinery,Factory

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.28 $*	0.73 $*
Aug-20-2025	0.20 $*	0.39 $*
Jul-20-2025	0.63 $*	0.98 $*
Jun-20-2025	0.0 $*	0.88 $*
May-20-2025	0.40 $*	0.43 $*
Apr-20-2025	0.68 $*	0.70 $*
Mar-20-2025	0.68 $*	0.78 $*
Feb-20-2025	0.20 $*	0.14 $*
Jan-20-2025	0.37 $*	0.3 $*

Характеристики

Product Description

Overview.

Quick Details

Condition: New Place of Origin: china Brand Name: WANHE

Voltage:380V Power(W): 3KW Dimension(L*W*H): According to customization

Weight: According to customization Certification: CE Warranty: 2YEARS

After-sales Service Provided: Overseas service center available

Supply Ability

Supply Ability: 50 Set/Sets per Month

Lead Time Info.

\t Lead Time : Est. Time(day)	\t Quantity(Sets)
\t 35	\t 1 - 1
\t 60	\t 2 - 5
\t To be negotiated	\t >5

Paper Straw Product Samples.

Equipment introduction:.

WHZG-50 stainless steel high-speed paper straw machine integrates paper feeding, gluing, winding and cutting into a whole. Equipped with a CNC multi-knife cutting system, the finished paper pipe can be cut online. 6 mm; 8 mm; 10 mm, etc.

Detailed Images

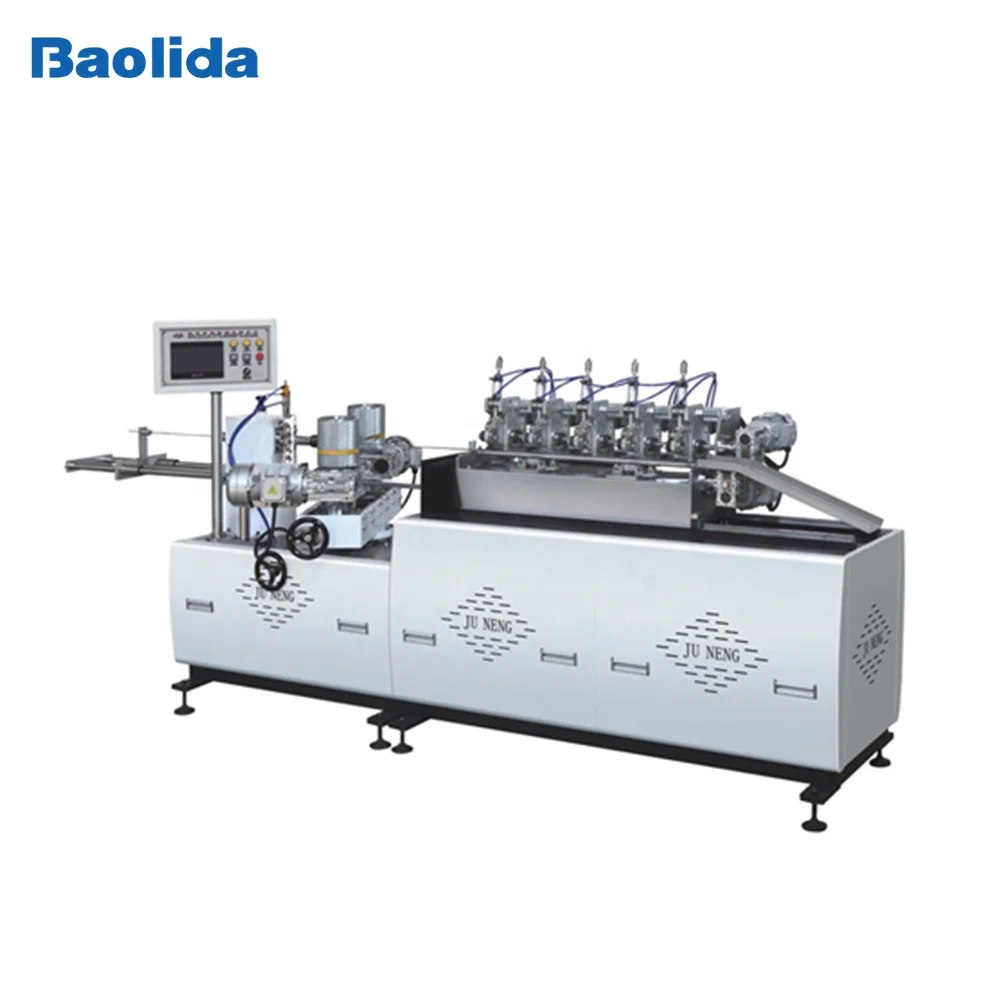

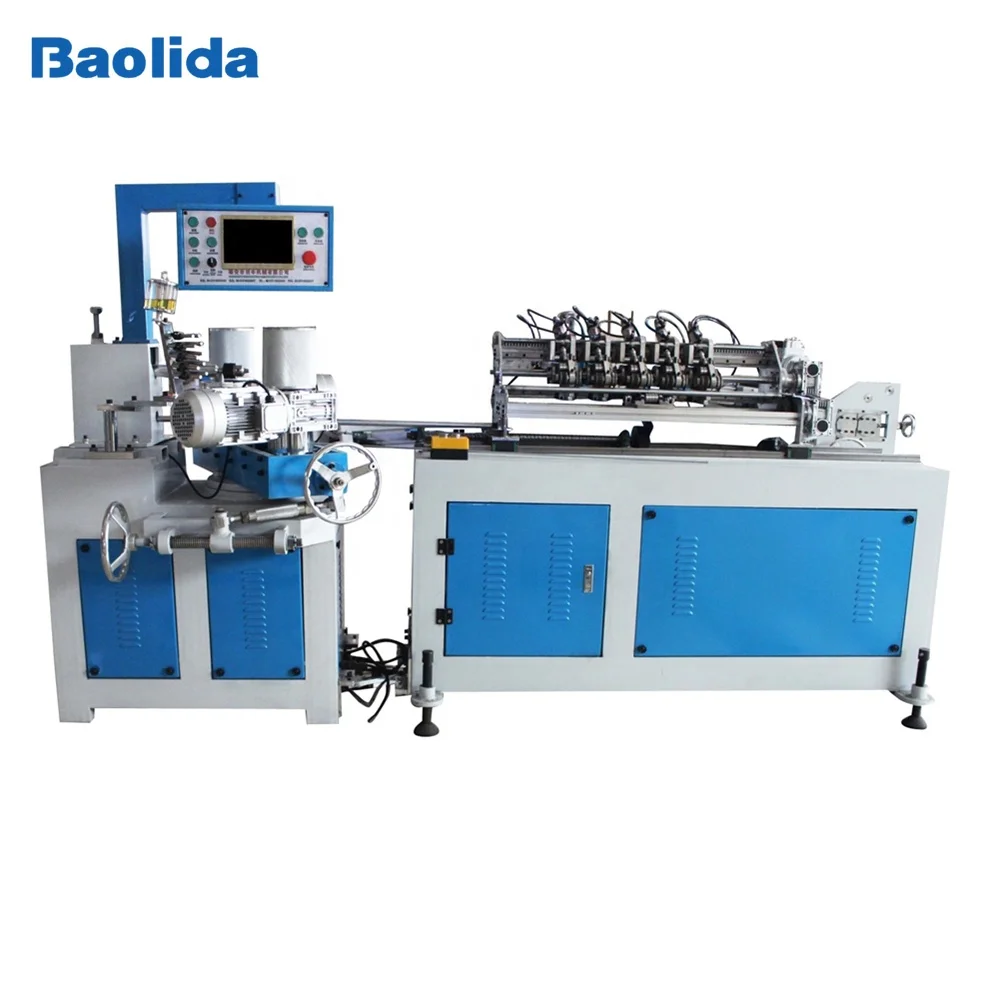

Automatic multi-cutters paper drinking straw making machine.

Machine Performance :

1)This machine adopt PLC automatic control for high speed and easy operation

2)This machine with servo motor control for cutting in high precision

3)This machine is stainless steel for environmental protection

Product Description

\t The main parameters	\t
\t Paper layer	\t 3 layer
\t Volume tube diameter	\t 4.7-12mm
\t Volume tube wall thickness	\t 0.5-2mm
\t Steady speed	\t 30-40m/min
\t Pipe cutting system	\t Synchronous motor tracking; Multiple cuts are made on the wire
\t he gluing way	\t Single and double face
\t The power supply	\t 380V three-phase 50HZ
\t The operator	\t 1-2
\t Paper frame, rubber frame	\t 3
\t The belt	\t 3 article
\t mandrel	\t 2 Set of
\t size	\t 350015001200mm
\t The weight of the	\t 1300kgs
\t Operating area	\t 7000*5000mm
\t Main motor	\t 1.5W*2PC

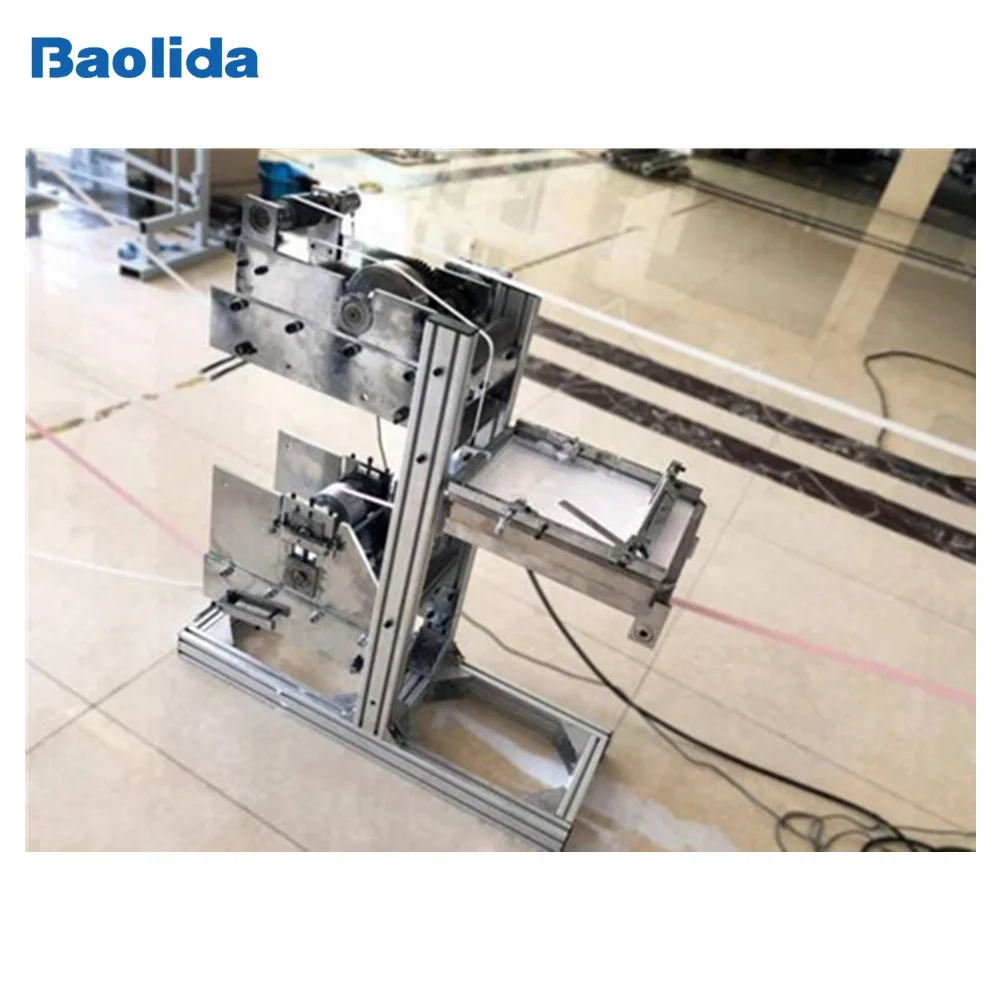

MAIN MACHINE STAINLESS STEEL 304 BODY

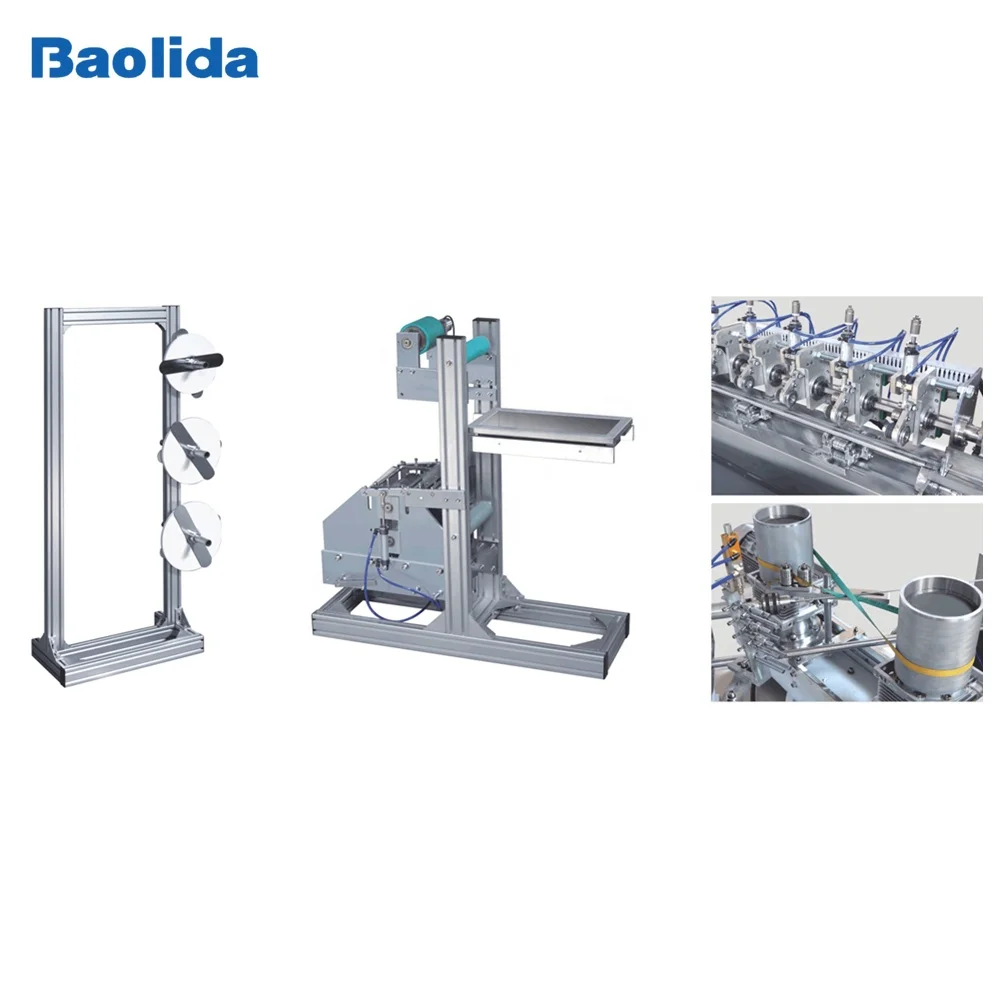

Multi-knives Inline Cutting System

Sample of finished product

Features.

1. The machine is controlled by PLC, and the main machine is equipped with frequency conversion and speed adjustment.

2. The cutting part adopts the servo multi-cutter cutting system, which can synchronously follow the cutting of motor, with higher accuracy and time-saving efficiency.

3. The body and main accessories are made of stainless steel to ensure the product's health and environmental protection

Complete Procedure
