Шаровая мельница машина для горного порошка
- Категория: Mine Mill >>>
- Поставщик: Zhengzhou,Huahong,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.15 $* |
| Aug-16-2025 | 0.70 $* | 0.21 $* |
| Jul-16-2025 | 0.43 $* | 0.49 $* |
| Jun-16-2025 | 0.55 $* | 0.1 $* |
| May-16-2025 | 0.84 $* | 0.74 $* |
| Apr-16-2025 | 0.47 $* | 0.11 $* |
| Mar-16-2025 | 0.25 $* | 0.99 $* |
| Feb-16-2025 | 0.35 $* | 0.24 $* |
| Jan-16-2025 | 0.91 $* | 0.20 $* |
Характеристики
Product Description
The ball mill is the key equipment for crushing the material after it has been broken. It is widely used in cement, silicate products, new building materials, refractories, fertilizers, black and non-ferrous metal beneficiation, and glass-ceramic industries, and various types of ores and other abrasive materials are dry- or wet-milled. The ball mill is suitable for grinding a variety of ores and other materials and is widely used in mineral processing, building materials and chemical industries. It can be divided into dry and wet grinding methods. According to different ways of ore discharge, it can be divided into two types: lattice type and overflow type
 | |
product data
| Model | Speed of bucket (r/min) | Weight of ball or rod (t) | Size of feed opening (mm) | size of outputting feed (mm) | Production (t/h) | Power (Kw) | Weight (t) |
| 900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| 900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| 1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| 1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
| 1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
| 1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
| 1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
| 1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
| 2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
| 2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
| 2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |
| Φ2200×9500 | 21 | 38 | ≤25 | 0.074-0.4 | 18-35 | 475 | 62 |
Spare parts of ball mill
Ball mill accessories include ball mill gear, ball mill pinion, ball mill hollow shaft, ball mill gear ring, ball mill gear ring, ball mill ball, ball mill partition board, ball mill gear, ball mill bearings, ball mill end lining and so on.

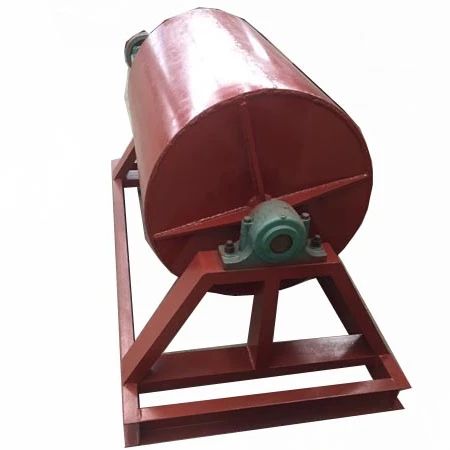

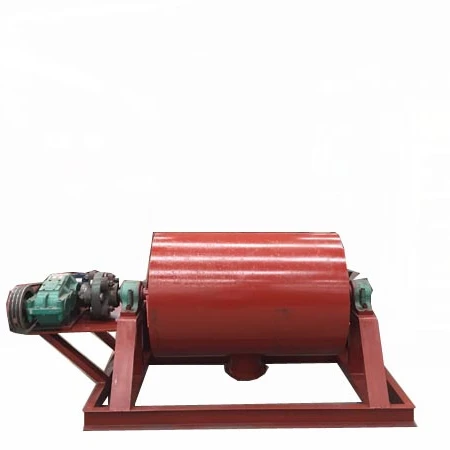

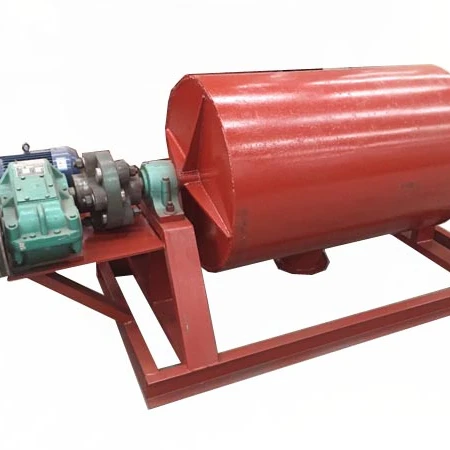

Powder-maker ball mill

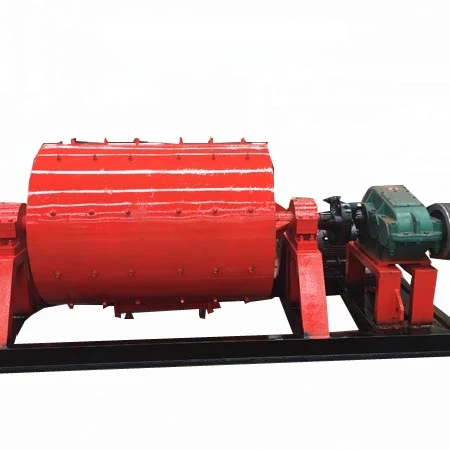

This is feed mouth of ball mill

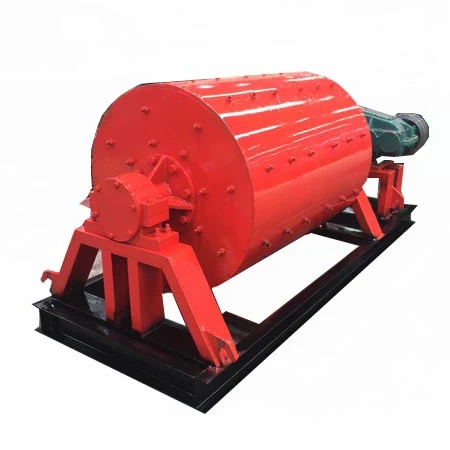

This is out of mouth of ball mill

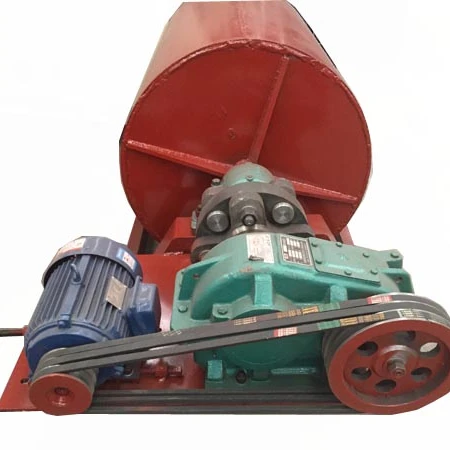

The motor of ball mill
Application materials of ball mill
contact information
Name ;Jessica
we chat ;+8613949058207
QQ;2623204968
whatsapp;+8613949058207
phone number ;+8613949058207
skype ;jessicakoukou1
my maill ;wenpang(at)huahongjixie.net.cn
