SV0520GCA6X-WA0 5 мм скользящий
- Категория: Потенциометры >>>
- Поставщик: Soundwell,Electronic,Products,Guangdong,Co.,Ltd.,[Guangdong,China]Soundwell
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 14.85 $* | 14.39 $* |
| Jul-15-2025 | 11.35 $* | 11.41 $* |
| Jun-15-2025 | 14.18 $* | 14.42 $* |
| May-15-2025 | 14.88 $* | 14.29 $* |
| Apr-15-2025 | 11.4 $* | 11.82 $* |
| Mar-15-2025 | 13.46 $* | 13.89 $* |
| Feb-15-2025 | 13.98 $* | 13.9 $* |
| Jan-15-2025 | 13.56 $* | 13.27 $* |
Характеристики
| Encoder model: | SV05 |

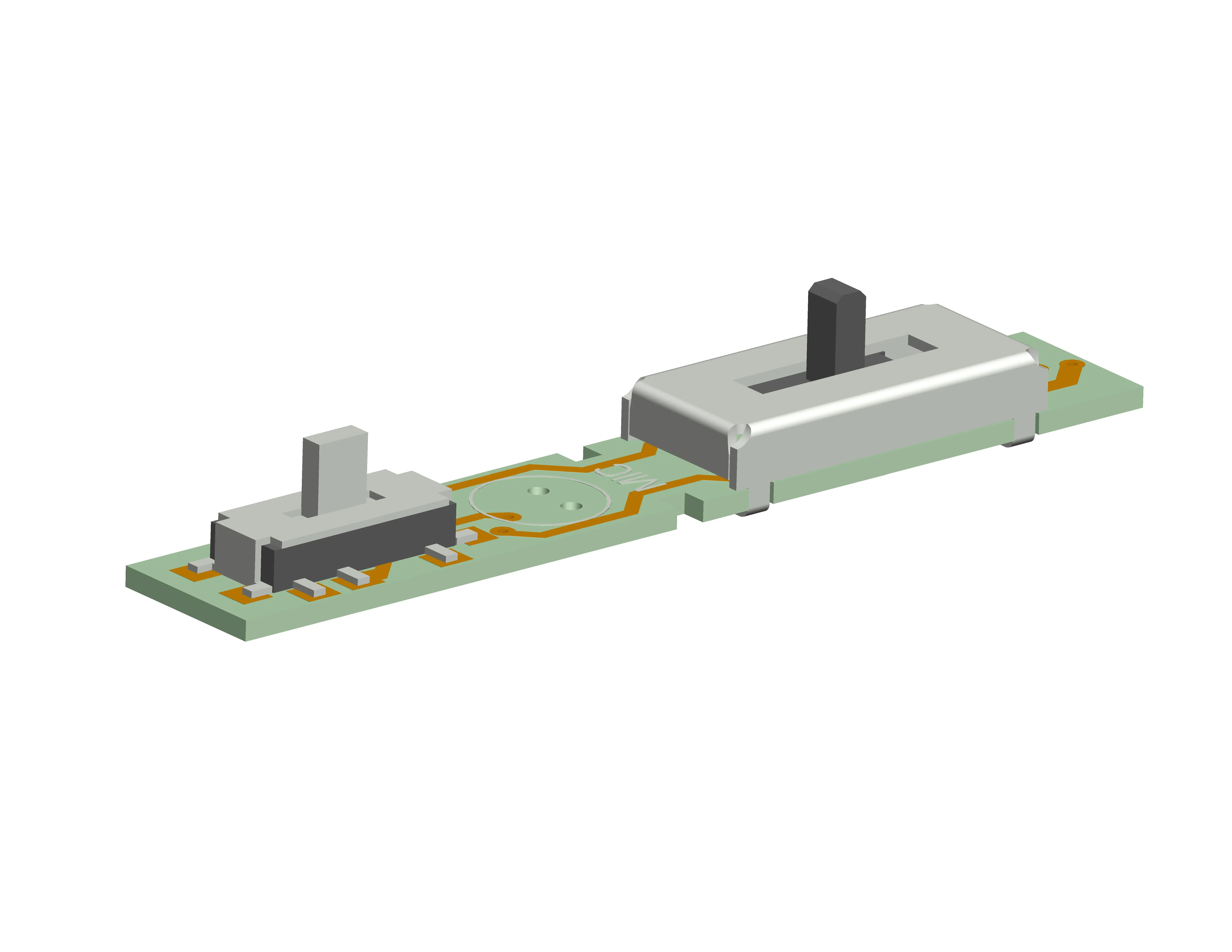

| Name: | Travel Slide potentiometer |
| Main Specifications: | Slide stroke:5mm; Resistance Tolerance:±20%; Rated power:0.005W; Operating temperature:-10℃~70℃; Life: more than 5,000 times; |
| Product Features: | Products of high precision, small size, PCB can be integrated into the whole other lines, shrinking space for the machine. |
| Applications: | The products are mainly applied to wire headset, the main function is to adjust the volume. |
SV05ProductSpecifications
ONE,MECHANICAL CHARACTERISTIC
1, Sliding force :10~100gf.cm
2, Total travel slide :5 ±0.5mm
3, Stop strength :3Kgf
TWO,ELECTRICAL CHARACTERISTIC
1,Total Resistance Range :1KΩ<R<1MΩ,±20%;1KΩ≥R or R≥1MΩ,±30%
2,Resistance Taper :B
3,Power rating : 0.005W
4,Insulation Resistance :100 MΩ 1 Min at DC 250V
5,Dielectric Voltage :1 Minute at AC100V
7,Bounce :≤5ms
THREE,ENDURANCE CHARACTERISTIC
1,Operation Life 5000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
