Бесплатная доставка автоматический интеллектуальный стальной инструмент для обвязки и завязывания

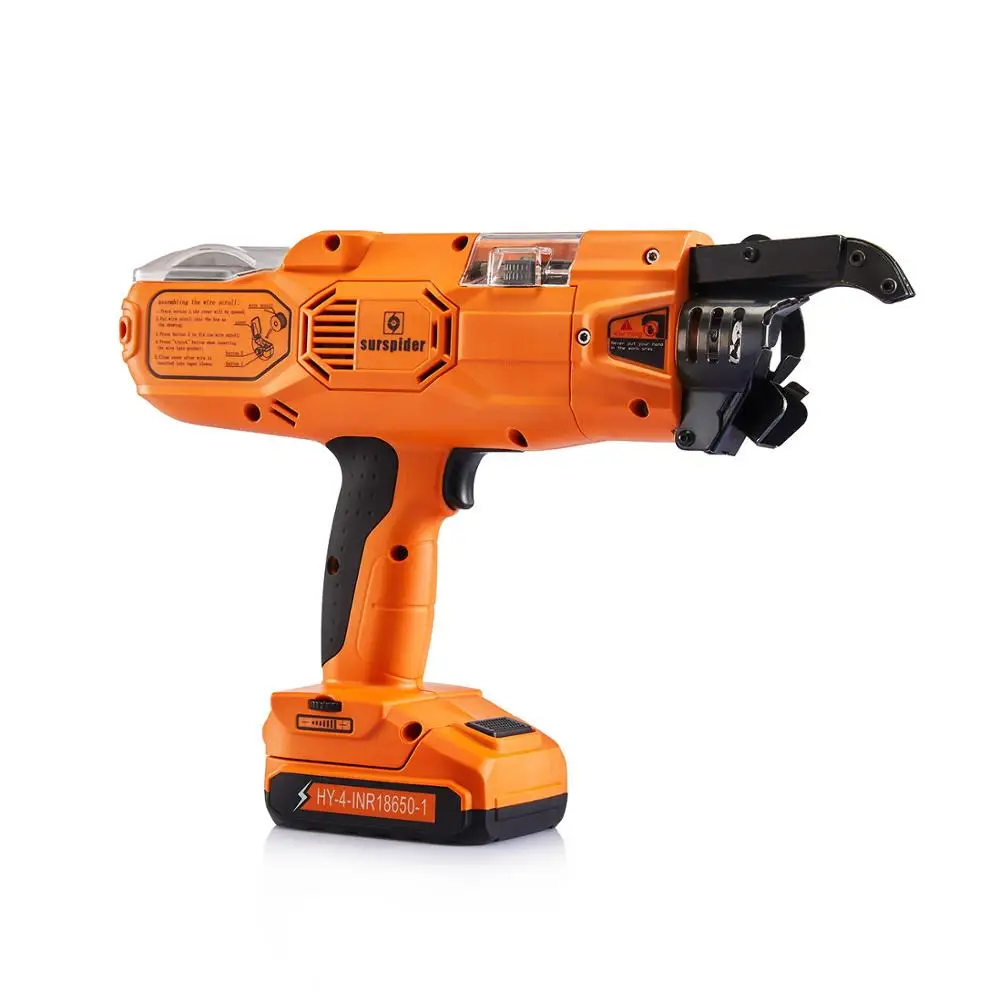

"Surspider" Intelligent Rebar Tier/ Rebar Tying Tool  Make the Rebar Tying so easy,

Rebar tier can be widely used in buidings, bridges, roads, railways, heat floor, swinning pool and even other special projects. the rebar tier take place of manual rebar tying, it imporoves the work effiency and save labor cost.

Mission: Make all rebar tying easier, stronger and faster

Vision: SURSPIDER rebar tier popular all over the world by public praise !

Automatic intelligent concrete steel bar binding and tying tool machine Specifications
Specifcations	ZKZ-25A	ZKZ-35A	ZKZ-40A
Dimension(mm):	300x225x68	310x225x68	315x225x68
Dimension(inch):	11.81x8.86x2.68	12x8.86x2.68	12.4x8.86x2.68
Weight(kg)	1.45	1.45	1.45
Voltage (V):	14.4	14.4	14.4
Tying range(mm):	12-24	24-32	26-40
Tying speed(s):	0.8	0.8	0.8
Tying wraps :	2	2	3
Ties per full standard battery(pcs):	2000	1750	1100
Ties per full advanced battery(pcs):	6200	5450	3500

        Standard Battery.

         Voltage (V): 14.4
         Battery Charge: 16.8V DC0.7A
         Battery capacity(Ah): 2.0
         Charging time: 2.8
         Warranty (month): 6

          Advanced battery.

           Voltage (V):14.4
           Battery Charge :16.8V DC2.2A
           Battery capacity(Ah):6.0
           Charging time :2.7

           Warranty (month):6.

Double Charger.

Model No.  HY-CH-14.4V2.9A-1

Input Voltage/Current: 100-240VAC 50/60HZ 0.8A

Output Voltage/Current: 16.8V DC 2.9A

Wire Coil.

Diameter(mm) 0.8
Length(meter) 100
Net weight 390
Knots/coil:   ZKZ-25A   283

                      ZKZ-35A    229
                      ZKZ-40A    147

                                Tool Belt.

                                   Pry Hook.

"Surspider"  intelligent concrete wire mesh Rebar Tier Tying tool is available for all kinds of reinforced rebar and concrete construction

 9 Main Features

1) ZKZ-40A 1.45KGS, size 315*225*68mm.

2) Exact wire length control, shortest wire for each knot.

3) 1 Surspider Tier = 4 Workers.

4) 80% battery life left after 3 years using (Samsung battery core)

5) One key adjust tying power and wire length.

6) Passed one million times life test

7) 99% tying success rate, all knots are tight and standard

8) Passed high-low temperature test(-5°C to 80°C)

9) 21 exclusive patents protection

Features

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* Production capacity: 2000pcs / month

* View our Factory. Wechat:  +86 13535798771

After-Sales Service

* Training how to instal the machine, training how to use the machine.

*1 year Quality Warranty

Packing & Delivery

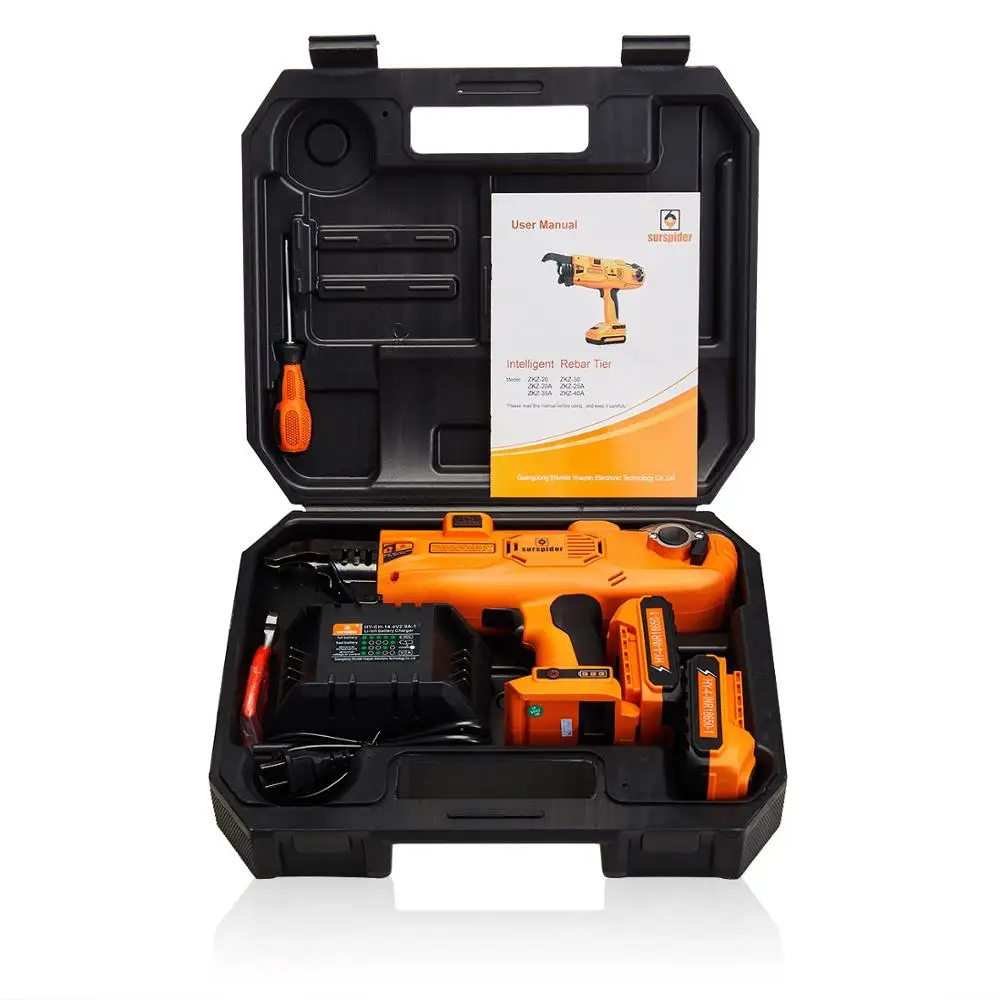

intelligent concrete wire mesh Rebar Tier Tying tool Standard Kit
Name		QTY
Intelligent Rebar Tier		1 pcs
Double Charger		1 pcs
Standard Battery		2 pcs
Wire Coil		1 pcs
Cutter		1 pcs
Allen Key		1 pcs
Allen Key		1 pcs
User Manual		1 pcs

Optional Parts.

1. Advanced Battery ( included Battery Adapter)

2. Tools Belt

3. Pry Hook.

Packaging-- intelligent concrete wire mesh Rebar Tier Tying tool
1pcs/ Suit Box	36 x31x12cm       0.014 CBM         4.5kgs
5 pcs / carton Box	55x36x31cm         0.06 CBM         20 kgs
120pcs / Pallet	110x110x134cm      1.62 CBM       490kgs 5 Carton Boxes / Layer Total 4 Layers
150pcs / Pallet	110x110x165cm        2.0 CBM       610kgs 5 Carton Boxes / Layer Total 5 Layers

Packaging---Wire Coil
20 pcs/  Box	14x14x22cm       0.005 CBM        8.4kgs
3 Boxes / Carton Box	23x15x45cm        0.016 CBM        25.5kgs 60 pcs
44 Cartons / Pallet	110x110x120 cm    1.45 CBM      1135kgs 2640 pcs

Delivery time:

Within 7 days for sample order if we have in stock.

30 days after 30% deposit for bulk order.

Delivery Methed:

Sample normally by express.

Bulk order by Sea.

Certifications

21 exclusive patents protection Details.

Invention Patent:

         1. on wire Twisting mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0787970.0.

         2. on Wire sending mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0788235.1.

Utility Moder Patent:

        1. on wire scroll locking mechanism of rebar tying tool, the certificate No in China is ZL 2015 2 0248889.5.

Appearance Design patent:

         1.  about the portable battery pack. the certificate No. in China is Zl 2015 3 0333052.6.

         2. about the rebar tying tool. the certificate No. in China is ZL 2015 5 0332805.1.

intelligent concrete wire mesh Rebar Tier Tying tool certificate:  CE + RoHS

         1. CE on rebar tier , about the EMC Directive 2014/30/EU, the model No. is ZKZ-25A / ZKZ-40A

         2. RoHS on rebar tier, about the RoHS Directive 2011/65/EU. the model is ZKZ-25A/ZKZ-40A

Li-polymer Battery Certificate: CE + RoHS

         1. CE Tested according to EN55032:2012/AC:2013 & EN55024:2010, the battery model is 3-ICR18650-1.

         2. CE Tested according to EN55032:2012/AC:2013 & EN55024:2010, the battery model is 3-ICR18650-3.

         3. the contect is about RoHS Directive 2011/65/EU, the battery model is 3-ICR18650-3.

Double Charger for Li-ion Batery: CE

        1. Content is about the LVD Directive 2014/35/EU. the certificate is HY-CH-12V3A-1.

         2. The content is about the EMC Directive 2014/30/EU. the charge model is HY-CH-12V3A-1.
