Чип 0805 1 чип серии высокой яркости T0.8mm типа SMD LED
US $0.02-$0.05
Светодиодный источник света и световые полосы тип элемента 6 в 3535 мА smd LED для подсветки
- Категория: SMD LED >>>
- Поставщик: Shenzhen,Trillion,Auspicious,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.75 $* | 0.56 $* |
| Aug-17-2025 | 0.8 $* | 0.30 $* |
| Jul-17-2025 | 0.34 $* | 0.32 $* |
| Jun-17-2025 | 0.25 $* | 0.75 $* |
| May-17-2025 | 0.9 $* | 0.83 $* |
| Apr-17-2025 | 0.71 $* | 0.52 $* |
| Mar-17-2025 | 0.75 $* | 0.82 $* |
| Feb-17-2025 | 0.88 $* | 0.73 $* |
| Jan-17-2025 | 0.20 $* | 0.38 $* |
Характеристики
Specifications:
2W
1. Shapes: square
2. Emitting color: Cold White
3. Temp Color: Cool White:10000-15000K
DC forward voltage (VF): White: 5.8-6.5V
Intensity luminous: 140-180LM
4. Copper bracket
5. Life Span: 50,000 Hours
6. With RoHS & CE Approved
7. Beam angle: 120 degree
8.Forward Current: 150-200mA
Package included:2000PCS/Roll
Note :
They may burn out if they receive enough power with no cooling , And if you use it for a long time,
please give them colling!!!

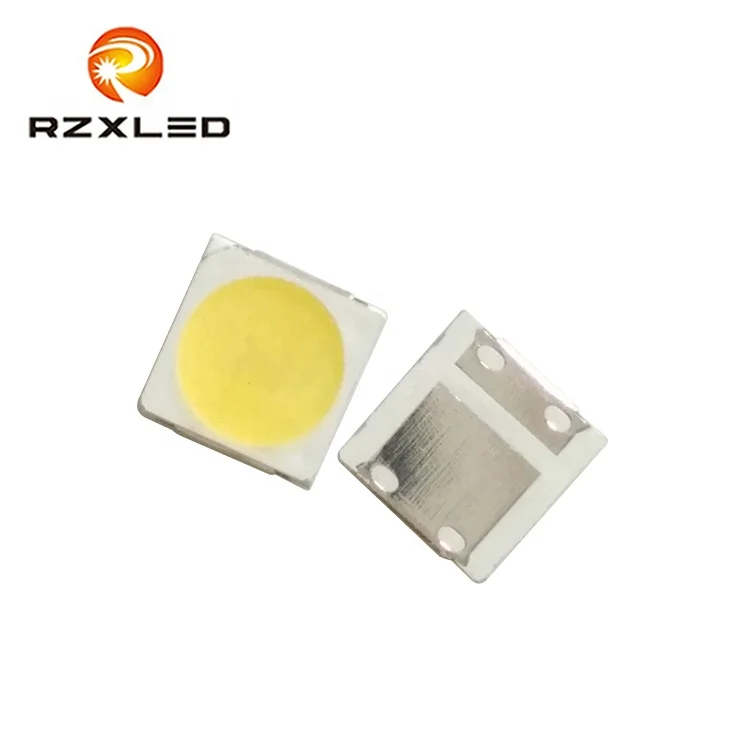

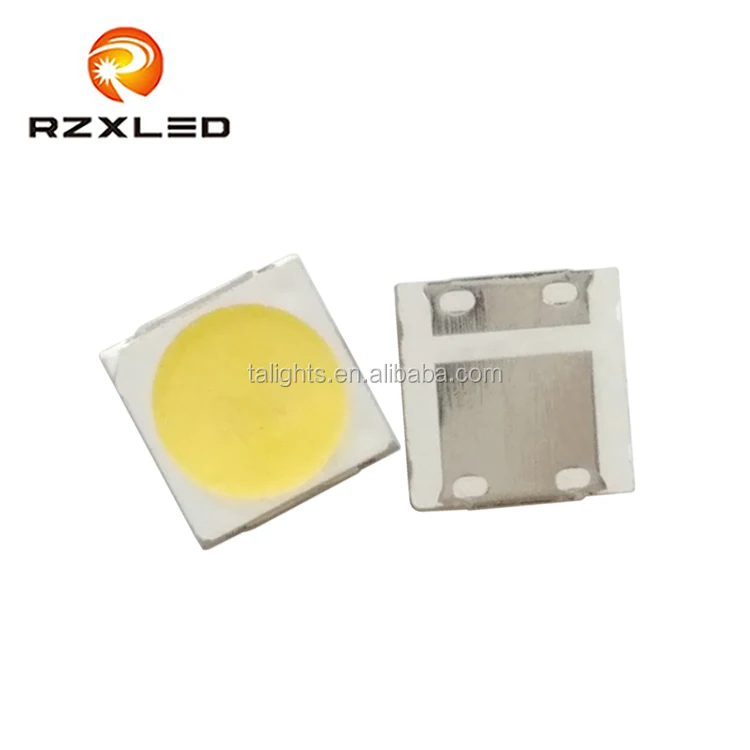

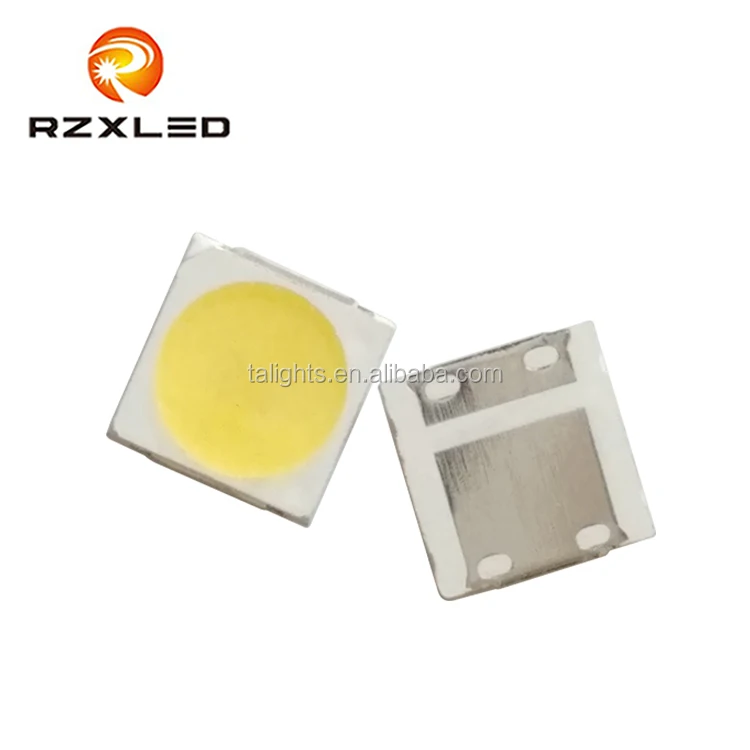

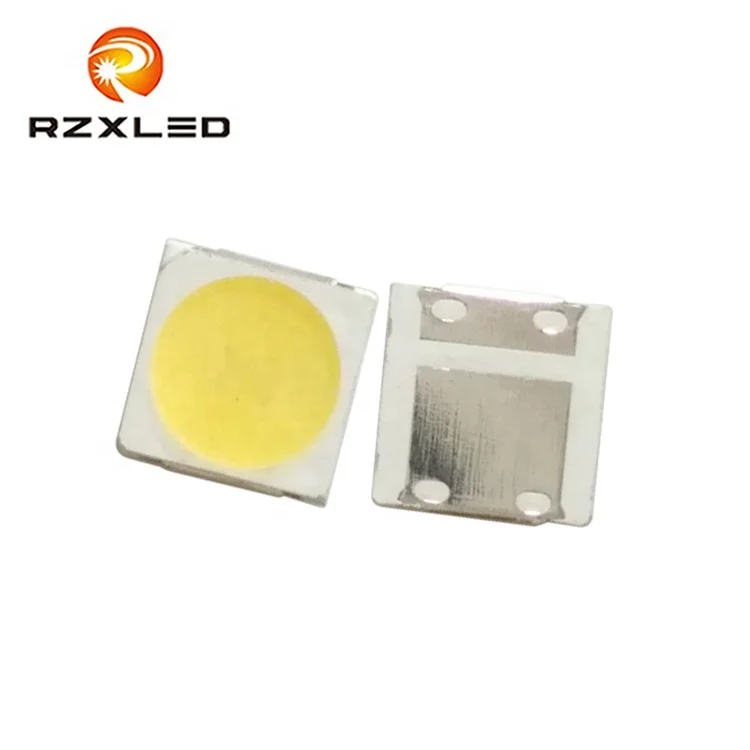

3535 cold white(2W 6V)
Dimension | 3.5x3.5x0.8mm |
Power Consumption | 2W 5.8-6.5V |
Color Temperature | cool white10000K-15000K |
flux | 140-180LM |
Voltage | 5.8-6.5V |
Current | 150-200mA |
Application | LED TV backlight |
