Заводской OEM точный кованый торцевой хомут
US $2.00-$10.00
ASNU17 High performance germany quality one way clutch
- Категория: Auto Transmission Systems >>>
- Поставщик: Changsha,Terry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 74.25 $* | 78.32 $* |
| Aug-20-2025 | 73.37 $* | 77.83 $* |
| Jul-20-2025 | 61.18 $* | 64.15 $* |
| Jun-20-2025 | 72.36 $* | 76.16 $* |
| May-20-2025 | 63.38 $* | 66.58 $* |
| Apr-20-2025 | 71.7 $* | 75.62 $* |
| Mar-20-2025 | 70.50 $* | 74.8 $* |
| Feb-20-2025 | 69.40 $* | 72.72 $* |
| Jan-20-2025 | 69.36 $* | 72.48 $* |
Характеристики

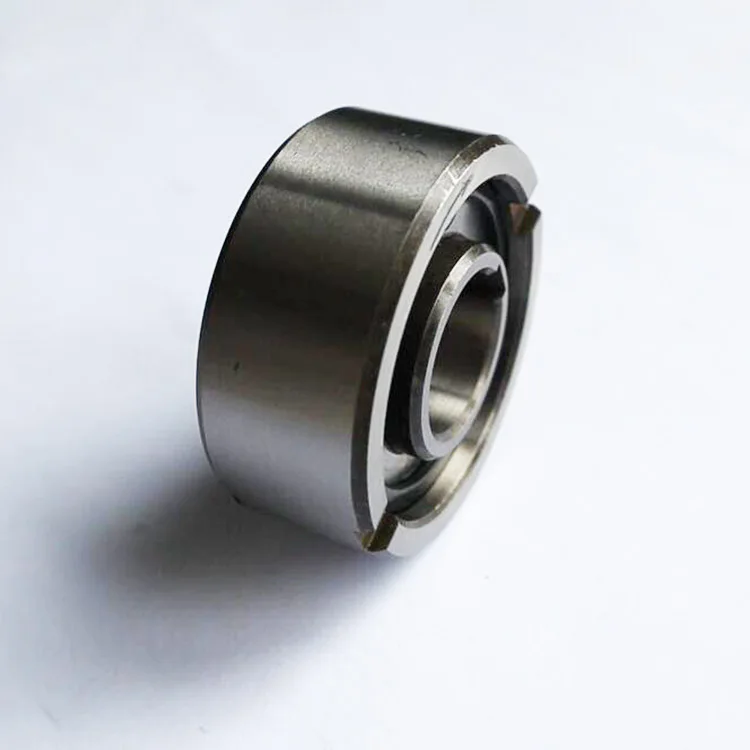

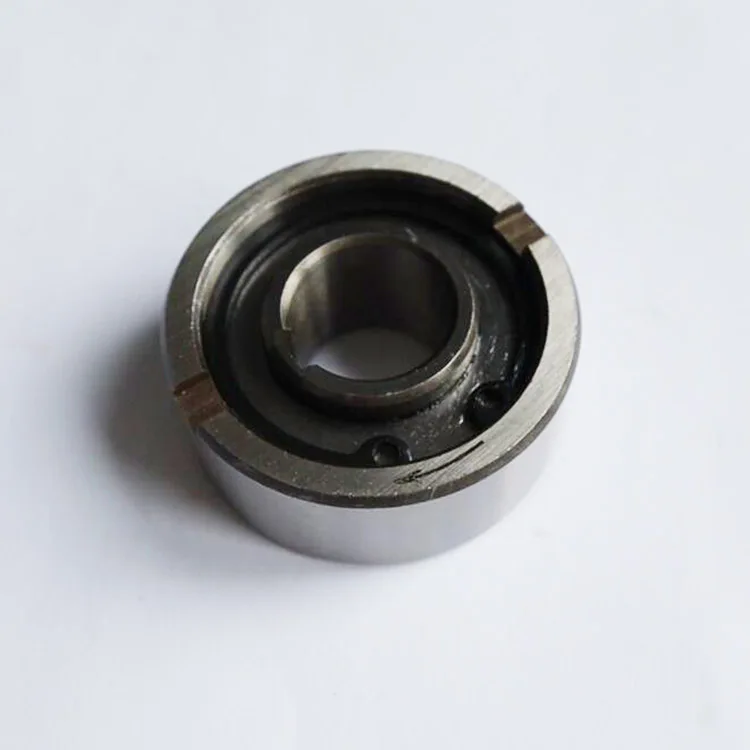

ASNU17 High performance germany quality one way clutch bearing
Product Description
ASNU is a roller type freewheel non bearing supported.
Bearing are required to support axial and radial loads.Lubrication and sealing must also be provided by the installation.
Nominal outside diameter is the same as a series 63 ball bearing.
A typical arrangement is to install this type alonside a bearing within the same location tolerance as shown on the following page.
Product Overviews
ASNU(NFS) series | ||||||||||||
Type | Size | Overrunning Speed | ||||||||||
dH7[mm] | TKN1) [Nm] | nimax2) [min-1] | namax3) [min-1] | Dn6 [mm] | L [mm] | D5 [mm] | b [mm] | t [mm] | s [mm] | e [mm] | f [mm] | |
ASNU (NFS) | 8 | 9.2 | 3300 | 5000 | 35 | 13 | 28 | 4 | 1.4 | 2.4 | 0.6 | 0.3 |
12 | 9.2 | 3300 | 5000 | 35 | 13 | 28 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | |
15 | 24 | 2400 | 3600 | 42 | 18 | 37 | 5 | 1.8 | 2.4 | 0.8 | 0.3 | |
17 | 39 | 2300 | 3400 | 47 | 19 | 40 | 5 | 2.3 | 2.4 | 1.2 | 0.8 | |
20 | 62 | 2100 | 3100 | 52 | 21 | 42 | 6 | 2.3 | 2.4 | 1.2 | 0.8 | |
25 | 100 | 1700 | 2600 | 62 | 24 | 51 | 8 | 2.8 | 2.4 | 1.2 | 0.8 | |
30 | 204 | 1400 | 2200 | 72 | 27 | 60 | 10 | 2.5 | 2.4 | 1.8 | 1 | |
35 | 306 | 1200 | 1900 | 80 | 31 | 70 | 12 | 3.5 | 2.4 | 1.8 | 1 | |
40 | 430 | 1100 | 1700 | 90 | 33 | 78 | 12 | 4.1 | 2.5 | 1.8 | 1 | |
45 | 624 | 1000 | 1600 | 100 | 36 | 85 | 14 | 4.6 | 2.5 | 1.8 | 1 | |
50 | 810 | 850 | 1350 | 110 | 40 | 92 | 14 | 5.6 | 2.5 | 1.8 | 1 | |
60 | 1460 | 750 | 1050 | 130 | 46 | 110 | 18 | 5.5 | 3.6 | 2.6 | 1.5 | |
70 | 1840 | 600 | 950 | 150 | 51 | 125 | 20 | 6.9 | 3.6 | 2.6 | 1.5 | |
80 | 2620 | 550 | 850 | 170 | 58 | 140 | 20 | 7.5 | 3.6 | 2.6 | 1.5 | |
90 | 4260 | 500 | 750 | 190 | 64 | 160 | 20 | 8 | 3.6 | 2.6 | 2 | |
100 | 5800 | 450 | 680 | 215 | 73 | 175 | 24 | 8.5 | 3.6 | 2.6 | 2 | |
120 | 10800 | 370 | 550 | 260 | 86 | 215 | 28 | 10 | 3.6 | 2.6 | 2.5 | |
150 | 21300 | 300 | 460 | 320 | 108 | 260 | 32 | 12 | 3.6 | 3.6 | 2.5 | |
200 | 35600 | 230 | 350 | 420 | 138 | 350 | 45 | 16 | 7.6 | 3.6 | 3 | |
FAQ
1.What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
4. Can we design packaging?
Yes. Default is regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
7. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more
