 flexible pvc pipe tubes

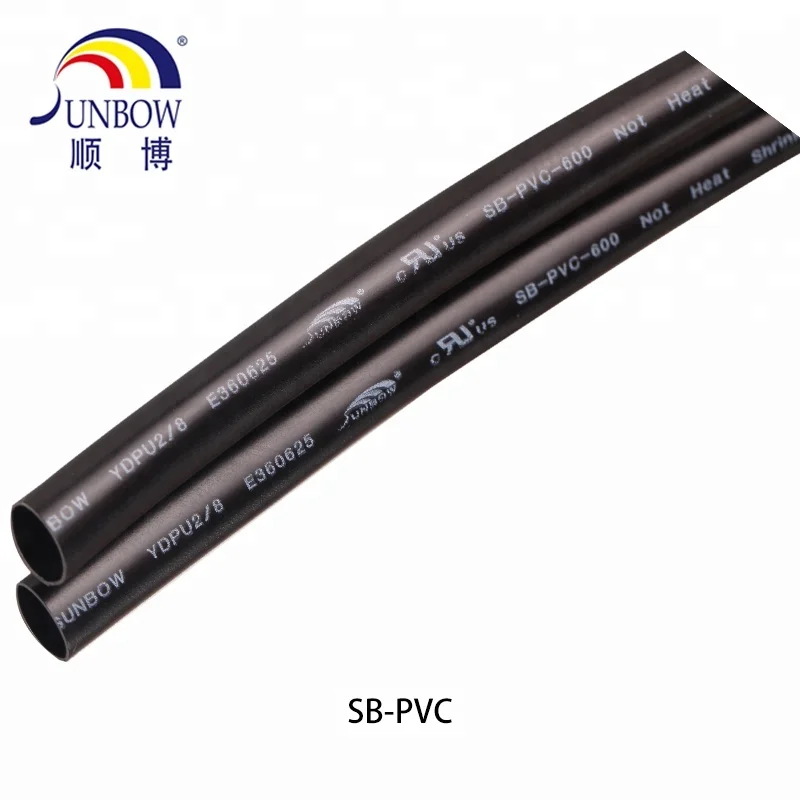

GRADE:SB-PVC

Working temperature:-30°C~+105°C



STRUCTURE

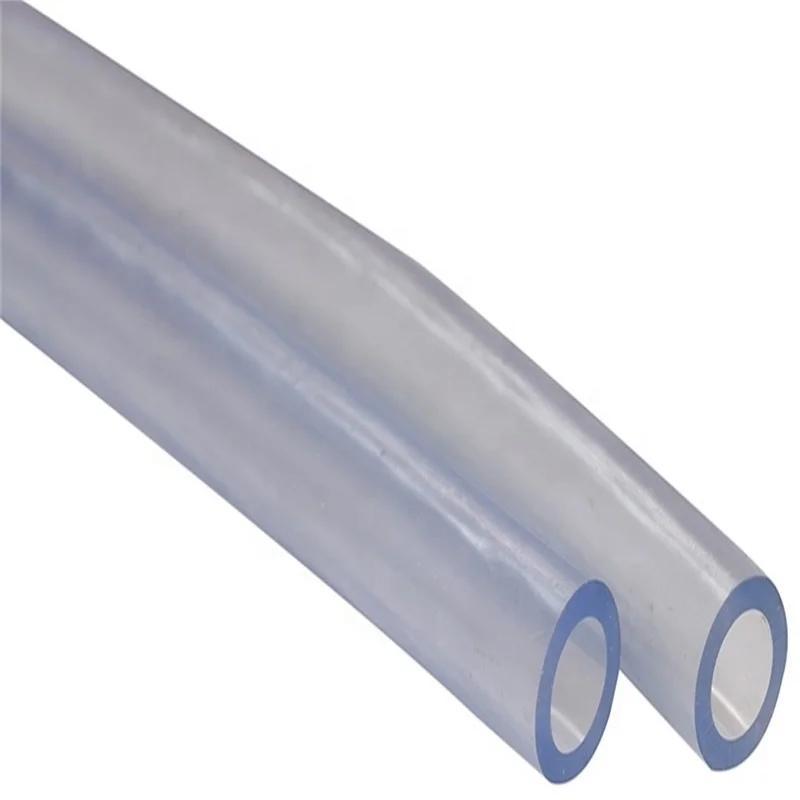

VW-1 Approval Clear Soft PVC Pipe /PVC tubing is produced with superior and environmentally friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.



USAGE

With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, and electronic components, wire harness and etc.



SPECIFICATION

Item		Unit	Test Method	Numerical Value
				SB-300	SB-600
Voltage rating		V		300	600
Temperature rating		°C	224	105
Voltage resistance	Before aging		224  23°C	2500V/60sec
	After aging		224  136°C 168hr	2500V/60sec
Volume resistivity		Ωcm	224	≥1010
Tensile strength	Before aging	Mpa	224  23°C	≥10.4
	After aging	Mpa	224  136°C 168hr	≥7.3
Elongation	Before aging	%	224  23°C	≥100%
	After aging	%	224  136°C 168hr	≥100%
Flexibility			224  136°C 168hr	No cracking
Heat shock			224  180°C 4hr	No cracking
Cold bend			224 -30°C 1hr	No cracking
Copper stability			224  136°C 168hr	No corrosion
Flame resistance			UL224	VW-1











































DIMENSION
