Взрывозащищенный 24 - 50 кВт

Категория: Биогаз >>>
Поставщик: Camda,New,Energy,Equipment,Co.,Ltd.

Цена:10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	11900.14 $*	12495.83 $*
Aug-19-2025	11800.88 $*	12390.28 $*
Jul-19-2025	9900.57 $*	10395.79 $*
Jun-19-2025	11600.47 $*	12180.80 $*
May-19-2025	10100.75 $*	10605.24 $*
Apr-19-2025	11400.49 $*	11970.15 $*
Mar-19-2025	11300.21 $*	11865.58 $*
Feb-19-2025	11200.47 $*	11760.31 $*
Jan-19-2025	11100.12 $*	11655.8 $*

Характеристики

24 - 50 kW explosion-proof biogas pretreatment

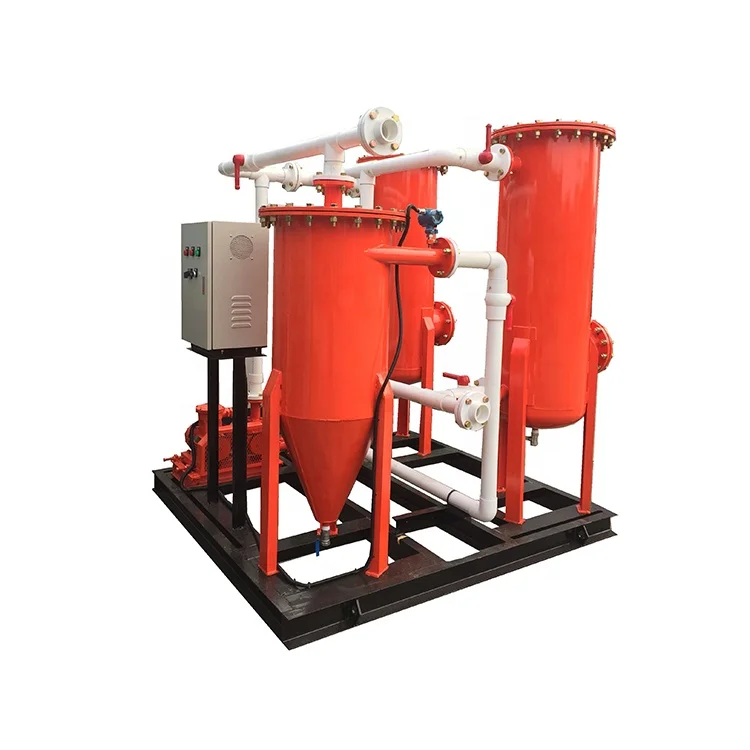

The skid-mounted biogas scrubber adopts the dry desulfurization system which is applicable for small industrial devices where H2S is less than 2000ppm. The biggest skid-mounted biogas scrubber can deal with 300Nm3/h biogas. It is the suitable solution for farm project. In the industrial waste water biogas project, if the devices has to run long time in a day, the H2S is high and has to synchronize with the nation grid, the biogas dry desulfurization system has to be designed specifically.

Model	KDCL-50-WQ	KDCL-100-WQ	KDCL-200-WQ	KDCL-300-WQ
Gen-set Power (KW)	24-50	80-120	150-200	250-300
Gas Flow (Nm3/h)	30-60	60-100	100-150	150-200
Working Pressure (Kpa)	4-40	4-40	4-40	4-40
Desulfurizer	2 pcs	2 pcs	2 pcs	4 pcs
Model & Size	KDTL-250-G	KDTL-400-G	KDTL-800-G	KDTL-800-G
	SS304	SS304	SS304	SS304
	500×1880x3.0mm	600×2080×3.0mm	800×2130×3.0mm	800×2130×3.0mm
Water separator Model & Size	KDFC-200-G	KDFC-200-G	KDFC-200-G	KDFC-200-G
	Q235A	Q235A	Q235A	Q235A
	500×1540×3.0mm	500×1540×3.0mm	500×1540×3.0mm	500×1540×3.0mm
Gas Blower Model&Power	NSR50-50A 1.5KW	NSR65-65A 1.5KW	NSR80-80A 2.2KW	NSR100-100A 3KW
Inlet&Outlet	DN50	DN65	DN80	DN100
Flange	PN10	PN10	PN10	PN10
Ferric Oxide Q.TY	2x150kg	2x225kg	2x300kg	4x450kg
Replacement (Hours)	1250	1250	1250	1250
Dimension (mm)	2000×2000×2160	2000×2000×2200	2500×2000×2250	4200×2000×2280
