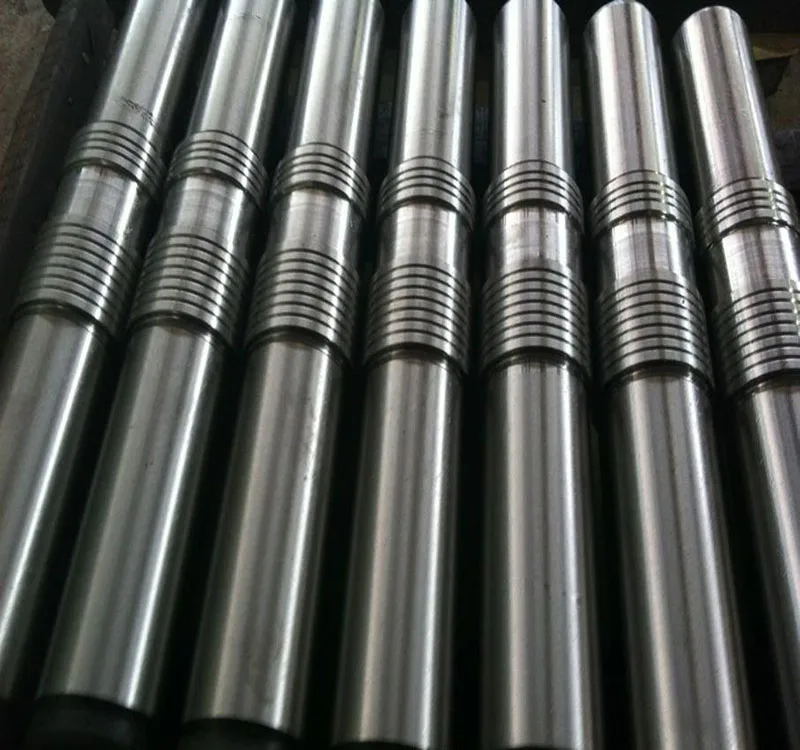

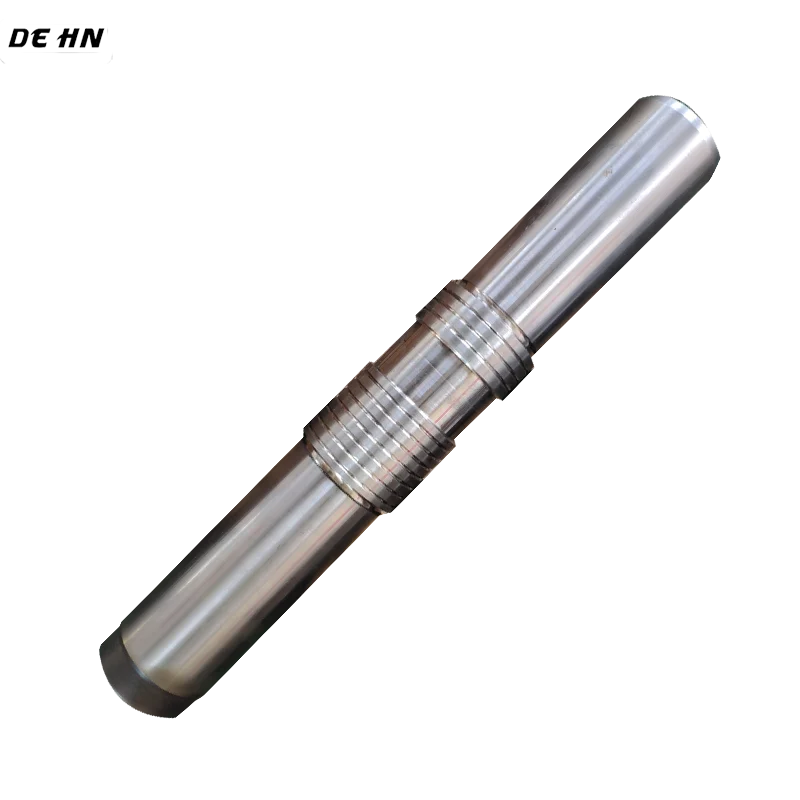

Поршень гидравлического
- Категория: Гидромолоты >>>
- Поставщик: Yantai,Shijin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.36 $* | 0.78 $* |
| Aug-16-2025 | 0.27 $* | 0.47 $* |
| Jul-16-2025 | 0.28 $* | 0.51 $* |
| Jun-16-2025 | 0.88 $* | 0.30 $* |
| May-16-2025 | 0.39 $* | 0.50 $* |
| Apr-16-2025 | 0.14 $* | 0.51 $* |
| Mar-16-2025 | 0.16 $* | 0.42 $* |
| Feb-16-2025 | 0.19 $* | 0.72 $* |
| Jan-16-2025 | 0.71 $* | 0.13 $* |
Характеристики
Product Description
WE are the real manufacturer in China, All breakers are produced, assmebled and backed by DEHN!
SMALL RANGE | |||||
Description | unit | DEHN 400 | DEHN 450 | DEHN 530 | DEHN 600 |
Operating Weight(side/top/box) | kg | 70/72/102 | 95/95/126 | 138/138/152 | 180/180/224 |
Length(side/top/box) | mm | 910/1086/1190 | 1090/1235/1331 | 1178/1344/1417 | 1239/1460/1472 |
Working Flow | liter/min | 15-25 | 20-30 | 25-50 | 30-60 |
Oil Pressure | kg/cm2 | 160 | 160 | 160 | 160 |
Working Pressure | kg/cm2 | 90-120 | 90-120 | 90-120 | 100-130 |
Impact Rate | bpm | 800-1400 | 700-1200 | 600-1000 | 500-1000 |
Chisel Diameter | mm | ¢40 | ¢45 | ¢53 | ¢60 |
Impact energy | joule | 190 | 350 | 550 | 600 |
Suitable bucket | m3 | 0.07 | 0.03-0.1 | 0.06-0.2 | 0.06-0.2 |
MEDIUM SIZE | ||||||
Description | unit | DEHN 680 | DEHN750 | DEHN850 | DEHN 1000 | DEHN 1350 |
Operating Weight | kg(side/top/box) | 263/263/299 | 334/335/375 | 559/569/589 | 761/866/861 | 1653/1847/1510 |
Length | mm(side/top/box) | 1373/1684/1660 | 1515/1706/1712 | 1735/2120/2074 | 1994/2387/2354 | 2423/2900/2847 |
Working Flow | liter/min | 40-70 | 50-90 | 60-100 | 80-110 | 130-170 |
Oil Pressure | kg/cm2 | 170 | 170 | 190 | 190 | 210 |
Working Pressure | kg/cm2 | 110-140 | 120-150 | 127-147 | 150-170 | 160-185 |
Impact Rate | bpm | 500-900 | 400-800 | 400-800 | 350-700 | 400-650 |
Chisel Diameter | mm | ¢68 | ¢75 | ¢85 | ¢100 | ¢135 |
Impact energy | Joule | 800 | 1000 | 1800 | 2100 | 3800 |
Suitable bucket | m3 | 0.15-0.3 | 0.2-0.35 | 0.4-0.6 | 0.4-0.6 | 0.6-1.0 |
Suitable Carrier | ton | 4-7 | 6-9 | 7-14 | 10-15 | 16-21 |
HEAVY DUTY | |||||
Description | unit | DEHN 1400 | DEHN 1550 | DEHN 1650 | DEHN 1750 |
Operating Weight(side/top/box) | kg | 1774/2059/1866 | 2577/2745/2968 | 2751/3156/2916 | 3905/4057/3902 |
Length(side/top/box) | mm | 2480/2866/2793 | 2776/3102/3075 | 2820/3285/3337 | 3184/3812/3723 |
Working Flow | liter/min | 120-180 | 180-240 | 200-260 | 200-260 |
accumulator | / | Optional | Yes | Yes | yes |
Working Pressure | kg/cm2 | 160-185 | 170-200 | 160-180 | 180-210 |
Impact Rate | bpm | 350-500 | 300-450 | 250-400 | 200-350 |
Chisel Diameter | mm | ¢140 | ¢155 | ¢165 | ¢175 |
Impact energy | Joule | 4500 | 7500 | 10000 | 13000 |
Suitable Carrier | ton | 18-26 | 28-35 | 30-40 | 35-45 |

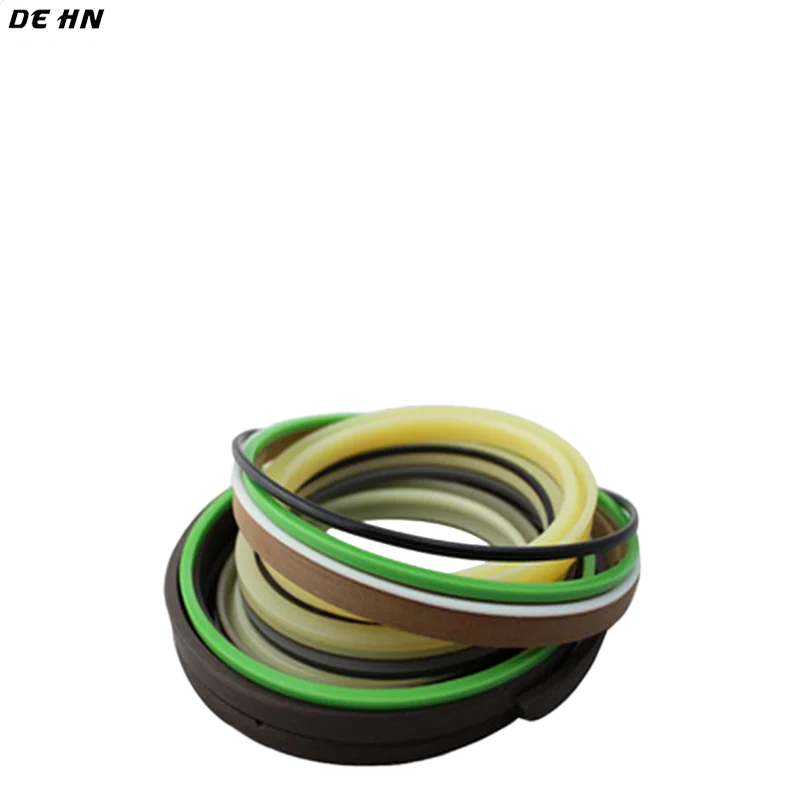

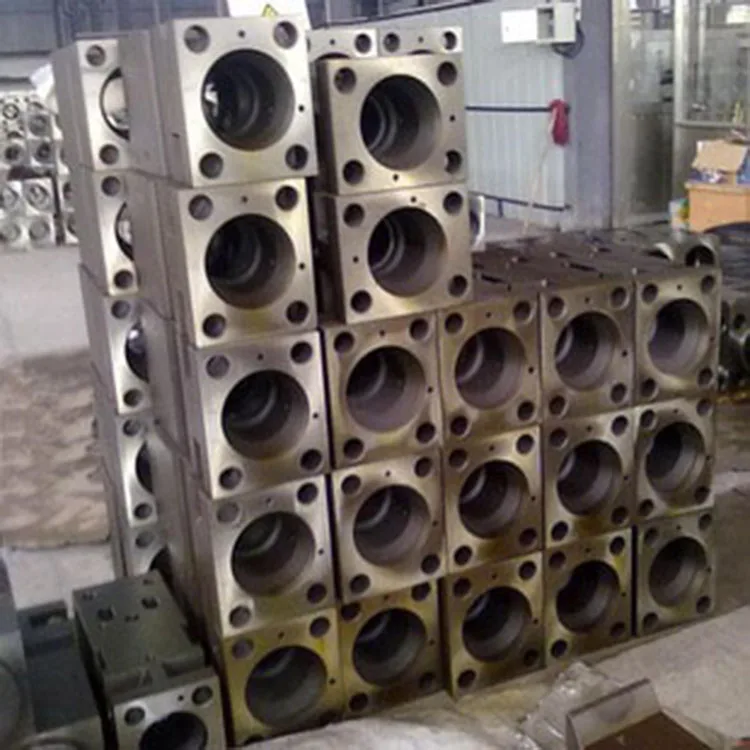

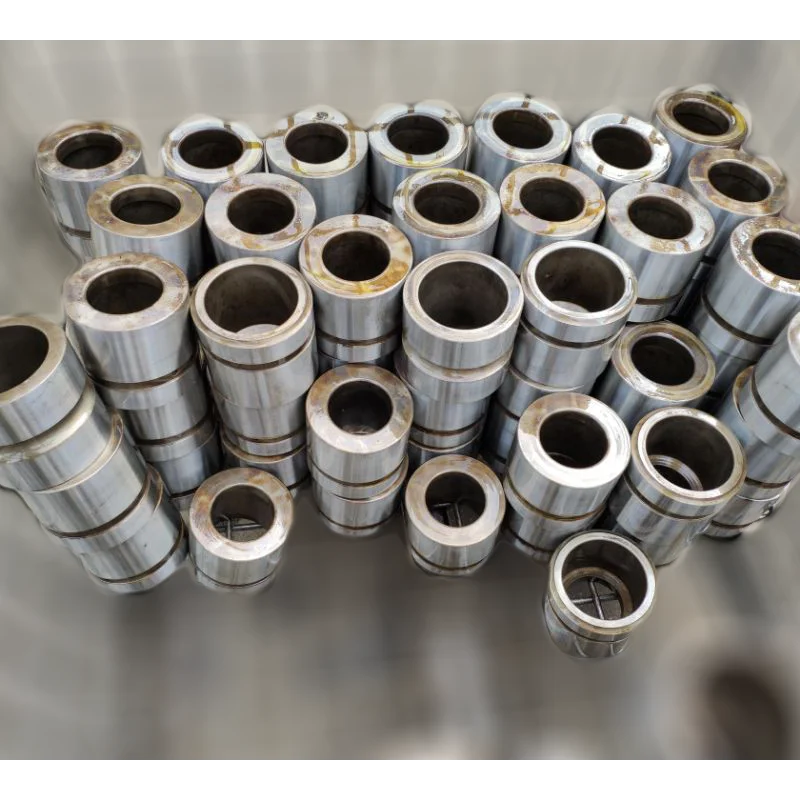

Spare Parts
To assure the product quality , the company has a complete quality control system with full range of policies and strict monitoring on the procedures for breaker chisel , silenced type/box type/side type hydraulic breaker , quick coupler , excavator ripper , hydraulic compactor,and piston , through bolt of spare parts .
DEHN is determined to be the Top Brand in engineering machinery industry . we have always regarded Product Quality as Soul of the company , sticks to the principle of " Service , Innovation and Sustainable Development " , and aims to create value for customers continually .
Trade Show
Packing & Delivery
1. Delivery Time: Usually 5-7 days after prepayment.
2. We can delivery by air or sea at any main port in China according to customers' requirement.
2. We can delivery by air or sea at any main port in China according to customers' requirement.
About Us
How about our company ?
Yantai Shijin Machinery CO., Ltd was established in 2010.Our company is specialized in manufacturing Hydraulic Breaker, Quick Coupler, Hydraulic Chisel, Earth Anger, Excavator Ripper and Spare Parts.There are 2 kinds of brand DEHN products for you of Global per square kilometer.
We hope you can find the goods you need in our company.And we sincerely hope to cooperate with our partners for common development.
