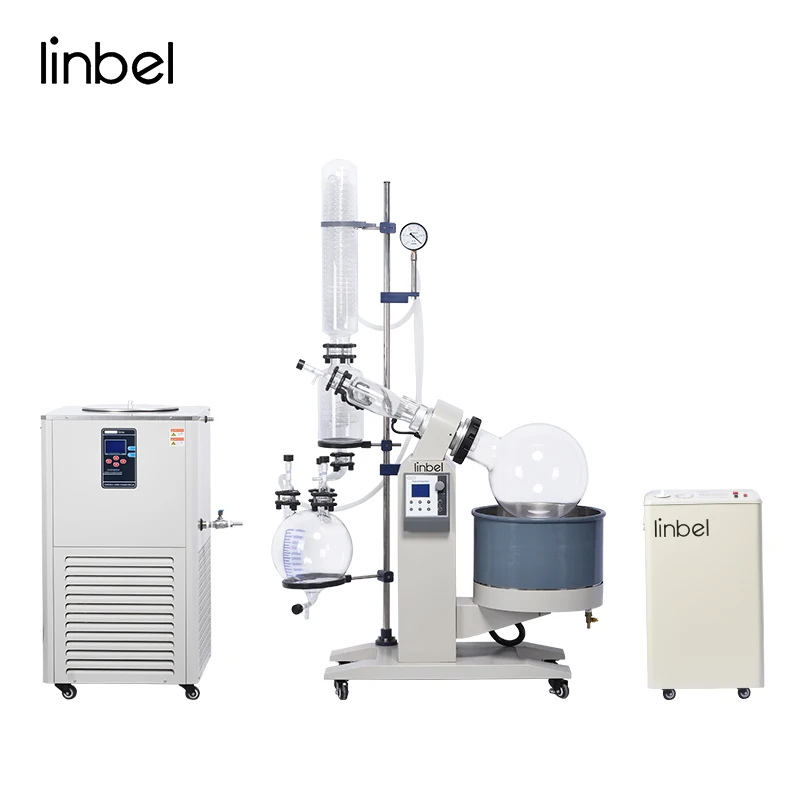

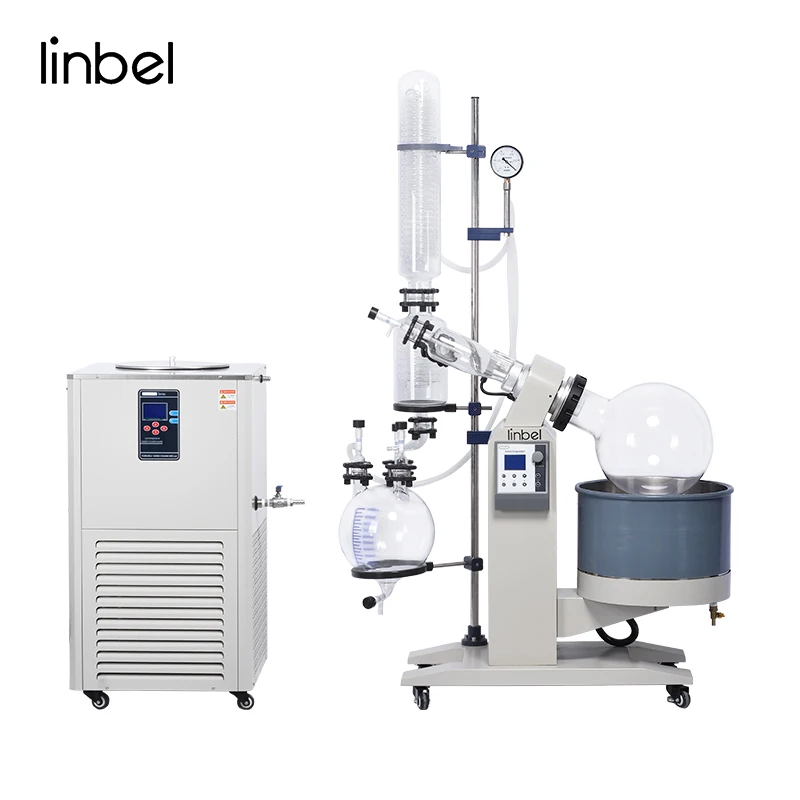

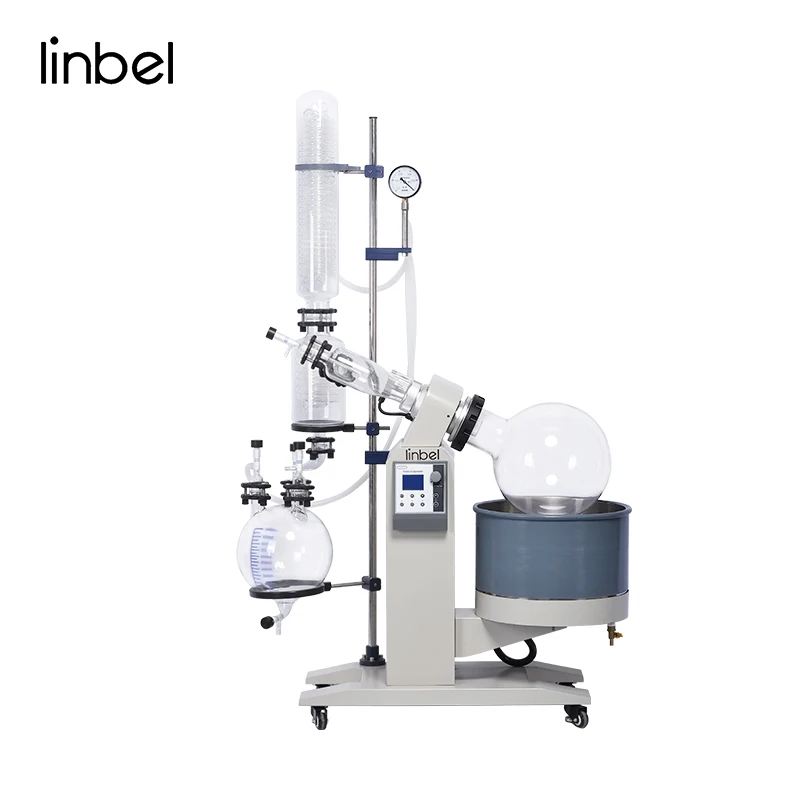

The rotary evaporator can be rotated under constant temperature and under negative pressure to form a film, and is condensed and recovered in the evaporation solvent. It is especially suitable for concentration,crystallization, separation and recovery of heat sensitive materials. It is an important equipment for scientific research, pilot test and production in bio-pharmaceutical,chemical, food and other industries.
Model
EXR1005/1006
EXR1010
EXR1020
EXR1050
Optimum Ambient(℃)
5~35
Power Supply(V/Hz)
Single phase 220/60
Three phase 380/60
Host speed
Digital display frequency conversion stepless speed regulation
Digital DC stepless speed regulation
Motor Rotating Control(rpm)
10~140
20~130
20~110
Rotary motor(W)
40
Brushless 250
Temperature Control(℃)
Digital Display,Room Temp-99
Maximum vacuum(Pa)
399.9(≤3mmHg)
Rotary Flask(L)
5/6
FlangetypeØ50
10
FlangetypeØ125
20
FlangetypeØ125
50
FlangetypeØ125
Collection Flask(L)
3
5
10
20

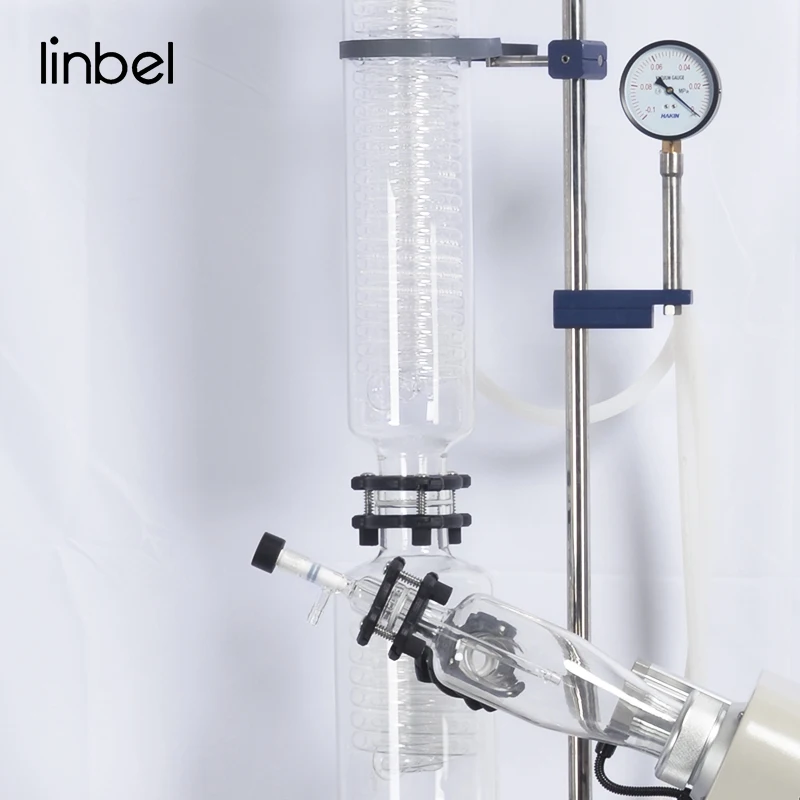

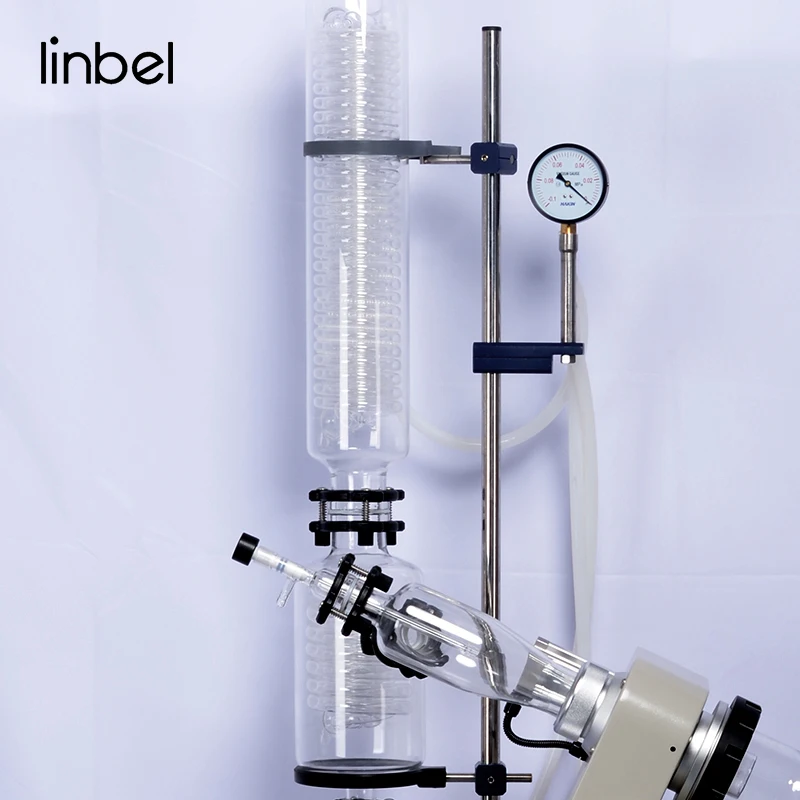

Condenser
Vertical double serpentine tube
Vertical, main cold + sub-cool, high efficiency three-return condenser
Condensation area(m2)
0.27
Main cold 0.42
Deputy cold 0.22
Main cold 0.8
Deputy cold 0.39
Main cold 0.91
Deputy cold 0.52
Evaporation Speed(L/h)
Water≥2
Alcohol≥4
Water≥3.5
Alcohol≥7
Water≥5
Alcohol≥13
Water≥10
Alcohol≥23
Water bath material
Stainless Steel
Bath Size(mm)
Φ300×170
Φ350×220
Φ450×260
Φ550×320
Lift Type
Electric(Automatic) lift
Lift Distance(mm)
0~150
0~160
0~190
0~180
Motor Power(kW)
2.0
3.0
4.0
4.0(220V)
Dimension(mm)
860×500×1000
920×550×1700
1250×600×2100
1320×770×2340
