Направленный муфта 136-174 МГц n гнездовой


Поделиться:


Цена:1 683,51 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 2137.94 $* 2180.0 $*
Jul-18-2025 1733.13 $* 1768.54 $*
Jun-18-2025 2104.24 $* 2146.57 $*
May-18-2025 2087.75 $* 2129.4 $*
Apr-18-2025 1666.23 $* 1699.61 $*
Mar-18-2025 2053.23 $* 2094.3 $*
Feb-18-2025 2036.82 $* 2077.38 $*
Jan-18-2025 2020.68 $* 2060.87 $*

Характеристики

Product Description

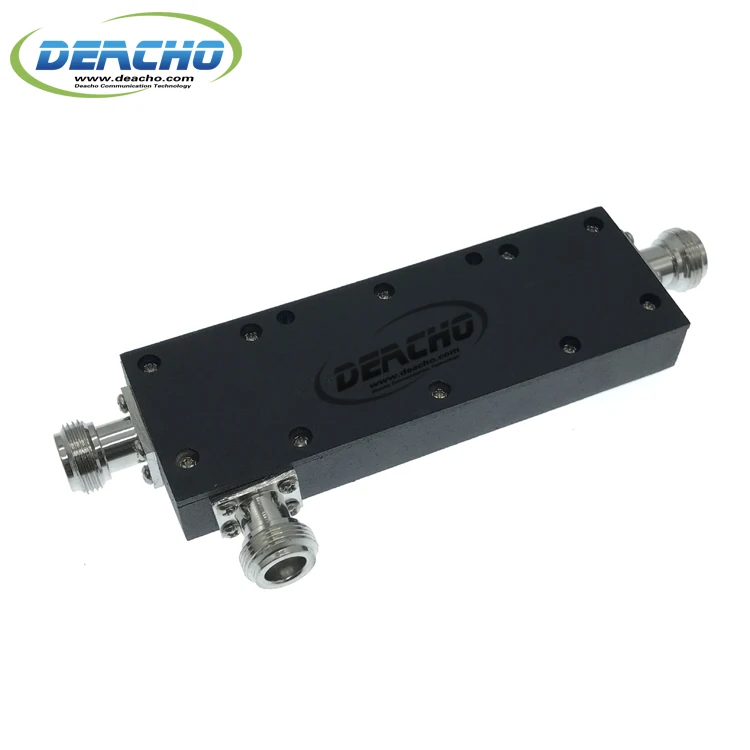

136-174MHz directional coupler, n female connector

Description.

RF Directional Coupler is a four-port passive devices for isolating, separating and combining signals, accepts an input RF signal and divides it into 2 output signals. They provide a simple way of sampling microwave signals and also can make accurate attenuator measurements since reflections are eliminated.


Features & Benefits
  • Ultra wide-band, multi-section design
  • Minimal RF Insertion Loss
  • Rugged, high Reliability
  • Low Passive Intermodulation (PIM3)
  • Cavity type, can meet High power range.

         _____________________________________   TECHNICAL SPECIFICATIONS   ______________________________________

Model No.
DC-F11NF-6
DC-F11NF-10
DC-F11NF-15
DC-F11NF-20
DC-F11NF-30
Frequency
136-174 (MHz)
Insertion Loss
≦1.75
≦0.8
≦0.5
≦0.4
≦0.4
Coupling
6
10
15
20
30
Accuracy
±0.8
±1.0
±1.0
±1.2
±.1.5
Directivity
≧26
≧30
≧35
≧40
≧50
VSWR
≦1.25:1
Power
200W
Impedance
50 Ohm
Connector
N-Female
Color
Black-plated
Temperature
-40~+75 ℃
Application
Indoor (IP 60)

       __________________________________________       RELATED PRODUCTS         _________________________________________

Related Products

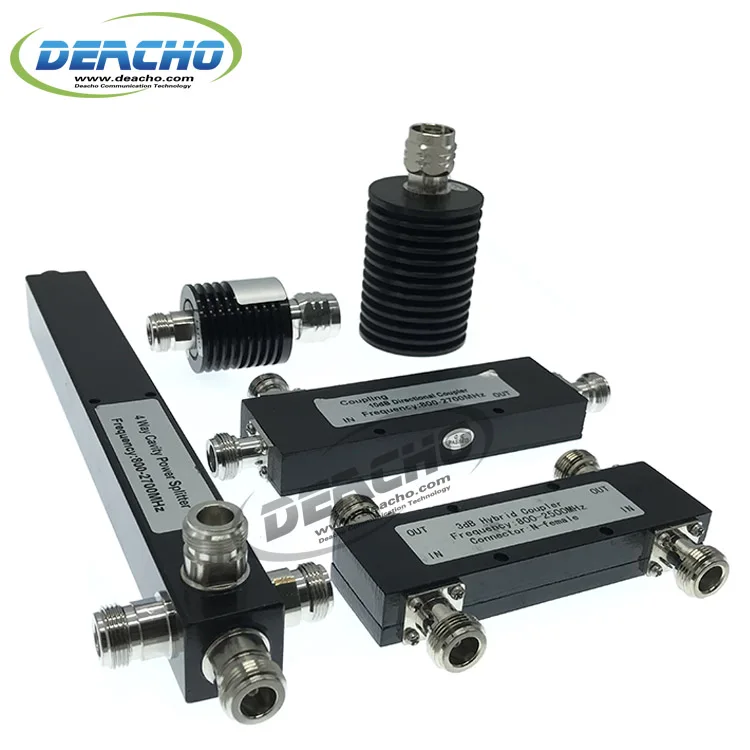

       Attenuator                                 Termination Load                           Power Divider                             Directional Coupler

Contact Us
Our Service

   Pre-Sales Service

  * Inquiry and consulting support.
  * Sample support.
  * Customized is available.

  After-Sales Service

  * Installation and technical support.
  * Product replacement if have quality problem.
  * Customer information is not disclosed.

Company Profile
Packing & Delivery

Our usual packing is export carton with tape and packing belt, pallet packing or other packing is also available by your requirement.

Sample usually delivery by DHL,TNT,FedEx,UPS, batch cargo delivery by air or sea, other transport mode is available .

FAQ

Q1. What is your terms of payment?
A:  Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment (Conventional products).

Q2. What is your terms of delivery?
A:  EXW, FOB, CFR, CIF, DDU.


Q3. How about your delivery time?
A:  Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

Q4. Can you produce according to the samples?
A:  Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. What is your sample policy?
A:  Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q6. Do you test all your goods before delivery?
A:  Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them,  no matter where they come from.


If you have another question, pls feel free to contact us.
