Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-16-2025 | 11900.16 $* | 12495.88 $* |
Aug-16-2025 | 11800.67 $* | 12390.64 $* |
Jul-16-2025 | 9900.20 $* | 10395.56 $* |
Jun-16-2025 | 11600.50 $* | 12180.90 $* |
May-16-2025 | 10100.62 $* | 10605.79 $* |
Apr-16-2025 | 11400.42 $* | 11970.95 $* |
Mar-16-2025 | 11300.13 $* | 11865.37 $* |
Feb-16-2025 | 11200.61 $* | 11760.96 $* |
Jan-16-2025 | 11100.11 $* | 11655.51 $* |
Chemicals tank container is widely used in chemicals industry for chemicals transportation on the road/rail/ship and storage.
TYPE | 20 ISO frame, UN portable tank |
Vessel design code | ASME VIII Div 1& IMDG etc. |
Shell material | Stainless steel 316L, SANS 50028-7 WNr 1.4402/1.4404 |
Frame material | GB/T 1591-Q345D |
Frame dimensions | 20(L) x 8(W) x 86(H) |
Nominal capacity | 17,500L 21,000L 24,000L 25,000L 26,000L |
Tare weight (approx) | 3,330kg 3,480kg 3,550kg 3,665kg 3,770kg |
Working pressure | 4.0bar |
Test pressure | 6.0bar |
Design temperature | -40 to 130 |
Approvals | Lloyds or BV Construction Certificate, IMDG, CFR49, AD R/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT |
Manlid | 500mm, 8-point fastening manlid, low profile with TIR provision |
Airline valve | 1.5 BSP air inlet with 1 1/2BSP connection, fitted with captive blank cap and chain. |
Pressure relief valve | 2 1/2 BSP pressure relief valve without flameproof of gauze Set pressure: 4.4 bar |
Bottom discharge | 3 stainless steel foot-valve with butterfly valve and blank flange / 3 BSP cap |
Top outlet | Provision only |
Insulation | 50mm Rockwood with G.R.P |
Steam heating | 6 longitudinal runs of heating coils, giving a total effective heating area of 7.00 M2 will be fitted. |
Walkway | F type walkway, Aluminum |
Thermometer | 1 off dual scale |
Stacking | 10 high stacking, rated to 24000 kg per tank |
We can provide you with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arc welder and auto polishing machines and cooperating with international famous finished equipment making company.
More detailed information will available on your requirement.

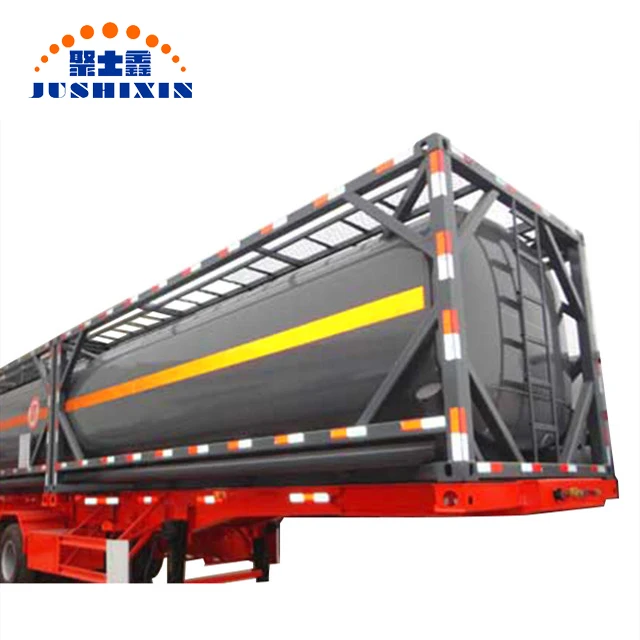

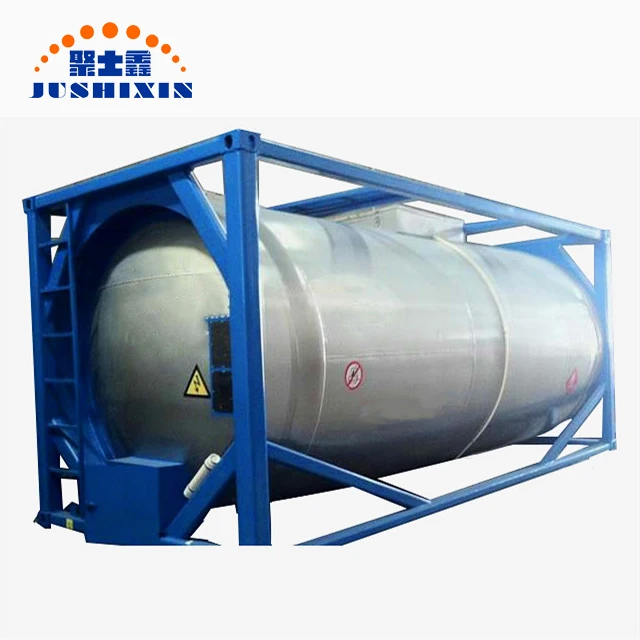

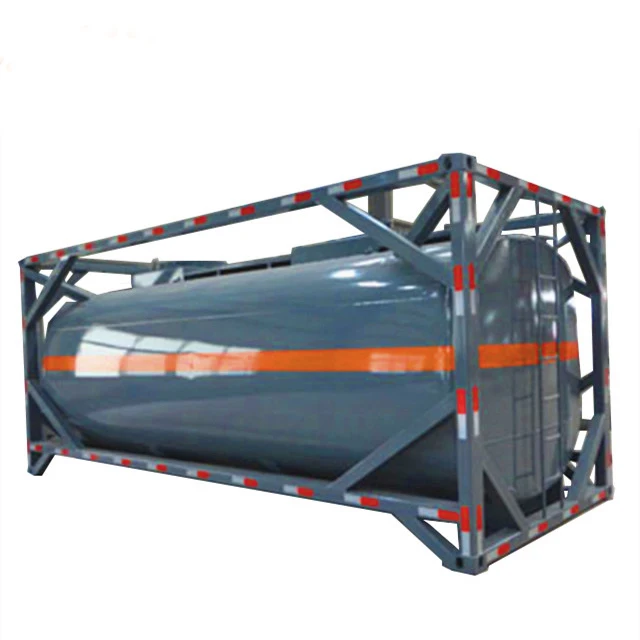

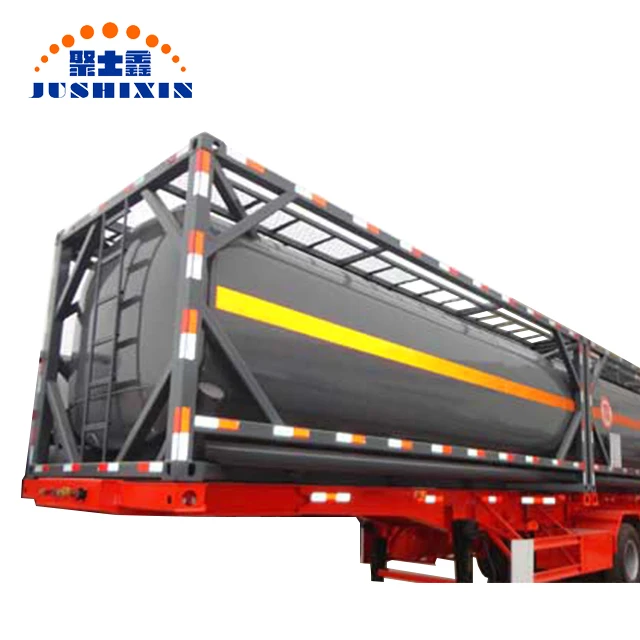

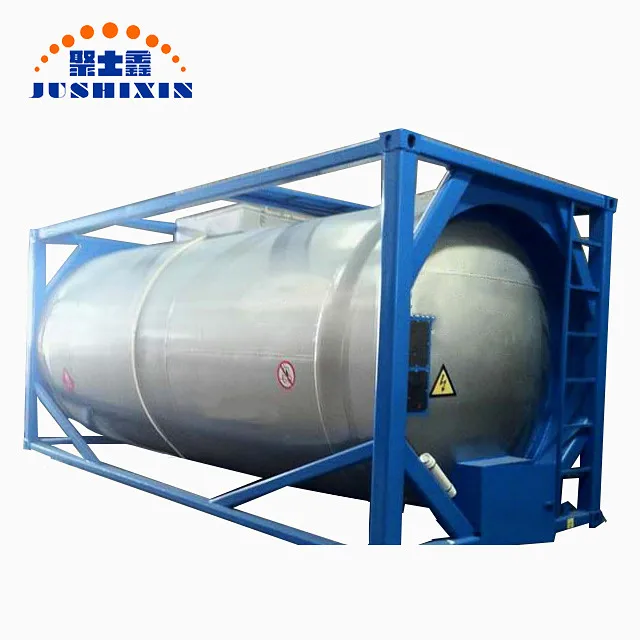

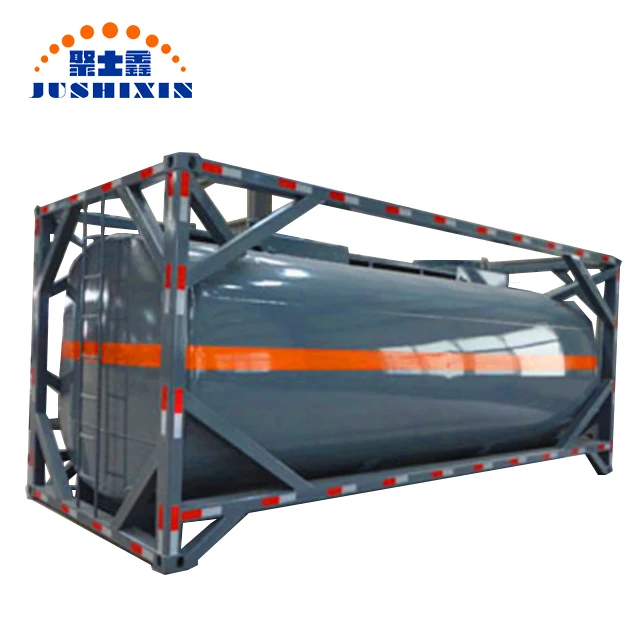

The following are some pictures of related productions of iso tank container provided by our company.
The following are the producing procedures of iso tank container in factory workshop.
Henan Jushixin Transportation Equipment Co.Ltd is the professional manufacturer of ISO tank container,such as standard liquid tank container, electrical heating tank container, reefer tank container, food grade tank container, baffle tank container, swap tank container, gas tank container, H2O2 tank container, AHF tank container, bitumen tank container, different types of lining tank container, etc, and 10ft tank container, offshore tank container, IBC/SBC ,etc, with high standard machinery and automatic equipment, powerful R&D team and elite sales team, we have built a long business relationship with many world famous enterprises.pls contact us if any interset.
Are you interested in any more info? If yes, drop us a message!
Vivian
Henan Jushixin Transporation Equipment Co.,Ltd
Add: Zhengzhou No.37 East Hanghai Road,Zhengzhou,Henan Province,China
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q 6: What's the delivery time?
A: The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Bulk or container.
Q8: Can you supply some quick-wear truck or semi trailer parts?
Yes, we can supply truck and semi trailer parts as your request, such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
