Промышленный легкий 4-осевой манипулятор Delta Parallel Robot Arm
- Категория: Manipulator >>>
- Поставщик: Anno,Robot,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.61 $* | 0.10 $* |
| Aug-16-2025 | 0.79 $* | 0.97 $* |
| Jul-16-2025 | 0.27 $* | 0.98 $* |
| Jun-16-2025 | 0.25 $* | 0.51 $* |
| May-16-2025 | 0.17 $* | 0.93 $* |
| Apr-16-2025 | 0.71 $* | 0.82 $* |
| Mar-16-2025 | 0.64 $* | 0.68 $* |
| Feb-16-2025 | 0.62 $* | 0.50 $* |
| Jan-16-2025 | 0.57 $* | 0.33 $* |
Характеристики

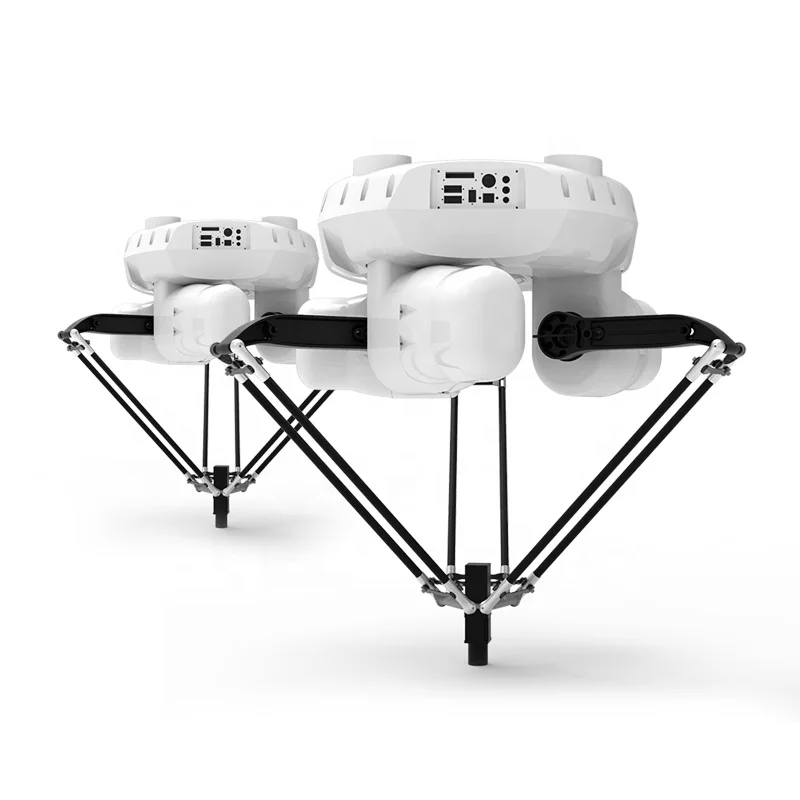

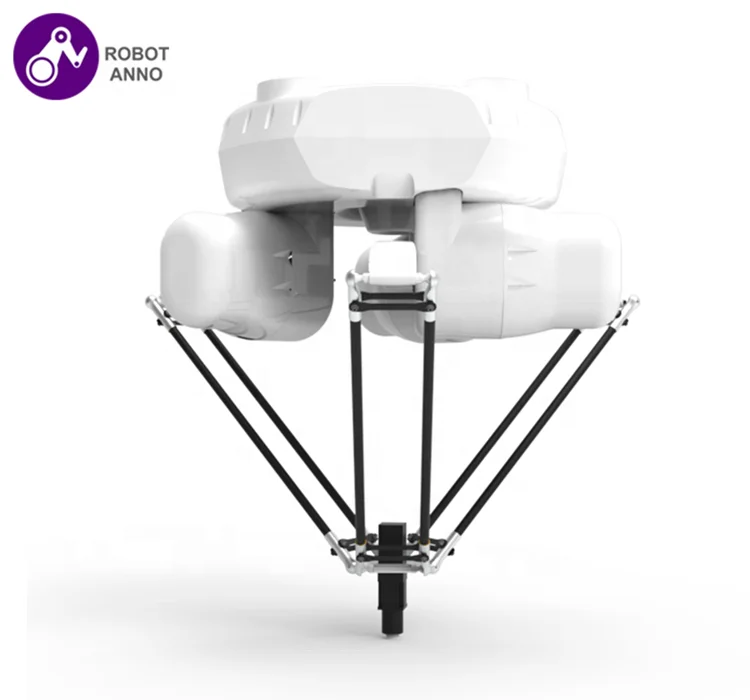

Industrial Lightweight 4 6 Axis Manipulator Delta Parallel Robot Arm Machine![Industrial Lightweight 4 6 Axis Manipulator Delta Parallel Robot Arm Machine]()
Function and introduction

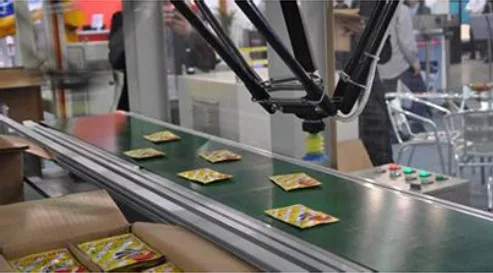

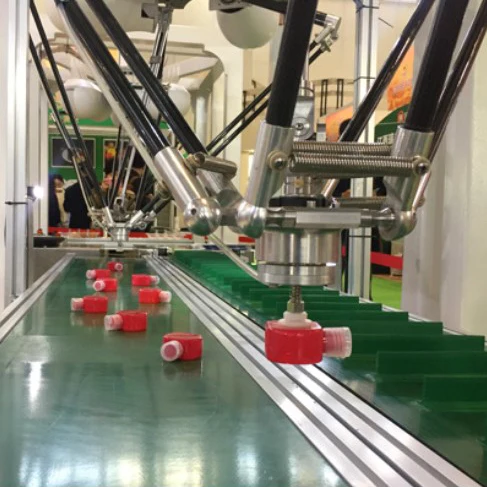

The OY-D is a high-speed robot designed for fast pick and place applications. Its body is made up of carbon fiber and aluminum alloy. The leapfrog test beats up to 200 beats per minute. The target object is captured by a sensor or vision system to achieve dynamic tracking picking and placement of the target object. The equipment can be widely used in the fields of packaging, material sorting, handling and assembly.

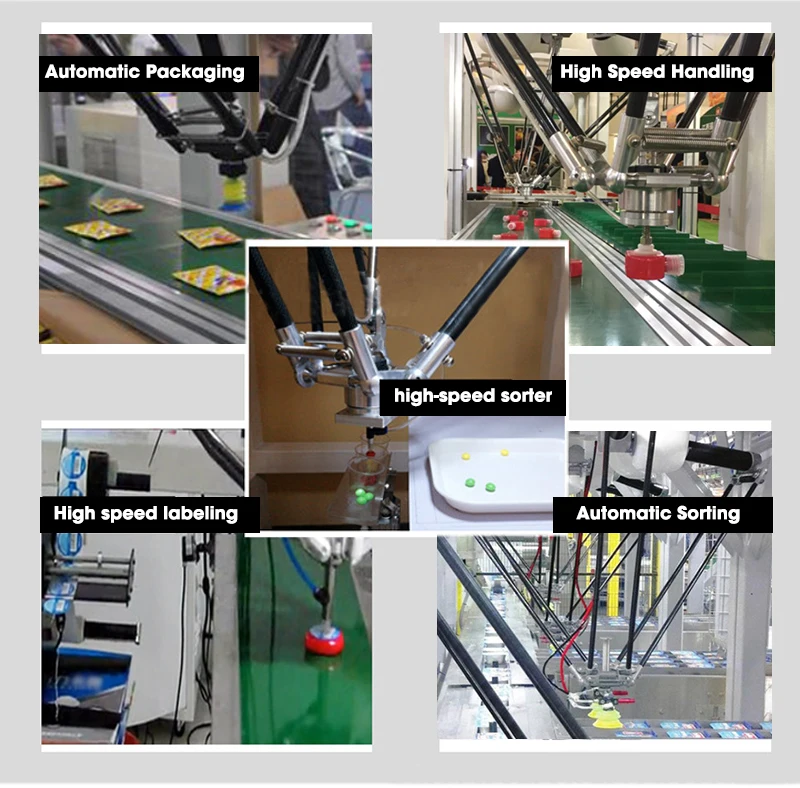

The main application areas:
• Packaging
• Sorting
• Handling
• Assembly
Features
• High motion accuracy
• Fast movement
• Large range of motion
• Strong carrying capacity,
• Can be used with visual positioning, conveyor tracking
Model | OY-D-300 | OY-D-400 | OY-D-600 | OY-D-800 | OY-D-1000 | |
Dof | 3 axis / 4 axis | |||||
Rated Payload | 1.2 KG | 0.8KG | 4KG | 3KG | 4KG | |
The Range | The length of upper arm | 160 | 160 | 300 | 300 | 400 |
The length of lower arm | 300 | 400 | 600 | 800 | 800 | |
L | 424 | 541 | 856 | 1103 | 998 | |
M | 72 | 99 | 138 | 163 | 193 | |
N | 58 | 81 | 112 | 132 | 157 | |
A | 330 | 430 | 634 | 858 | 1130 | |
B | 280 | 380 | 598 | 813 | 904 | |
C | 130 | 180 | 250 | 295 | 350 | |
D | 91 | 126 | 175 | 206 | 245 | |
Repeatability | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |
Motor | Closed-loop stepper moto | Absolute servo motor | ||||
Total power | 0.5KW(3 axis)0.42KW(4 axis) | 2.25KW(3 axis) | ||||
Weight | 15KG | 55KG | 65KG | |||
Protection Level | IP54 | |||||
Industrial Lightweight 4 6 Axis Manipulator Delta Parallel Robot Arm Machine
Packaging & Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Company Information
RobotAnno has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field.
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!
Our Advantages:
- Free-shipping all over the world.
- Source only the best consumer goods and ensure the highest quality.
- Streamline the buying and payment process, and make it as easy as possible.
- Help the customers all over the world discover products and manufacturers in China.
- The Shortest order processed time and speed delivery
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
