Измеритель внутреннего сопротивления батареи

Измеритель внутреннего сопротивления батареи

Категория: Resistance Meters >>>
Поставщик: Changzhou,Youce,Electronic,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.17 $*	0.27 $*
Aug-15-2025	0.64 $*	0.62 $*
Jul-15-2025	0.27 $*	0.20 $*
Jun-15-2025	0.18 $*	0.2 $*
May-15-2025	0.91 $*	0.61 $*
Apr-15-2025	0.8 $*	0.62 $*
Mar-15-2025	0.40 $*	0.59 $*
Feb-15-2025	0.46 $*	0.24 $*
Jan-15-2025	0.6 $*	0.1 $*

Характеристики

Product Description

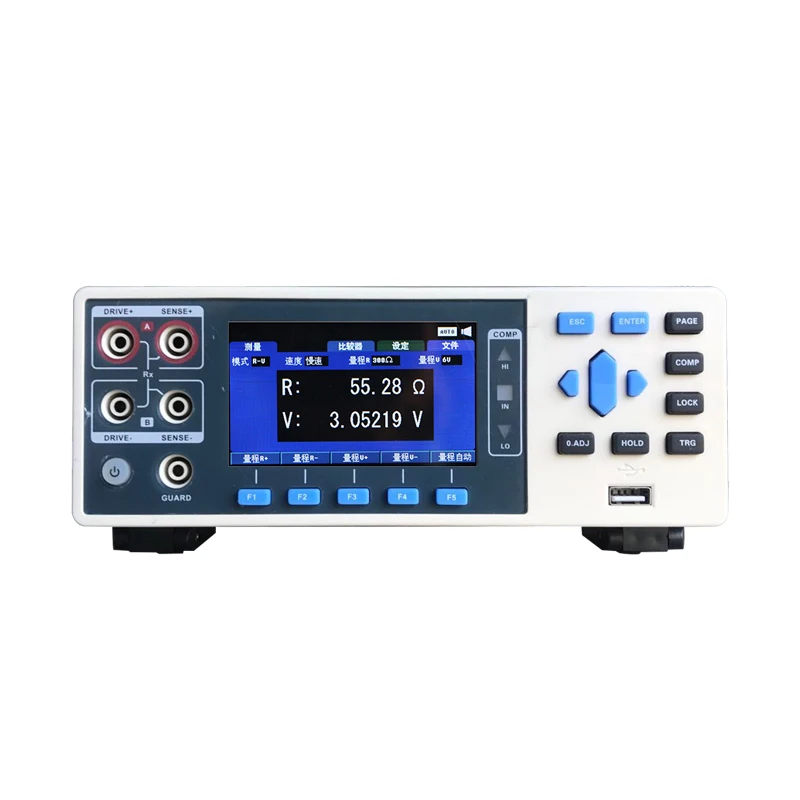

Battery Internal Resistance Meter

Brief Introduction

UC3560 series is a high accuracy and wide range battery internal resistance meter which adopts the high performance microprocessor to control. Whether it is the trend of large-scale and low resistance of lithium batteries, or the growth of high-voltage applications in battery packs. UC3560 series can inspect the internal resistance (IR) and battery voltage(OCV) at the same time with high speed when facing the developing battery industry.

Specification

Model Number		UC3560	UC3560A		UC3560B		UC3560C
Screen Display		3.5 inch TFT-LCD display
Test Parameter		AC Resistance, DC voltage
Internal Resistance	Basic accuracy	0.3%
	Range	0.1μΩ-3kΩ
Voltage	Basic accuracy	0.01%
	Range	10μV-60V		10μV-300V		10μV-800V		10μV-1000V
Signal Source		test current frequency:1kHz±0.2Hz; Open circuit voltage:<5V; Test current:<100mA; AC Resistance, DC voltage
Test Range		3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3kΩ; 7 level full range automatic or manual test mode
Test Speed		100 times/sec, 50 times/sec, 20 times/sec,3 times/sec
Calibration		Full range short circuit clear zero
Comparator		30 sets record, 4 level sort, level count
Trig Mode		Internal trig, external trig, manual trig, general trig,
Other function		Data output, save in the USB disk

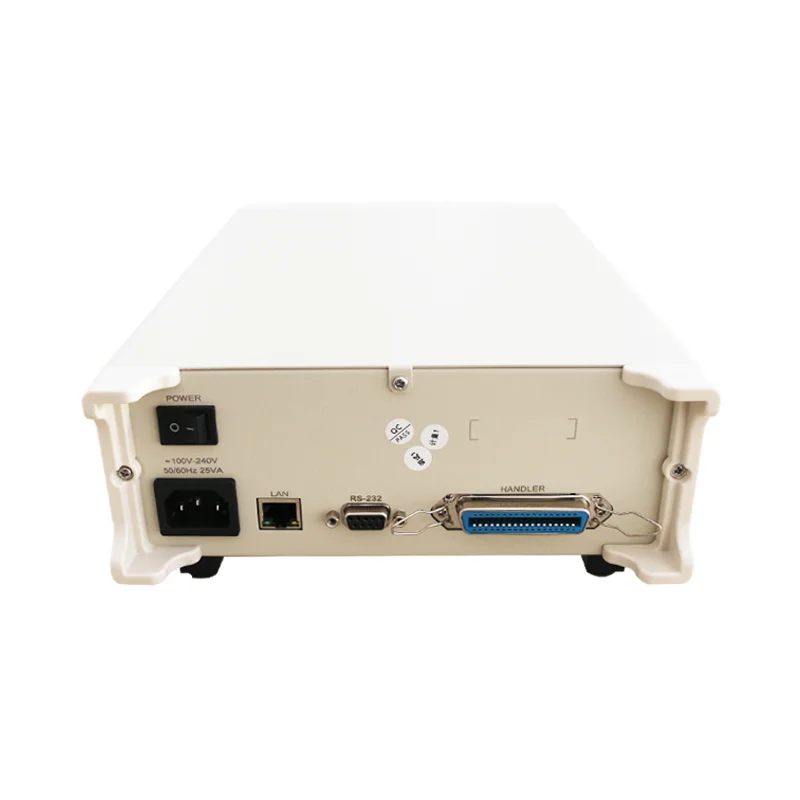

Interface		Handle interface, RS232/485 interface, LAN interface, USB interface
Power Supply		Voltage:100V-256V AC, frequency:50Hz-60Hz
Rated Power		15VA
Dimension		325mm215mm96.5mm (LWH)
Weight		3KG
Accessory		UC9300, UC9800, PB36, Power cord
