Метрические железы из нержавеющей стали Zone1 Zone 2 для бронированных кабелей
- Категория: Кабельные вводы >>>
- Поставщик: Zhejiang,Hjsi,Connector,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.66 $* | 5.62 $* |
| Aug-16-2025 | 5.42 $* | 5.99 $* |
| Jul-16-2025 | 4.17 $* | 4.11 $* |
| Jun-16-2025 | 5.12 $* | 5.6 $* |
| May-16-2025 | 4.43 $* | 4.83 $* |
| Apr-16-2025 | 5.82 $* | 5.93 $* |
| Mar-16-2025 | 5.1 $* | 5.68 $* |
| Feb-16-2025 | 4.63 $* | 4.52 $* |
| Jan-16-2025 | 4.67 $* | 4.86 $* |
Характеристики
CERTIFICATION
PRODUCT DESCRIPTION

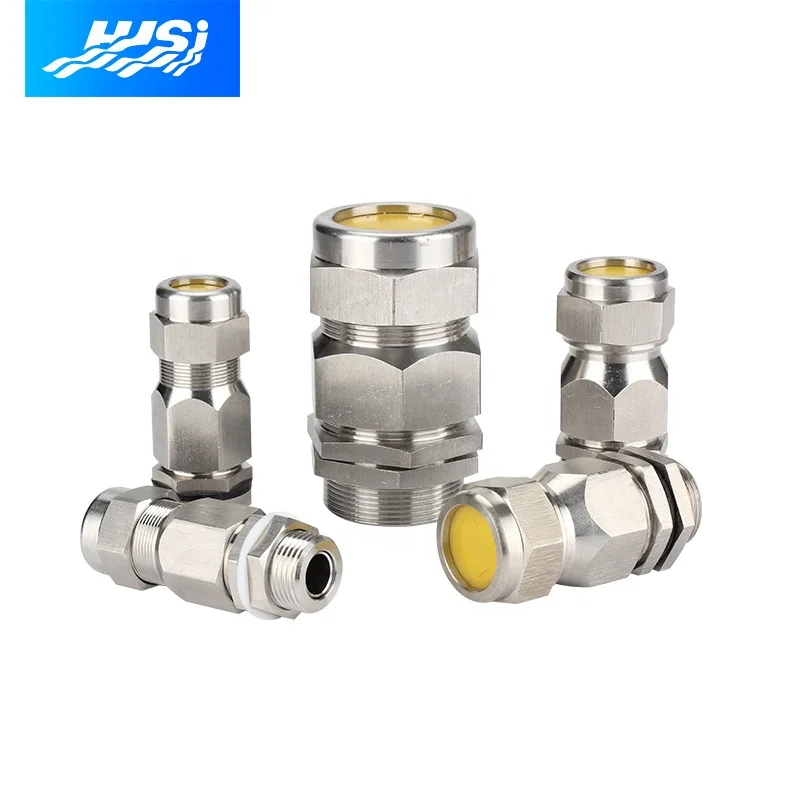

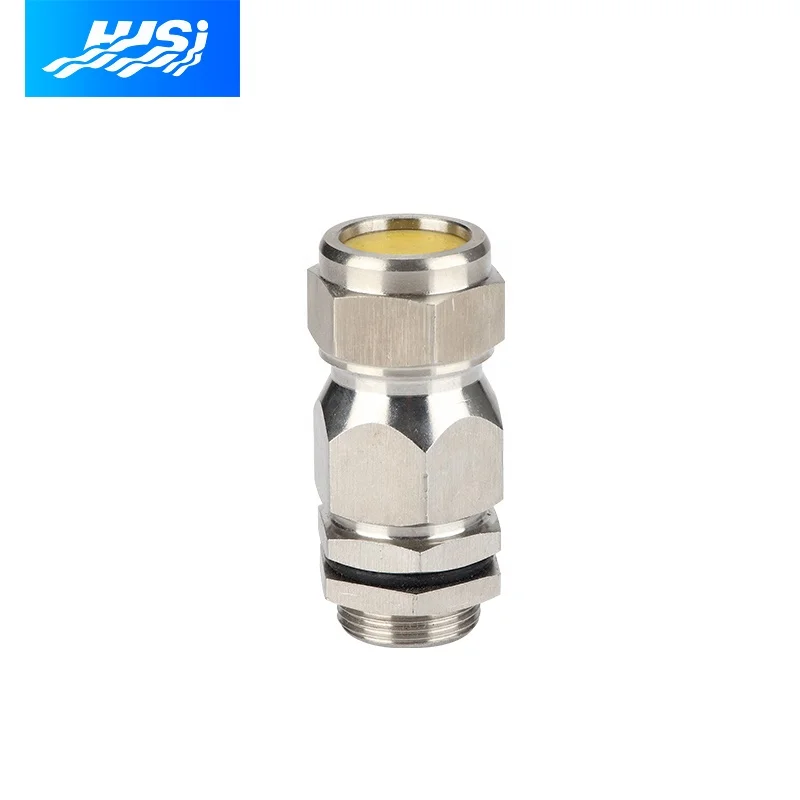

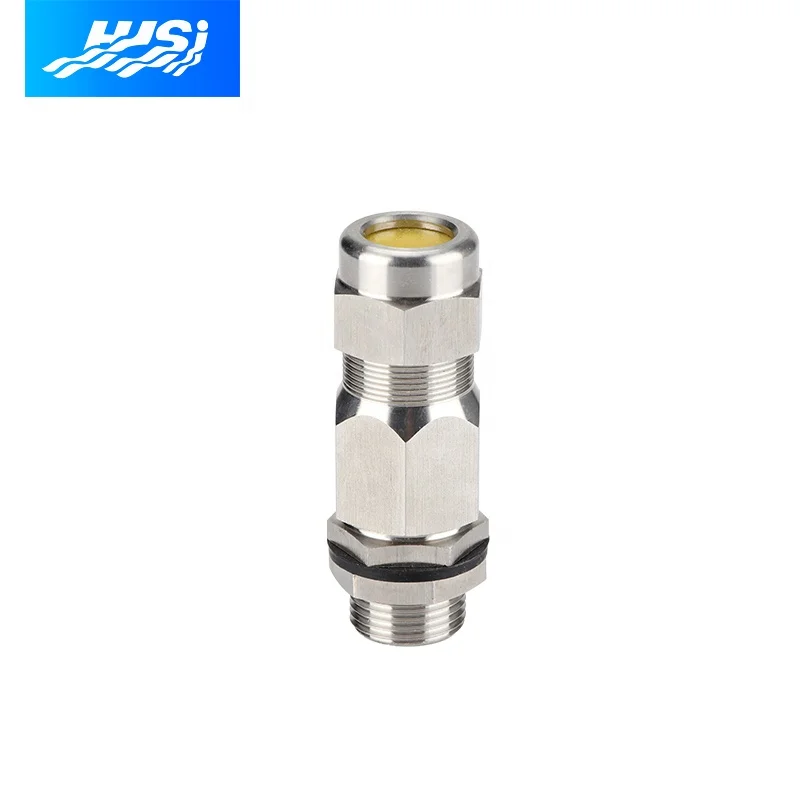

Explosive Atmosphere Armoured Cable Gland Single Sealing
for all types of Armoured Cables
●Construction Material: Stainless Steel 304, (316 available on request)
●Sealing Material: Silicone(yellow) + EPDM (flat washer)
●Cable Specification: all types of Armored Cables: Single Wire Armour (SWA), Aluminium Wire Armour(AWA), Steel Tape Armour(STA), Aluminium Strip Armour (ASA), Wire Braid Armour, Screen Flexible(EMC) Wire Braid(e.g. CY/SY), Pliable Wire Armour(PWA)
●Thread Type and Size: Metric (from M20 to M115)
●IP Rating: IP66
●Working Temperature: -60℃ ~ +130℃
●Sealing Technique: Single Compression
●Sealing Area: Cable Outer Sheath
●Application Area: Zones 1, 2, 21 and 22; Group Gas IIA, IIB and IIC
●Compliance Standards: IEC/EN 60079-0, 1, 7, 31
●Code of Protection: II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da,
Selection Table | ||||||||
Thread Size (Metric) | Cable Bedding Dia (Max) mm | Overall Cable Dia (Min-Max) mm | Thread Length mm | Across Flat mm | ||||
M20 | 10 | 9-16 | 15 | 24 | ||||
M25 | 17 | 12-21 | 15 | 30 | ||||
M32 | 20 | 17-26 | 15 | 38 | ||||
M40 | 30 | 22-33 | 19 | 45 | ||||
M50 | 36 | 28-41 | 19 | 55 | ||||
M63 | 42 | 36-52 | 19 | 75 | ||||
M75 | 58 | 46-65 | 19 | 84 | ||||
M90 | 75 | 60-81 | 24 | 99 | ||||
M100 | 82 | 75-93 | 24 | 115 | ||||
M115 | 93 | 86-103 | 24 | 125 | ||||
Related Products
Packing & Delivery
Packaging Details | PE Bag + Paper Carton | ||||
Port | Ningbo Port/Shanghai | ||||
Delivery Time | 500 Pieces:3-5 days 》1000 Pieces:Date of negotiation | ||||
Our Company
Yueqing City Hongjuesi Connector Manufacturing Co.Ltd.is a professional Manufacture of a variety of wire and cable connector production and processing.The main products are metal cables waterproof connectors ,nylon cable glands,Marine stuffing,hose fittings,explosion-proof fittings,hoses and so on ,The company Uses automatic production equipment,strong technical force,It has a professional Health Production and management.
The company is committed to quality,safety and reliability,the credibility of the first,-class full-service,in In the market for economic development,and innovation in business development in the technology Enhance the quality of service standards,develop a broader market and dedication Our customer service!
Our Service
Factory wholesale
Industry and Trade together,
completely production system
Quality guarantee
We provide SGS certification.
Do all kinds of fabric inspection.
After-sales service
"Quality is our culture" we are responsible for every order .
FAQ
Q1: Are you a factory or trading company?
A1: We have factories. Welcome to visit us!
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3: May I know the status of my order?
A3: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q4:Basis Servicer?
A4:24 hours online & Quick response.Ensure the products can meet the quality standards. Quality inspecting.
Q5: Can you give us a favorable discount?
A5: Of course, a favorable discount will be offered if the quantity is sizable.
Q6: Where is your factory located?
A6: Our factory located in yueqing Zhejiang Province that is closed to Shanghai and Hangzhou.Welcome to visit us.
Contact To Us
If you want to know more about our store's products, please click the title link, go back to the home page, you can add to the collection oh
If you want to know more information about this product or other products,
please click the picture on the right and send me your requirement information
Похожие товары
