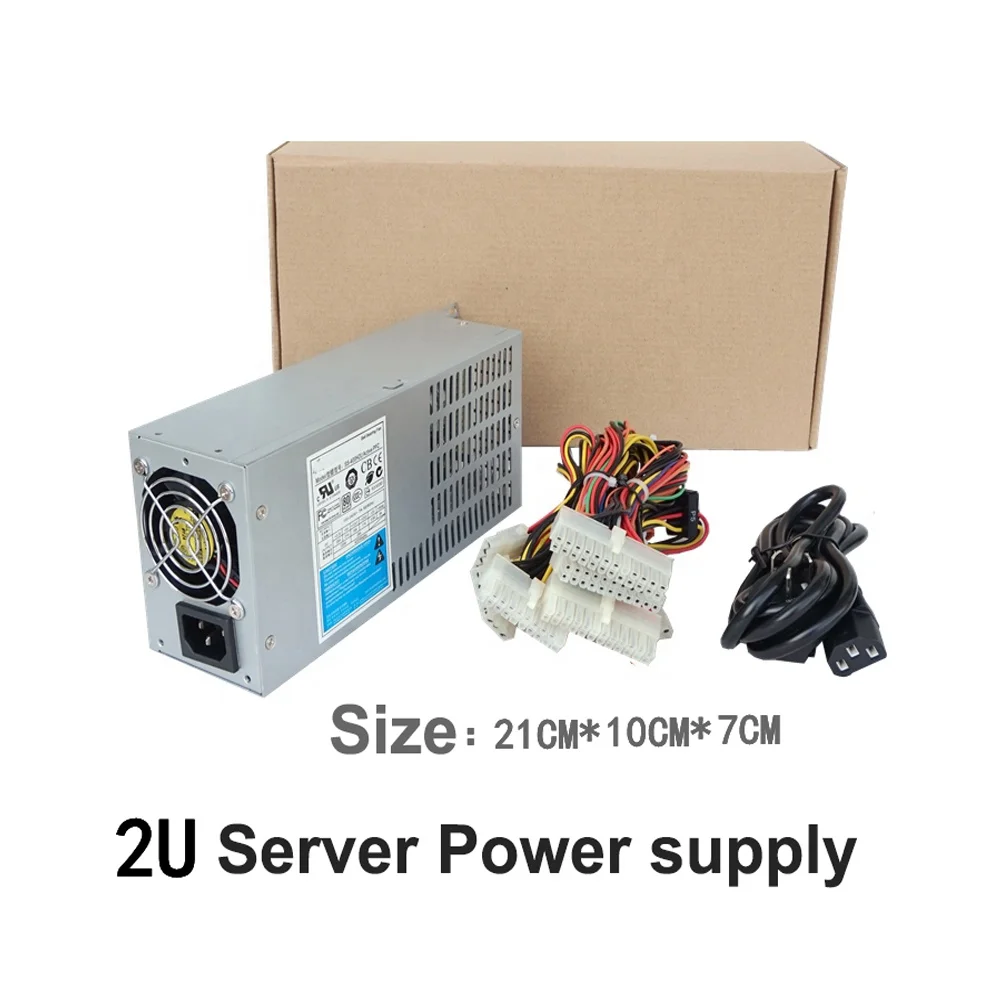

Блок питания 2U 700 Вт для корпуса и
- Категория: Power Supplies >>>
- Поставщик: Shenzhen,Shangzhixinke,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 121.94 $* | 123.71 $* |
| Jul-15-2025 | 98.26 $* | 100.9 $* |
| Jun-15-2025 | 119.37 $* | 121.49 $* |
| May-15-2025 | 118.54 $* | 120.62 $* |
| Apr-15-2025 | 94.76 $* | 96.98 $* |
| Mar-15-2025 | 116.68 $* | 118.49 $* |
| Feb-15-2025 | 115.71 $* | 117.31 $* |
| Jan-15-2025 | 114.67 $* | 116.18 $* |
Характеристики
| Specifications: |
| Conformed to 80plus type |
| Conformed to IPC 2U Type |
| Output rating power: 700Watts |
| Input Voltage: 90-264VAC |
| Low Ripple & Noise, High efficiency more than 80% |
| Operation Temperature: 0~50℃ |
| Dimension: 240mm(D)*100mm(W)*70.5mm(H) |
| Fan: 6025mm*1pcs, 6020mm*1pc DC Fan |
| Lifetime: MTBF > 100,000 hours (at 25℃) |
| Multiple Protection Function: OCP, OVP, UVP, OPP, SCP |
| Safety Approvals: CE, FCC, CB,CCC |
| Model No: NP-2U 700W |
| Efficiency: > 80 % Full load |
| PFC: Active PFC (PFC>99%) |
| P.G signal: 100-500 ms |
| Hold-up Time: 16ms Min |
| Weight: 2 KG |
| Color: Silver |
| Fan: 6025mm*1pcs, 6020mm*1pc |

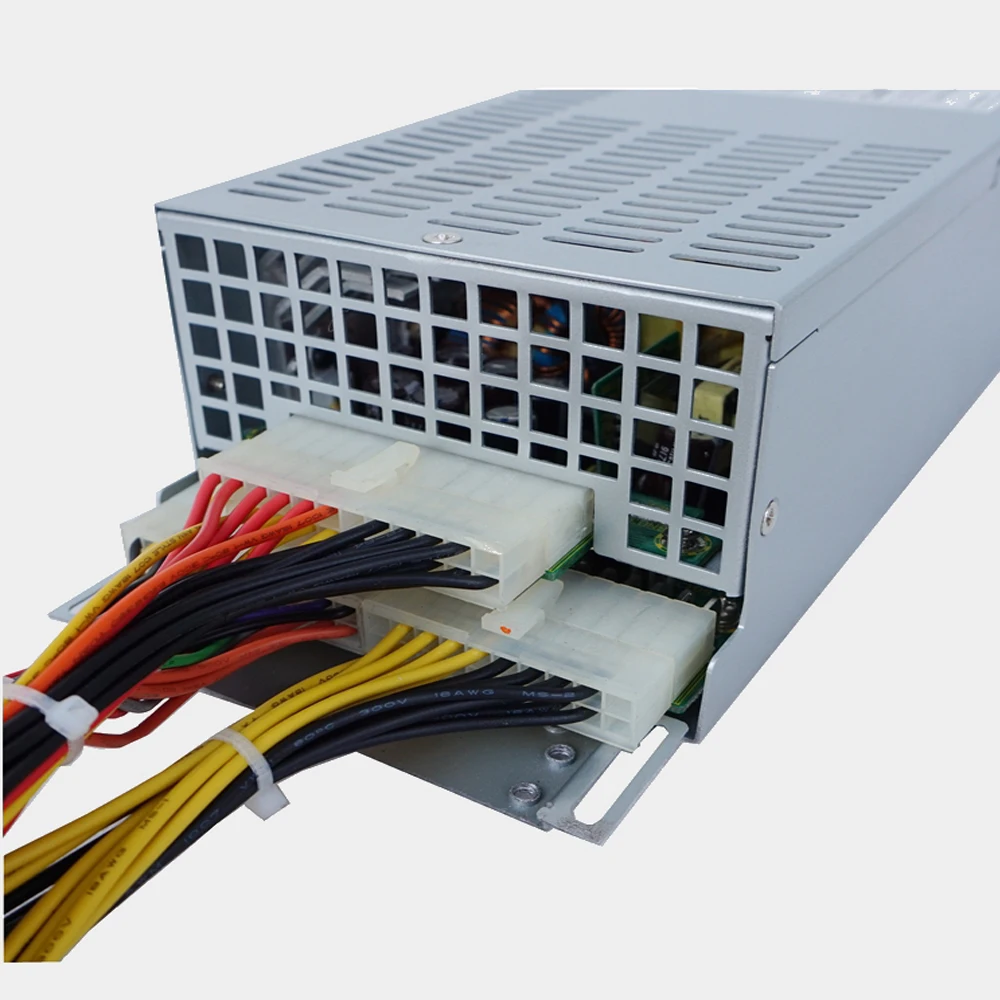

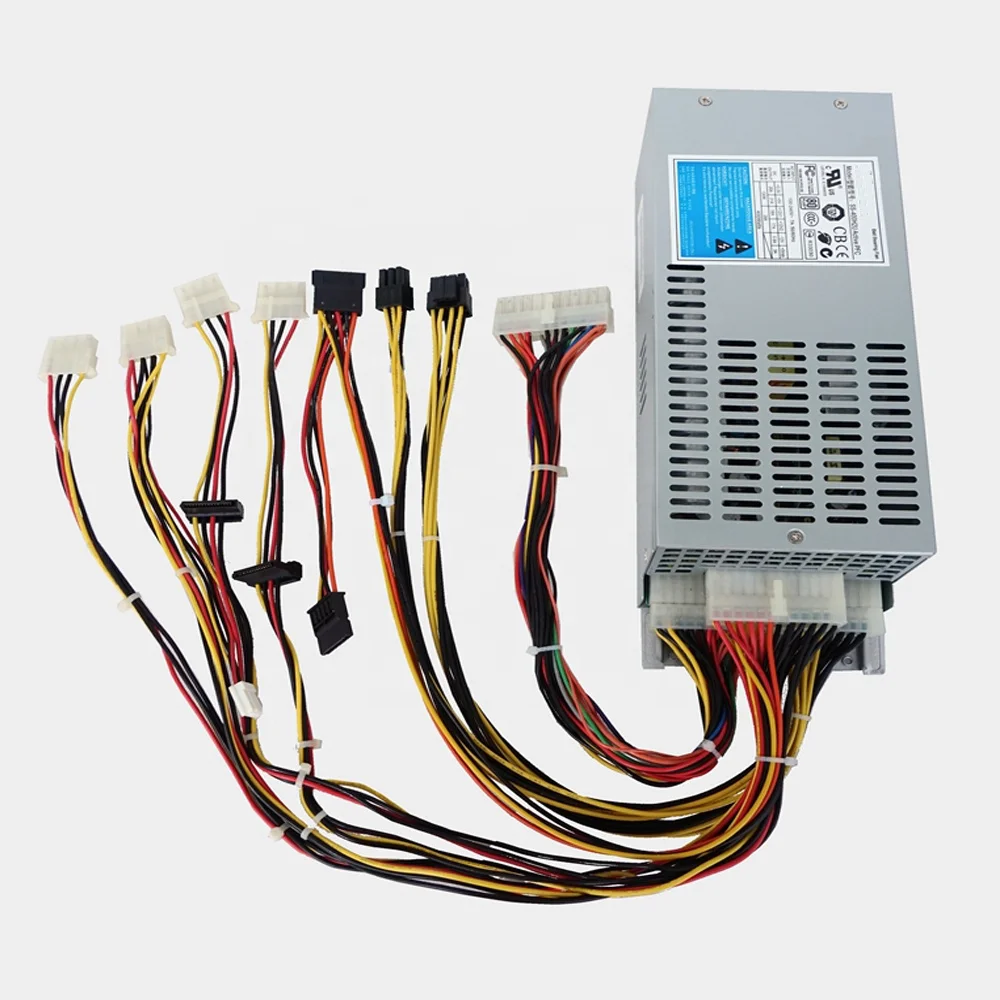

| Output connectors: | ||||
| 20+4Pin | 4Pin | 5Pin | IDE4Pin | Fdd4 Pin |
| M/B | CPU | SATA | Molex | Fdd |
| 1 | 2 | 5 | 4 | 0 |
| INPUT | ||||
| Input Voltage | 90~264 Vac | |||
| Input Voltage frequency | 47~63Hz | |||
| Input Current | 10A at 115V; 5A at 230V | |||
| MTBF | 100,000 hrs minimum (at 25℃ ) | |||
| Input Current | ||||||||
| Voltage | +5V | +12V1 | +12V2 | +12V3 | +12V4 | -12V | +3.3V | +5Vsb |
| NOM | 15 | 8 | 8 | 8 | 8 | 0.25 | 10 | 1.25 |
| Units | AMPS | AMPS | AMPS | AMPS | AMPS | AMPS | AMPS | AMPS |
| 1) Total DC output power shall not exceed 700 Watts. | ||||||||
| 2) +5V and +3.3V outputs shall not exceed 160 Watts | ||||||||
| 3) +5,+3.3V,+12V ouputs shall not exceed 648 Watts. | ||||||||
| Environment | ||||||||
| Operation Temperature | 0 ℃ to 50 ℃ | |||||||
| Storage Temperature | -40 ℃ to 80 ℃ | |||||||
| Operation Humidity | 20% to 85%, non-condensing | |||||||
| Storage Humidity | 10% to 95%, non-condensing | |||||||
