AISI 17-4PH solid round steel bar for self-lubricated spherical plain
- Категория: Стержни из нержавеющей стали >>>
- Поставщик: Hunan,Allianz,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 349.93 $* | 356.85 $* |
| Jul-16-2025 | 283.81 $* | 289.40 $* |
| Jun-16-2025 | 344.23 $* | 351.36 $* |
| May-16-2025 | 341.81 $* | 348.27 $* |
| Apr-16-2025 | 272.50 $* | 277.33 $* |
| Mar-16-2025 | 336.8 $* | 343.28 $* |
| Feb-16-2025 | 333.30 $* | 340.51 $* |
| Jan-16-2025 | 330.61 $* | 337.74 $* |
Характеристики

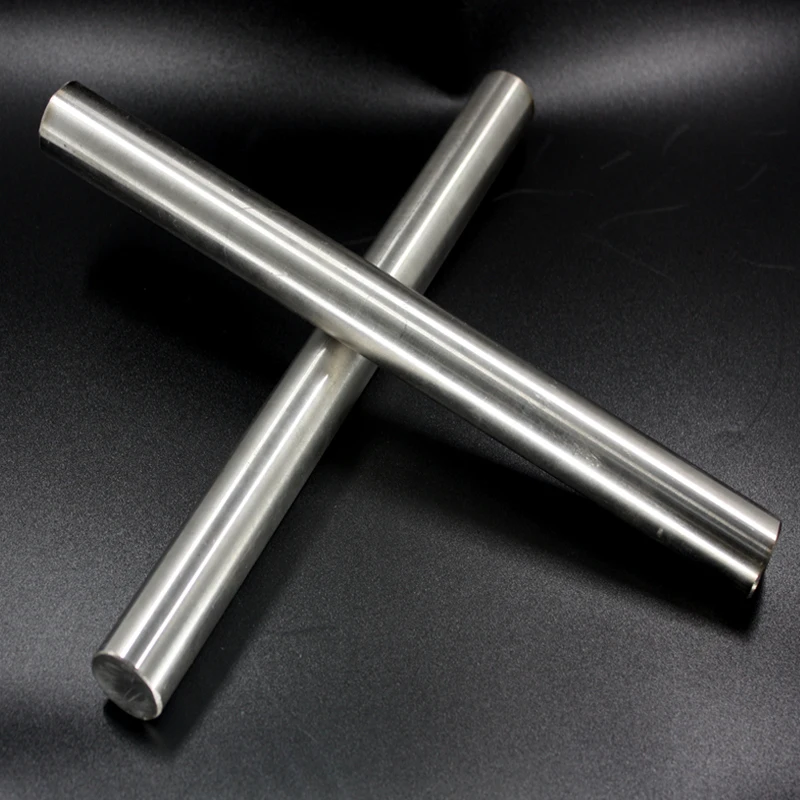

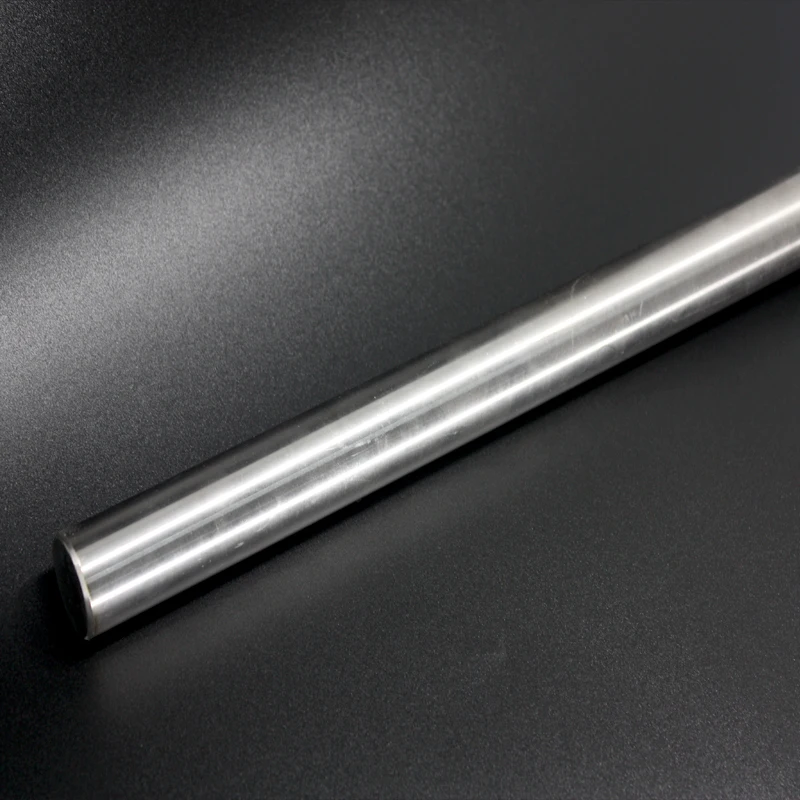

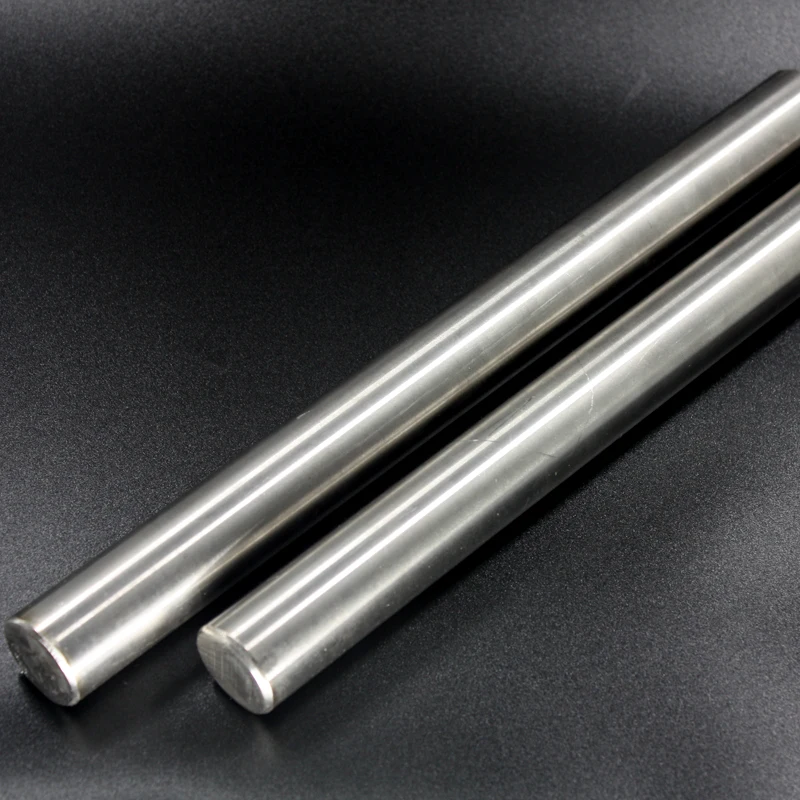

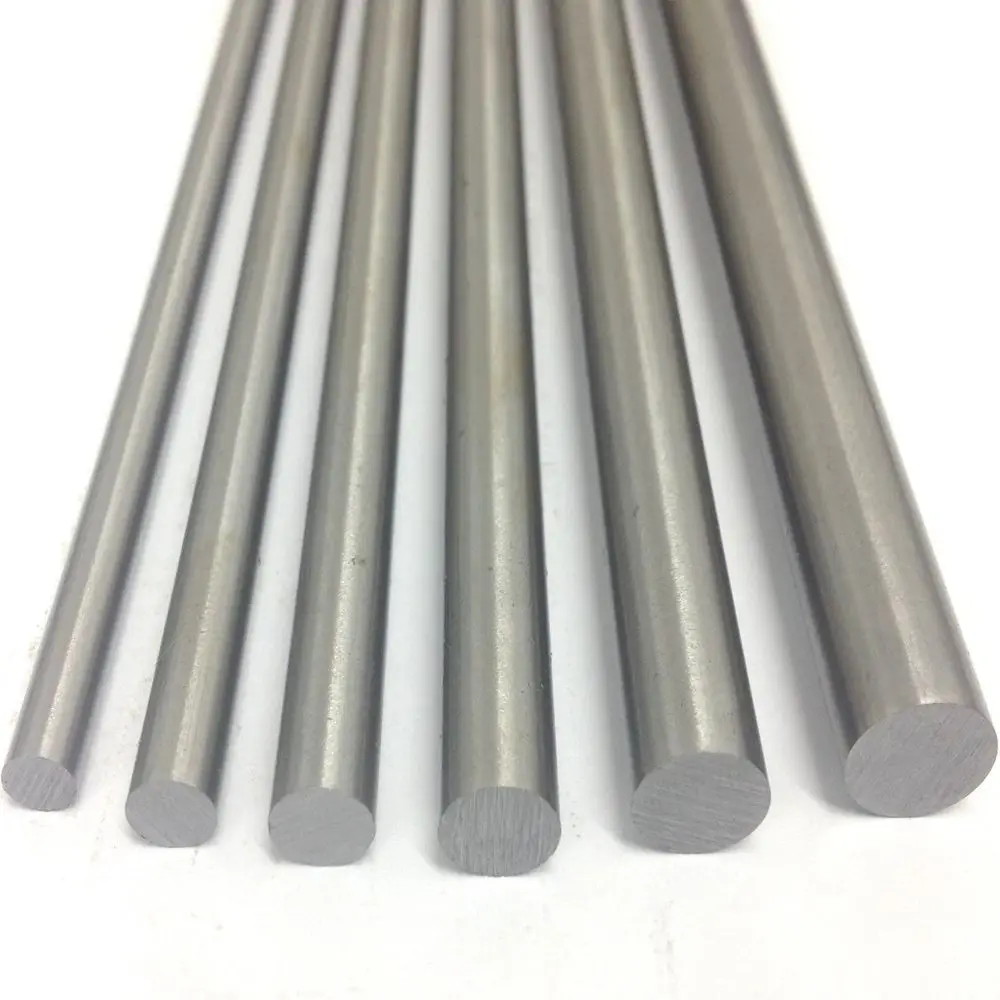

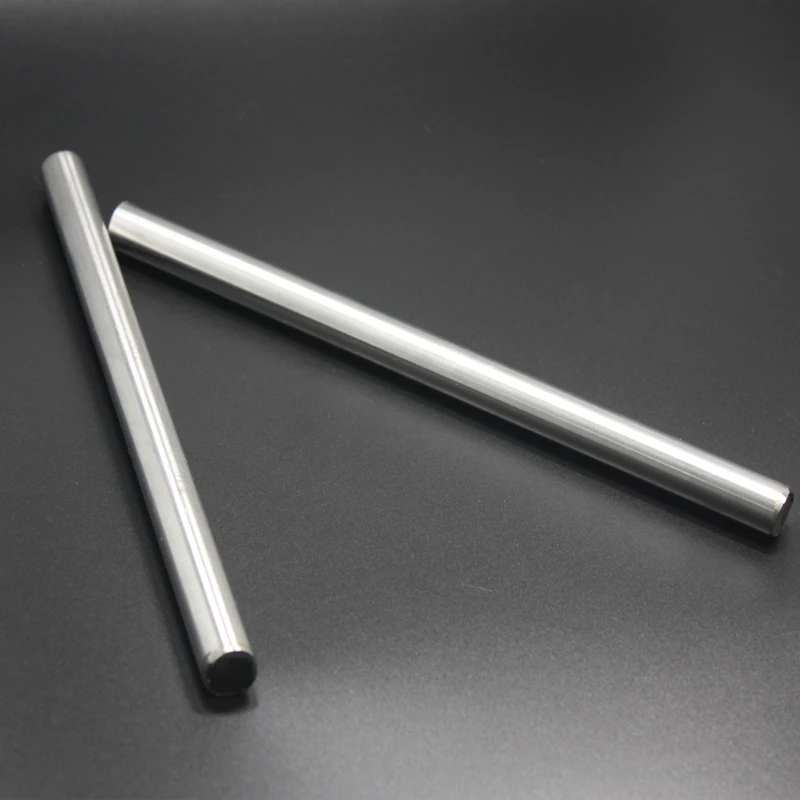

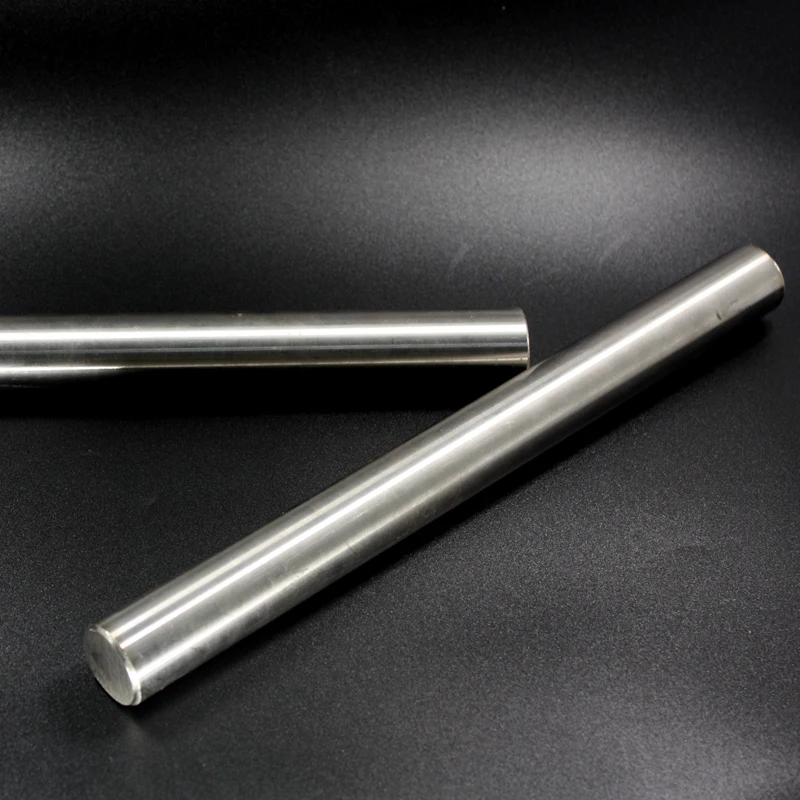

AISI 17-4PH solid round steel bar for self-lubricated spherical plain bearing
Aging treatment 17-4ph stainless steel round bar rod for bearings
Aging treatment 17-4ph stainless steel round bar rod for bearings
Product Description
17-4 PH stainless steel is capable of attaining a wide range of strength and toughness properties depending on the precipitation or aging temperature used in hardening. Its high strength, good corrosion resistance and toughness in both base metals and welds gives designers opportunities to add reliability to their products while simplifying fabrication and often reducing costs. We can offers high quality standards including: UNS S17400, AMS 5643, ASTM A564, and ASTM A693 Grade 630.
Specification of AISI 17-4PH solid round steel bar for self-lubricated spherical plain bearing
Product Name | AISI 17-4PH solid round steel bar for self-lubricated spherical plain bearing |
Steel type | AISI 630, 17-4PH, UNS 17400 |
JIS SUS630 | |
Din X5CrNiCU17-04 | |
EN 1.4542 | |
Standard | ASTM A564 |
Diameter | From 5mm~600mm |
Length | 0.5~ 8meters |
Diameter tolerance | H9, H10, H11, K9,K11,K13 etc…as per clients' request etc |
Length tolerance | 0/+50mm |
Finishing | Solution treated + age hardening heat treated ( H900, H1150, H1150D, H1150M, H1075, H1025 etc ) |
Feature of 630 | High Tensile strength, high hardness after heat treated. |
Mechanical property | T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
Application | Shipbuilding industry, marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft, |
pump shaft, machine-made industry, valve parts, paper mill equipment. | |
Delivery time | 3-15 working days after contract signed |
Certificate | ISO, SGS, mill test certificate |
Package | Good quality & fumigated wooden box, can better protect the bars. |
Raw Material of 17-4PH stainless steel bar
| CHEMICAL COMPOSITION | |||||||||||
| Standard | Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni | Cr | Cu | Nb | Mo ≤ |
| GB/1220-1992 | 0Cr17Ni4Cu4Nb | 0.07 | 1.0 | 1.0 | 0.035 | 0.03 | 3.0-5.0 | 15.5-17.50 | 3.0-5.0 | 0.15-0.45 | / |
| GB/T1220-2007 | 05Cr17Ni4Cu4Nb | 0.07 | 1.0 | 1.0 | 0.040 | 0.03 | 3.0-5.0 | 15.0-17.50 | 3.0-5.0 | 0.15-0.45 | / |
| ASTM | 630/17-4PH | 0.07 | 1.0 | 1.0 | 0.040 | 0.03 | 3.0-5.0 | 15.0-17.50 | 3.0-5.0 | 0.15-0.45 | / |
| EN1088-3 | 1.4542 | 0.07 | 0.7 | 1.5 | 0.040 | 0.03 | 3.0-5.0 | 15.0-17.50 | 3.0-5.0 | 0.15-0.45 | 0.60 |
| RCCM | X6CrNiCu17-04 | 0.07 | 1.0 | 1.0 | 0.025 | 0.02 | 3.0-5.0 | 15.5-17.50 | 3.0-5.0 | 0.15-0.45 | / |
Production Process of 17-4PH Round Bar
Application Area
17-4PH stainless steel products are widely used in petroleum chemistry, electric power, machinery manufacturing, automobile manufacturing, aerospace, offshore drilling, military and other industrial fields
Petrochemical Industry | Screw drill, Drilling steel, Marine drilling platform, Production platform, Oil storage ship, Floating Production Storage and Offload, lift platform, Pumps, Valves, Tubes, Pipes, etc. |
Power Industry | Hydropower plant, Thermal power plant, nuclear power plant, Pump, Valve, Boilers, Steam turbines, Generator sets, Pumps, Valves, Tubes, Pipes, etc. |
Machinery Manufacturing | Automobile manufacturing, shipbuilding, Aerospace manufacturing, Fasteners, Bolts, Nuts, Automobile parts, Medical apparatus and instruments, Pumps, Valves, Tubes, Pipes, etc. |
Automobile manufacturing | Axles, Instruments, Electronic parts and components, , Sensors, Turbocharger system, exhaust system, Fasteners, Bolts, Nuts, Pumps, Valves, Tubes, Pipes, etc. |
Others | Military industry, Environment protection, Coal and mining, etc. |
Related Product
We can also provide 17-4PH plate,pipe,wire,strip,forging with high strength, good corrosion resistance and toughness.
Why Choose Us
WHY CHOOSE US
Hunan Allianz Metal Products CO.,LTD establish in 1996,We have stable inventory and complete specification,17-4PH round bar with diameters of 6-350mm are almost in stock.We can meet the heat treatment requirements of different grades and the product types are various,including square bar, flat bar, strip, plate, pipe and so on.We have a large number of customers and we are a well-known manufacturer of 17-4PH plate,pipe,wire,strip,forging in Domestic.
Production Facility
Testing Equipments
FAQ
Q:What's the delivery time?
A:3-7days after receipt of the full payment.
Q:Can you supply the sample ?
A:Yes,we can supply the sample.You can tell us the detail size and contact us know more
Q:How about the trade terms?
A:EXW, FOB, CFR, CIF will be accepted.
Q:Are you trading company or manufacturer?
A:We are Manufacture of 17-4PH plate,pipe,wire,strip,forging.
Q:Which gurantee you can supply?
A:Third party inspection like SGS,ISO are acceptable before shipment.
Q:Can we visit your factory?
A:Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
