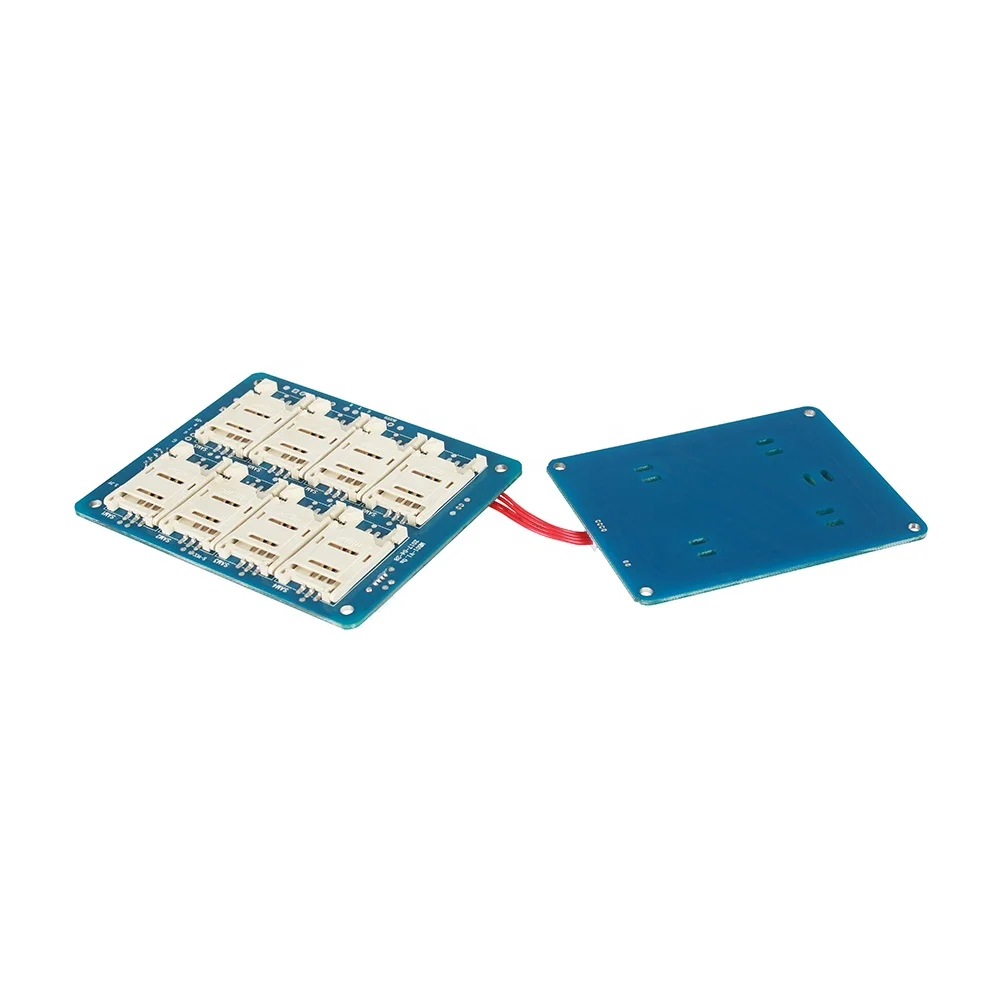

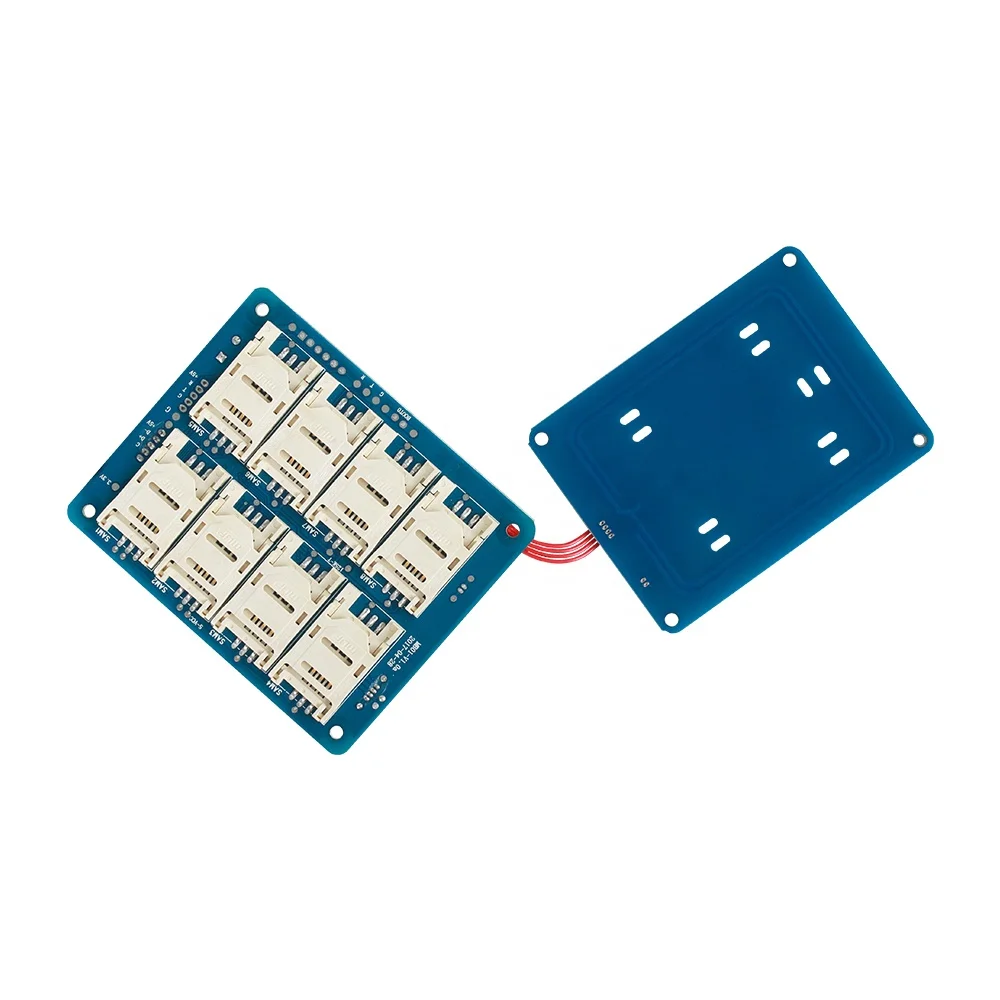

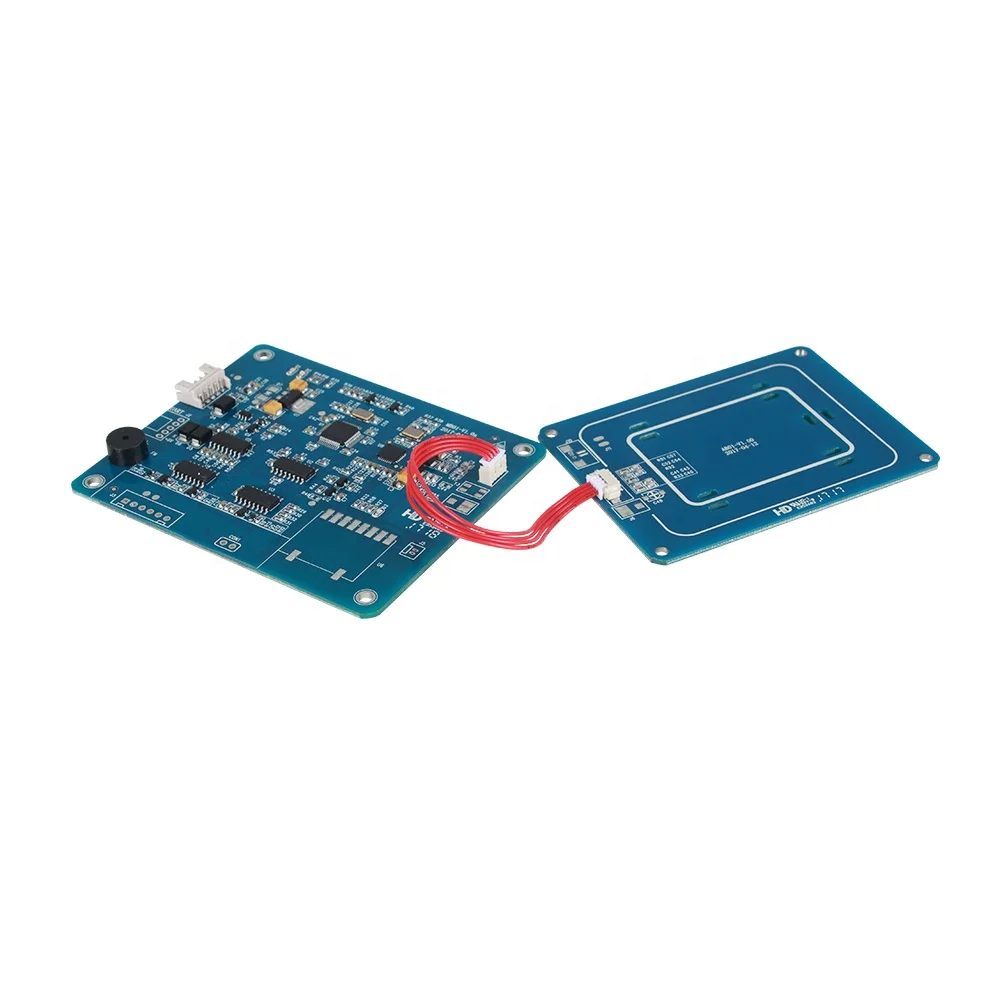

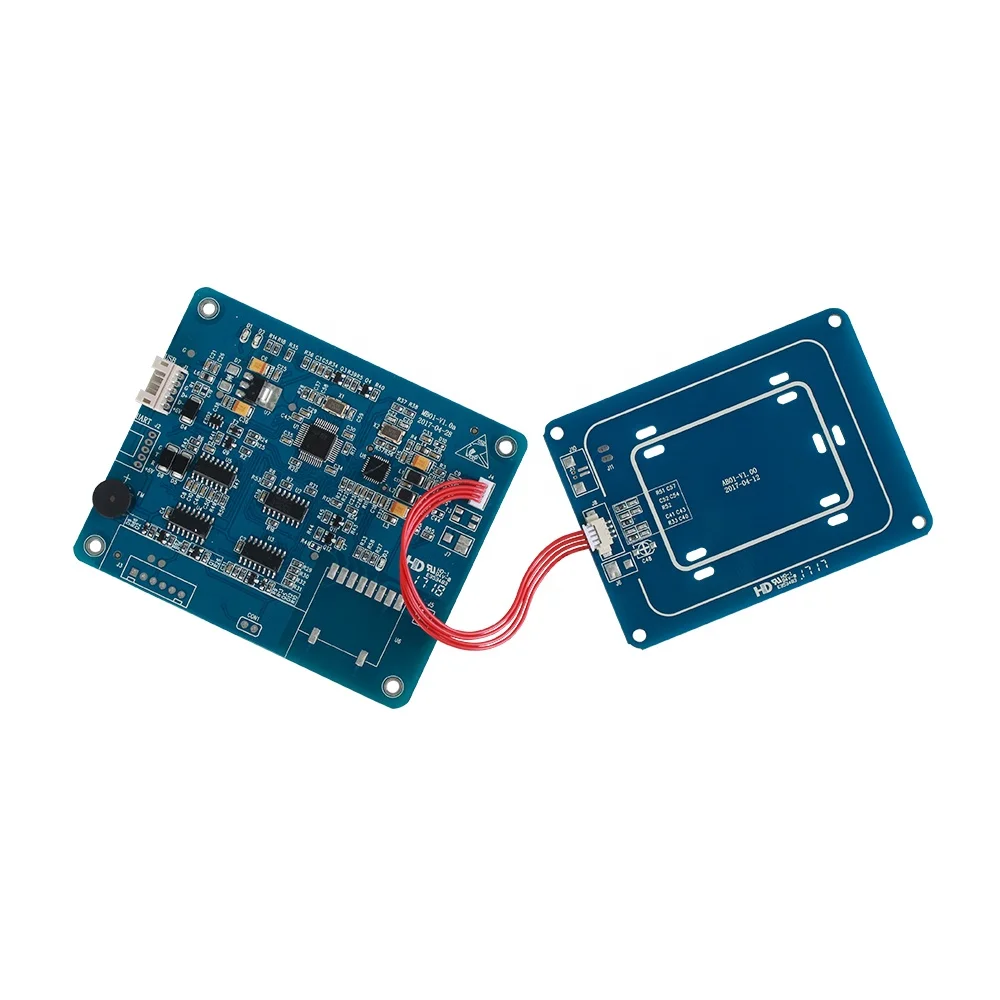

MT625V511 is a multifunctional embedded card reading module supports Contactless IC Card and PSAM card. It is a plug and play card reader anad does not need drive, suitable for various Windows platforms.
Dimension Figure:
Installation Requirement:
The antenna should keep the distance as above 4 cm.
Specifications
Card Type
Card TypeContact Cards Contactless IC Cards
Contactless IC card
ISO14443 TYPE A& B &MIFARE
R, W
IC card
ISO7816
R, W
PSAM(8 PCS)
EMV
Level 1 compliant
Card Reading Distance
5cm (Related to Cards)
Frequency
13.56MHz
Communication Speed
106 Default, 212, 424,848 kbps
Interface
USB HID
Antenna Connection Cable
Antenna and Mainboard: 100mm
Weight
Approx 51g
Features
Easy to operate, high reliability and durability
With HID USB interface, no need to install drive, plug and play
Support contactless IC card(ISO14443 TYPE A& B)
Support 8 PSAM cards(ISO7816)
Support 13.56MHz and 125KHz cards(can be customized)
Support buzzer
Support online updating
Applications
Kiosk Terminals/ Fuel Dispensers/ CNG dispensers/ Ticketing Machines/ Vending Machines/ Parking Systems/ Electric Vehicle Charging Points/ ID Terminals
