Производство GJYXFCH 1 ядро волокна падения ftth кабель frp в
- Категория: Коммуникационные кабели >>>
- Поставщик: Shanghai,Wanbao,Optical,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 50.57 $* | 51.13 $* |
| Jul-16-2025 | 40.83 $* | 41.22 $* |
| Jun-16-2025 | 49.14 $* | 50.58 $* |
| May-16-2025 | 48.14 $* | 49.50 $* |
| Apr-16-2025 | 39.15 $* | 40.58 $* |
| Mar-16-2025 | 48.80 $* | 49.70 $* |
| Feb-16-2025 | 47.91 $* | 48.18 $* |
| Jan-16-2025 | 47.35 $* | 48.71 $* |
Характеристики

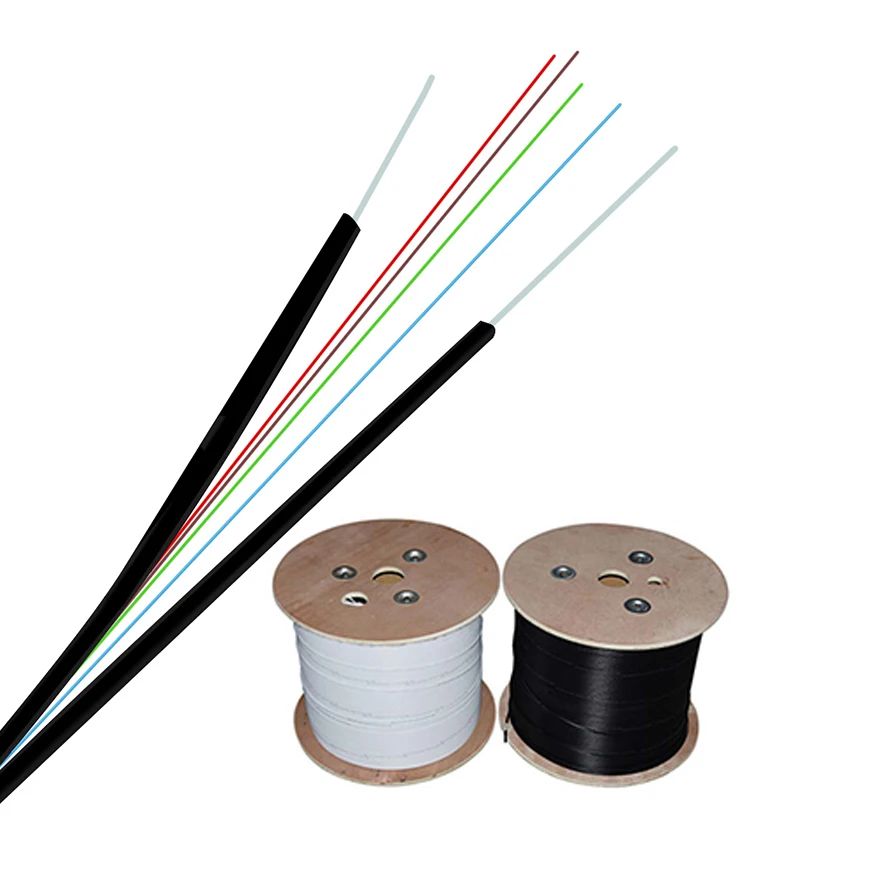

Manufacturing FTTH aerial drop cable self-supporting fiber figure 8 drop cable GJYXFCH/GJYXCH
WANBAO's FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.

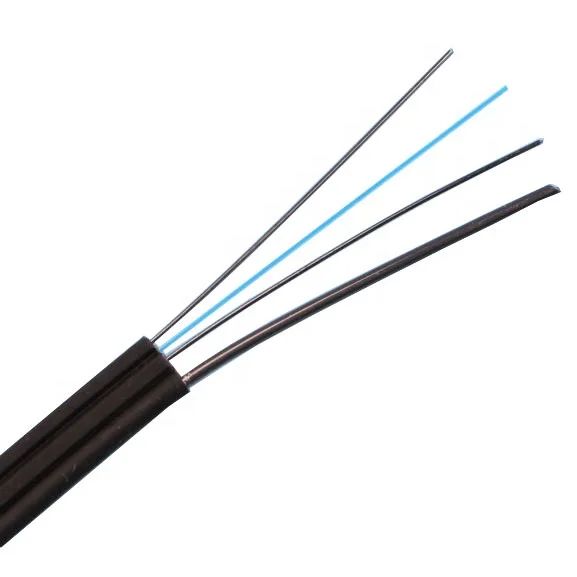

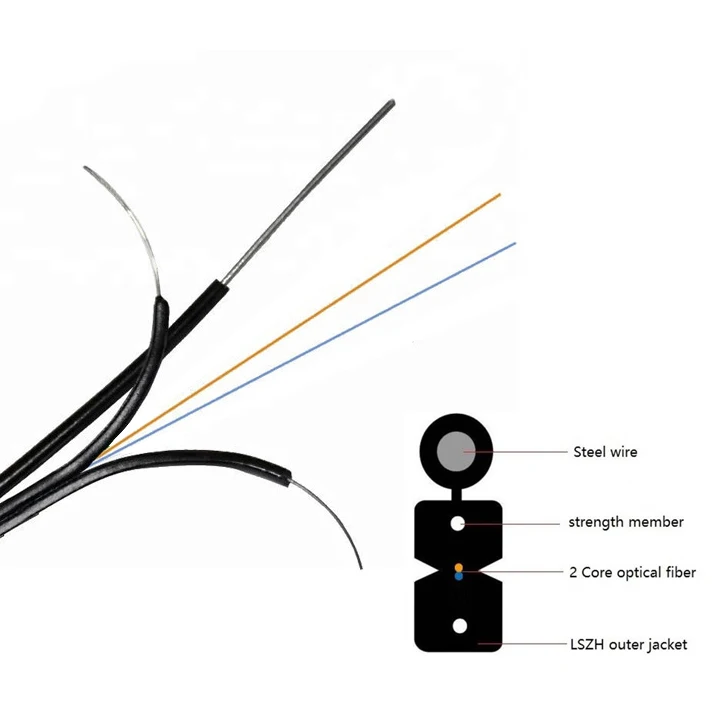

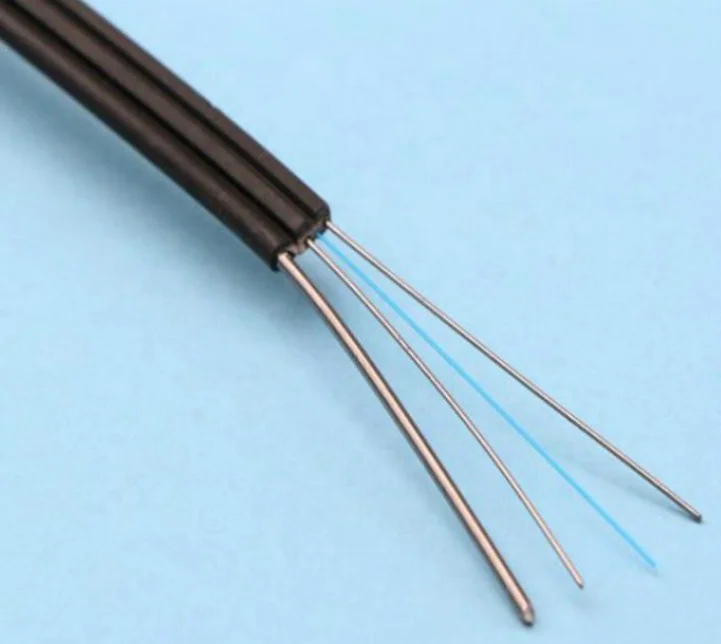

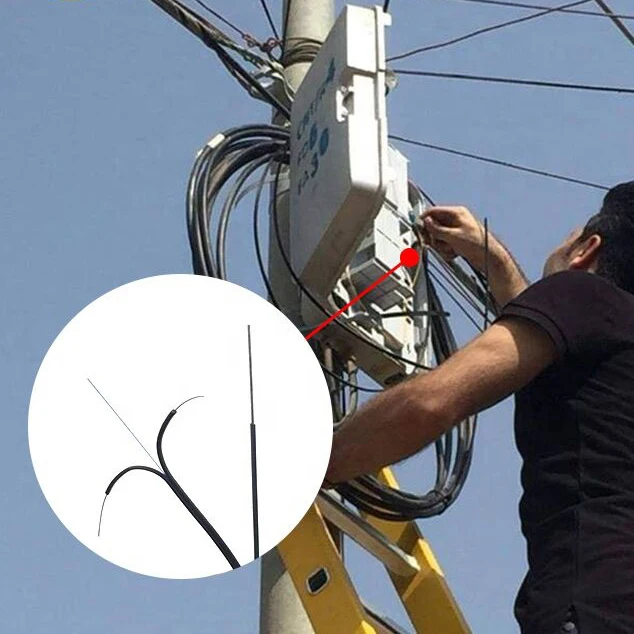

The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.
Fiber used in these cables are bend insensitive and can be used for applications where multiple bends are present. These light weight cables are suitable for direct installation in Villas, Multi dwelling units and have excellent crush and impact resistance properties.
* FTTH cable, 1, 2, 4 cores
* Soft and flexible, good bending performance
* Excellent tensile and crush performance
* Steel wire used for self-supporting

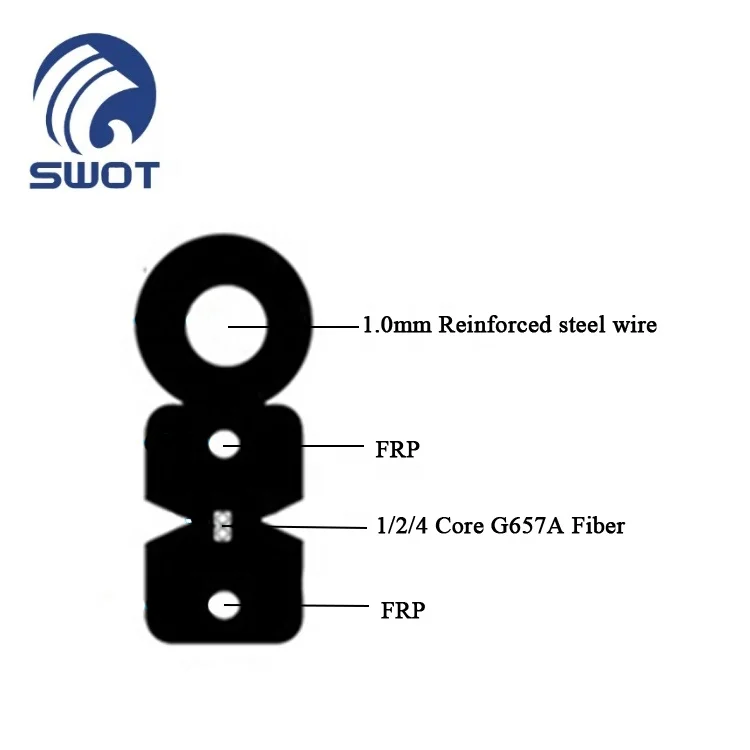

* Optical fiber cores are positioned in the center, two strength member are placed at the two sides.
* Strength member: FRP or KFRP or steel wire
* Jacket: LSZH or PVC
* Access network, FTTH cable (Fiber to the home)
* Used in indoor cabling, and end users directly cabling;
* Used as access building cable.
Product Model | GJYXCH/GJYXFCH | ||||||||||
Product Name | Self- supporting metallic strength member optical fiber drop cable | ||||||||||
size | 5.2×2.2MM | ||||||||||
Attenuation index | wavelength | B1.1 B1.3 (G.652) (DB/KM) | B6a(G.657A) (DB/KM) | B6b(G.657b) (DB/KM) | |||||||
1310 | ≤0.45 | ≤0.60 | ≤0.60 | ||||||||
1550 | ≤0.30 | ≤0.50 | ≤0.50 | ||||||||
Technical parameter | Model | Fiber count | Fiber model | Max.tensile (N) Long-time/ short-time | Max.squashed force (N) Long-term/ short time | Max.Bending radius Long-time/ Short-time | |||||
CJYXCH/GJYXFCH | 4 | B1.1 B1.3 | 300/600 | 1000/2200 | 30/60 | ||||||
B6a | 300/600 | 1000/2200 | 15/30 | ||||||||
B6b | 300/600 | 1000/2200 | 10/25 | ||||||||
GJYXCH/ GJYXFCH | 1/2 | B1.1 B1.3 | 300/600 | 1000/2200 | 30/60 | ||||||
B6a | 300/600 | 1000/2200 | 15/30 | ||||||||
B6b | 300/600 | 1000/2200 | 10/25 | ||||||||
Length type | 500M 1000M 2000M per reel or as your request | ||||||||||
Package
Packge:2KM/wooden drum, then put drum in carton box
