Двигатель переменного тока

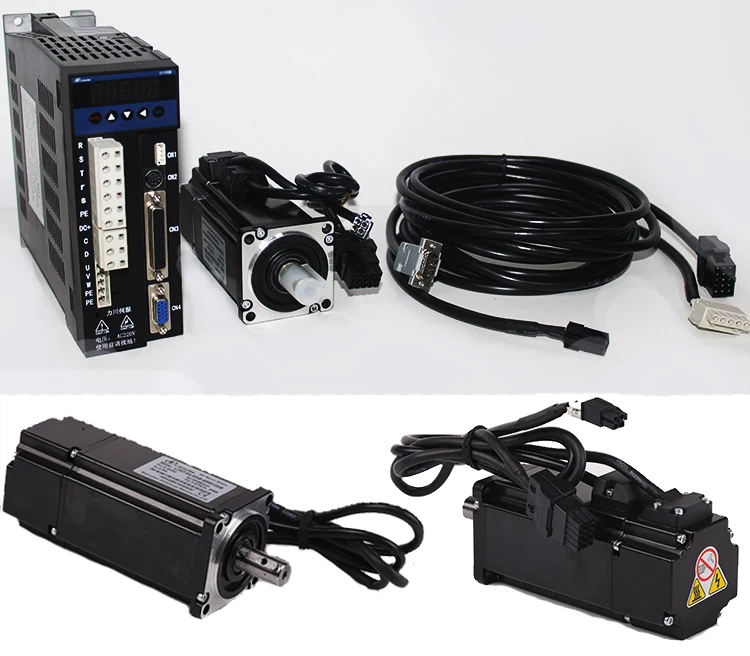

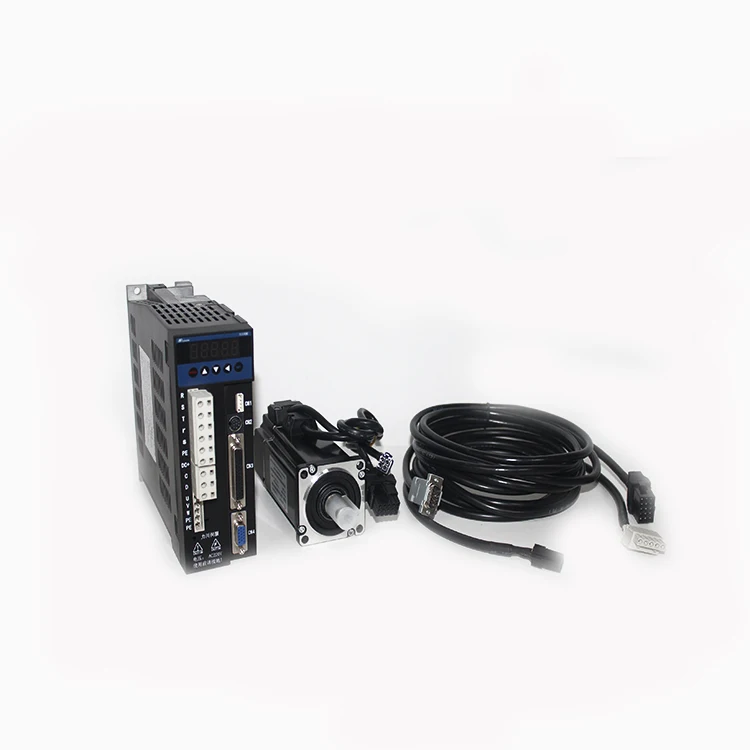

Электрический мотор сервопривода Nema24 AC 220V 3000 об/мин Servo Ампер 600W 200 ~ 240V 1/3Ph в однофазных и сервопривод

Электрический мотор сервопривода Nema24 AC 220V 3000 об/мин Servo Ампер 600W 200 ~ 240V 1/3Ph в однофазных и сервопривод

Категория: Двигатель переменного тока >>>
Поставщик: Shenzhen,Xinlichuan,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.70 $*	0.38 $*
Aug-16-2025	0.86 $*	0.76 $*
Jul-16-2025	0.14 $*	0.68 $*
Jun-16-2025	0.34 $*	0.81 $*
May-16-2025	0.16 $*	0.52 $*
Apr-16-2025	0.53 $*	0.78 $*
Mar-16-2025	0.22 $*	0.35 $*
Feb-16-2025	0.63 $*	0.47 $*
Jan-16-2025	0.15 $*	0.34 $*

Характеристики

Electric Servo motor Nema24 AC 220V 3000rpm Servo Amps 600W 200~240V 1/3Ph single phase and servo driver kit

Product Description

Nema24 60mm Series AC Servo motor 600W information :

Product Name: 60 series servo motor

Lichuan 60 series AC servo motor contains 0.2KW, 0.4KW, 0.6KW power specifications, the motor using the Japanese Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet materials, servo motor running smoothly, the noise is minimal, Suitable for a variety of industrial automation equipment, high precision control applications.

AC Servo motor name rules :

60mm Series 600W AC Servo motor parameter specification :

Motor model	LCMT-02L02-60M00630	LCMT-04L02-60M01330	LCMT-06L02-60M01930
Rated power(KW)	0.2	0.4	0.6
Rated voltage(V)	220	220	220
Rated current(A)	1.5	2.8	3.5
Rated speed(rpm)	3000	3000	3000
Holding torque(N.M)	0.637	1.27	1.91
Peak torque(N.M)	1.911	3.8	5.73
Voltage constant (V/1000r/min)	28	28	28
Torque coefficient (N.M/A)	0.42	0.5	0.55
Rotor inertia(kg.m2)	0.17×10^-4	0.302×10^-4	0.438×10^-4
Phase Inductance( Ω)	11.6	5.83	3.49
Phase Inductance(mH)	22	12.23	8.47
Machanical time-constant(Ms)	1.9	2.1	2.4
Weight (Kg)	1.11	1.33	1.78
Encoder line NO.(PPR)	2500
Insulation class	Class B(130℃)
Safety class	IP64

Nema24 60mm series AC Servo Dimension :

Nema 24 60mm Series AC Servo motor driver 600W information :

B2 series servo driver is a new generation of high performance, high stability products, support speed, position, torque and three mixed mode, increase the semi-automatic and automatic gain automatic tuning function, built-in MODBUS communication control function, can match more domestic servo Motor. Servo main IC using the United States Texas Instruments DSP all-digital chip, very low failure rate, adaptive drive 0.1KW ~ 26KW servo Motor.
