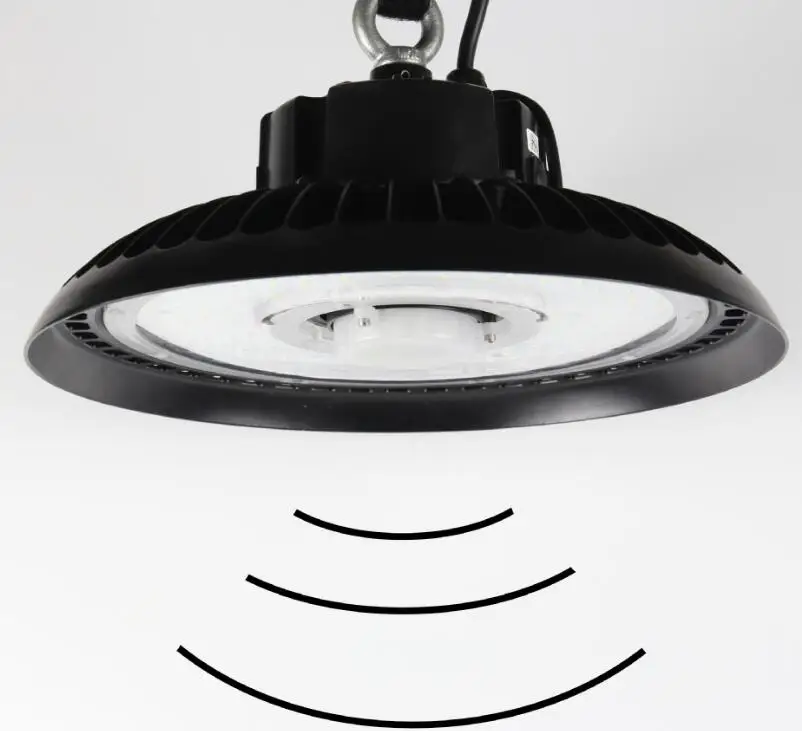

microwave sensor smart control waterproof sports hall 100w led UFO high bay dome

Input Voltage

AC 100-277V

Frequency

50Hz~60Hz

Power factor

>0.90

THD

<15%

System power Consumption

100W

Lamp luminous efficiency

130 Lm /W

Led Initial luminous Flux

13 000lm

Color Temperature

NW  4000-4500K

CW  6000-6500K

Color Rendering Index

Ra>70

 LED Junction Temperature

≤120℃

Working Temperature

-30℃ ~ 55℃

Storage Temperature

-35℃ ~ +65℃

IP Grade

IP65

Wire Connecting

(The color of the

lamp shell)

Brown

L (live line)

Blue

N (neutral line)

Yellow/Green

G (ground line)

The color of the lamp shell

Black

Beam angle

60/90/120deg

Size

Dia 280mm*H 140mm

Life span

50 000hrs

Hold time

5s / 30s / 90s / 3min / 20min / 30min

Daylight sensor

50lux / 100lux / 200lux / Disable

Stand-by period

5s / 5min / 10min / 30min / 1h

Stand-by dimming level

10% / 15% / 30%

Mounting height

12m Max.

Detection zone

10*10M Max

Detection angle

360°(ceiling installation)

1. CE and RoHS approved.

2. Die-casting aluminum casing and high intensity toughened glass cover

3. High efficiency and power factor LED driver

4. Wide radiation angle, huge lighting area

5. Start without delay and flicker free

6. Good color rendering

7. Warm and cold color temperature are available

8. High shock & vibration resistant

9. Ideal heat dissipation design

10. No UV & IR, No Blinking and No Mercury & Lead free

11. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light
