NG-030/NG-060/NG-135/NG-200/NG-340 цифровой электрический гидравлический динамометрический ключ Регулируемый 1/2 3/8 1/4/диапазон 30N.m-340N.m
- Категория: Wrench >>>
- Поставщик: Xi'an,Beicheng,Electronics,Co.,Ltd.Xi'an,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 12234.51 $* | 12479.44 $* |
| Jul-16-2025 | 9922.54 $* | 10120.64 $* |
| Jun-16-2025 | 12041.11 $* | 12282.72 $* |
| May-16-2025 | 11945.32 $* | 12184.5 $* |
| Apr-16-2025 | 9537.82 $* | 9728.30 $* |
| Mar-16-2025 | 11752.38 $* | 11987.65 $* |
| Feb-16-2025 | 11656.7 $* | 11889.2 $* |
| Jan-16-2025 | 11560.63 $* | 11791.2 $* |
Характеристики
Products Description

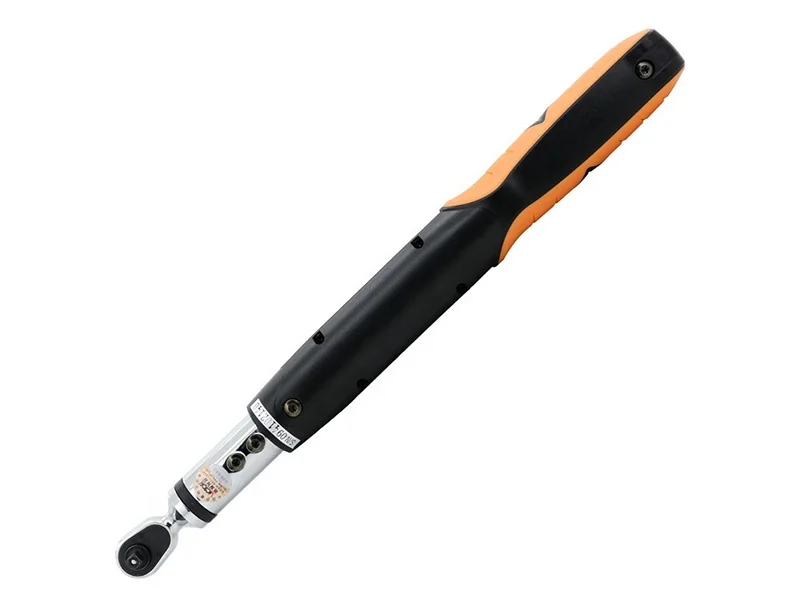

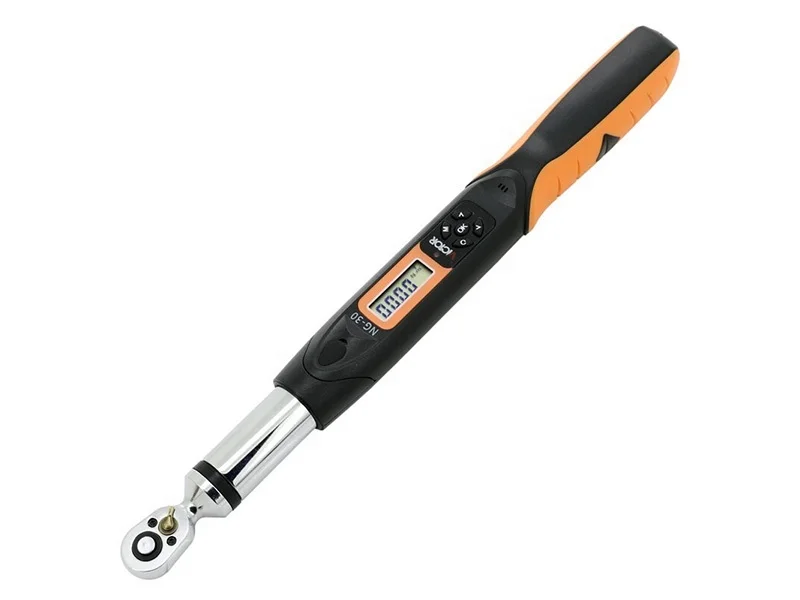

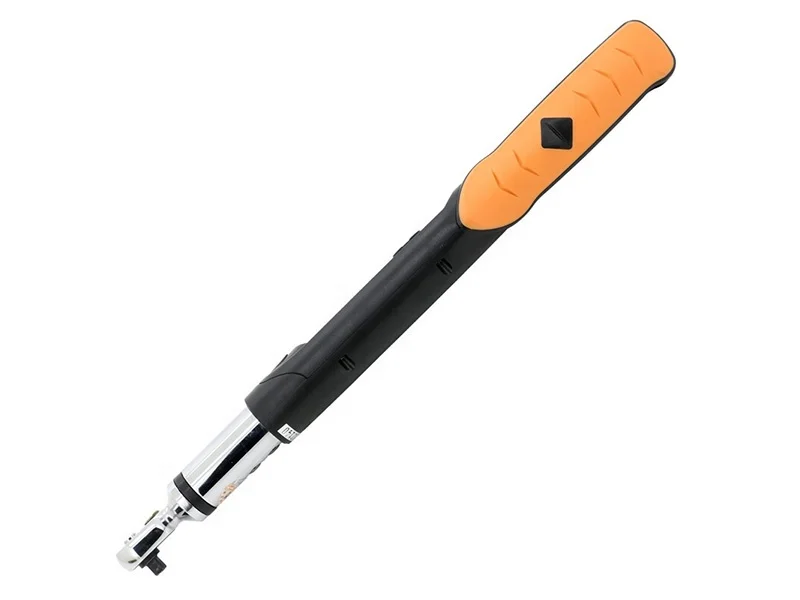

VICTOR NG-030/NG-060/NG-135/NG-200/NG-340 Digital Torque Wrench Time Setting Mode Setting Data Storage Data Clear Data Output And User Calibration Function
* Summary
1.1 Main usage& application
Digital torque wrench is different from general torque wrench,it has strong operation function including torque setting,time
setting ,mode setting ,data storage,data clear,data output and user calibration function. It is easy to operate, it reduce the
requirements for the operator by install the digital display. It is widely used for the automotive industry,machinery
industry,such as bolt fastening and control.
1.2 Features
1.2.1 Digital torsional readings
1.2.2 Accuracy +/-2（range 20~100%）
1.2.3 Clockwise and counterclockwise both operated
1.2.4 Peak hold and real-time mode
1.2.5 Buzzer and LED indication（reach preset torque value）
1.2.6 Four units（ft-lb、in-lb、N-m、kgf.cm）
1.2.7 100 records can be stored
1.2.8 Communication function
1.2.9 Auto-shut down within 5 minutes
Digital torque wrench is different from general torque wrench,it has strong operation function including torque setting,time
setting ,mode setting ,data storage,data clear,data output and user calibration function. It is easy to operate, it reduce the
requirements for the operator by install the digital display. It is widely used for the automotive industry,machinery
industry,such as bolt fastening and control.
1.2 Features
1.2.1 Digital torsional readings
1.2.2 Accuracy +/-2（range 20~100%）
1.2.3 Clockwise and counterclockwise both operated
1.2.4 Peak hold and real-time mode
1.2.5 Buzzer and LED indication（reach preset torque value）
1.2.6 Four units（ft-lb、in-lb、N-m、kgf.cm）
1.2.7 100 records can be stored
1.2.8 Communication function
1.2.9 Auto-shut down within 5 minutes
Specification
Model | NG-30 | NG-60 | NG-135 | NG-200 | NG-340 | ||||||
Min. Resolution | 0.01 | 0.1 | |||||||||
Max. Operation Range（N.m） | 30N.m/22.12ft.lb/265.5in.lb/305.91kgf.cm | 60N.m/44.25ft.lb/531.04in.lb/611.82kgf.cm | 135N.m/99.57ft.lb/1195in.lb/1376.61kgf.cm | 200N.m/147.5ft.lb/1770in.lb/2039.43kgf.cm | 340N.m/250ft.lb/3009in.lb/3467.03kgf.cm | ||||||
Square Drive（inches） | 1/4 | 3/8 | 1/2 | ||||||||
Measured Torque Range（N.m） | 1.5~30 | 3~60 | 6.75~135 | 10~200 | 17~340 | ||||||
Length(mm) | 390 | 420 | 535 | 655 | |||||||
Accuracy | Clockwise：±2% counterclockwise：±2.5% | ||||||||||
Data storage capacity | 100 | ||||||||||
Operation mode | Peak hold mode（P）/Real-time mode（T） | ||||||||||
Unit | N.m、in.lb、ft.lb、kgf.cm | ||||||||||
Ratchet head type | Double-side ratchet head | ||||||||||
Number of ratchet gear | 36 | ||||||||||
Button | 5 | ||||||||||

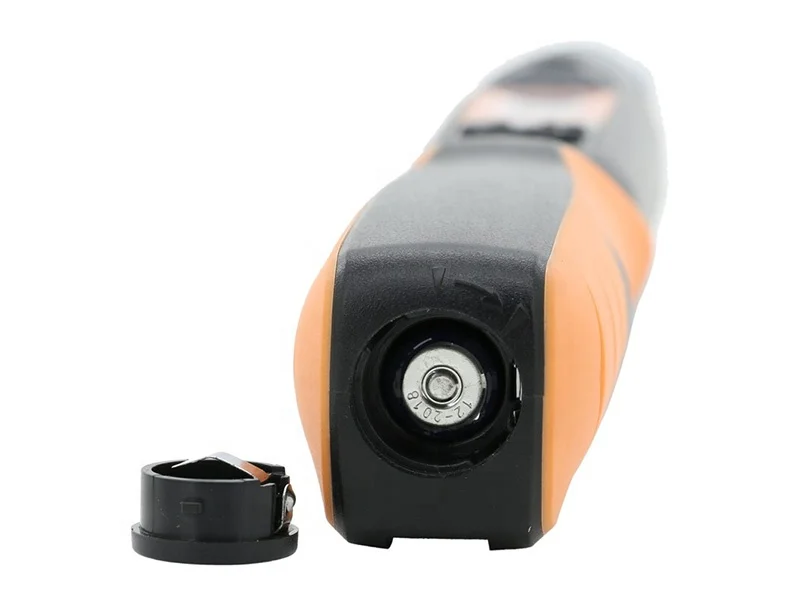

Battery | AA battery × 2 1.5V （No. 5 battery） | ||||||||||
Operation temperature | -10℃~60℃ | ||||||||||
Storage temperature | -20℃~70℃ | ||||||||||
humidity | No condensation to 90% | ||||||||||
Drop test height | 1 meter | ||||||||||
Vibration test condition | 10G | ||||||||||
Life time test | 10000 times | ||||||||||
