Высококачественный ультратонкий модуль камеры MIPI 5MP HD объектив CMOS Автофокус
- Категория: Video Cameras >>>
- Поставщик: Shenzhen,City,Haozhou,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 29.21 $* | 30.96 $* |
| Jul-16-2025 | 24.93 $* | 24.81 $* |
| Jun-16-2025 | 29.30 $* | 30.22 $* |
| May-16-2025 | 29.35 $* | 30.64 $* |
| Apr-16-2025 | 23.11 $* | 23.34 $* |
| Mar-16-2025 | 28.5 $* | 29.62 $* |
| Feb-16-2025 | 28.99 $* | 29.7 $* |
| Jan-16-2025 | 28.59 $* | 29.78 $* |
Характеристики

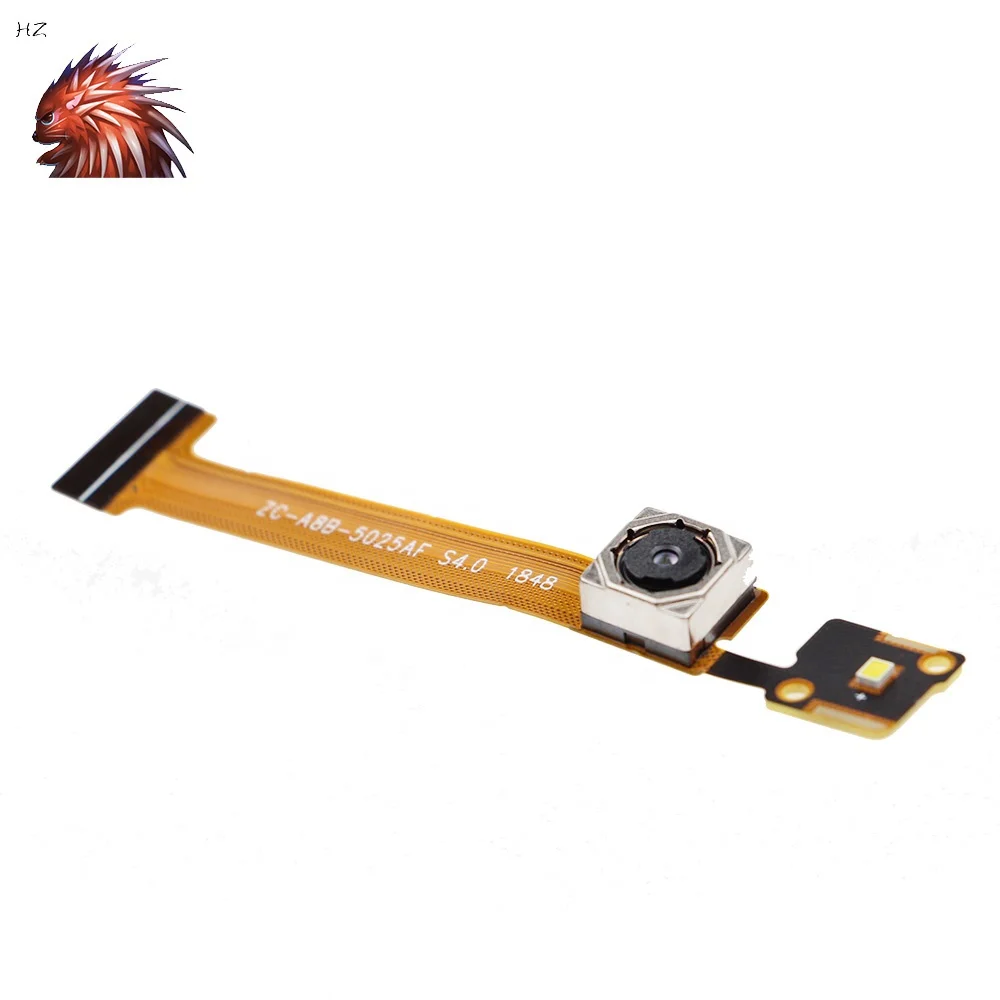

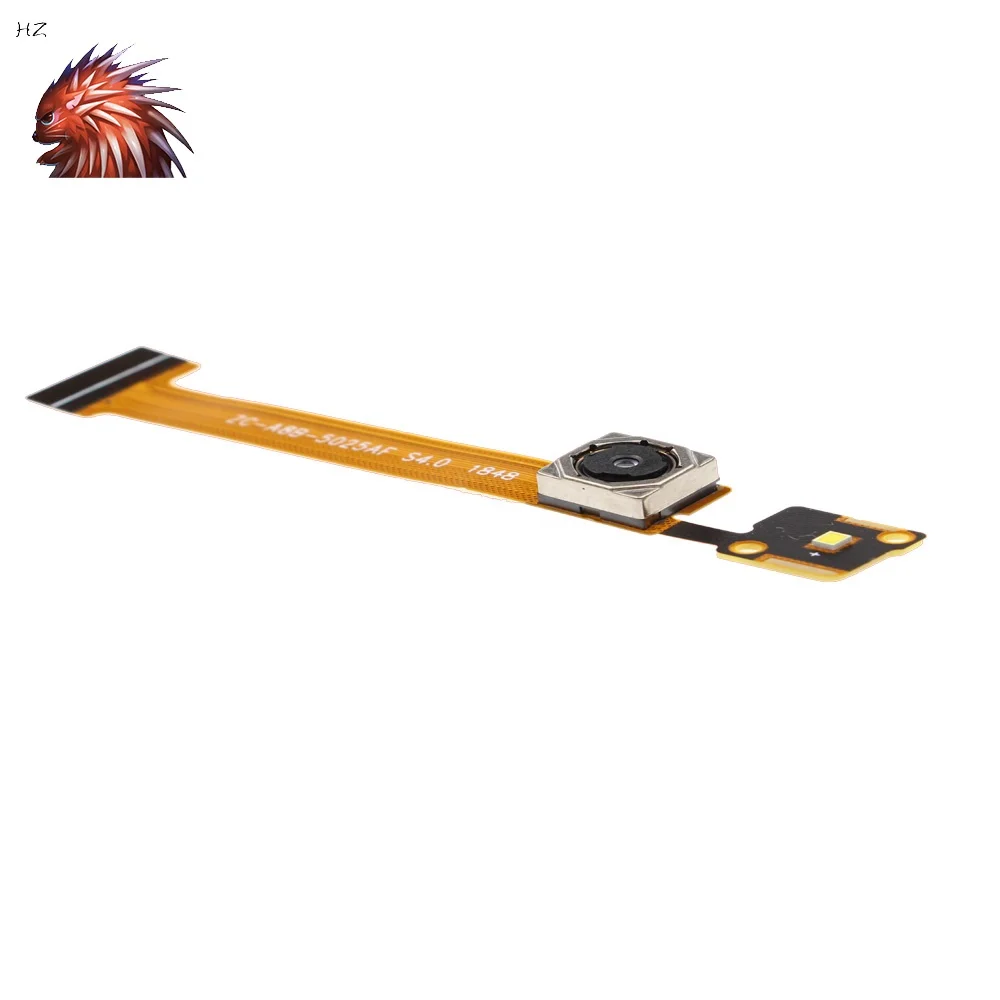

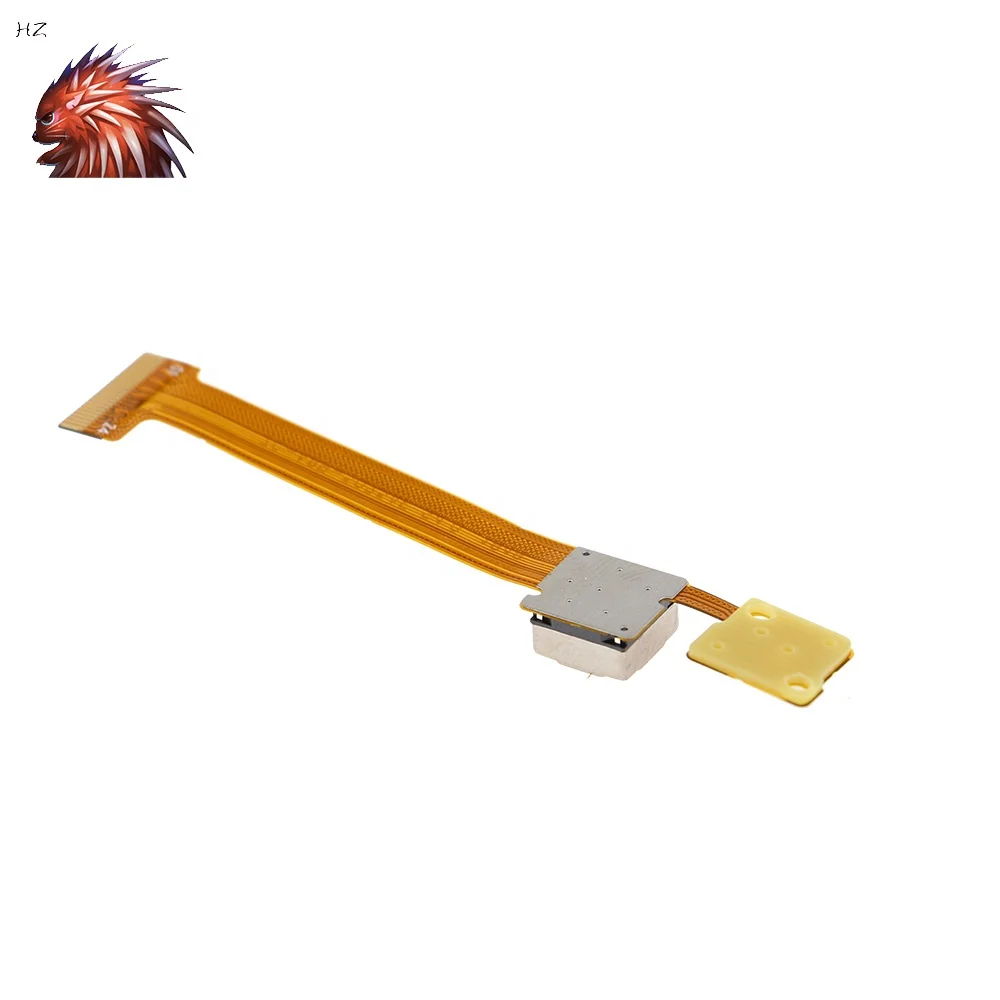

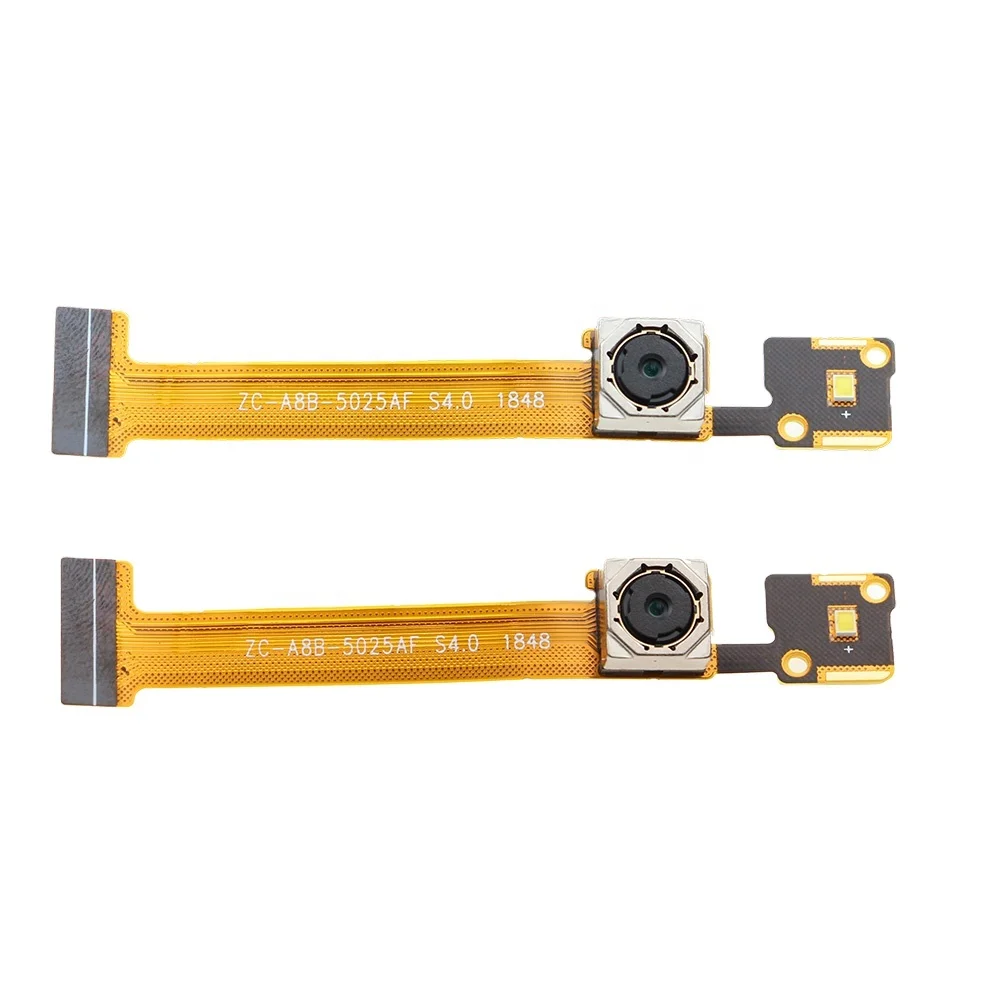

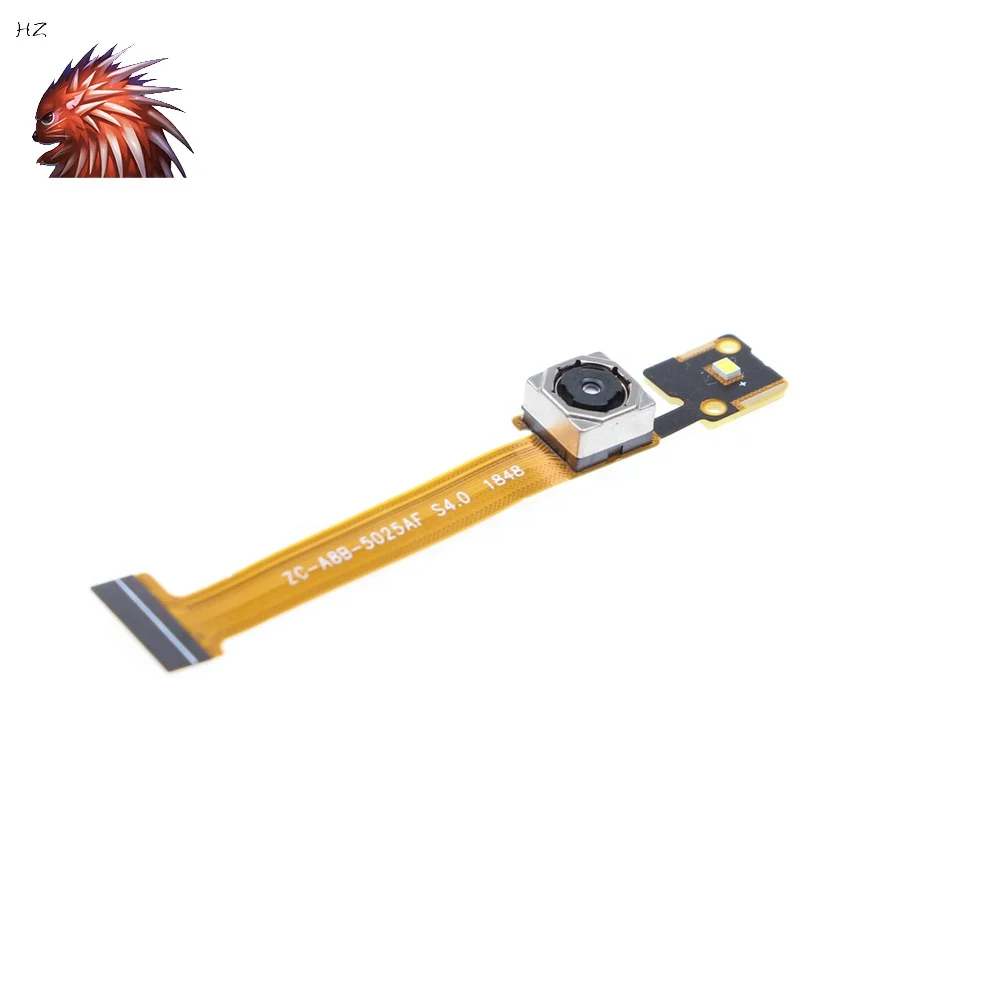

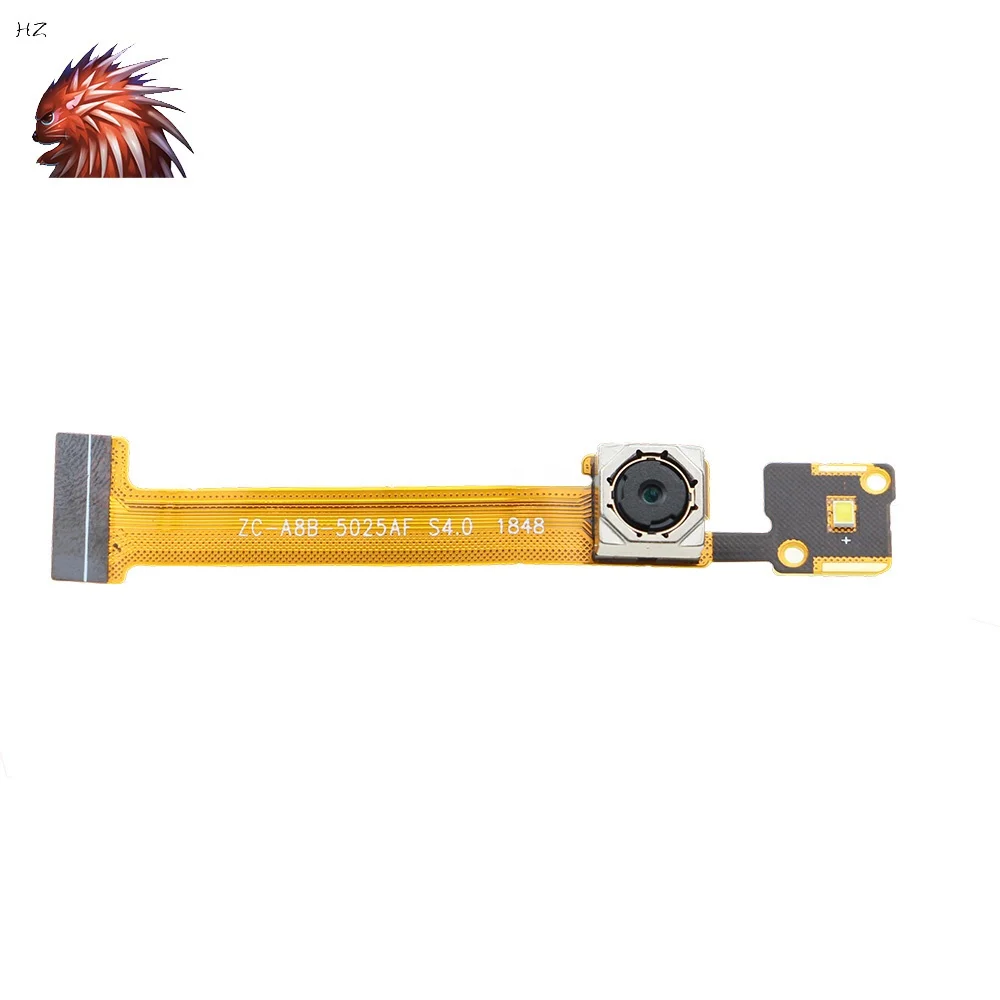

High Quality Ultra-thin Camera Module MIPI 5MP HD camera lens CMOS Auto Focus For Laptop
Module No. | ZC-A8B-5025AF S4.0 | |
Module Size | 67 × 12.5×4.65mm | |
Object distance | 20cm-180 cm | |
Resolution | ≥1200lW/PH(Center) | |
Focus | Auto Focus | |
Interface | MIPI | |
Voltage | Core 1.0V~1.3V analog 2.7V~3.0V I/O 1.8V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
PCB printing ink | Yellow | |
Package | ||
Sensor Type | ||
Sensor No. | GC5025 | |
Sercor Type | 1/5” | |
Active Array Size | 2592*1944 | |
Sensitivity | TBD | |
Pixel Size | 1.12µm x 1.12µm | |
Maximum Image Transfer Rate | 2592*1944@30fps | |
LED Type | ||
LED | 5500-7000K | |
LENS | ||
Thread | M6.5XP0.25 | |
Lens Construction | 3P+IR(650nm) | |
F/NO | 2.8mm | |
EFL | 3.25mm | |
BFL(OPTICAL) | 3.87mm | |
FOV | 70° | |
IR Filter | / | |
TV Distortion | <1.0% | |
S/N Ratio | TBD | |
Dynamic Range | TBD | |
IC Assembly | PLCC | |
Substrate | FPC | |
Assembly technique | Glue | |
Output Formats | 30fps@full size | |
Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK | |
