Новый безопасный мини-кран-паук 3000 кг мобильный башенный кран концевой переключатель шириной 800

Новый безопасный мини-кран-паук 3000 кг мобильный башенный кран концевой переключатель шириной 800

Категория: Краны >>>
Поставщик: Beta(Hangzhou),Industrial,Machinery,Co.,Ltd.

Цена:24 000,00 $ - 46 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	28560.56 $*	29988.43 $*
Aug-18-2025	28320.13 $*	29736.64 $*
Jul-18-2025	23760.2 $*	24948.75 $*
Jun-18-2025	27840.57 $*	29232.97 $*
May-18-2025	24240.18 $*	25452.6 $*
Apr-18-2025	27360.53 $*	28728.67 $*
Mar-18-2025	27120.11 $*	28476.67 $*
Feb-18-2025	26880.53 $*	28224.24 $*
Jan-18-2025	26640.3 $*	27972.22 $*

Характеристики

Applications:

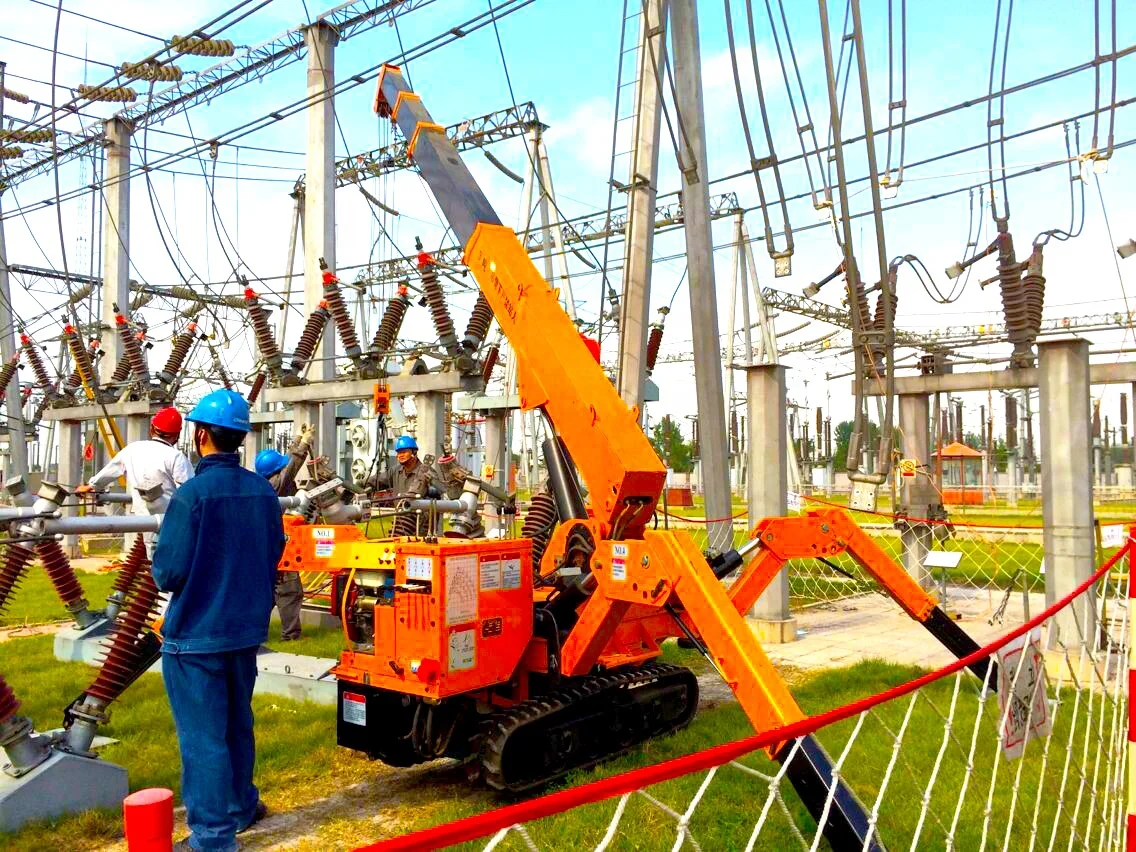

The HXB3.0 crane is widely applied to lifting especially in some narrow space where heavy-duty crane cannot get in.

Detailed parts picture:

Technical data:

Model		HXB3.0
Crane capacity		3.0t×1.3m
Maximum working radius		7.7m
Maximum lifting height		9.5m
Winch	Hook up speed	2.8m/min(4 times)
Winch	Diameter and length of wire rope	Ø8mm×50m
Telescopic	Boom form	4 (4 Automatic)
Telescopic	Boom length	8.2 m
Derrick	Derricking angle	0-75°
Slewing	Slewing angle	360-degree continuous
Outrigger	Form of outrigger	First phase--automatic Second phase--manual
Outrigger	Maximum extend range	5.3m
Traction system	Travel	Hydraulic
	Travel speed	0-3.0km/h
	Track	Synthetic rubber
	Gradeability	30°
	Track ground pressure	50kpa
Hydraulic oil tank	Tank capacity	38L
Hydraulic pump	Model	P208
	Displacement	8ml/rev
	Max pressure	25Mpa
	Rated pressure	21Mpa
	Allowed speed	550-3000rpm
Diesel Engine-Yanmar (optional)	Model	L100N6-METM Yanmar Diesel Engine
	Combustion system	Direct injection
	Output	Max 7.4 (10.0PS ) / 3600 kW/min-1
	Fuel	Diesel fuel
	Tank capacity	5.4L
	Starting system	Starter motor with recoil starter
Gasoline Engine -HONDA (optional)	Model	GX390, HONDA brand
	L×W×H	405×450×443mm
	Displacement	389.2ml
	Max. output power	13HP
	Ignition system	Transistor ignition magnets (non-contact)
	Gasoline engine type	Four strokes, single cylinder, forced air cooling
	Direction of rotation	Counterclockwise (the output shaft)
	Stating performance	30 (-5°C--40°C)
	Battery capacity	12V 36Ah
3-phase power motor	Model	YYB100L2-4
	Mount type	Horizontally-mounted
	Power	3KW
Dimension of the crane	Length	3000mm
	Width	800mm
	Height	1560mm
	Total weight	2000kg

Applications:

Customers from all around the world:

Questions & Answers:

1. How about the payment terms?

Answer: We accept 30% T/T in advance, 70% balance before the delivery. Other terms like O/A and L/C also available, we can discuss in details.

2. How do you guarantee your quality?

Answer: Quality test in every process and every component to ensure good quality. Ensure good quality is to ensure safety. Each set of cranes must be inspected and commissioned in details before delivery.

3. Do you have some certificates of you spider crane?

Answer: CE certificate for products, and our company is approved by ISO9001 and ISO14001.

4. How about your delivery time and stock status?

Answer: We have stock for our best-selling models normally. In case there is no stock, delivery time is 2-4 weeks.

5. What is the power of your spider crane?

Answer: You have different choice: gasoline engine, diesel engine, electric motor, and pure battery. It can well meet your different working conditions.

6. Can you provide OEM service and have our own logo on products?

Answer: Yes, we work on OEM orders. That's ok to have your own logo on the products. Please contact us with details before placing order.

7. How about the packing and shipping?

Answer: Normally, we have strong wooden case to protect the crane. And sometimes if customers want to load in a full container, that is ok.

8. Where is your factory located? Can I visit your factory?

Answer: We are in Hangzhou city, Zhejiang province, east China. We have international airport. 1 hour from Shanghai by train. Very convenient to visit us, and all clients from all over the world are highly welcome.
