Dason DC12V длинноходный Прочный экономически эффективным коробка редукционный

Описание и отзывы

Трекер стоимости

Характеристики

P/N	DSN--1578S-34
temperature range	-20ºC~65ºC
relative humidity	5%~60%RH
rated voltage	DC24V
wattage	64W(DC24V,R=9Ω±10%)
PERATION CYCLE	The gap type passes 0.05 seconds and breaks 0.2sec ED 25%
facie	No damage, rupture, rust or surface stain
working voltage	DC24V±10%
potence	15mm thrust: greater than or equal to 2000gf (DC24V)
insulation resistance	DC500V, 50 m or more Ω (between the coil and skeleton)
high voltage	AC700V 50/60hz-1 second, maximum leakage current 1 milliampere (between coil and casing)
biometry	More than 200,000 times under normal operation

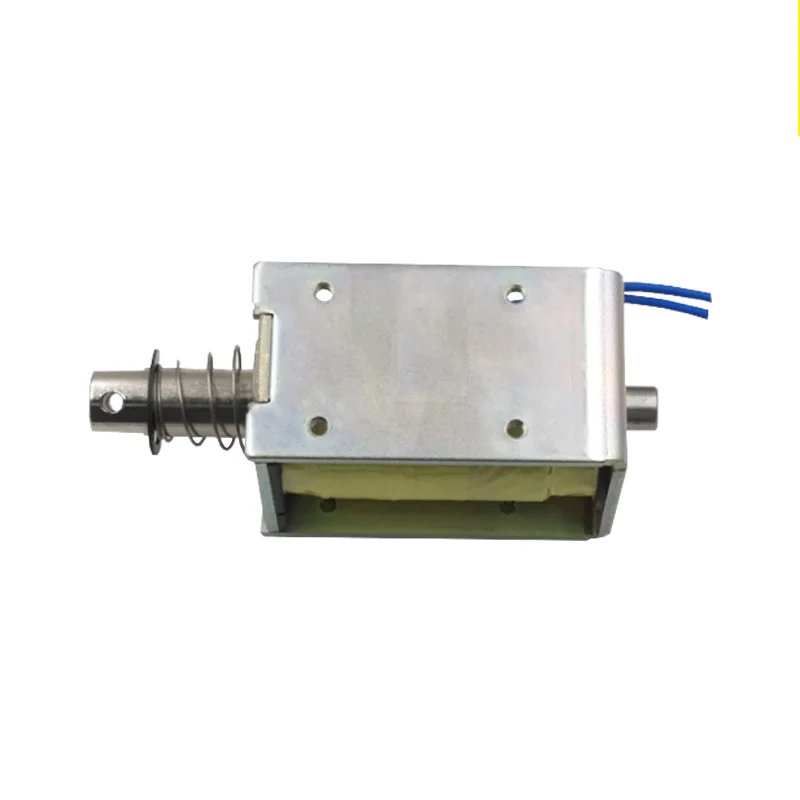

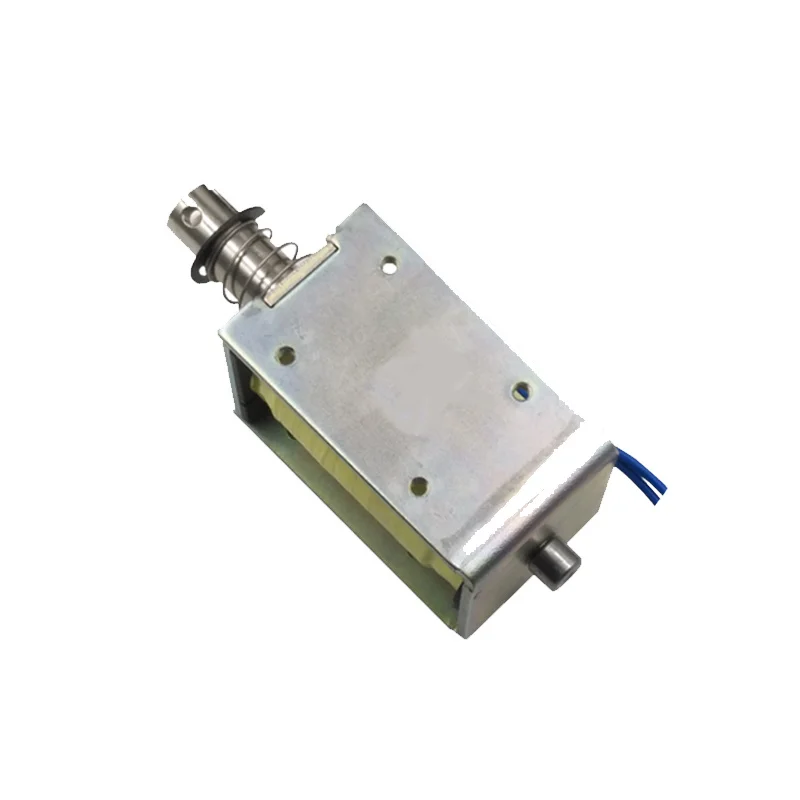

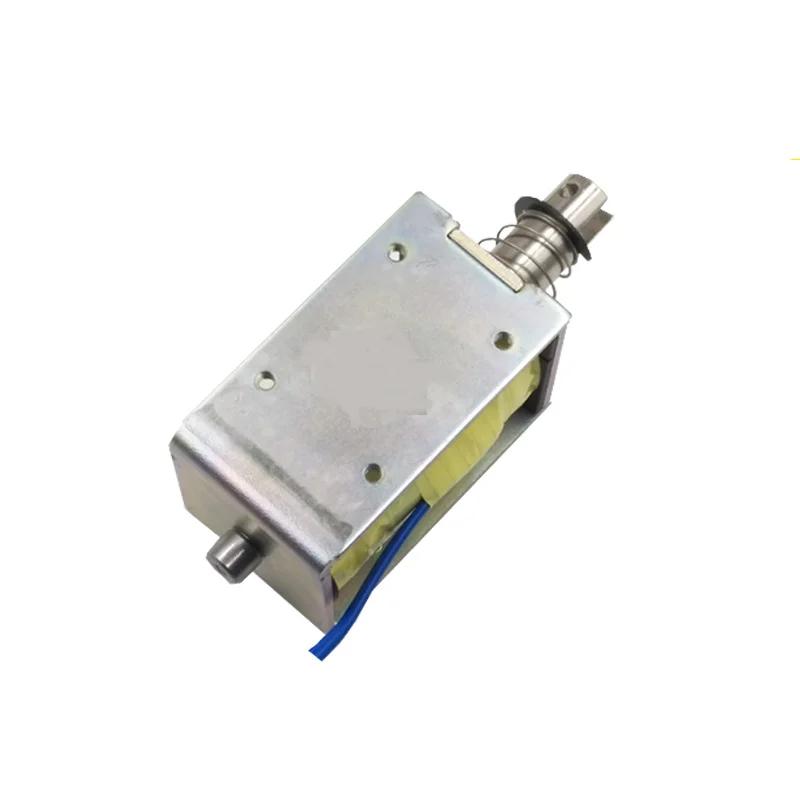

The storage box solenoid dsn-1578s-34 is a solenoid developed and produced by us. It is used in the storage box. It has the advantages of flexible structure and adjustable parameters.

DASON is made in accordance with iso-ts16949 quality management system, and the key tools are inspected on the production line to ensure the good rate of shipment is up to the standard.
