Автоматическая машина для закручивания винтов с одной головкой и алюминиевой крышкой стеклянных
- Категория: Укупорочные машины >>>
- Поставщик: Zhangjiagang,Drinks,Packaging,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 4998.47 $* | 5248.96 $* |
| Aug-20-2025 | 4956.38 $* | 5204.29 $* |
| Jul-20-2025 | 4158.80 $* | 4366.31 $* |
| Jun-20-2025 | 4872.66 $* | 5116.47 $* |
| May-20-2025 | 4242.43 $* | 4454.4 $* |
| Apr-20-2025 | 4788.2 $* | 5027.95 $* |
| Mar-20-2025 | 4746.27 $* | 4983.24 $* |
| Feb-20-2025 | 4704.82 $* | 4939.26 $* |
| Jan-20-2025 | 4662.47 $* | 4895.9 $* |
Характеристики
Product Description

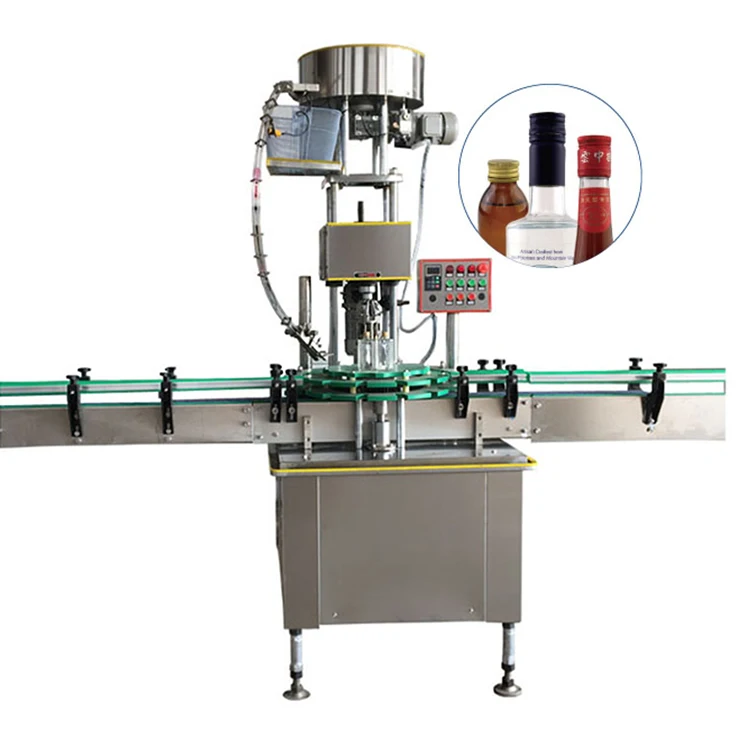

Automatic Single Head Glass Bottle Aluminium Cap Screw Capping Machine
Our capping machines are suitable for sealing all types of bottles and containers and Jars for pharmaceuticals, ayurvedic, nutraceutical, dairy, juice, chemical, food, edible oil lubricant oil, cosmetics, pesticides and agro industries and many more.
This machine finds its application in metal capping,our engineer conducts rigorous quality test to ensure the supreme quality and performance of the machines. These machines are robust in construction, high in tensile strength and easy to operate.We offer this automatic capping machine in different specifications and can be customized per the requirements of the clients.
What is Capping Machine and Why it is required?
Capping Machines, tighteners are used for sealing the filled bottles, containers, Vials, jars and related . Caps are devices that are used to close off a container. Caps prevent product leakage, product contamination, to extend a product’s shelf life, and prevent tampering.
The different type of products that are packaged and the containers that they fill are different in nature so there are large number of processes, techniques and machines are used for sealing.
There is an important role of sealing and capping in optimal product packaging. Its protect the product by varieties of caps and seals if capping is done by correct method that only ensure product safety, quality and efficiency.
Capping Machines, tighteners are used for sealing the filled bottles, containers, Vials, jars and related . Caps are devices that are used to close off a container. Caps prevent product leakage, product contamination, to extend a product’s shelf life, and prevent tampering.
The different type of products that are packaged and the containers that they fill are different in nature so there are large number of processes, techniques and machines are used for sealing.
There is an important role of sealing and capping in optimal product packaging. Its protect the product by varieties of caps and seals if capping is done by correct method that only ensure product safety, quality and efficiency.
Our factory can customize the machine according to the output per hour, different size cover, to meet the customer's demand.
Modle | YGJ-1 | ||||

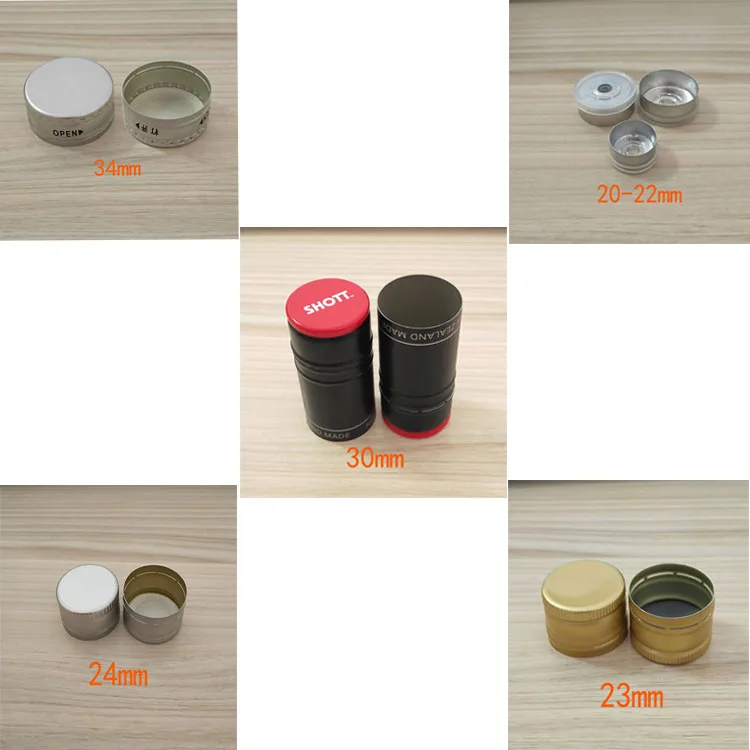

Cap type | Aluminum cap | ||||
Capacity | 1500bph | ||||
Bottle diameter | Φ 50-100mm (bottle can be round or flat) | ||||
Bottle mouth diameter | 18-34mm | ||||
Height of bottle | 100-350mm | ||||
Power | 0.75kw | ||||
Machine weight | 400KG | ||||
Machine size | 1000*750*1900mm | ||||

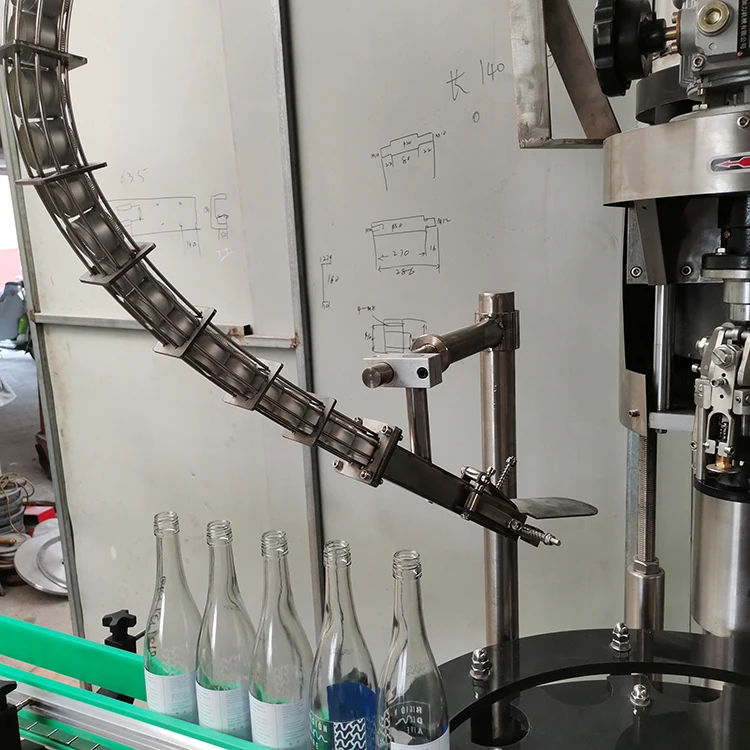

Unscramble cover:
The lid is manually placed in the extractor and the lid extractor automatically arranges the lid into the lid recess. The cover is blown into the guide ring of the gland column with the aid of compressed air.
Cap slot:
The glass bottle is smoothly fed into the dial wheel by the conveyor belt. The vibrating plate sends the aluminum cover to the wearing station through the hopper and the track. The bottle dial is used to put the bottle into the cover and then sent to the rolling station; the ring around the station center The cap is pressed by the cam to press the cap.

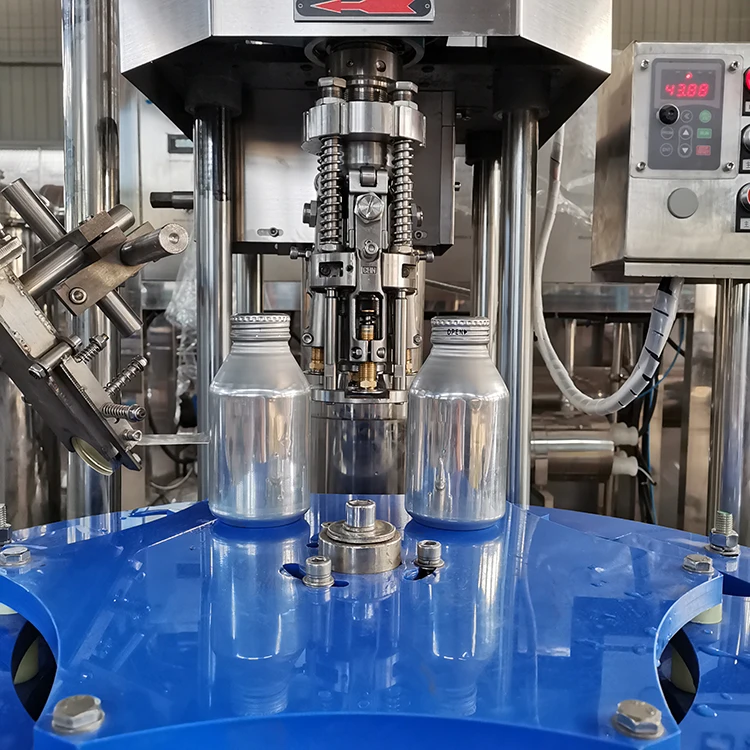

Screw cap mould:
The bottle holder starts to rotate at a high speed with a glass bottle, so that the aluminum cover tightly covers the bottle mouth.Cap - turning die adopts four - claw balanced head sealing, uniform force, beautiful sealing and other advantages.
Sealed finished product:
When the capping head rotates to the highest point of the cam, it gradually separates from the glass bottle. The bottle is pulled out from the bottle dial and enters the bottle exiting track, thereby completing the entire capping process and achieving the desired capping effect.
Related Products
Glass bottle washing machine
Wine bottle filling machine
Glass bottle labeling machine
Crown cap sealing machine
Bottle sleeve labeling machine
Steam shrink tunnel
If you want to know more products! Please click " here '' to return to the home page, All products!
Packing & Shipping
Transport Port : Shanghai Port.
Transportation: By van ,by train, by plane.
Packaging Details :Machine will be packed by PVC film+ standard wooden case or carton.
Wooden case suitable for long distance ocean shipping.
FAQ
Q. Are you a trading company or manufacturer?
A: We are manufacturer,we have our professional manufacturing teams and technicians.
Q: Do you have technical support?
A: Our company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.
Q: How is your delivery time?
A: Generally speaking, the sample order takes 5-7 days, and it takes 15-25 working days for the bulk order after receiving the payment. The exact delivery time depends on the project project and the number of orders.
Q: How do you make our business long-term and good relationship?
A1. We maintain good quality and competitive prices to ensure our customers benefit;
A2. We respect every customer as our friend, we sincerely do business with them and make friends with them, no matter where they come from. We are partners.
