Характеристики

veneer-peeling-line

SL2600/5 Plywood Hydraulic Spindleless Veneer Rotary Lathe is used to peel the log into core veneer, through using this, we can save the core log which is left by spindle veneer peeling lathe. It used CNC system to control the main parts work,  It uses servo motor to control the tool carriage ahead and back, precision working.The knife assembling system is hydraulic.The transmission is gearbox driving screw.



The main structure is welded by thick steel plate, and do special surface dealing, so the machine has good quality and appearance. and most model has passed CE certification.

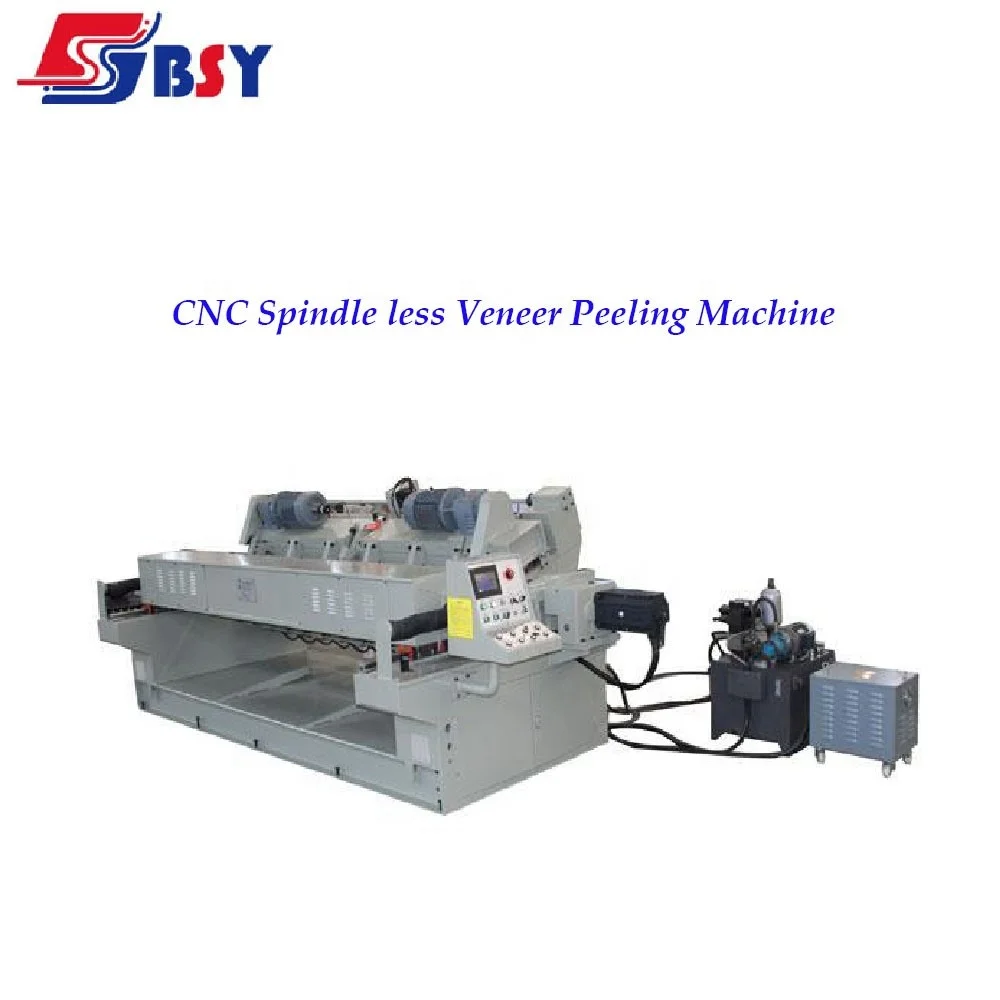

NC Spindleless Veneer Rotary Peeling Lathe

Standard configuration:

1.Servo motor

2.CNC control system,instead of PLC

3.Competitive price

Specification

ModelSL2600/3SL2600/4SL2000/3SL2000/4SL1350/3
Working diameter (mm)Φ 360Φ 360Φ 360Φ 360Φ 360
Max. working length (mm)26002600200020001350
Veneer thickness (mm)0.8-3.00.8-3.00.8-3.00.8-3.00.8-3.0
Log-core diameter (mm)Φ40Φ40Φ40Φ40Φ40
Veneer output speed (m/min)4242424242
Total motor power (kw)29.228.125.724.625.7
Overall dimensions (mm)4650X1950X17004650X1900X16004050X1950X17003750X1900X16003450X1950X1700
Weight (kg)95008500800075007500

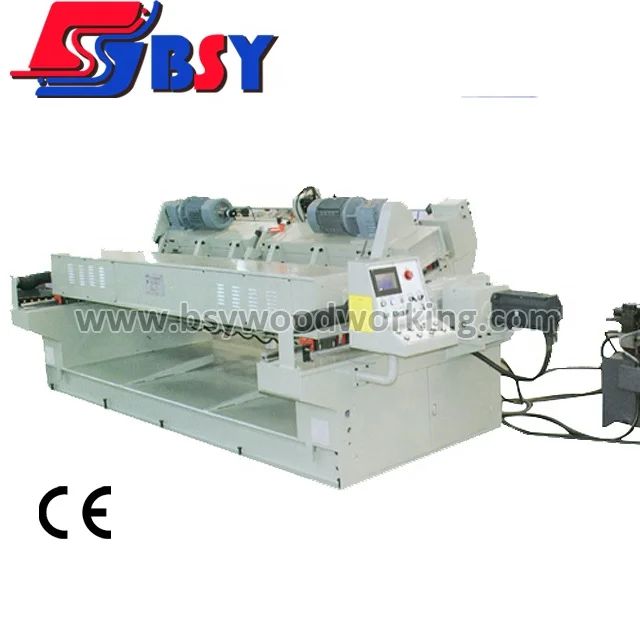

Machine picture show


SL2600 5.jpg


other plywood machines you may interested

other plywood machines.jpg

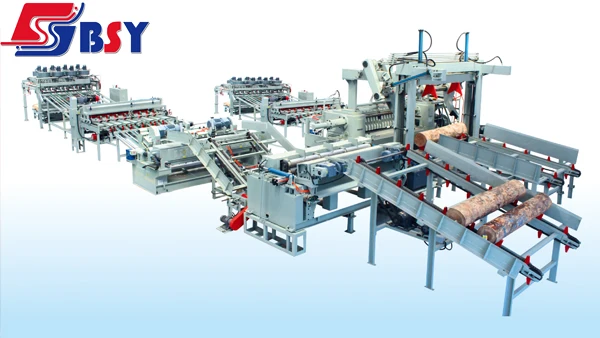

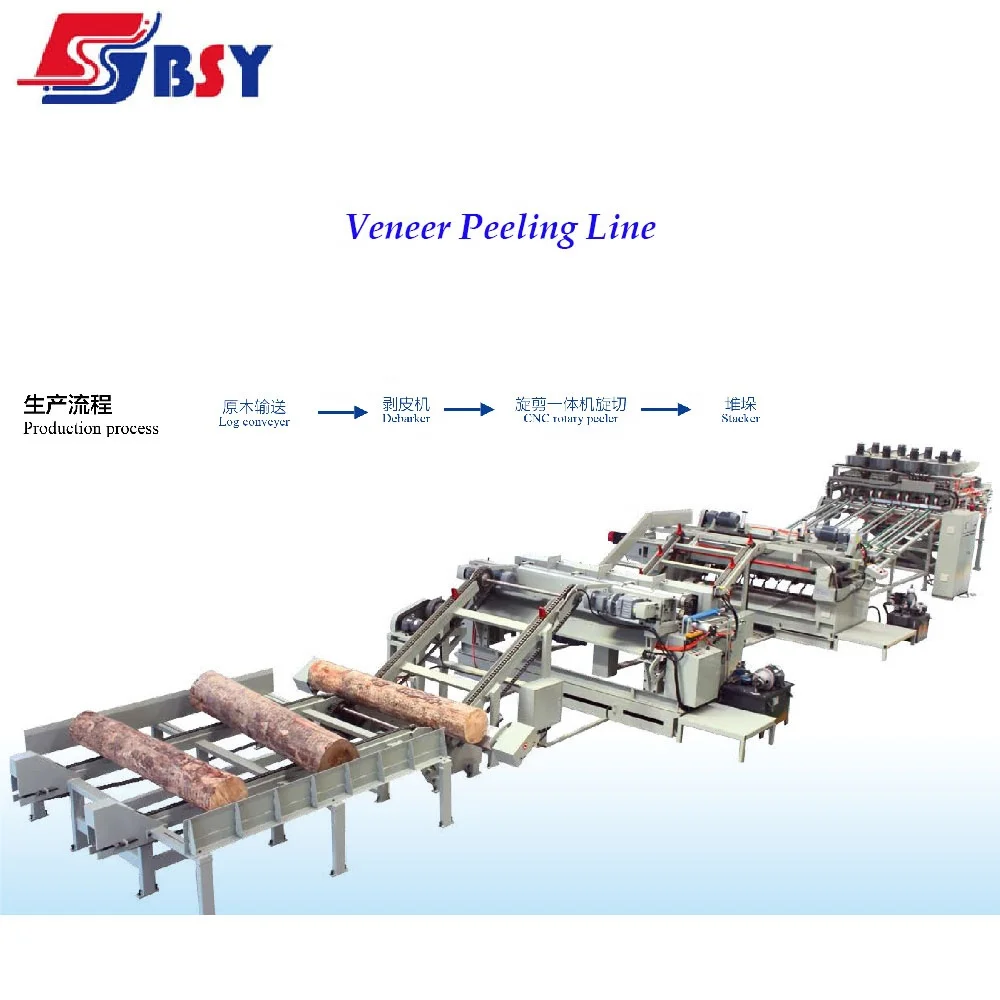

We have the ability to design, produce, intergrate, selling, install, a full set of plywood production line, fro the begining of preparing the logs, to debarking line, log centering line, the veneer peeling line, veneer clipper line, veneer drying line, veneer glue line, press line, trimming line, sanding line, and also all kinds of equipment for veneer mending including: Veneer Patching machine, Veneer tilting sander, veneer splicer, veneer jointer machine.



We have been developing plywood machinery for more than 20years, our machinery for plywood production line are absolutely the NO. 1 in China.


Welcome to our group to see the biggest plywood machinery manufacturer in Asia.
We will show you the high quality, and the most advanced machinery that you could find in China.
You may be able to get some much quotation from China, you can also get the cheap machine from so many suppliers. But we believe; Only we could offer you the perfect plywood production line program!
