HITEC cnc токарный станок с деревянными ножками цилиндр машина для изготовления

Описание и отзывы

Трекер стоимости

Характеристики

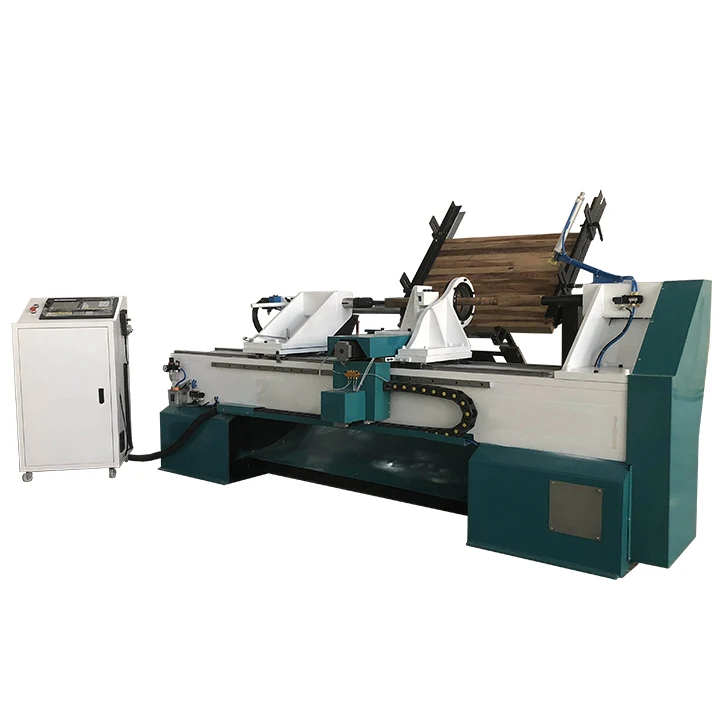

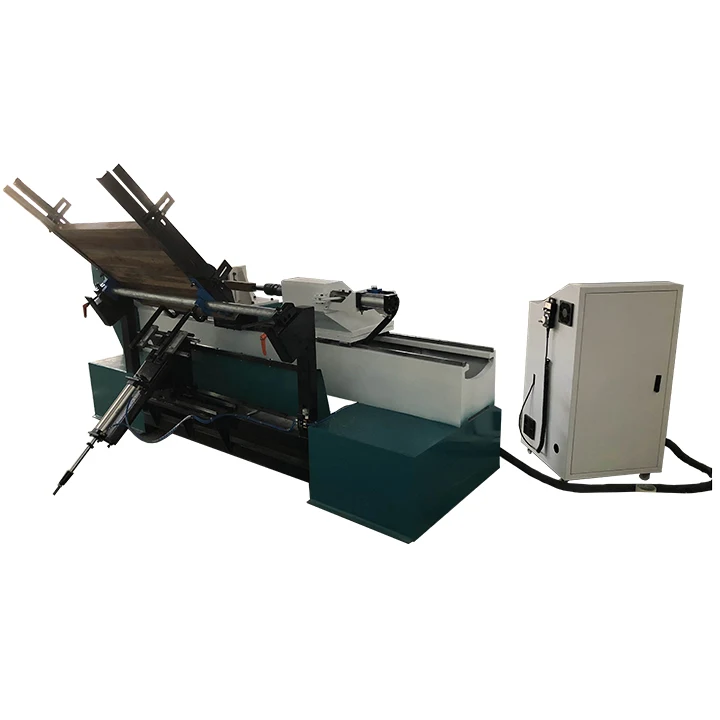

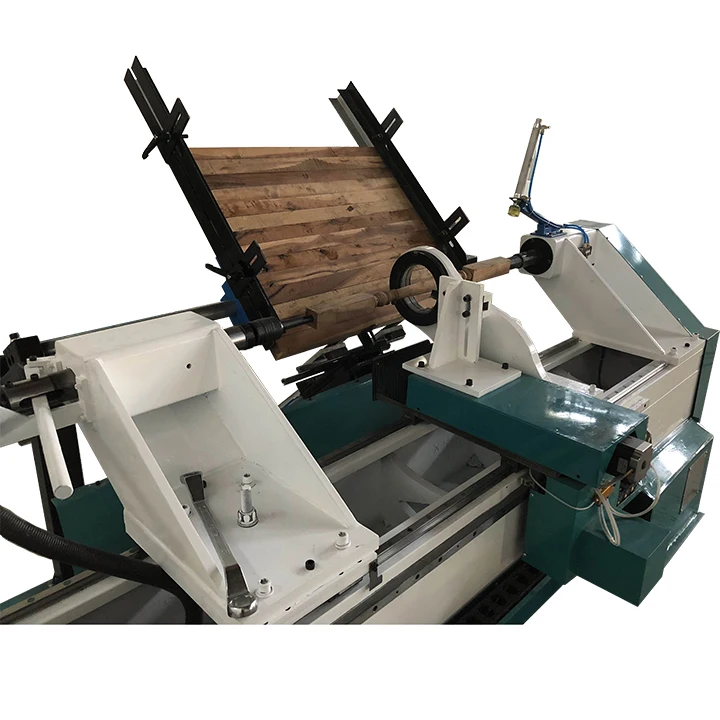

HITEC cnc wood leg turning lathe cylinder baseball bat making machine

HITEC cnc wood leg turning lathe cylinder baseball bat making machine HTL-1530A is used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc.

Features of HITEC cnc wood leg turning lathe cylinder baseball bat making machine

1. CNC Wood turning lathe machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever

2. Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials’ vibration.

3. We could configure single spindle with two pcs cutter or one pc cutter, single spindle could configure chuck, two cutters could do rough turning and finish turning at the same time for high efficiency and surface quality.

4. High accuracy stepper motor, after program calculating, guarantee the exact processing size.

5. Taiwan Hiwin square rails and TBI precise ball screw, control the linear error effectively.

6. Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.

7. One time tool setting to finish the whole work piece.

Parameters

Brand	HITEC CNC
Max processing length	1500mm(can custom 2000/2500/3000mm)
Max turning diameter	300mm
Air pressure	0.6-0.8Mpa
Power supply	AC 380V 3 phase 50HZ/60HZ(can custom 220V)
Max feed rate	200cm/min
Min setting unit	0.01cm
Transimission type	ballscrew for X,Z axis,gear for Y axis
Guider	Taiwan Hiwin orbit
Main shaft rotating speed	0-3000r/min
Spindle power	3.5kw Air Cooling
Cutter material	Super hard alloy
Control System	DSP control system
Motor	Stepper motor
Driver	Yako 2811 driver
Inverter	3.7KW Fuling inverter
Drawing Software	AutoCAD
Hand controller recognise file	*.dxf



HITEC CNC HITEC cnc wood leg turning lathe cylinder baseball bat making machine

Speed: With vite processing speed.
Control: Withmature CNC controller, make the work stable, easy installation and commissioning.
Using international standard CNC language G code. Support a variety of software. Support technologyextensions.
Operation: With high-precision stepper motor drive combined with ball screw  to ensure the accuracy of processing size, and has good environment adaptability with dust prevention.
Body: Casting Iron body with stable tstructure, important linear square rail, small vibration to ensure the accuracy.

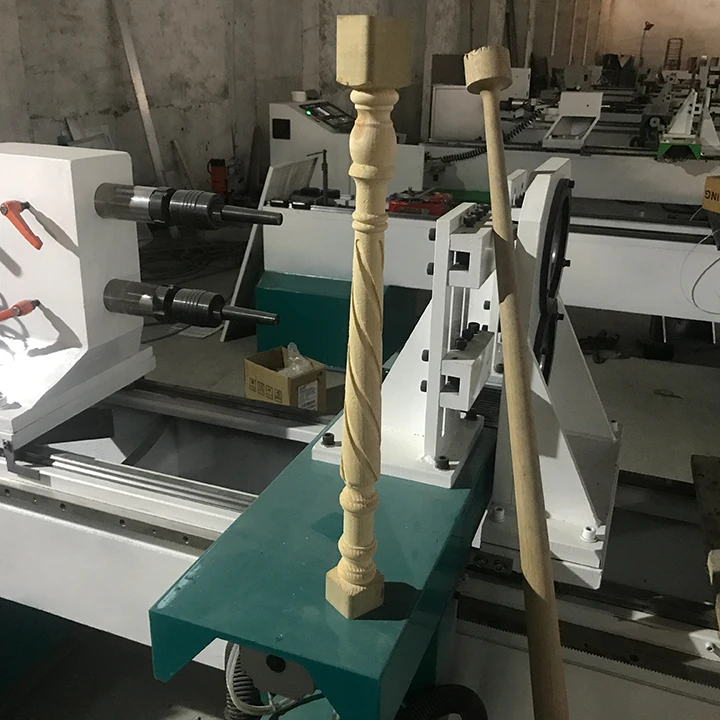

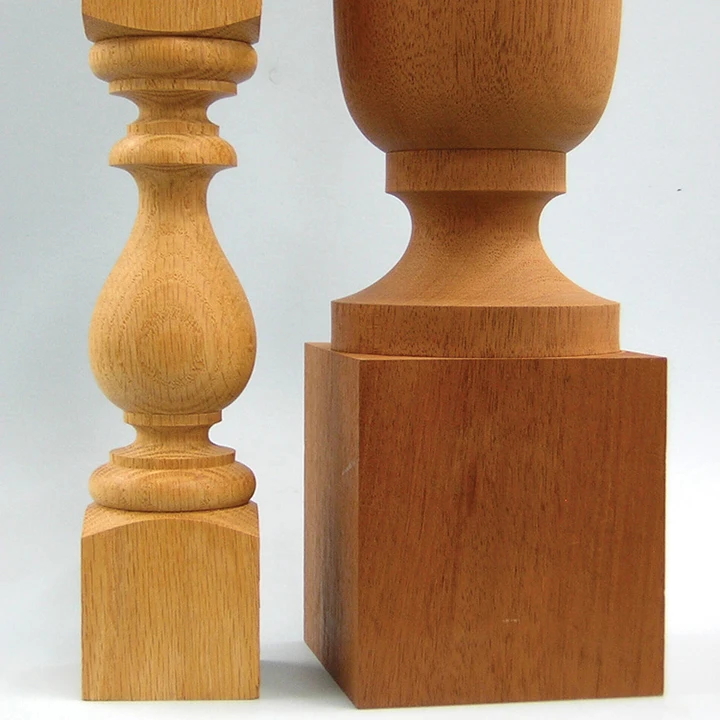

Samples

HITEC Company

Established in the year 2002,An ISO 9001 Firm.We are manufacturer and deverlops of the high technology machines.Hitec products are used in a wide variety of industries,markets and applications thoughout all over the world.Hitec is highly committed to offering the most advanced,capable and efficient manufacturing technology backed by unsurpassed service and support.
We offer cnc wood router,cnc laser,cnc plasma,cnc wood turning lathe machine.
Cnc Wood Router inclued :2&3D cnc router,3axis atc cnc router,4axis cnc router,5axis cnc router also the hot sale advertising cnc router.
Cnc Laser inclued :co2 laser cutting machine,metal laser cutting machine,fiber laser cutting machine,metal&nometal laser cutting machine,fiber laser marking machine,co2 laser marking machine ect.

Cnc wood turning lathe machine
Our offered range of products has ISO standard,CE standard,FDA standard.We are able to supply to all over the world with High Quality,Professional Service.

FAQ

1.How long is your machine's warranty?

2 years



2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.



3.How can we install the machine?

English version manual and operation video CD disk.



4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal.



5.How about package of shipment?

Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
