Промышленный Электрогенератор природного газа 250 кВт
- Категория: Генераторы газовых турбин >>>
- Поставщик: Shenzhen,Genor,Power,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.54 $* | 0.88 $* |
| Aug-18-2025 | 0.81 $* | 0.36 $* |
| Jul-18-2025 | 0.19 $* | 0.50 $* |
| Jun-18-2025 | 0.74 $* | 0.56 $* |
| May-18-2025 | 0.38 $* | 0.0 $* |
| Apr-18-2025 | 0.47 $* | 0.12 $* |
| Mar-18-2025 | 0.97 $* | 0.1 $* |
| Feb-18-2025 | 0.46 $* | 0.87 $* |
| Jan-18-2025 | 0.85 $* | 0.74 $* |
Характеристики

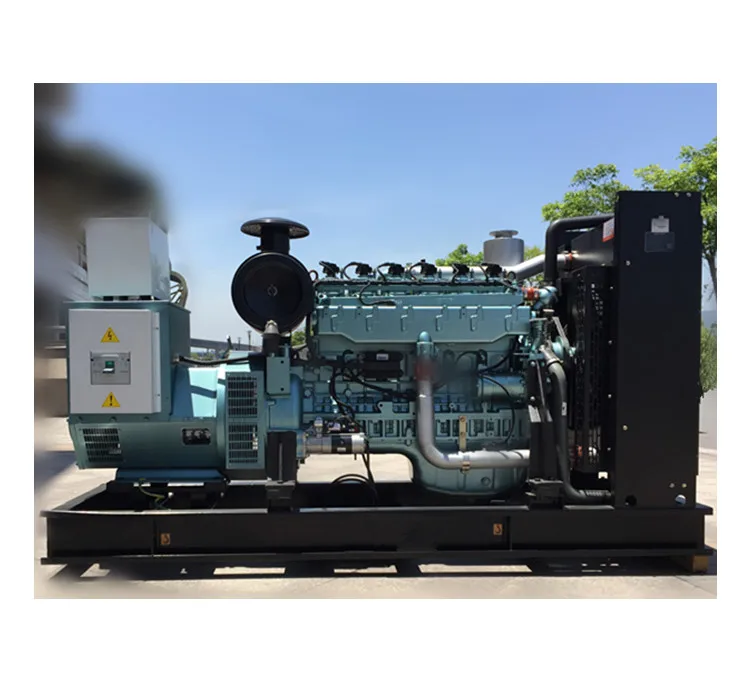

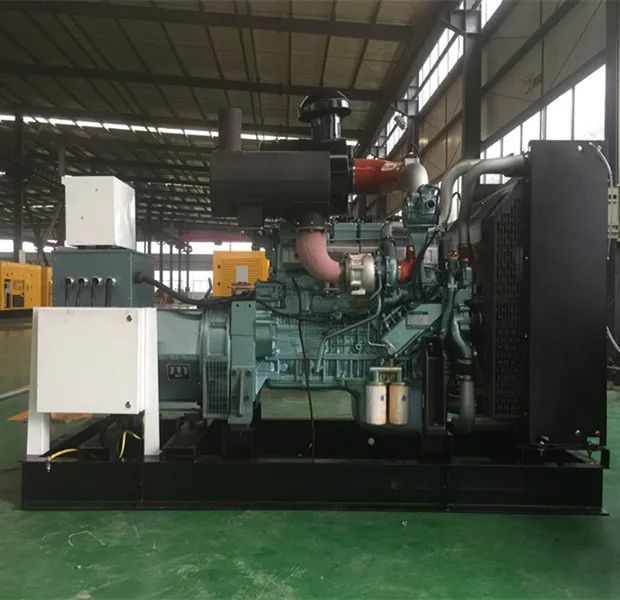

Industrial CNG electric power 250kw natural gas generator
1. Brand new Gas engine .
2. Brand new Stamford AC brushless alternator IP23
3. Smartgen Control Panel.
4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.
5. Electronic speed regulator,including controller and actuator.
6. Solenoid valve
7. Flame arrester.
8. Hand valve
9. Zero pressure valves
| Genset Model | Prime Power | Standby Power | Cylinder No. | Dimension (L×B×H)mm | ||
| KW | KVA | KW | KVA | |||
| GNPG28 | 20 | 25 | 22 | 27.5 | 4 | 2100*730*1575 |
| GNPG38 | 27 | 34 | 30 | 38 | 4 | 1800*880*1260 |
| GNPG41 | 30 | 37.5 | 33 | 41 | 4 | 2100*730*1670 |
| GNPG55 | 40 | 50 | 44 | 55 | 4 | 2100*880*1450 |
| GNPG78 | 56 | 70 | 62.4 | 78 | 4 | 2100*730*1670 |
| GNPG104 | 75 | 94 | 83 | 104 | 6 | 2490*830*1770 |
| GNPG138 | 100 | 125 | 110 | 137.5 | 6 | 2490*830*1770 |
| GNPG165 | 120 | 150 | 132 | 165 | 6 | 2680*860*1730 |
| GNPG200 | 145 | 182 | 160 | 200 | 6 | 2680*860*1730 |
| GNPG220 | 160 | 200 | 176 | 220 | 6 | 2680*860*1730 |
| GNPG275 | 200 | 250 | 220 | 275 | 6 | 2800*1090*1715 |
| GNPG308 | 224 | 280 | 246 | 308 | 6 | 2930*1100*1650 |
| GNPG344 | 250 | 312 | 275 | 344 | 6 | 2930*1100*1650 |
| GNPG413 | 300 | 375 | 330 | 413 | 8 | 3485*1155*1640 |
| GNPG495 | 360 | 450 | 396 | 495 | 8 | 3600*1355*1910 |
| GNPG550 | 400 | 500 | 440 | 550 | 8 | 3600*1355*1910 |
| GNPG605 | 440 | 550 | 484 | 605 | 8 | 3600*1355*1910 |
| GNPG688 | 500 | 625 | 550 | 688 | 8 | 3720*1640*2040 |
| GNPG880 | 640 | 800 | 704 | 880 | 8 | 4660*2090*2320 |
| GNPG1000 | 728 | 910 | 800 | 1000 | 12 | 4660*2090*2320 |
| GNPG1141 | 830 | 1038 | 913 | 1141 | 12 | 4660*2090*2320 |
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Related Products
Packaging & Shipping
FAQ
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
