Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00

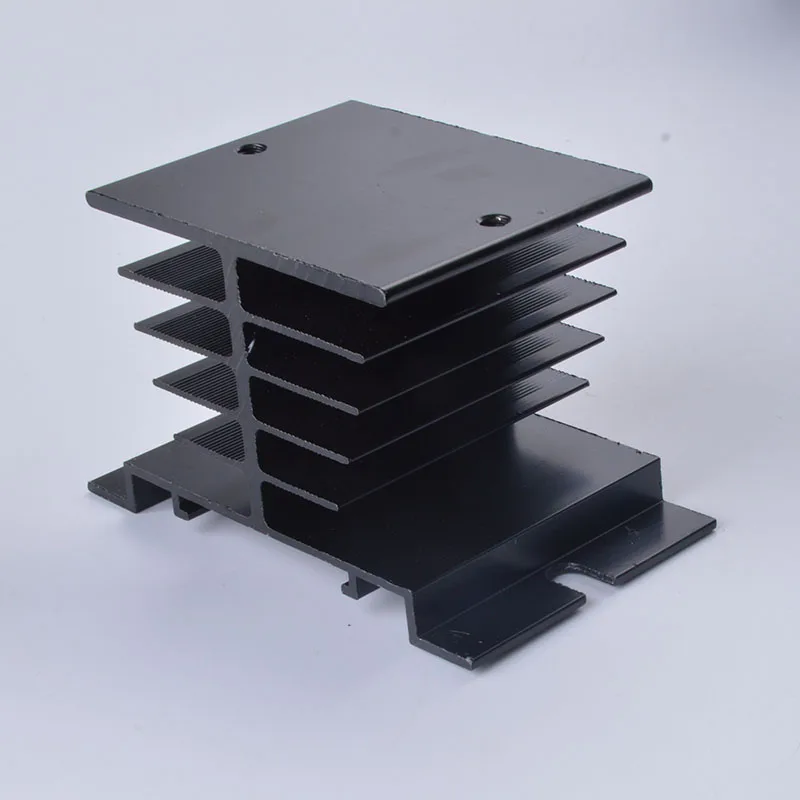

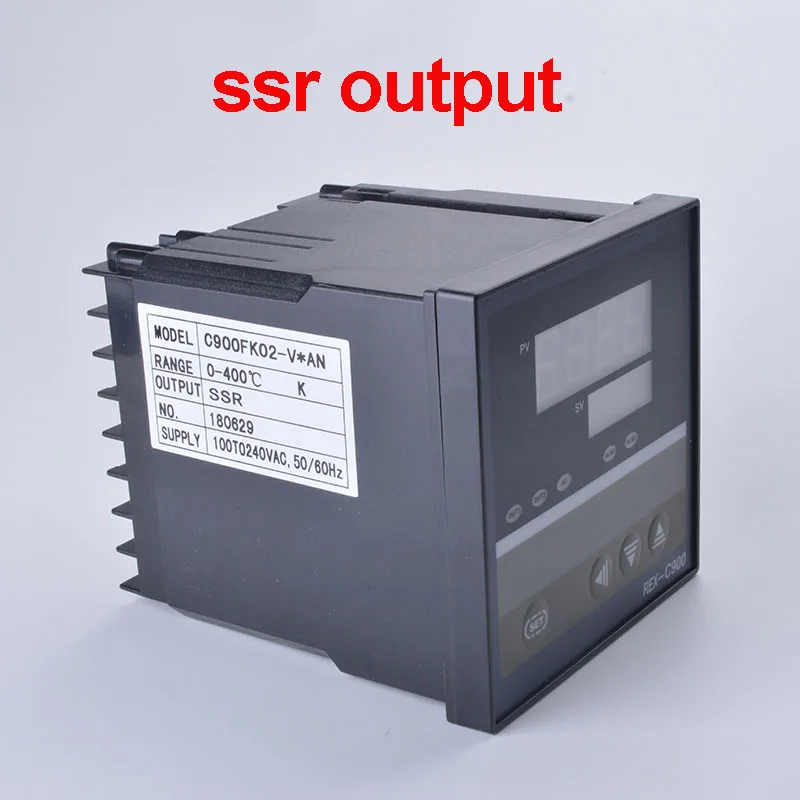

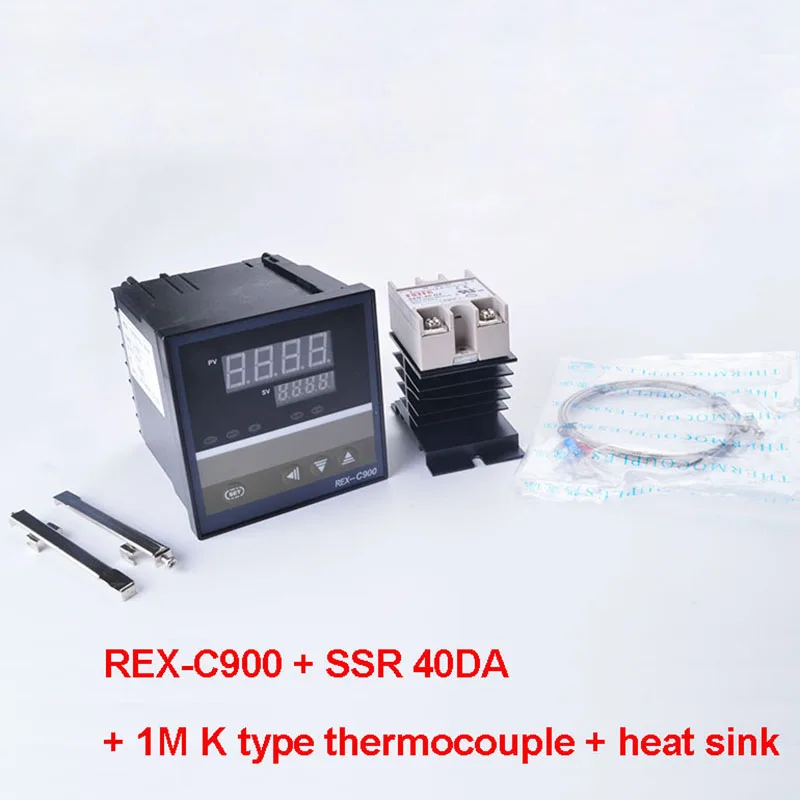

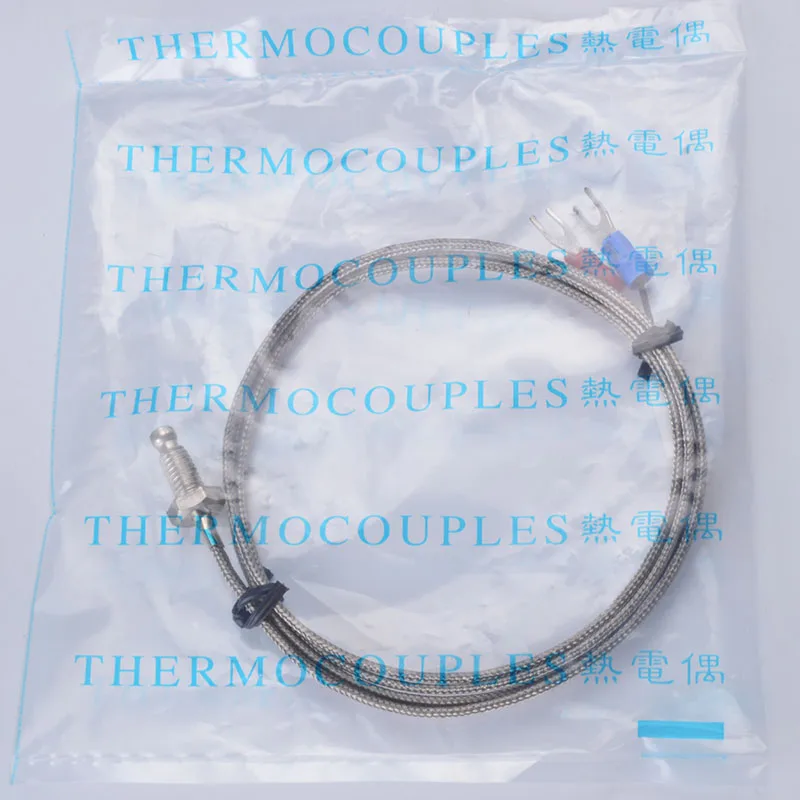

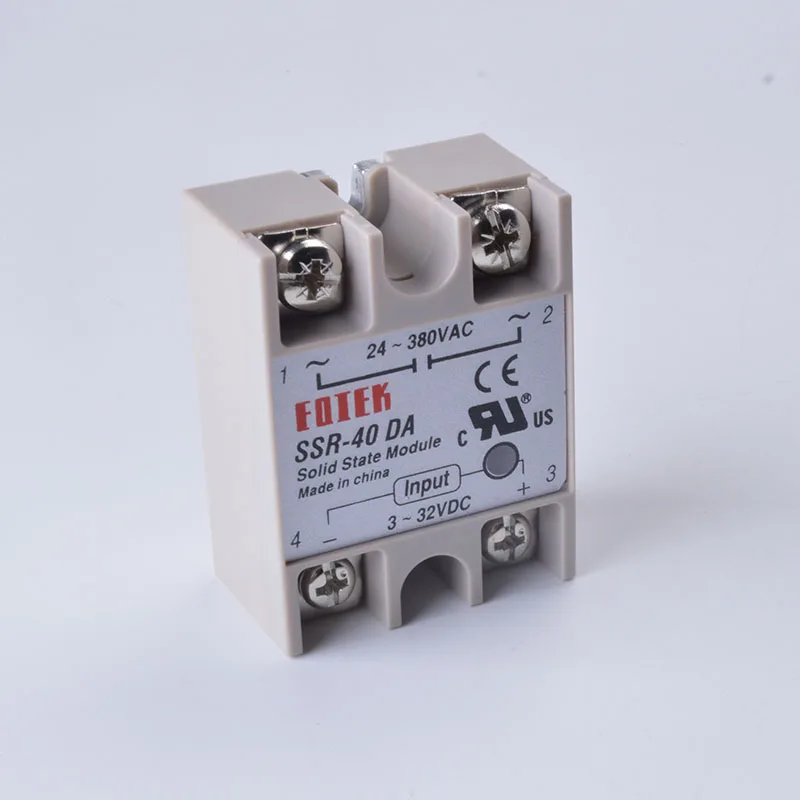

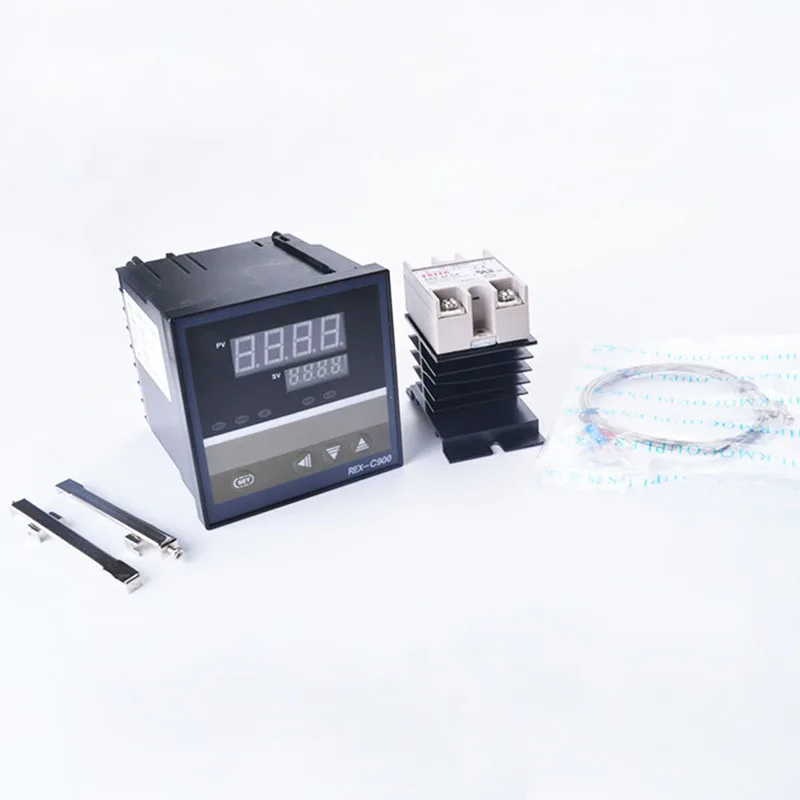

Цифровой ПИД-регулятор температуры REX-C900 термостат выход ssr + 40DA SSR реле K регулятор с термопарным 1m Probe ПКК
- Категория: Temperature Instruments >>>
- Поставщик: Yueqing,Taixin,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 14.84 $* | 14.32 $* |
| Jul-18-2025 | 11.54 $* | 11.72 $* |
| Jun-18-2025 | 14.91 $* | 14.2 $* |
| May-18-2025 | 14.1 $* | 14.16 $* |
| Apr-18-2025 | 11.17 $* | 11.0 $* |
| Mar-18-2025 | 13.96 $* | 13.23 $* |
| Feb-18-2025 | 13.17 $* | 13.83 $* |
| Jan-18-2025 | 13.87 $* | 13.84 $* |
Характеристики
Parameters
Specifications:
Model number | External dimensions | Perforation dimensions | Output type | Input type | ||
REX-C100 | 48x48x100 mm | 45 0.50x45 0.50 mm | Electromagnetic relay, SSR | Thermocouple and RTD | ||
| ||||||
REX-C400 | 48x96x100 mm | 45 0.50x92 0.50 mm | Electromagnetic relay, SSR | Thermocouple and RTD | ||
REX-C410 |
| |||||
REX-C700 | 72x72x100 mm | 68 0.50x68 0.50 mm | Electromagnetic relay, SSR | Thermocouple and RTD | ||
| ||||||
REX-C900 | 96x96x100 mm | 92 0.50x92 0.50 mm | Electromagnetic relay, SSR | Thermocouple and RTD | ||
|
| Model number | REX-C series |
| Accuracy | ±0.5% of full scale |
| Supply voltage | 100-240Vac, 50/60 Hz |
| Input types-Thermocouple | K, J, R, S, B, E, N, T |
| RTD | Pt100, Cu50 |
| Voltage | 0-5V, 1-5V |
| Current | 0-20mA, 4-20mA |
| Output types | Electromagnetic relay, SSR, current, SCR |
| Power consumption | Less than 5 VA |
| Control method | PID Control (with auto-tuning) or Self-tuning, or ON/OFF |
| Setting method | Touch switch |
| Indication method | 8-segment 4-digital display and LED indication |
| Alarms | Deviation High, Low, High/Low, Band,Process High, Low Set value High, Low |
| Sampling period | 0.5s |
| Electromagnetic compatibility | IEC61000-4-4 (Electrical fast transient burst), 4KV/5KHz; IEC61000-4-5 (Surge), 4kv |
| Isolation voltage | >=2300v among the terminal of power, relay contact and signal; >=600v between two isolated weak signal terminal |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 30-85% RH max, non-condensing |
| Alias name | REX-C pid temperature controller, intelligent temperature controller |
