Энергосберегающий Перманентный магнит синхронный двигатель с переменной скоростью вращающийся винтовой воздушный компрессор для завода очков 90
- Категория: Industrial Compressors >>>
- Поставщик: Guangdong,Baldor-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.38 $* | 0.76 $* |
| Aug-17-2025 | 0.55 $* | 0.3 $* |
| Jul-17-2025 | 0.0 $* | 0.74 $* |
| Jun-17-2025 | 0.64 $* | 0.68 $* |
| May-17-2025 | 0.22 $* | 0.98 $* |
| Apr-17-2025 | 0.28 $* | 0.62 $* |
| Mar-17-2025 | 0.24 $* | 0.91 $* |
| Feb-17-2025 | 0.20 $* | 0.90 $* |
| Jan-17-2025 | 0.57 $* | 0.5 $* |
Характеристики

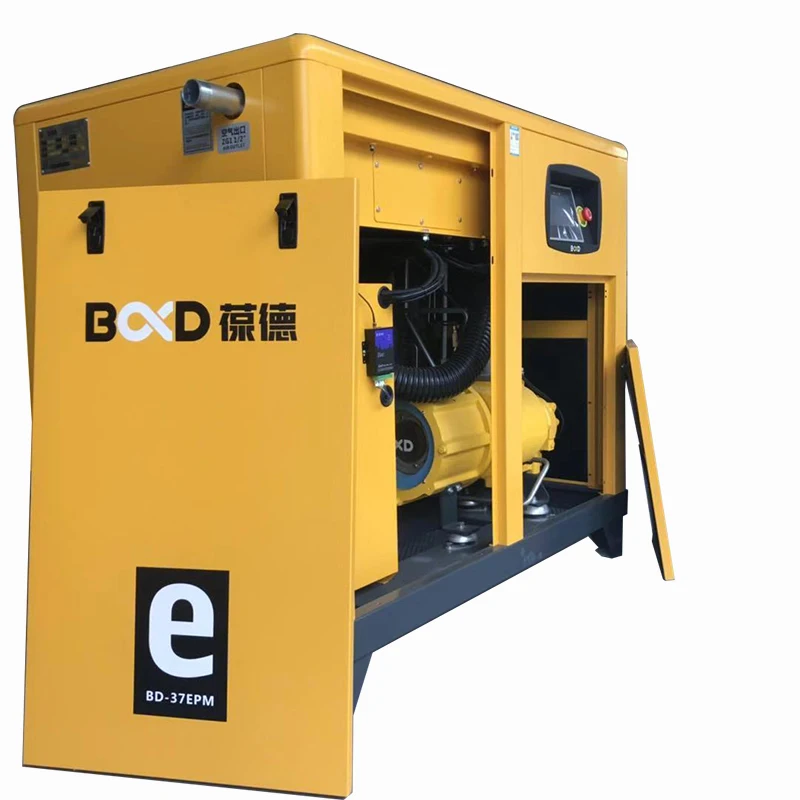

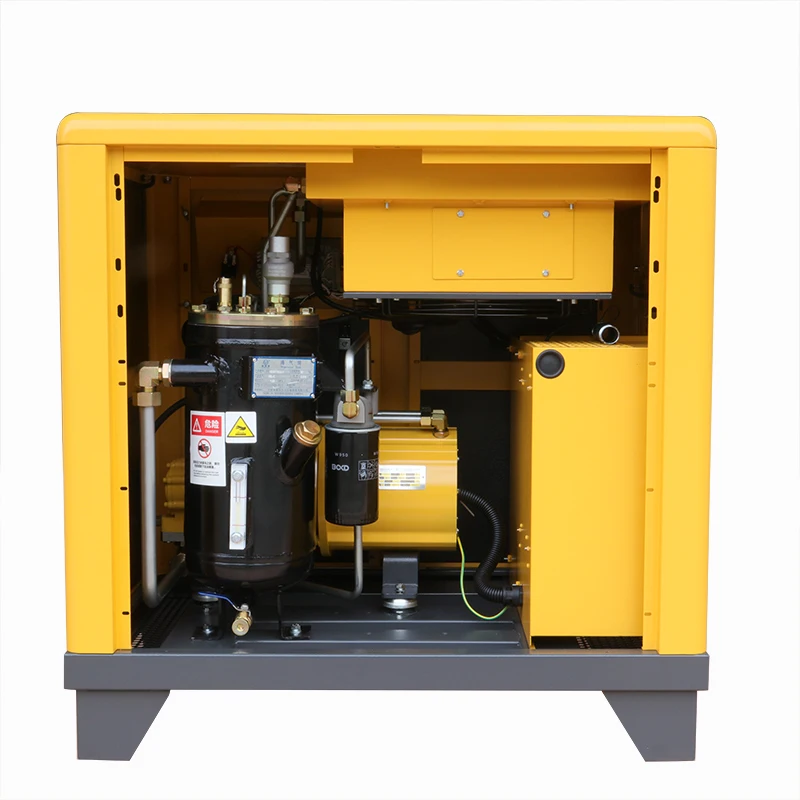

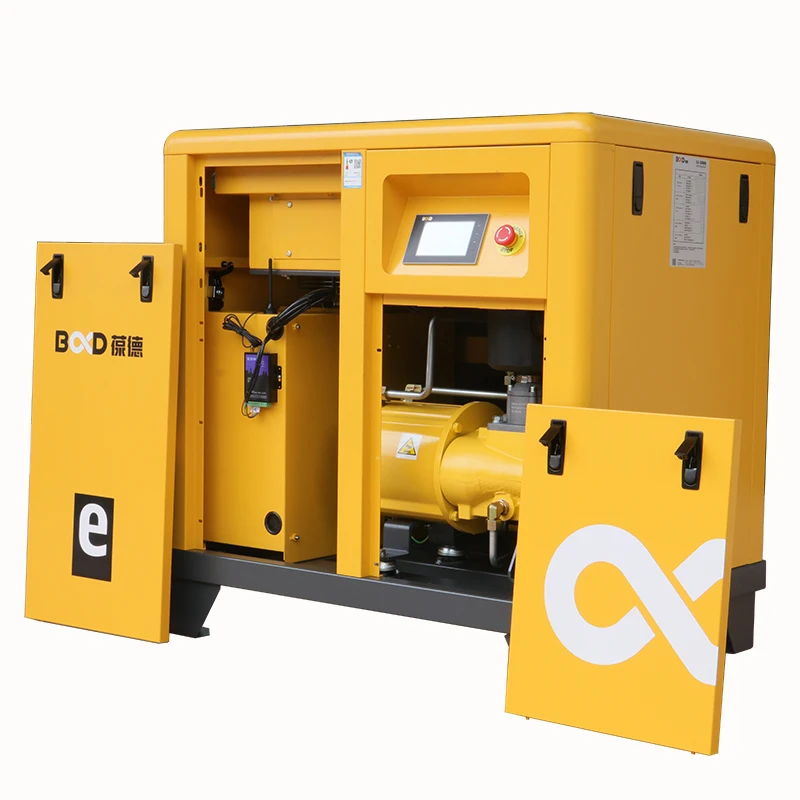

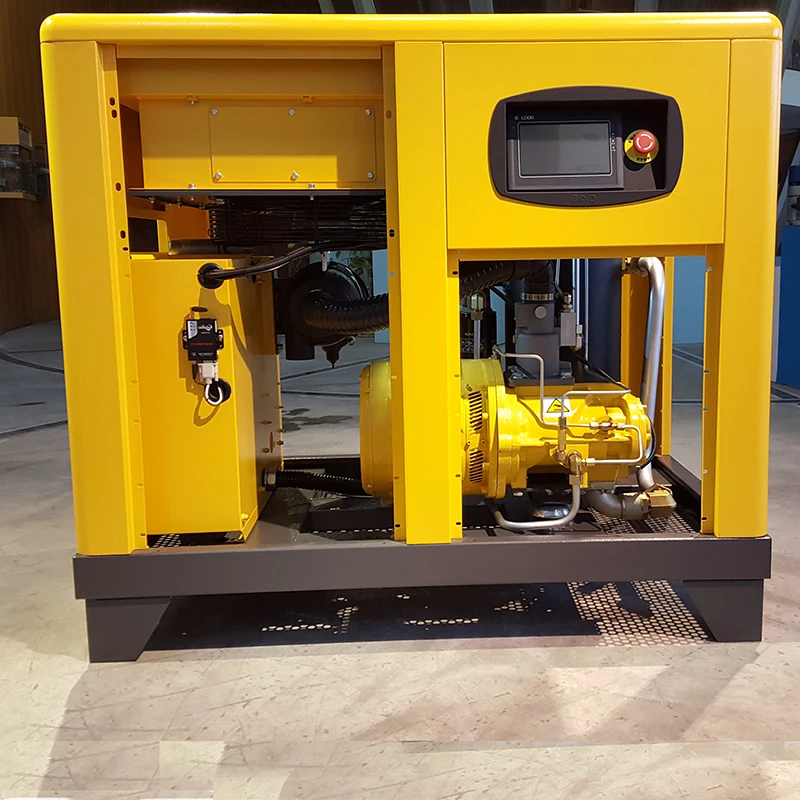

90KW 125HP permanent magnet screw air compressor
| Model | PM Screw Air Compressor BD-90EPM | |||
| Working Pressure | psig | 116 | 145 | 181 |
| bar | 8 | 10 | 12.5 | |
| Air Delivery | cfm | 285.71 | 485.71 | 446.43 |
| m3/min | 15 | 13.6 | 12.2 | |
| Variable Frequency | hz | 0-60 | 0-60 | 0-60 |
| Rotating Speed | R/min | 3200 | 3200 | 3200 |
| Motor Power | kw/hp | 90/125 | ||
| Type of Driving | ONE-shaft structure driven | |||
| Type of Cooling | Air Cooling | |||
| Dimmension(mm) | L | 1900 | ||
| W | 1250 | |||
| H | 1650 | |||
| Weight(kg) | 2100 | |||
| Output Pipe Diameter | ZG2" | |||
| Certification | CE/ISO9001/GSSA | |||
| Voltage | 380V/3PH/50HZ/60HZ 220V/3PH/50HZ/60HZ 440V/3PH/50HZ/60HZ 415V/3PH/50HZ/60HZ or as per your required | |||
Permanent magnet variable speed screw air compressor frequency can be adjusted in wide range of frequency, efficiency is more than 10% surpassing normal variable speed screw air compressor. Twin rotor airend produced by German processing machine and well designed by experienced technical team using SKF or FAG bearing. Permanent magnet screw air compressor select more durable part with well assemble technique and quality control, whole compressor is designed for more than 10years life.
