Характеристики

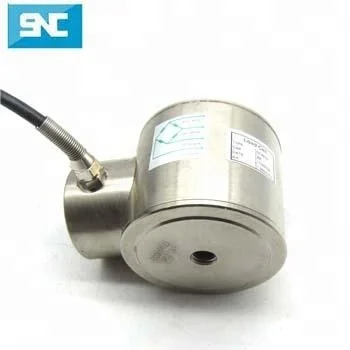

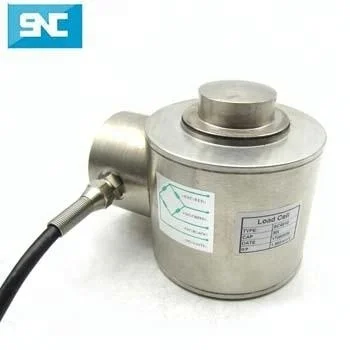

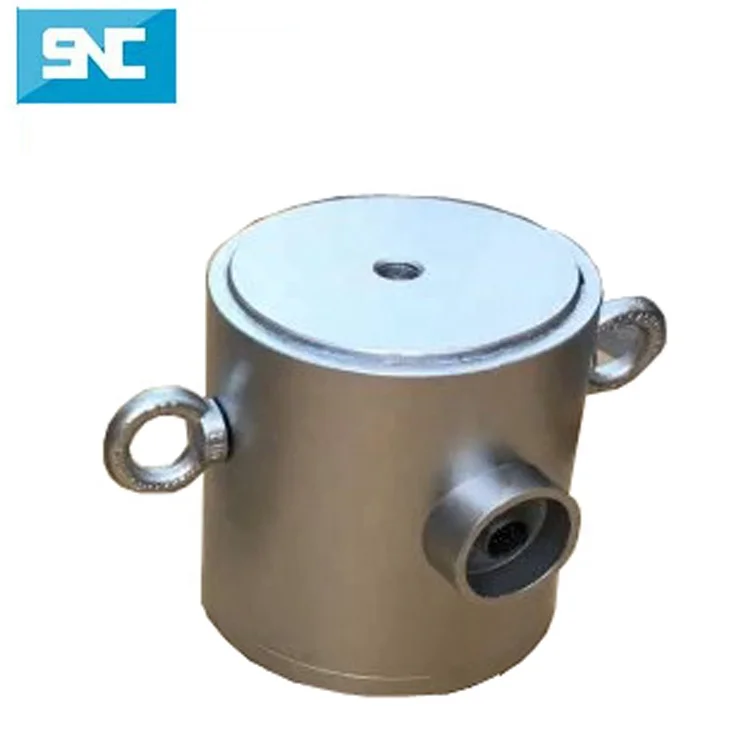

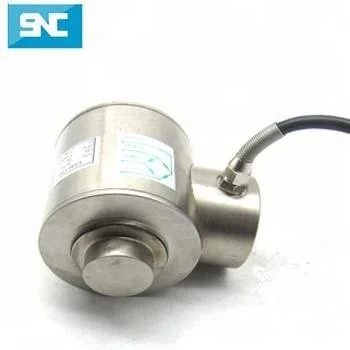

30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell



Features:



1, Material: Alloy steel with IP66/ IP67 waterproof.

2, Application: hydraulic jack,Truck and railway scales, tank and silo weighing and in heavy duty industrial scales.

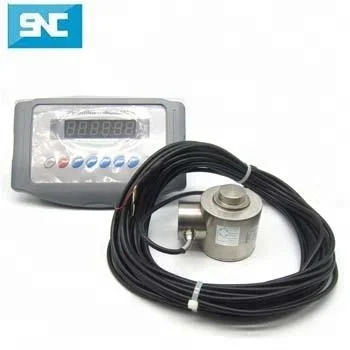

3, Optional accessories: Indicator / display, junction box.

 30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell





Size: mm (SC4810-1000Ton )



30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell





30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell



Parameters:




Applicationhydraulic jack
ModelSC4810
Capacity10T, 20T, 30T, 40T, 60T, 70T, 100T,  200T, 300T, 500t, 700t, 1000t, 2000t, 3000t
rated output2.0±0.004mV/V
Accuracy classC2                                          C3
maximum number of verification intervals2000 Nmax                              3000 Nmax
Minimum loadcell cerification intervalsEmax/5000Vmin                   Emax7500 Vmin
Combined error≤±0.030 % RO                     ≤±0.020 % RO
Creep0.026 %RO/30min                     0.018 %RO/30min
Temp. effect on sensitivity0.0015 %RO/℃
Temp.effect on zero0.0026%RO/℃                              0.0018%RO/℃
Zero balance±1.0 %RO
Input resistance670±10 ohm                                   1050±10 ohm
Output resistance605±5 ohm                                     1000±5 ohm
insulation resistance5000 MΩ(50V)
Recommended excitation voltage10-18V
Compensated temperature range-10-+40℃
operating temperature range -35-+80 ℃
safe overload150 %RO
Ultimate overload300%RO
loadcell materialAlloy steel                             stainless steel
Connecting cable 10-30T  Φ6.3x13m           40-300T   Φ6.3x20m
Method of connecting wireRed- input+, black- Input-. Green- Output+, White- output -



30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell

 30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell

Related Products



30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell
Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell

30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell

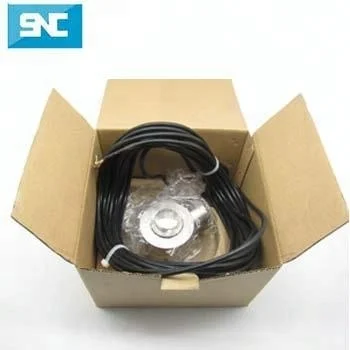

Packaging & Shipping

30 ton 50 ton 100 ton 300 ton 500 ton 1000 ton 3000 ton canister pressure sensor load cell

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
