Fanuc контроллер Zmat типа для уплотнения металла алюминиевого обработанного токарного станка с
- Категория: Токарный станок с ЧПУ >>>
- Поставщик: Foshan,Shunde,Guoqiang,Daosheng,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.59 $* | 0.14 $* |
| Aug-16-2025 | 0.71 $* | 0.12 $* |
| Jul-16-2025 | 0.19 $* | 0.36 $* |
| Jun-16-2025 | 0.11 $* | 0.60 $* |
| May-16-2025 | 0.2 $* | 0.41 $* |
| Apr-16-2025 | 0.14 $* | 0.43 $* |
| Mar-16-2025 | 0.87 $* | 0.69 $* |
| Feb-16-2025 | 0.81 $* | 0.56 $* |
| Jan-16-2025 | 0.50 $* | 0.72 $* |
Характеристики
Product Description

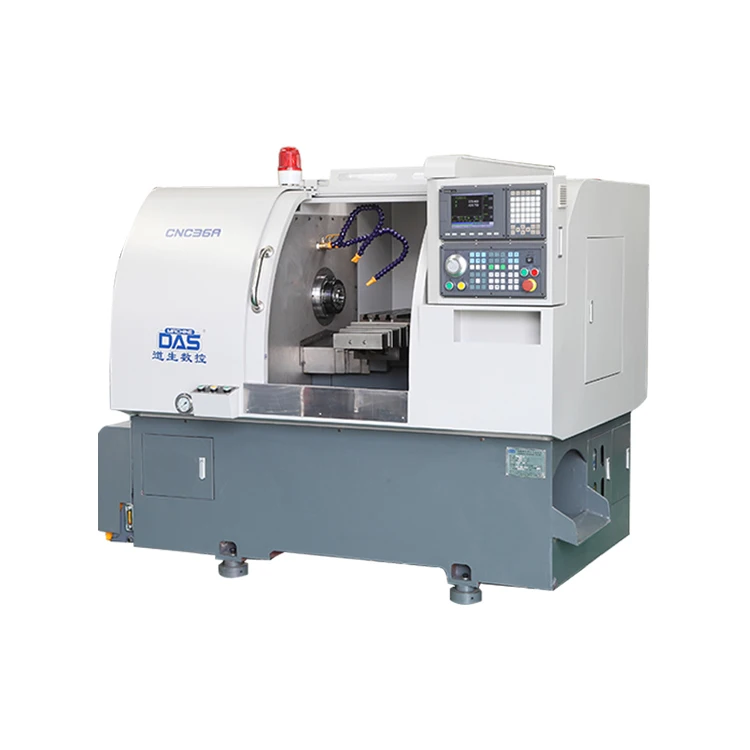

Fanuc Controller Zmat Type For Seal ,Metal,Aluminum Processed CNC Lathe
| Name | CNC36A | CNC46A |
| The maximum diameter of rotation (mm) | 310 | 310 |
| Max.cutting length (mm) | 100/200 | 100/200 |
| With chuck size | 5 Inch | 6 Inch |
| Spindle speed (r/min) | 45-4500 | 45-4500 |
| Spindle power (KW) | 3.7 | 5.5(Optional) |
| Spindle bore (mm) | Φ46 | Φ56 |
| Auto feeding max.diameter (mm) | Φ35 | Φ45 |
| Min.resolution (mm) | 0.001 | 0.001 |
| X/Z Axis stroke (mm) | 340/250 | 340/250 |
| X/Z axis fast moving speed (m/min) | 18 | 18 |
| X/Z axis Repetitive positioning accuracy (mm) | 0.003/0.003 | 0.003/0.003 |
| Cutting feed rate (mm/min) | 0-5000 | 0-5000 |
| Taper (mm) | ≤0.003/100 | ≤0.003/100 |
| Card position size (mm) | ≤0.003 | ≤0.003 |
| Spindle speed (r/min) | 8 | 8 |
| Handle size (mm) | 20*20 | 20*20 |
| Boring size (mm) | φ20 | φ20 |
| Change knife manner | Random | Random |
| Adjacent change knife time (s) | 0.2 | 0.2 |
| Power (KW) | 5.7 | 6.7 |
| Weight (KG) | 2300 | 2500 |
| Size (L*W*H mm) | 2090*1430*1555 | 2090*1430*1555 |
Our Exhibition
Our certificate
Hot Product
Company Information
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, Shunde ,Foshan,Guangdong. Major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc. We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service, which ensure us the first consideration when you purchase high-precision machine tools.
Packaging & Shipping
FAQ
| 1.Dear: How do I pay for my purchase order? |
| DAS CNC Answer: T/T,Western Union,Escrow,Paypal,Alipay |
| 2.Dear:How can I visit your factory? |
| DAS CNC Answer:You can take underground to Guangzhou South Station,then we will pick you up to our factory,Just one hour from Baiyun airport to our factory.Warmly welcome you to visit our factory. |
| 3. Dear:What's the MOQ? |
| DAS CNC Answer: 1 SET. |
| 4. Dear: Can I have my own order customized products? |
| DAS CNC Answer: YES,we accept customized. |
| 5. Dear: Do you have quality control? |
| DAS CNC Answer:Yes,we attach great importance to quality problem accurs.We have professional engineer to test the cnc lathe machine quality before delivery. |
| 6. Dear:How about the warranty? |
| DAS CNC Answer: 1year. More information about guarantee pls send enquire/feedback to us. |
