Diy solar module 2W 6V Epoxy resin PET Solar Panels Mini Solar Cells Polycrystalline Silicon panel
Product Description
|
Features of epoxy/PET solar panel
Epoxy solar panel is a traditional type small solar panel called which is sticked together
by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers.(epoxy resin AB Glue, solar cells, pcb board)
PET solar panel belongs to solar panel series, just different encapsulation.In order to have required output of voltage and current, we need to cut a whole solar cell into small pieces.
1.High efficiency monocrystalline or polycrystalline solar cells.
2.Epoxy or PET or Glass laminate.
3.Suitable for both lithium battery and Ni-MH battery connectivity
4.Ideal for Solar Toys; Solar Mobile Phone Chargers, Solar Lanterns, Solar Power Banks; Solar Lawn Lights and other small power consumption electronics and electronic gifts.

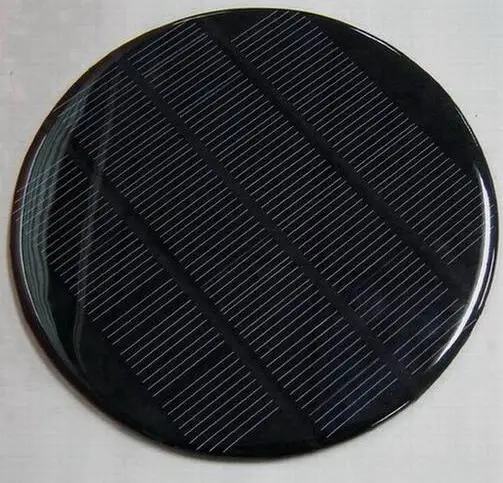

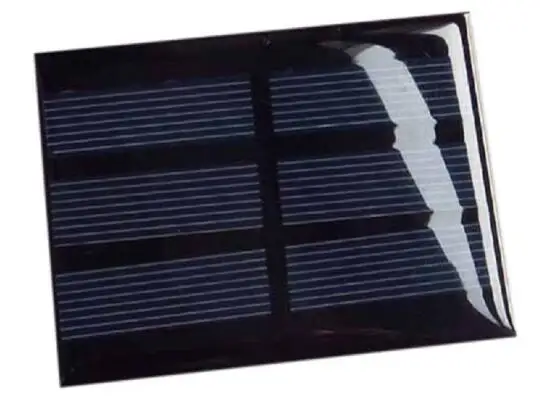

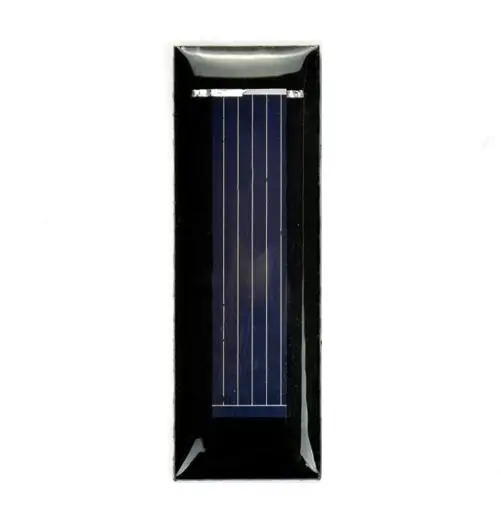

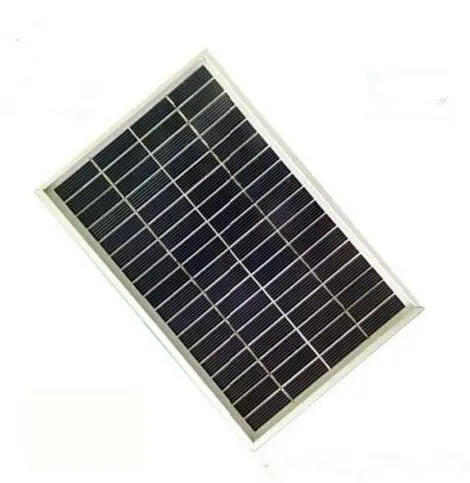

Epoxy/PET solar panel Pictures: |
All epoxy/PET solar panel are based on client requirement, pls tell me your detailed requirement. Attach you some product specs for reference:
| Power Max | Voltage | Shape | Current Max | Size (mm) |
| 0.25W | 5V | round | 50mA | diameter 80mm*3mm |
| 1W | 5.5V | square | 100mA | 95*95*3mm |
| 1.2W | 5V | square | 240mA | 110*69*3mm |
| 1.5W | 12V | square | 125mA | 140*85*3mm |
| 2W | 6V | square | 330mA | 136*110*3mm |
1. Each solar cell is in new condition and not susceptible to micro-crack
2. A proprietary anti-reflective coating provides superior color uniformity
3. Laser-cut for exacting measurements and precision
4. Can be incorporated into several different devices
5. Simple to install or add to your existing product.
6. Small space required for installation.
7. Ready to use, they require no frame or special modifications.
8. For connection, just solder or crimp to the copper tape.
9. Light weighted, very strong and weather resistant.
10. Ideal for OEM and hobby applications.
Company Information
TOPSKY ENERGY specializes in solar industry for providing solar cells,solar modules and application products and PV solutions with experience over 10 years.
Main products are as follows:
125mm mono solar cell&156mm poly and mono solar cell, BIFI solar cell, sunpower back-contact cell, 2BB/3BB/4BB/5BB cell.
3W-360W mono-crystalline and poly-crystalline silicon solar panel.
We also offer OEM and ODM service for solar application product such as Epoxy resin/PET/Glass/SMT mini solar panel as per customers’ request.
- Exclusive channel to get solar cells and solar panels from top quality brand at more competitive price,they are SUN POWER ,NSP,MOTECH,GINTECH ,HANWHA ,QCELLS, BYD, GCL,etc.
