BAOFENG UV-5R VHF Любительская рация двойного диапазона двухстороннее Ham радио приемопередатчик иди и болтай
- Категория: Portable Audio, Video & Accessories >>>
- Поставщик: Xiamen,Rongxiang,Rui,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.11 $* | 0.22 $* |
| Aug-19-2025 | 0.45 $* | 0.27 $* |
| Jul-19-2025 | 0.57 $* | 0.50 $* |
| Jun-19-2025 | 0.2 $* | 0.11 $* |
| May-19-2025 | 0.40 $* | 0.40 $* |
| Apr-19-2025 | 0.59 $* | 0.64 $* |
| Mar-19-2025 | 0.0 $* | 0.16 $* |
| Feb-19-2025 | 0.20 $* | 0.15 $* |
| Jan-19-2025 | 0.6 $* | 0.4 $* |
Характеристики
Products Description
Specifications | ||
frequency range | 400-520MHz/136-174MHz | |
channel capacity | 128 | |
Channel spacing | 25.0kHz / 12.5kHz | |
Frequency stability | ±1.5ppm | |
working temperature | -20℃ ~ +60℃ | |
Antenna impedance | 50Ω | |
working voltage | 3.7V | |
Dimensions (L * w * h) | 100×57×37mm | |
Weight (with battery and antenna) | 212g | |
Battery | 1800mAh (Lithium ion battery) | |
Receiving sensitivity | 0.15μV / 0.18μV | |
Adjacent channel selectivity | 65dB / 55dB | |
Intermodulation Rejection | 55dB | |
Spurious Response | ≥60dB | |
modulation mode | 16KΦF3E / 8KΦF3E | |
Modulation limit | ≤5kHz / ±2.5kHz | |
Features
The Baofeng UV5R is a compact handheld radio scanner transceiver providing 4 watts in the frequency range of 136-174/400-520 MHz.
It is a compact, economical HT that includes a special VHF receive band from 65-108 MHz which includes the regular FM broadcast
band. Dual watch and dual reception are supported.
Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and a built-in flashlight.
Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. omes with ANT5 SMA-J flexible antenna, BL-5 Li-ion battery
(7.4V 1800 mAh), belt clip, wrist strap, AC adapter, and drop-in charging tray
It is a compact, economical HT that includes a special VHF receive band from 65-108 MHz which includes the regular FM broadcast
band. Dual watch and dual reception are supported.
Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and a built-in flashlight.
Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. omes with ANT5 SMA-J flexible antenna, BL-5 Li-ion battery
(7.4V 1800 mAh), belt clip, wrist strap, AC adapter, and drop-in charging tray
what included:
1 x baofeng UV 5r radio
1x Antenna
1x Earpiece
1x Li-ion battery pack
1x LI-ion charger
1x Belt clip
1x The sling
1x Adapter
1x User's manual
1 x baofeng UV 5r radio
1x Antenna
1x Earpiece
1x Li-ion battery pack
1x LI-ion charger
1x Belt clip
1x The sling
1x Adapter
1x User's manual

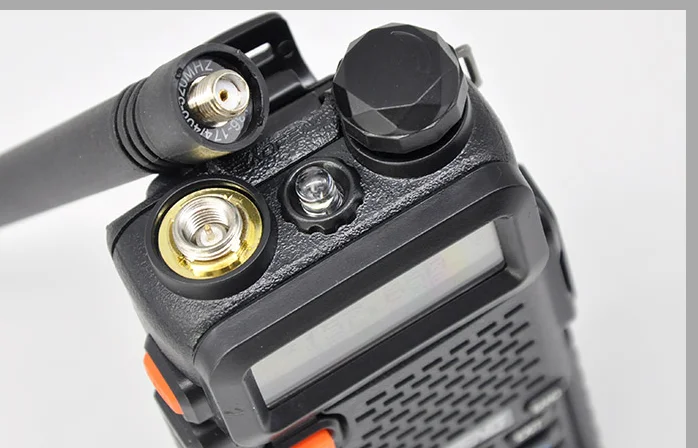

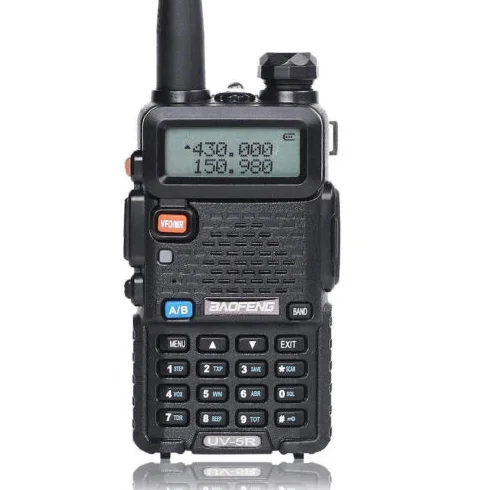

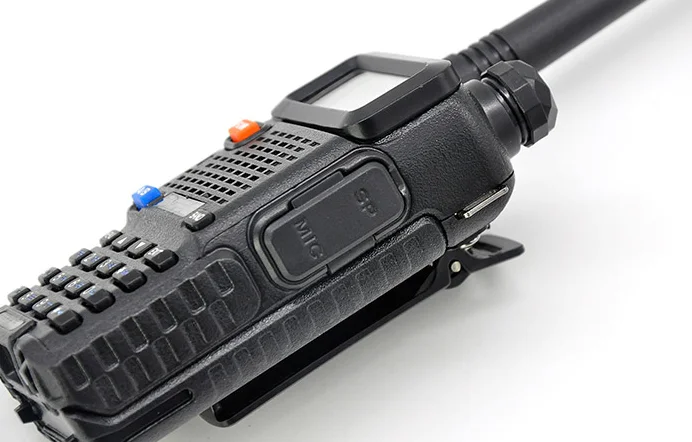

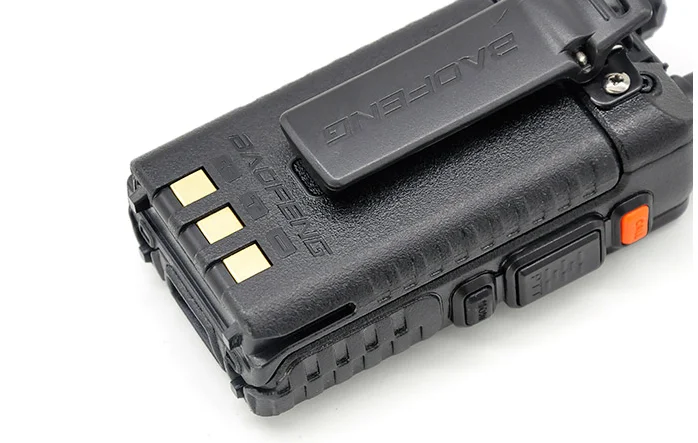

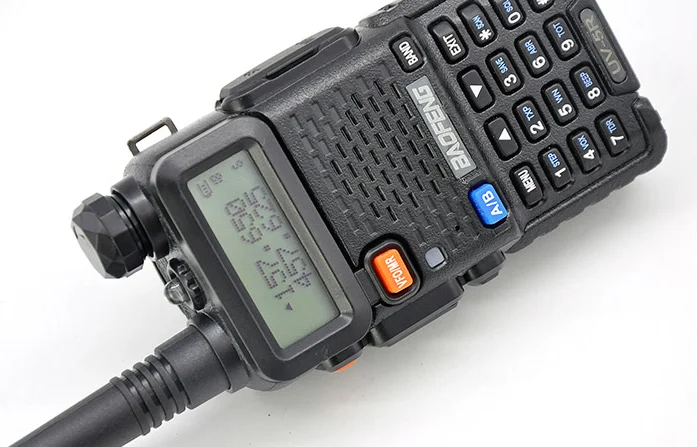

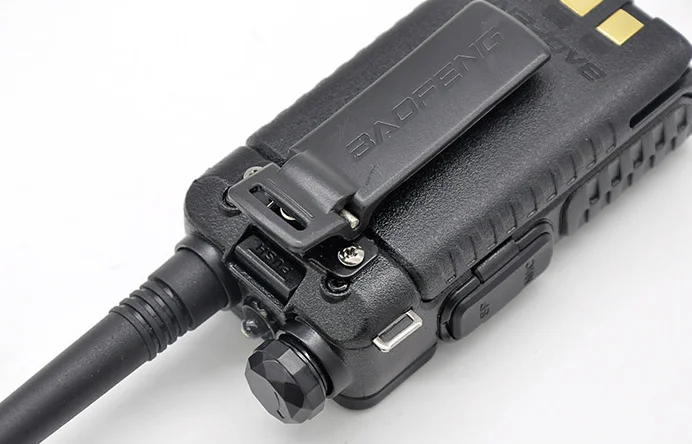

Details Images
Functions:
1. Frequency Range: 136-174 / 400-520 MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 5/1Watts Triple Power
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Brust Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display
10. Hight / Med / Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
19. ROGER SET
Specifications:
Frequency Range: 65-108MHz (FM Receive only); 136-174 MHz and 400-520 MHz (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Output power: 5W / 1W (Max 5W)
Dimension(W x H x D): 100 x 52 x 32 mm
Weight: 250g (including battery, antenna)
1. Frequency Range: 136-174 / 400-520 MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 5/1Watts Triple Power
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Brust Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display
10. Hight / Med / Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
19. ROGER SET
Specifications:
Frequency Range: 65-108MHz (FM Receive only); 136-174 MHz and 400-520 MHz (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Output power: 5W / 1W (Max 5W)
Dimension(W x H x D): 100 x 52 x 32 mm
Weight: 250g (including battery, antenna)
catalog price list & samples
Usage
characteristic
With flashlight, good sound quality, good appearance
Usage scenarios
With flashlight, good sound quality, good appearance
Usage scenarios
KTV, hotel, wedding, construction site, security, parking lot, company, etc
