Нейтрально-плавучий кабель ROV tether 4x2x26AWG cat5e для blue rov
- Категория: Кабели питания >>>
- Поставщик: Derul,Cable,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.20 $* | 1.43 $* |
| Jul-18-2025 | 1.82 $* | 1.33 $* |
| Jun-18-2025 | 1.98 $* | 1.89 $* |
| May-18-2025 | 1.87 $* | 1.46 $* |
| Apr-18-2025 | 1.46 $* | 1.96 $* |
| Mar-18-2025 | 1.54 $* | 1.67 $* |
| Feb-18-2025 | 1.90 $* | 1.7 $* |
| Jan-18-2025 | 1.83 $* | 1.63 $* |
Характеристики
Neutrally Buoyant Flexible Cables
In some subsea situations, you may want to have neutrally buoyant cables. A neutrally buoyant cable is one whose density is equal
to the fluid around it (e.g., water) so that it remains in a specific position.Product Description

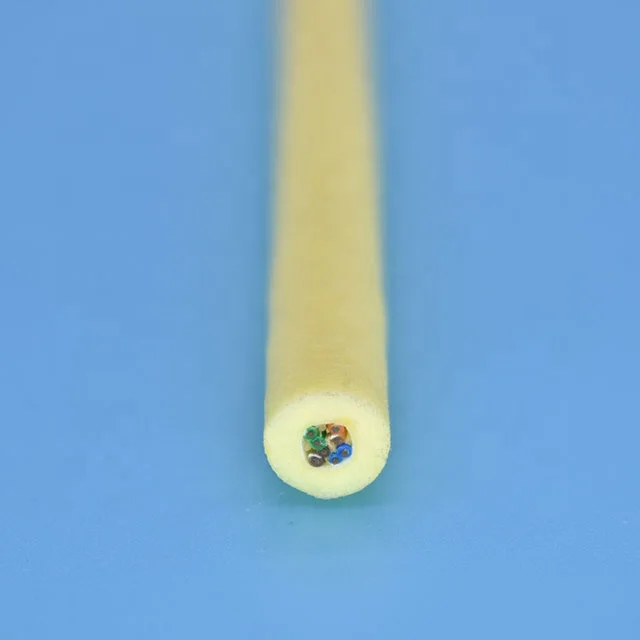

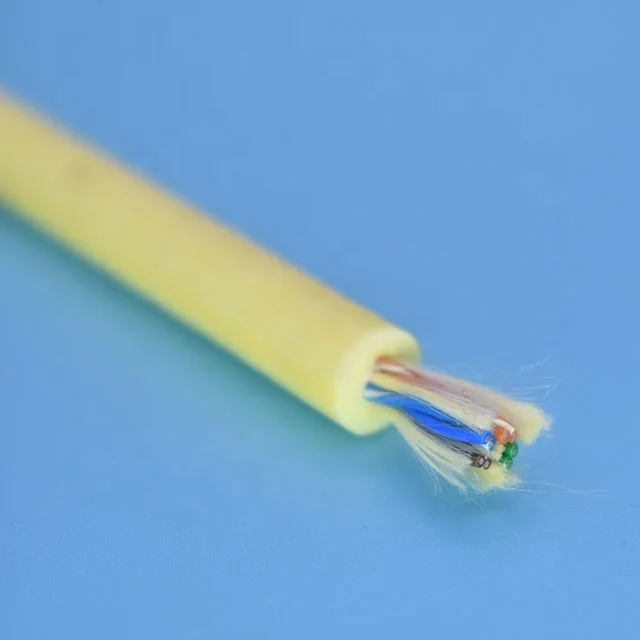

4x2x26AWG signal twisted pairs neutrally buoyant tether | ||||||
No. | DERUL10010 | Voltage | 300/500V | |||
Spec. | 8 cores | Application | ROV/underwater | |||
Cable diameter. | 8mm | Certification | CE, ISO9001 | |||
Conductor material | bare copper | Depth | 300 meters | |||
Color | Yellow | Shield | No | |||
Insulation | PE | Filler | water block material | |||
Tensile structure | High tensile strength of Kevlar fiber | Wrapping material | Quality non-woven | |||
Outer sheath | Polyurethane foam | Temperature range | Fixed laying: -40℃~+90℃. Movable installment: -30℃~+80℃ | |||
Detailed Images

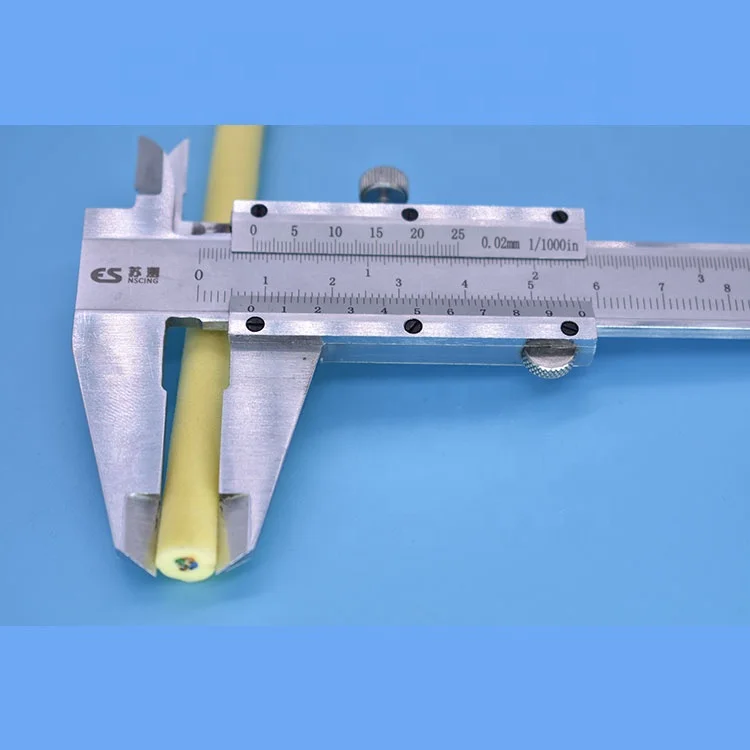

Actual Data
Company profile
Neutral buoyanct cables are mainly used to assist underwater robots in transmitting signal power and video and sending images back to the computer, which requires strong impact and corrosion resistance and is suitable for fresh water, seawater, radioactive waters and mines containing explosive gases.
It is resistant to ozone, UV and moisture. The sheath is made of polyether-type material and has good water resistance. The cable is waterproof inside for dual waterproofing.
The polyether-type material makes the cable sour against tear, pull, cold and weather resistance. And wear resistance is suitable for underwater vibration.
The polyether-type material makes the cable sour against tear, pull, cold and weather resistance. And wear resistance is suitable for underwater vibration.
Cables can be customized to customer requirements. (Conductors, Insulation, Sheaths)
Cables have three functions, namely power transmission, signal transmission and video
transmission.
Customers can choose conductors, insulation, sheaths and other materials according to
their own circumstances.
Cables have three functions, namely power transmission, signal transmission and video
transmission.
Customers can choose conductors, insulation, sheaths and other materials according to
their own circumstances.
Derul Cable (Shanghai) Co. , Ltd. mainly relies on mature and advanced technology at home and abroad, a number of domestic mobile cable experts composed of research and development team, committed to special mobile cable research and development, design, production and sales. Our cables are mainly used in power plants, ports, mines,
metallurgy, ships, pipelines, submarine robots and industrial manufacturing equipment.
metallurgy, ships, pipelines, submarine robots and industrial manufacturing equipment.
In power plant applications, we specialize in bucket reel cables, dumpers and dialer tow cables and towline cables to suit a wide range of harsh environments.
In the port sector, we specialize in tire cranes, overhead cranes, shore-side (STS) cranes, rail-mounted gantry
(RMG) cranes, gantry crane tows, towline system cables, cart reel cables and spreader cables.
(RMG) cranes, gantry crane tows, towline system cables, cart reel cables and spreader cables.
In the pipeline and subsea areas, we focus on high tensile, oil resistant, bend resistant pipe robot cables and
neutral buoyancy ROV cables.
neutral buoyancy ROV cables.
