FHC052 водяной теплообменник c медными

Категория: Heat Exchanger >>>
Поставщик: Zhejiang,Forwon,Plate,Heat,Exchanger,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.0 $*	0.49 $*
Aug-17-2025	0.64 $*	0.51 $*
Jul-17-2025	0.39 $*	0.16 $*
Jun-17-2025	0.34 $*	0.7 $*
May-17-2025	0.52 $*	0.20 $*
Apr-17-2025	0.84 $*	0.79 $*
Mar-17-2025	0.44 $*	0.78 $*
Feb-17-2025	0.59 $*	0.25 $*
Jan-17-2025	0.96 $*	0.67 $*

Характеристики

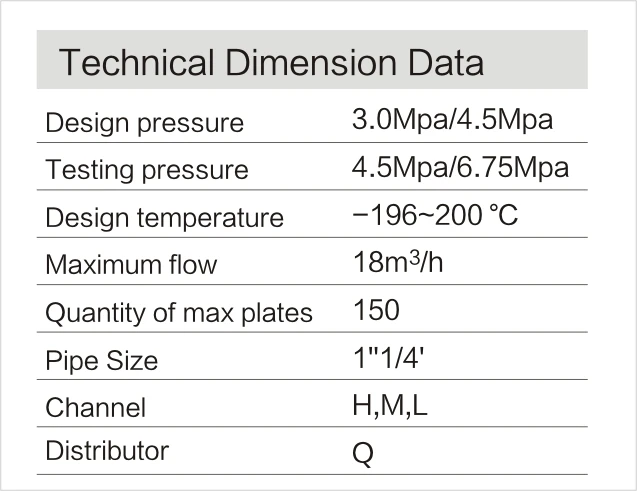

Product Description

\t Product Name	\t Brazed plate heat exchanger FHC052
\t Material	\t stainless steel
\t Design Pressure	\t 3.0 Mpa / 4.5 Mpa
\t Testing Pressure	\t 4.5 Mpa / 6.75 Mpa
\t Working temperature	\t -196°C~+200°C
\t Maximum plate NO.	\t 150
\t Maximum flow rate	\t 18m³/h

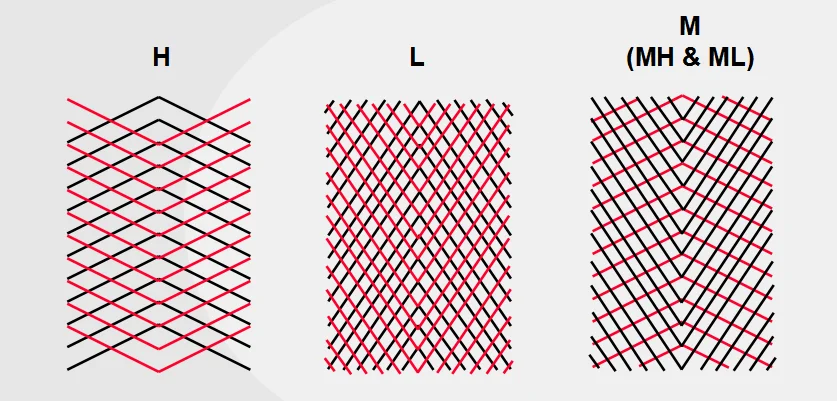

\t Channel	\t H M L

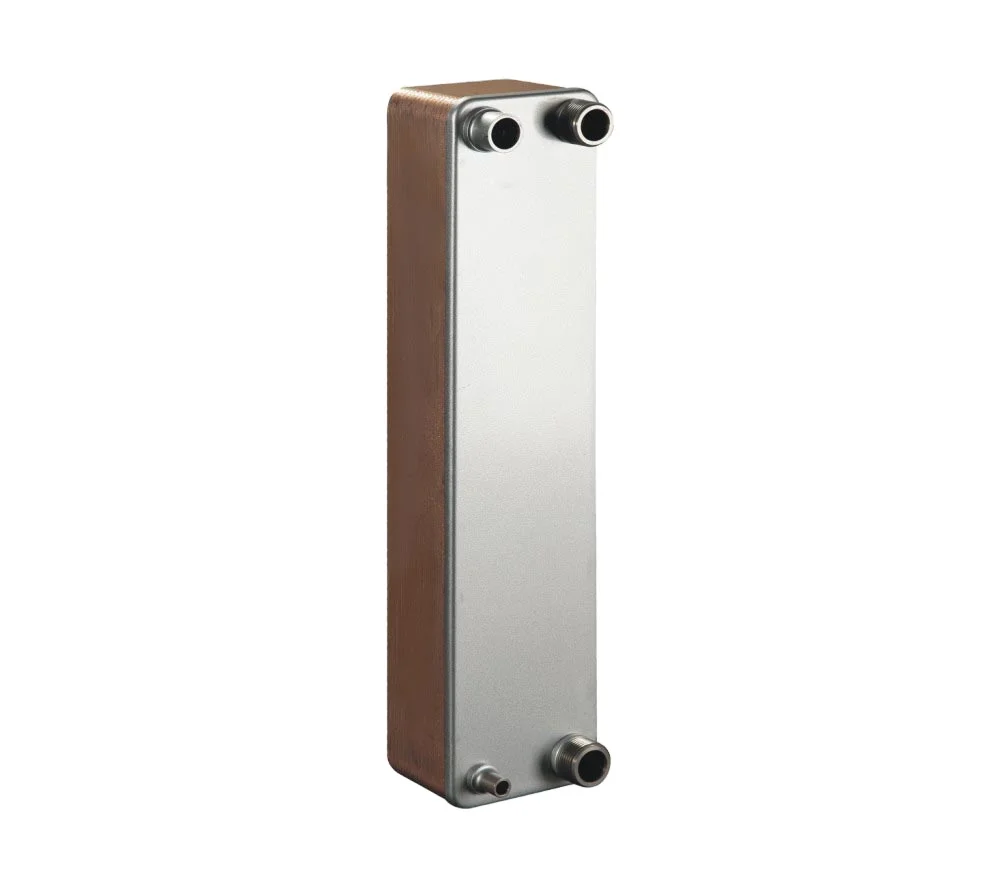

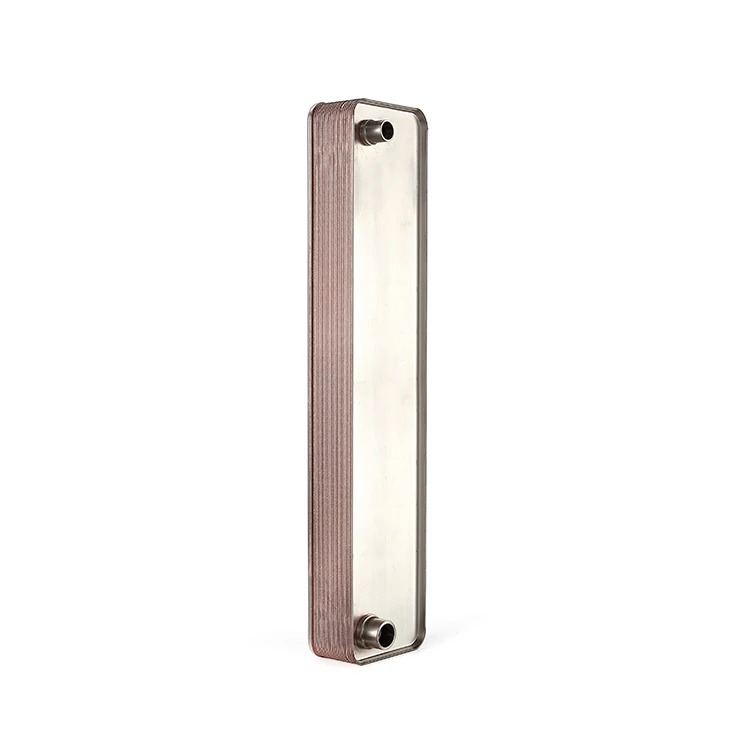

Products Show

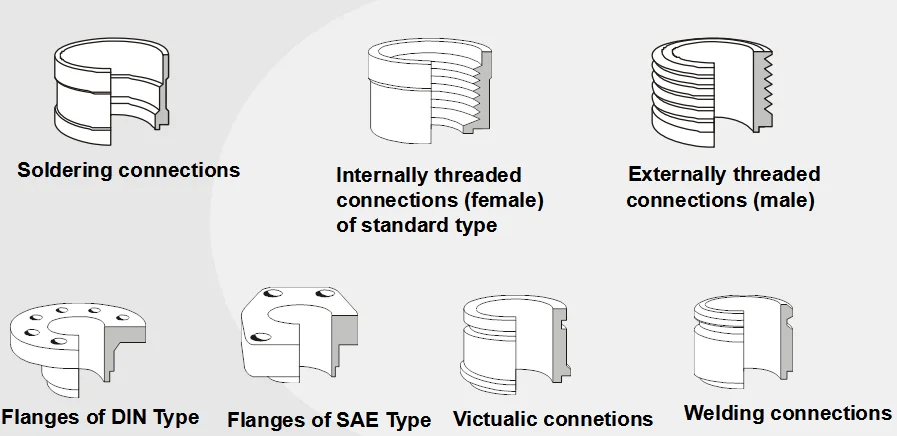

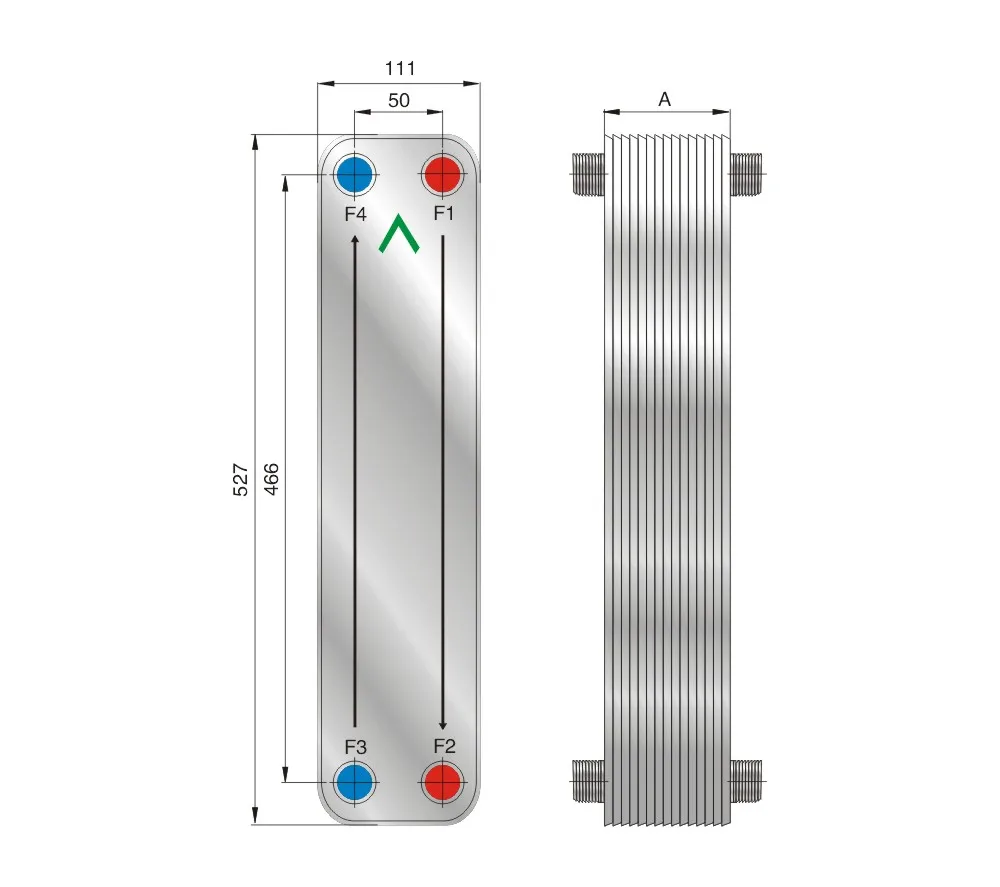

Connection & Channel

Our Equipments

Vacuum Brazed Area

Sheet Metal Manufacturing

Vacuum Helium Test

Our Company

Factory

Our Team

Workshop

Warehouse

Packing & Delivery

Packing Details : Wooden box or carton box

Delivery Details : By sea or by air

Our Certifications

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it takes 7-10 workdays to finish products(when the order quatities is smaller than 200 pcs) ,and it is 10 days by DHL or Fedex if the goods are ready for samples. or it is 15-20 days by sea according to the different countries. .

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for charges, after you confirm the drawings.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
