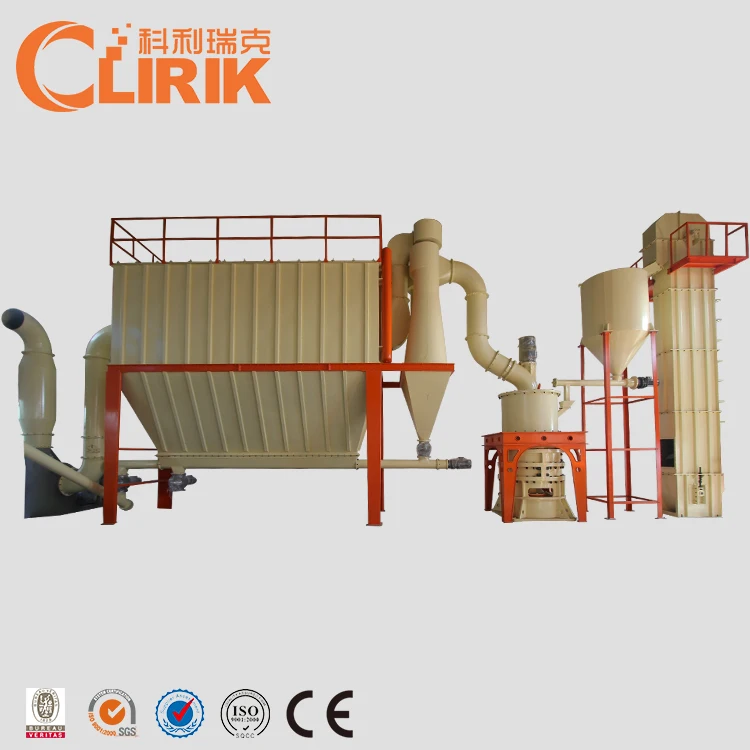

Introdution of Stone Powder Grinding Mill Production Line
Name:Stone Powder Grinding Mill Production Line Model: HGM series Brand:Clirik Powder Fineness Process Ability: 325-3000 mesh Capacity:according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-45 t/h Use Range:can be used in more than 150 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite, gypsum, carbon black, gypsum, kaolin, marble and so on Application: mining, chemiscal, transport and many other different areas
Advanatges of Stone Powder Grinding Mill Production Line
1. Energy Saving:compare with the comon stone powder grinding machine, the HGM minerals grinding machine can decrease about 20%~30% electrinic consums
2. Long Service Life: because the grinding ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill
3. Environment Friendly: the application of pulse bag filter and muffler greatly alleviates dust pollution and noise
4. Cheaper Price& High Quality: because our Shanghai Clirik is the HGM series grinding machine manufacturer, so you can get machine from us in the cheapest price, and at the same time we also can supply the warmly after sale service
Technology Data of Stone Powder Grinding Mill Production Line
Model
HGM80
HGM90
HGM100
HGM125
HGM1680
Ring Diameter(mm)
800
900
1000
1250
1680
Ring Number (PCS)
3
3-4
3-4
4
4
Roller Number(PCS)
21
24-32
27
34-36
40-44
Main Shaft Speed (r. p. min)
230-240
200-220
180-200
180-200
135-155
Input Size (mm)
≤20
Finished Size (um)
5-47(325-2500)
Capacity (t/h)
0.5-4.5
0.6-6.5
0.7-7
1-8.5
1.5-12
Outlet Size L*W*H (m)
13.9*4*6.2
14.7*4.8*7.2
18*4.6*8.6
18*4.6*8.6
14*9*10.25
Motor powder (KW)
145-165
185-204
263
263-290
380-430
Note: This specification is just referencing, any changes are subject to the products
Working Principle of Stone Powder Grinding Mill Production Line
When the powder grinding mill is working, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
Clirik Machinery Company Information
As a professional enterprise which is specializing in research, manufacture and sales all kinds of mining equipment, We have many agents sell our products all over the world.Our products are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. We'll always follow your steps, pursue your value and achieve your profit.
Our Honor Certication
Exhibition Site
Customers Visit

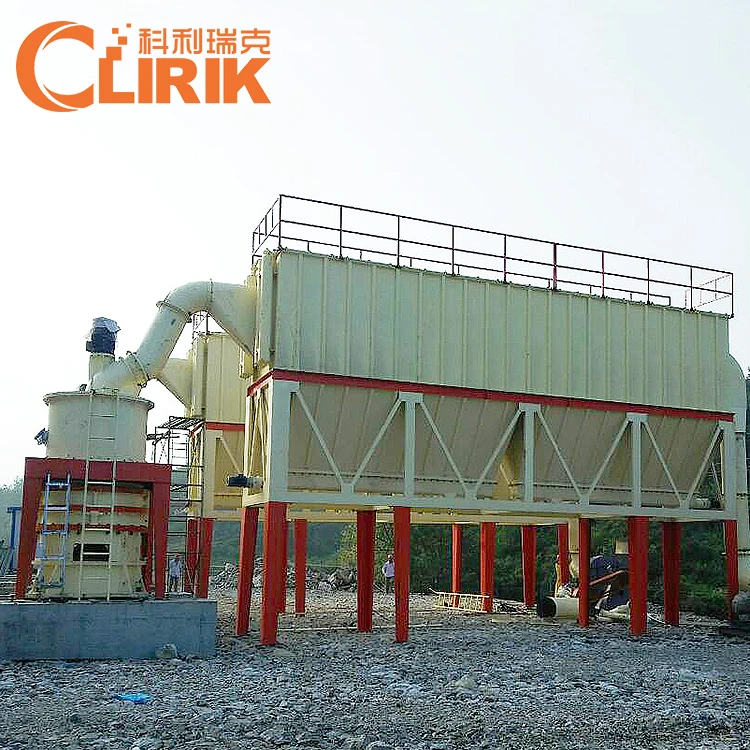

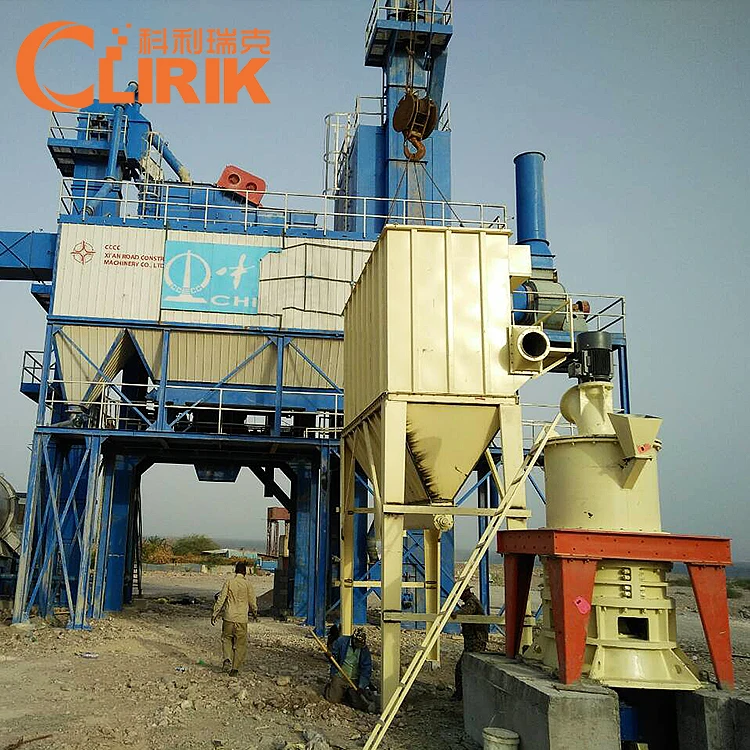

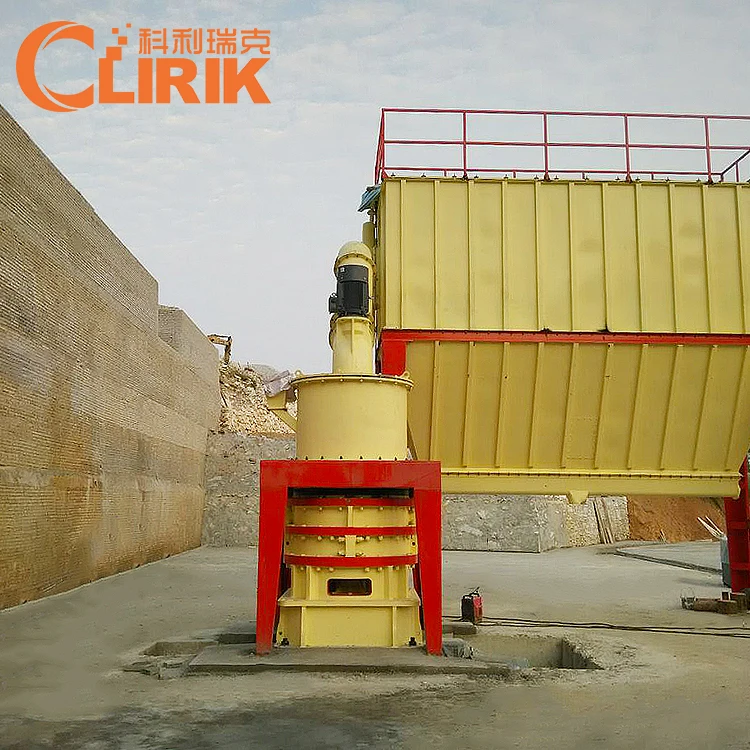

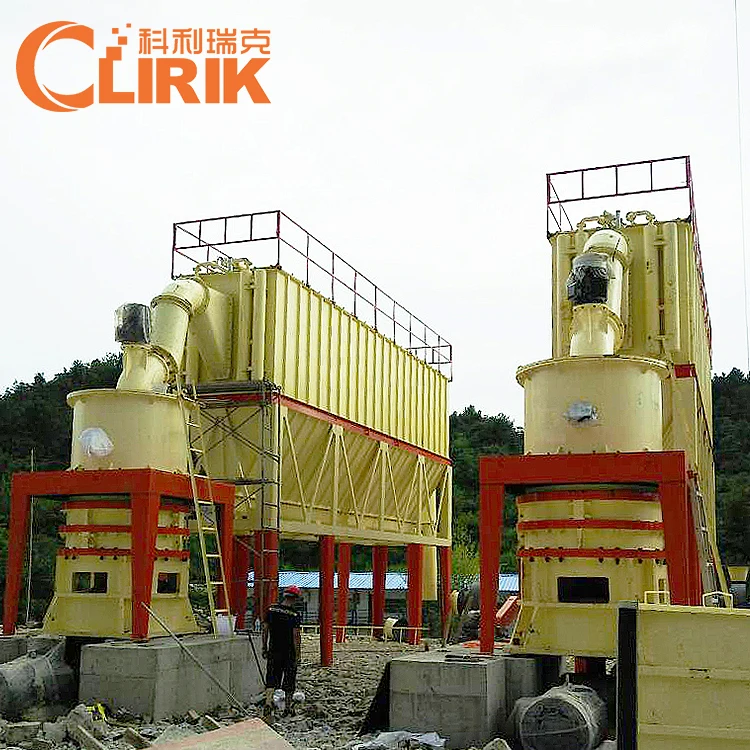

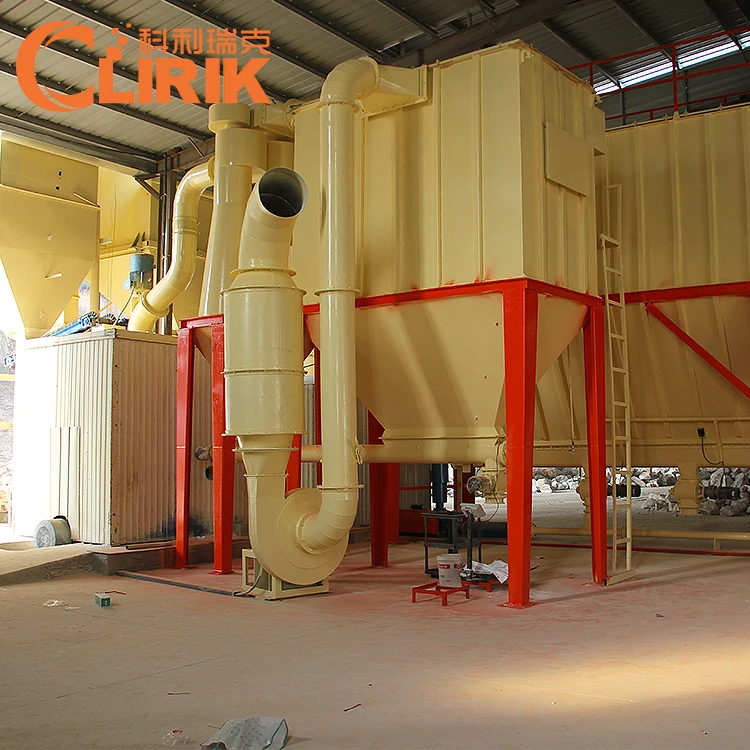

Working Site
Delivery Site
Why Choose US
Services For You: 1.one year guarantee for whole machine except for wear parts; 2.24 hours technical support by email; 3.calling service; 4.user manual available; 5.reminding for the service life of the wearing parts; 6.installation guide for clients from both China and abroad; 7.maintance and replacement service; 8.whole process trainling and guidance from our technicians. High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
Q: Are you a middle man or manufacturer? A: Our Shanghai Clirik Machinery is a professional mining equipment manufacturer.
Q: How to get in touch with you? A: You can leave your inquiry below this product, or you can call us 86-021-2023617.
Q: Where is your company? A: We are in PuDong new area, HeQing twon, FuQing road, No. 19, Shanghai, China.
