Характеристики

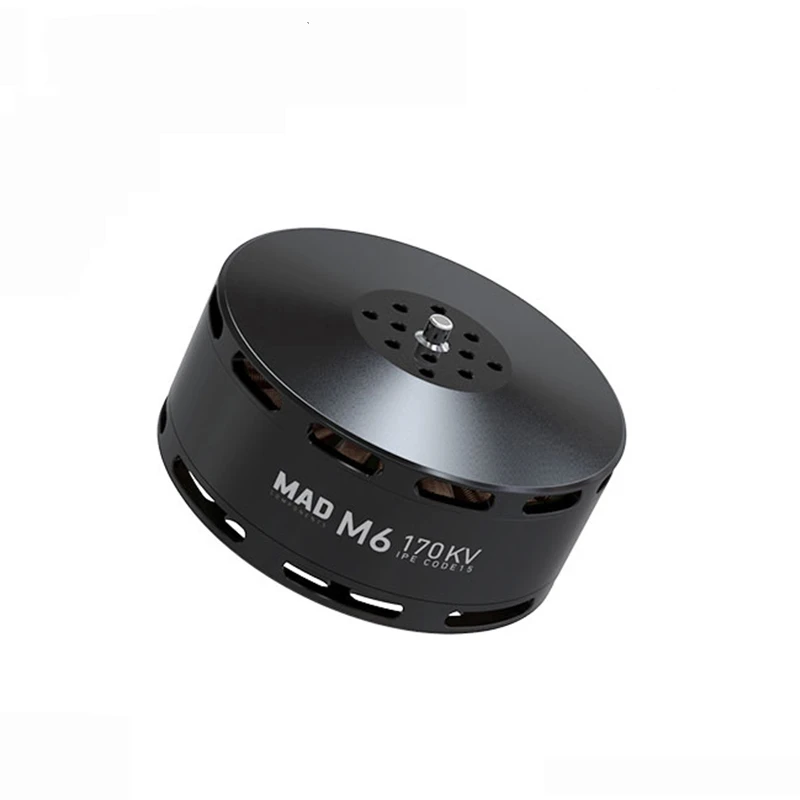

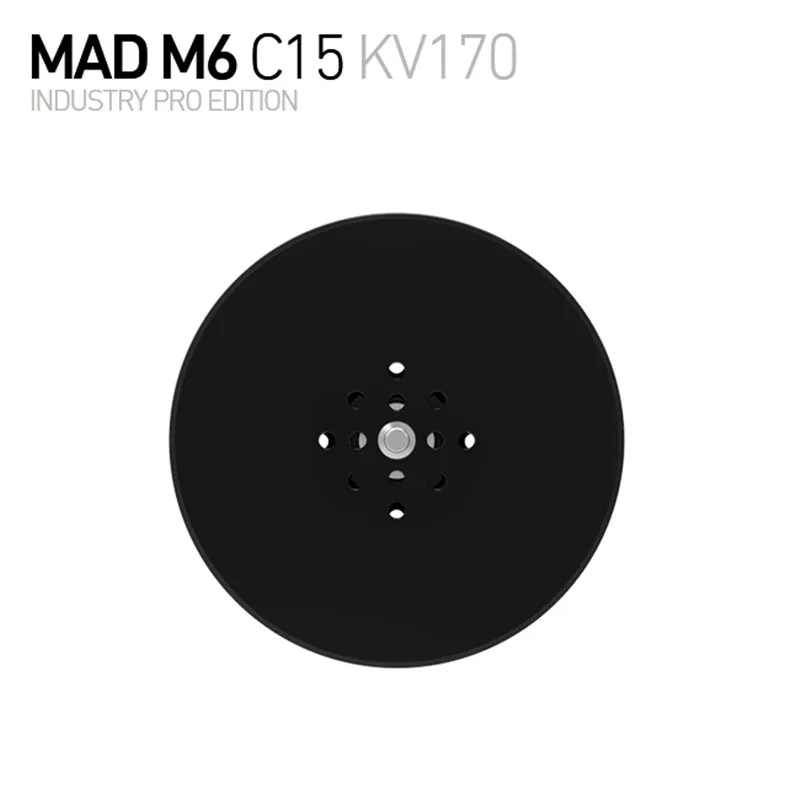

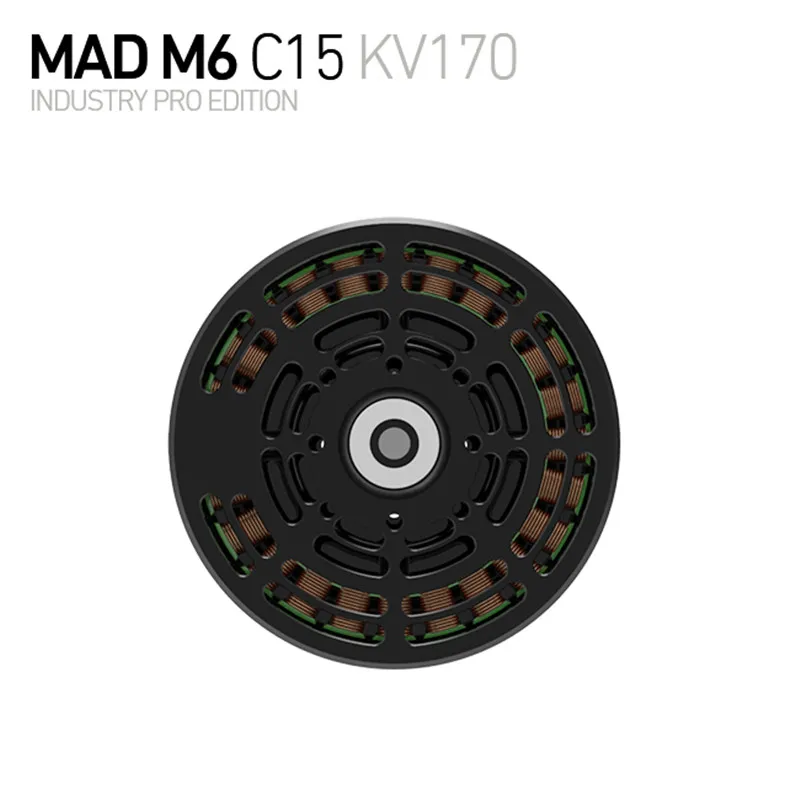

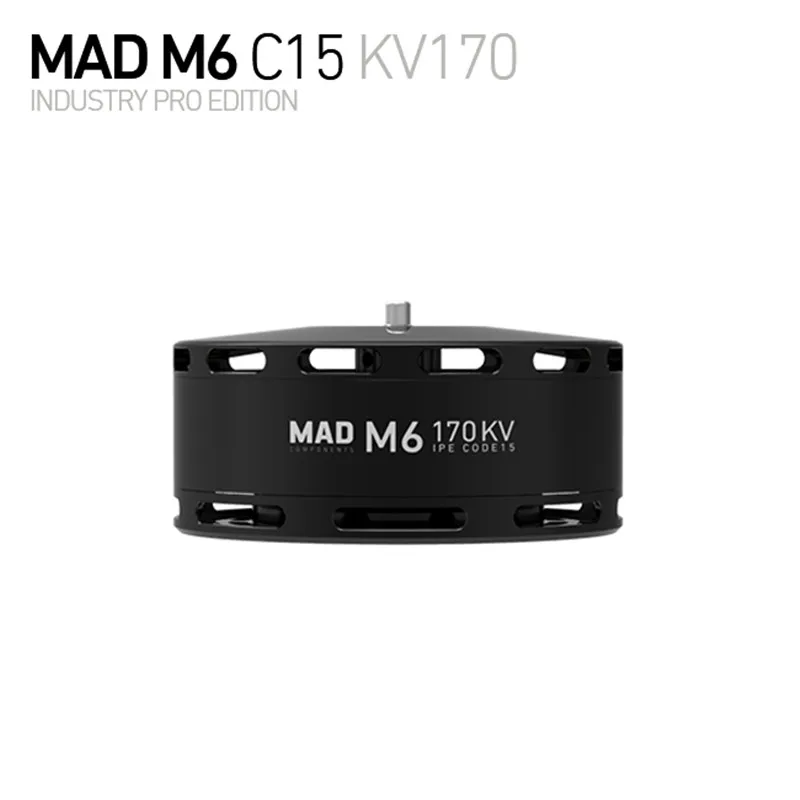

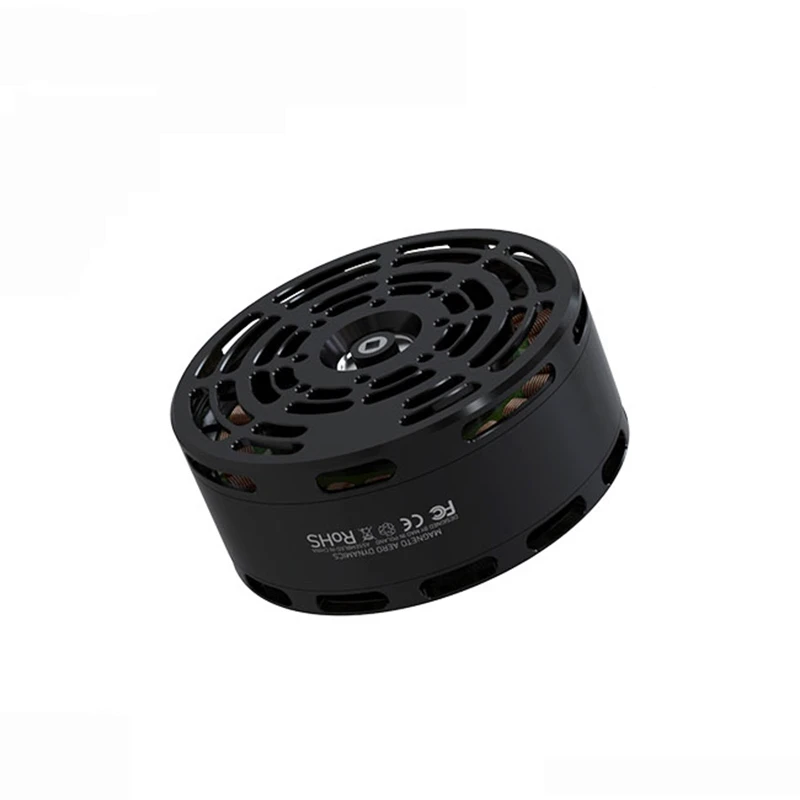

MAD M6C15 170KV Outrunner Waterproof 48V 11KGS Lift Motor Electric
Product Description
Key features
- Water and dust proof
- IP35 degree of protection Internal fan for active heat dissipation
- Ultra durable bearings
- Propeller installation adapters
- Motor mounting holes standarization
- Repairable
- Maximized performance Low power consumption
- Designed for 6S-12S voltage
SPECIFICATIONS | |
MAD M6 C15 | IPE |
RPM/V | 170KV |
Configuration | 24N22P |
Stator Size | 6 mm |
Bearing | EZO |
Motor Dimensions | 72 x 33 mm |
Internal Resistance | 30 mΩ |
Motor Weight | 310 g |
Product Boxed Weight | 405 g |
Propeller Mounting Holes | 4 x M3 Ø20 mm |
Motor Mounting Holes | 4 x M3 Ø25/Ø30 mm |
Heat Dissipation | Centrifugual fan |
Rotor Balanced | Yes |
Heavy Duty Design | Yes |
Protection | IP35 |
Maximum Thrust | 11200 g(12S) |
Efficiency at 3500 g Thrust | 7.5 g/w |
Propeller adapter | 1pcs |
Wire | Winding Extended 150mm |
Additional Accessories | 3x Bullet Connector Set,3x Heat Shrink Tubes,2x M3 10mm screws, 2x Carbon prop cover, 1x MAD sticker, 1x Black cover with hole - Stand for big cup1x Black cover with hole - Stand for big cup |
RECOMMENDATIONS | |
MAD M6 C15 | 170KV |
Propeller size | 18" - 22" (12S) |
Payload weight | 4000-7000 g/rotor(12S) |
Recommended ESC
Recommended PROPS
Test Parameters
MOTOR |
Propeler Size |
Voltage (V) |
Throttle |
Current (A) |
Thrust (g) |
RPM |
Power (W) |
Efficiency (g/W) |
Torque (N*m) |
Temperature (℃) |
MAD M6 C15 KV170 |
20*60 |
48 | 10% | 2.9 | 1090 | 3323 | 139.2 | 7.8 | 0.4 |
45℃ |
20% | 5.8 | 2050 | 4277 | 278.4 | 7.4 | 0.6 | ||||
30% | 8.7 | 2850 | 4895 | 417.6 | 6.8 | 0.8 | ||||
40% | 11.6 | 3520 | 5378 | 556.8 | 6.3 | 1.0 | ||||
50% | 14.5 | 4170 | 5818 | 696.0 | 6.0 | 1.1 | ||||
60% | 17.4 | 4770 | 6160 | 835.2 | 5.7 | 1.3 | ||||
70% | 20.3 | 5290 | 6480 | 974.4 | 5.4 | 1.4 | ||||
80% | 23.2 | 5780 | 6763 | 1113.6 | 5.2 | 1.6 | ||||
90% | 26.1 | 6290 | 7020 | 1252.8 | 5.0 | 1.7 | ||||
100% | 29 | 6820 | 7259 | 1392.0 | 4.9 | 1.8 | ||||
22*80 |
48 | 10% | 5.5 | 2220 | 3064 | 264.0 | 8.4 | 0.8 |
84℃ | |
20% | 11 | 3820 | 3904 | 528.0 | 7.2 | 1.3 | ||||
30% | 16.5 | 5070 | 4452 | 792.0 | 6.4 | 1.7 | ||||
40% | 22 | 6050 | 4836 | 1056.0 | 5.7 | 2.1 | ||||
50% | 27.5 | 7030 | 4550 | 1320.0 | 5.3 | 2.8 | ||||
60% | 33 | 7950 | 5451 | 1584.0 | 5.0 | 2.8 | ||||
70% | 38.5 | 8630 | 5670 | 1848.0 | 4.7 | 3.1 | ||||
80% | 44 | 9470 | 5889 | 2112.0 | 4.5 | 3.4 | ||||
90% | 49.5 | 9920 | 6036 | 2376.0 | 4.2 | 3.8 | ||||
100% | 52.8 | 11200 | 6227 | 2534.4 | 4.4 | 3.9 |
