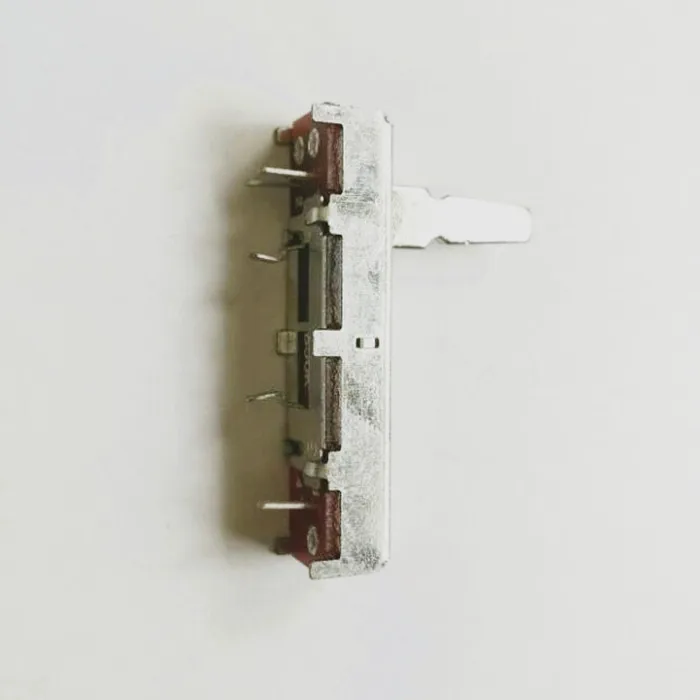

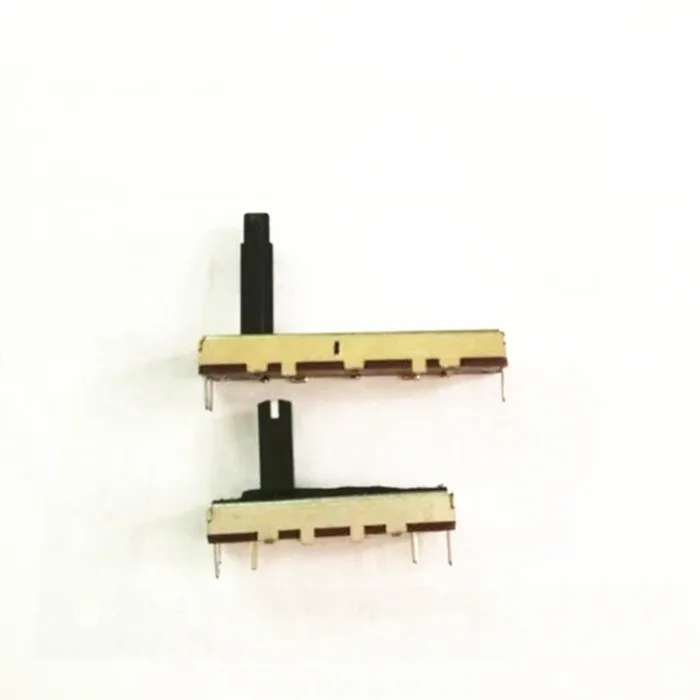

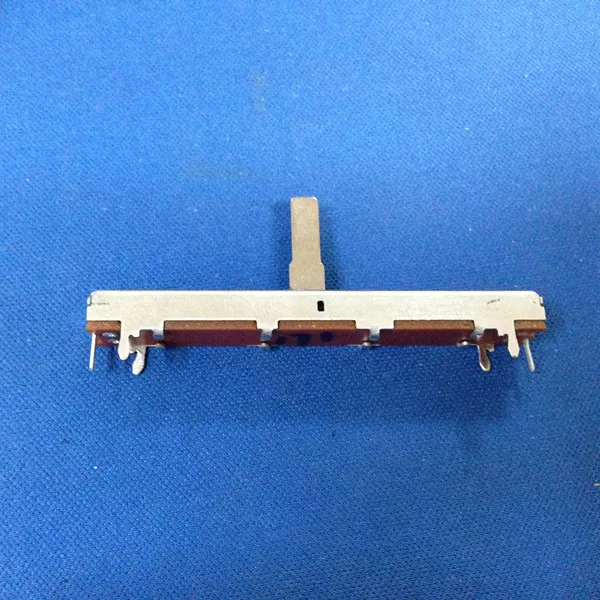

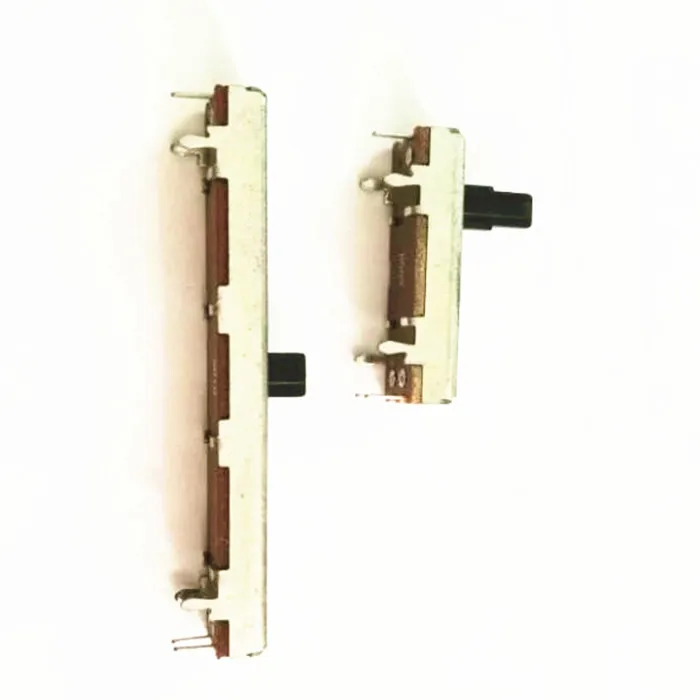

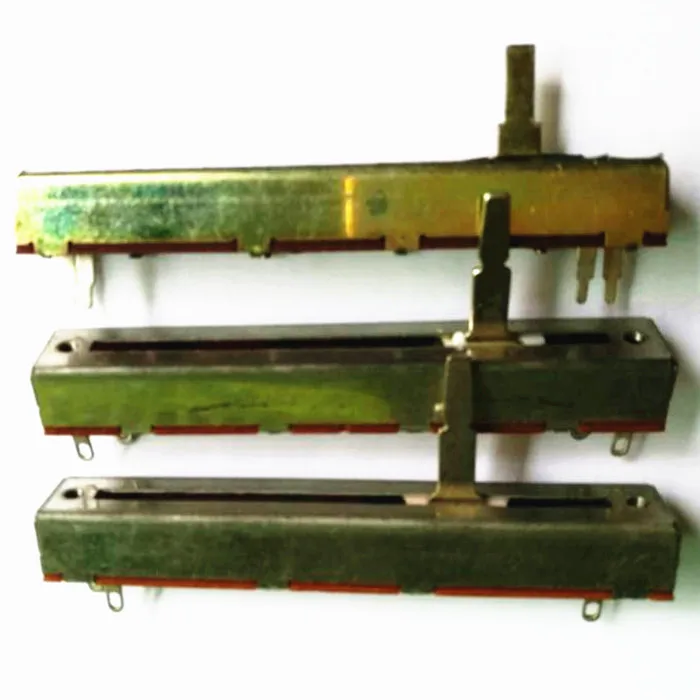

Линейный слайдер 20k потенциометр

ELECTRICAL CHARACTERISTICS

Total Resistance

 50K Ω±20%

Resistance Taper

A,B,C,D,E,MN,RD,W

Max. Operation Voltage

Linear Taper B :AC   200  V~DC  /  V

Other Tapers  :AC  150  V~DC  /  V

Rated Power

Single unit: Linear taper B:0.1W,Other tapers : 0.05W

Dual unit: Linear taper B:0.05W, Other tapers :0.025W

Sliding Noise

Less than  100  mV

Insulation Resistance

More than  10  MΩ at DC  250  V

Withstand Voltage

1 minute at AC  300  V

Residual Resistance

Term. 1~2 :Less than  10 Ω

Term. 2~3 :Less than  10 Ω

Gang Error (Dual Unit)

/   dB ~  /   dB ±  /  dB

MECHANICAL CHARACTERISTICS

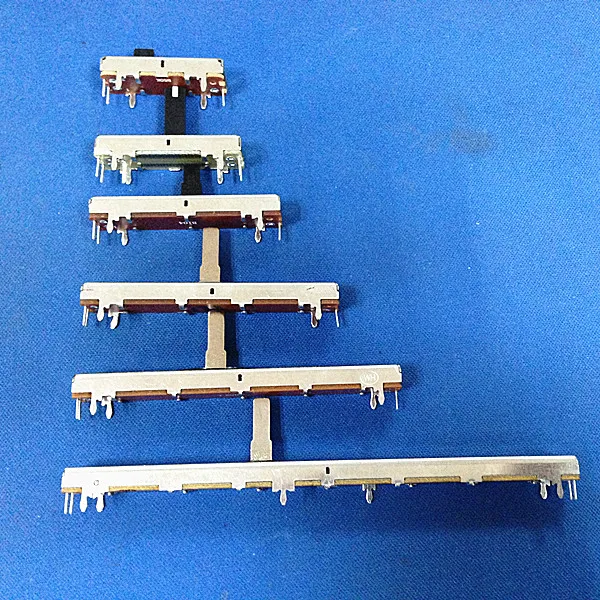

Total Sliding Travel

 20.0  mm ± 0.5  mm

Operating Force

 10  ~  100  gf

Sliding Stopper Strength

 5.0  Kgf.cm Min.

Push-Pull Strength

 3.0  Kgf.cm Min . at  5 sec  10 sec

Number of Detents (Click)

1C (Center Detent),7C,11C,21C,41C

Click Slip-Out Force

 /   ~  /  gf

Resistance to soldering heat

Solder dip:

Preheating condition: Surface temperature of the substrate shall be settled within 100℃ in one min.

Solder temperature 260±5℃for 5 sec.

Manual Soldering: Less than 300℃ and quicker than 3 seconds.

Sliding Life

10,000   Other /      (Cycles Min.)
