Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Электрический трубогибочный станок выхлопной трубы Бендер Гидравлическая трубогибочная
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.94 $* | 0.41 $* |
| Aug-19-2025 | 0.0 $* | 0.89 $* |
| Jul-19-2025 | 0.33 $* | 0.66 $* |
| Jun-19-2025 | 0.92 $* | 0.81 $* |
| May-19-2025 | 0.45 $* | 0.20 $* |
| Apr-19-2025 | 0.13 $* | 0.67 $* |
| Mar-19-2025 | 0.74 $* | 0.1 $* |
| Feb-19-2025 | 0.95 $* | 0.76 $* |
| Jan-19-2025 | 0.14 $* | 0.9 $* |
Характеристики
Product Description
Electric Pipe Bender Exhaust Pipe Bender Hydraulic Pipe Bender
WG26/38/51/76 CNC steel pipe bending machine is a self-developed pipe processing equipment.
Product details
| product name | Pipe Bending Machine |
| color | as your request |
| Diamtere of pipe | 10-26mm |
| Rotating speed | 20r/min |
| Voltage | 380v,50hz |
| QTY of bend angles | 10PCS |
| Thickness of Pipe | 2.0mm |
| Size(mm) | 800*650*900 |
| APPLICATION | quare tube, flat tube,etc |
| used for | vegetable shed, car shed, arch workshop, etc |
| Product Keywords | Electric Pipe Bender,Exhaust Pipe Bender,Hydraulic Pipe Bender |
Product Description:
WG26/38/51/76 CNC steel pipe bending machine is a self-developed pipe processing equipment. The machine can realize the first molding process of pipe, square tube, flat tube and stainless steel tube, such as arch, round and half arc, whole circle and so on. It is easy to operate, easy to use and high efficiency. It is mainly applicable to all kinds of sheds (vegetable shed, car shed, arch workshop, etc.) home upholstery (hanging basket, hanging chair, etc.) replacement moulds can be made of angle iron, flat steel, steel bar and so on.
Features:
1. Gear transmission , wear resistance.
2. Pure copper motor, durable and powerful
3. Abrasives are made of steel for durability
4. The pressing device can be operated by one person, and the tube is pressed tightly, which is not easy to be deformed.
5. Intelligent numerical control chip, the angle input is digitized, and 9 sets of bending angles can be saved at the same time.
Technical Parameters:
Model | WG-26 | WG-38 | WG-51 | WG-76 |
Diamtere of pipe | 10-26mm | 16-38mm | 16-51mm | 16-76mm |
Power | 2.2KW | 3KW | 3KW | 4KW |
Rotating speed | 20r/min | 16r/min | 8r/min | 6r/min |
Voltage | 380v,50hz | 380v,50hz | 380v,50hz | 380v,50hz |
| QTY of bend angles | 10PCS | 10PCS | 10PCS | 10PCS |
Thickness of Pipe | ≤2.0mm | ≤3.0mm | ≤3.0mm | ≤3.0mm |
Size(mm) | 800*650*900 | 850*680*900 | 900*700*950 | 900*800*1000 |
Weight | 180kg | 260kg | 300kg | 400kg |

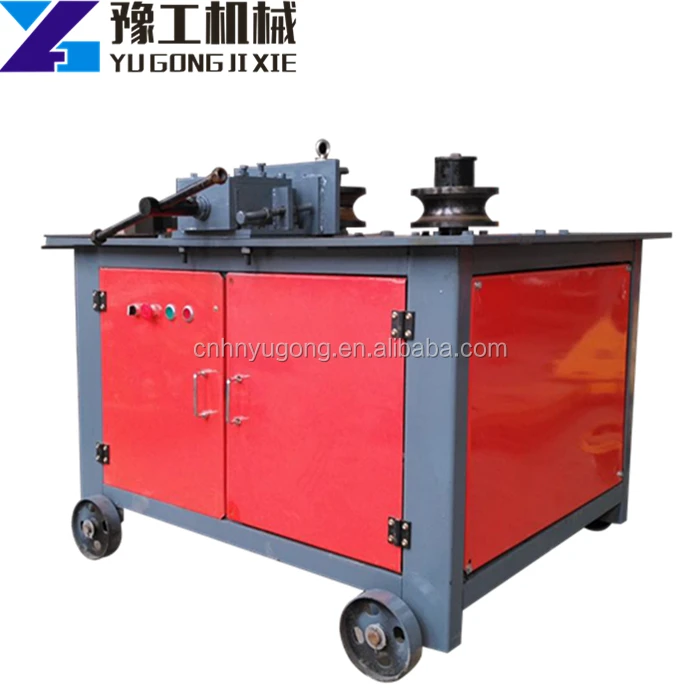

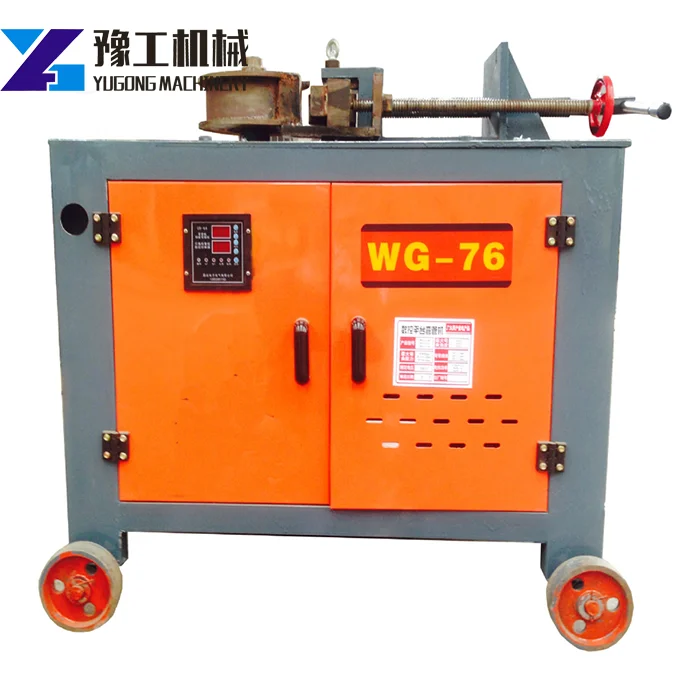

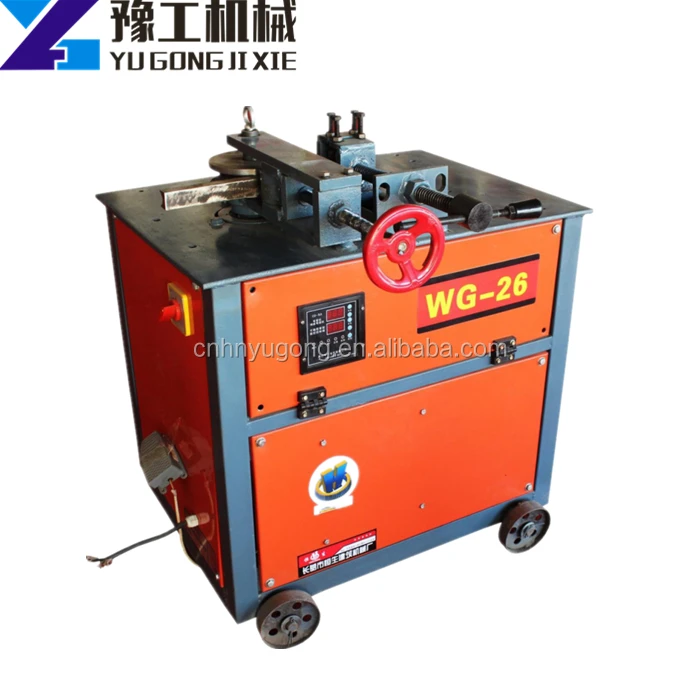

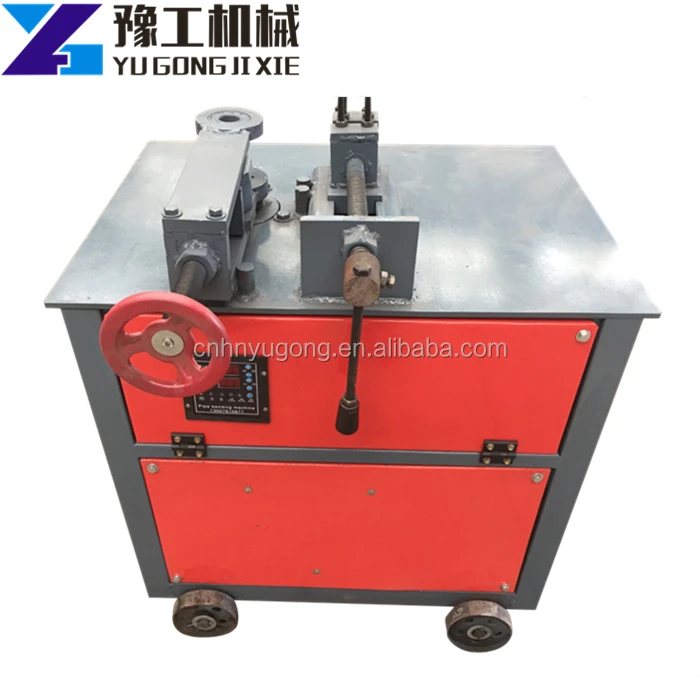

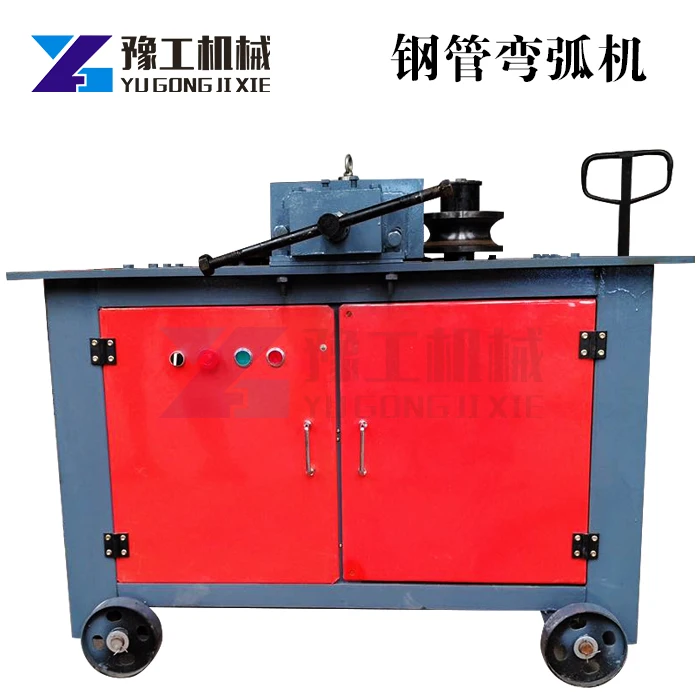

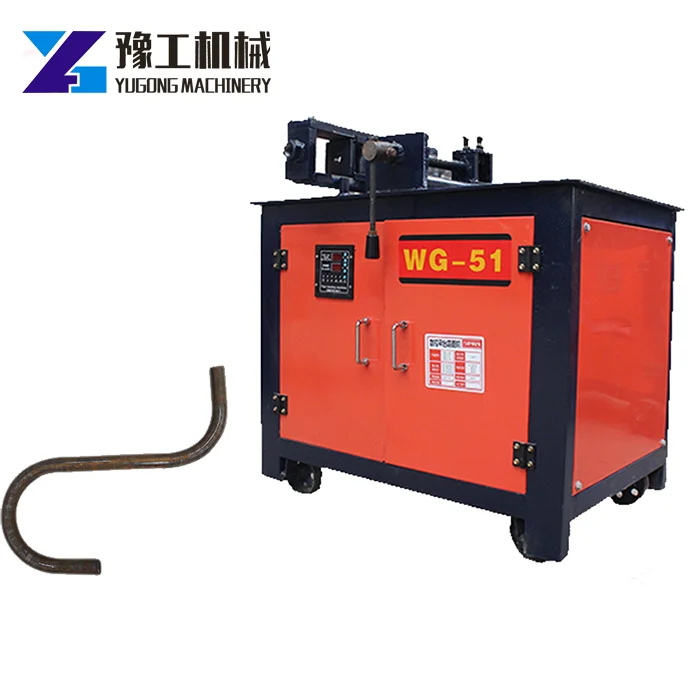

Detailed Images:
Packaging & Shipping
PACKAGE:
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
