Quickly detect Identify PoE type PoE Tester display shows Volts, Ampsand Watts for 802.3af/at, Passive PoE and DC Power supply



No Battery

FEATURES



1. PoE Tester/Detector for passive, 802.3af and 802.3at applications, 10/100/1000 data rates



2. Measures and displays Voltage, Current and Power while allowing full ethernet operation





OVERVIEW



This PoE tester belongs in every tool kit - great for testing PoE camera, ip phone and wifi installations.

Connect the source to your PoE switch or injector, connect the load to your Camera or Phone, wifi or other 802.3af/3at power device. The tester will display the power used, voltage available, and current flowing.

Diagnose PoE problems with this tool

• you can see how much power any PoE or DC powered device actually needs
• you can purchase just the power you need.
• Measure available voltage at the remote end of a PoE connected device



What does it do ? Use the Gen2 to test PoE cameras, VOIP phones, and WiFi installations without interrupting data flow, quickly detect and identify PoE type, measure power consumption from DC power supplies, and activate any port on an AF/AT PoE switch.

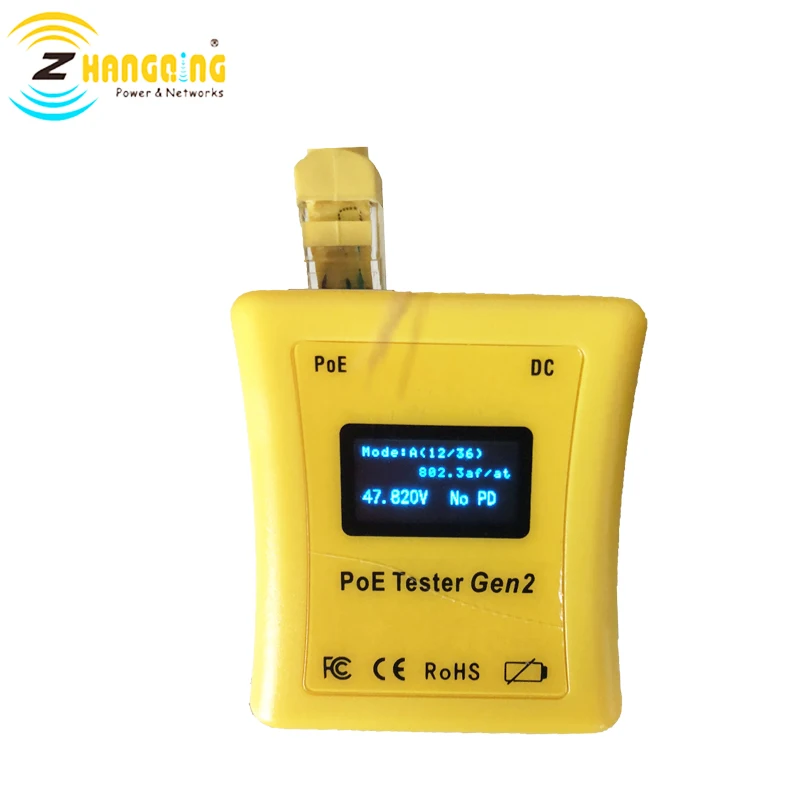

Smaller. simpler, and smarter. Those three words express the whole philosophy behind our redesign of the classic PoE Tester. The new PoE Tester GEN2 features:

• Ergonomic Body Design A new curved body design that’s 25% smaller than the original PoE Tester makes the GEN2 easier to hold and use in every situation.
• High-quality LCD Display The new scrolling LCD displays more information at once and can be read in full daylight.
• Simplified Operation Thanks to automatic mode and polarity detection, the new  GEN2 requires only one RJ45 input.
• 802.3bt Support 4-pair testing capability makes the GEN2 ready for the new IEEE 802.3bt PoE standard.
• Increased Testing Range Measures DC power supply voltages from 3.5 to 56 volts and current up to 280 watts at 56 volts.
