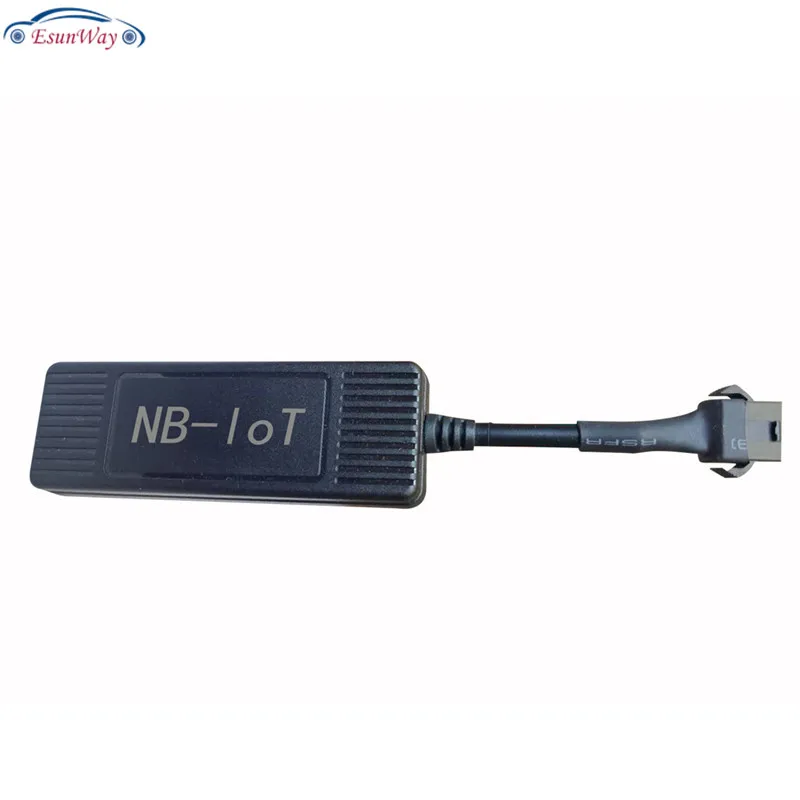

NB-IOT Super Mini SlimMotorcycle GPS Tracker with internal battery Antenna Locator satellite

NB-IOT Super Mini SlimMotorcycle GPS Tracker with internal battery Antenna Locator satellite

Категория: GPS Tracker >>>
Поставщик: Esunway,(shenzhen),Electronic,Technology,Co.,Ltd.,[Guangdong,China]Esunway

Цена:765,11 ₽ - 2 295,31 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	972.24 $*	991.45 $*
Jul-17-2025	788.82 $*	804.88 $*
Jun-17-2025	956.64 $*	975.94 $*
May-17-2025	949.12 $*	968.39 $*
Apr-17-2025	757.41 $*	772.34 $*
Mar-17-2025	933.16 $*	952.83 $*
Feb-17-2025	926.54 $*	945.38 $*
Jan-17-2025	918.35 $*	936.92 $*

Характеристики

Product Category

We can offer one stop customize service on hardware and Software

Product Categories >>> See More

Product Description

	Product positioning	Bus, logistics truck, engineering vehicle, refrigerated truck, tank truck, Rental Car, enterprise government cars etc various applications
	major function	1, GSM+GPRS System; 2, BeiDou+GPS+LBS Multi Positioning system; 3, Real time positioning track; 4, ACC Detection; 5, Remote lock car; 6, Vibration Alarm/Shift Alarm; 7, Burglar Alarm; 8, Cut off Alarm 9, Blind Area Supplement; 10, Bend compensation; 11, GEO Fence/ Boundary Violation Alarm; 12, Multiple inquiry ways; 13,365 days trajectory playback;
	main features	GSM+GPRS System, Beidou/GPS dual-mode positioning system, overcurrent voltage protection, Vehicle Positioning, Mobile Positioning, LBS Positioning, trajectory playback, GEO-Fence, Motion Alarm, Power off Alarm, Remote cut off power and oil; Smart Power Saving, blind are supplement, remote wireless upgrade, Support JT808; Hongyuan, Gumi etc universal platform communication protocol.
	Standby time	2-3 day
	Support communication	SIM Card
1. structure division
structure parts	category	specification	remarks
	ID design	Exquisite compact, ultra small ultra thin
	Whole machine size	76mm27mm15mm
	Packing size	80mm125mm40mm
	Weight	42g no packaging, 68g packaging box
	colour	black
	button	no
	screen	no
	GPS antenna	FPC antenna
	GSM antenna	FPC antenna
	battery	80mAh
	SIM card slot	1 pc
	G-sensor	support
	I/O port	DC seat charging
2. Hardware parts
Hardware parts	GSM chip(CPU)	MTK MT2625MA
	NB frequency band	Band1/Band3/Band5/Band8
	GPS chip	UBlox G7020
	GPRS	class12
	GPS signal	L1,1575.42MHz C/A
	GPS channel number	22 channels
	GPS chip receive sensitivity	Tracking sensitivity:-165dBm,capture sensitivity:-148dBm
	WIFI location accuracy	no
	GPS location accuracy	<10m
	LBS location accuracy	100-1000M
	Minimum standby current	less than 0.5 mA
	Average stndby current	less than 2.5 mA
	Average working current	around 55mA
	Working temperature	-20~70℃
	Working humidity	5% to 95% non-congealable
	Test and certification	can approval by 3C,CE&ROSH
	3D gravity sensor	support
	MIC	No support
	Texture of material
3. software parts
software parts	supported operating systems	Support android 2.3 and above system, IOS5.0 and above.
	call function	no
	Language support	Simplified Chinese and English	Compatible with support for multi-languages
	GSM+GPRS+GPS+wifi	GPS+LBS+WIFI Multi-modal positioning(Optional)
	support AGPS	Cold start 26 seconds positioning
	call function	no
	power management	Ultra-low power consumption of power management,intelligent dormancy
	One key emergency	no
	Smart Geo-fence	Outside the range setting can be automatic alarm
	historical route	Can check history of three months
	wireless upgrading	Software upgrade, remote debugging maintenance, remote setting parameters
