Alma model diode laser 808nm 755nm 1064nm laser handle repair





Product Description

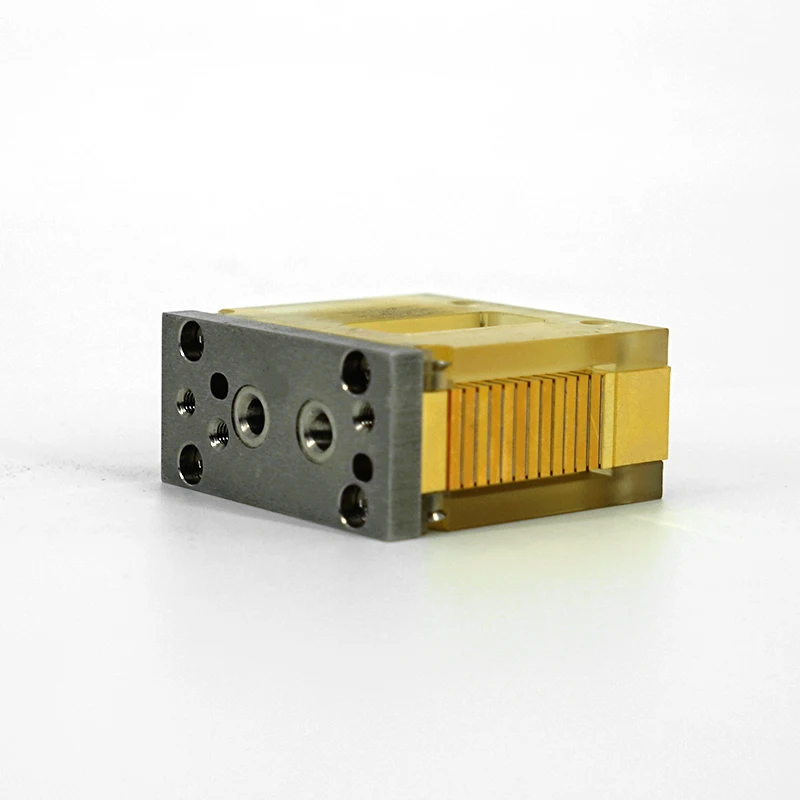

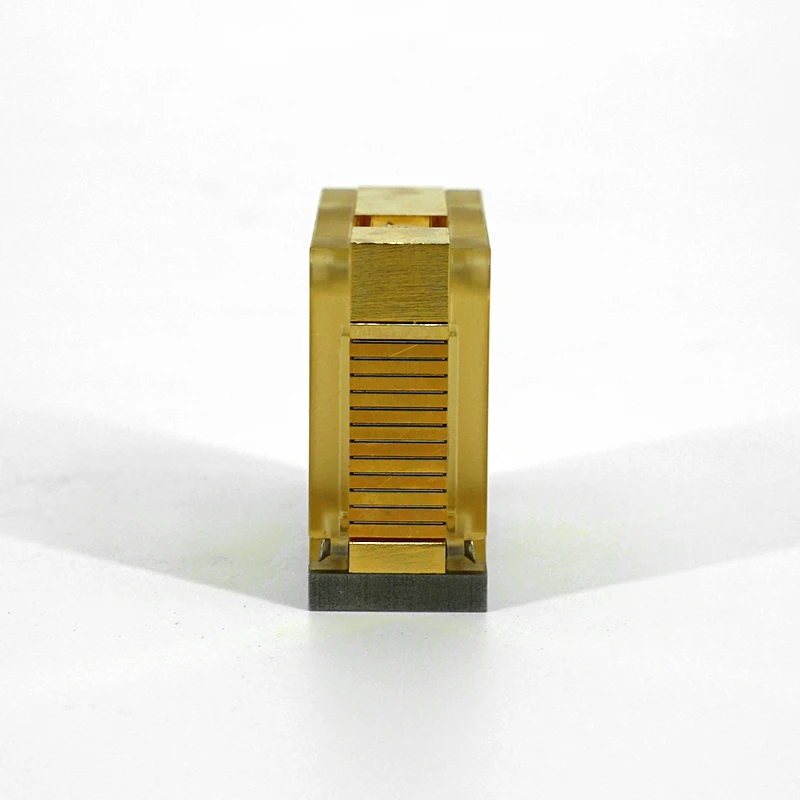

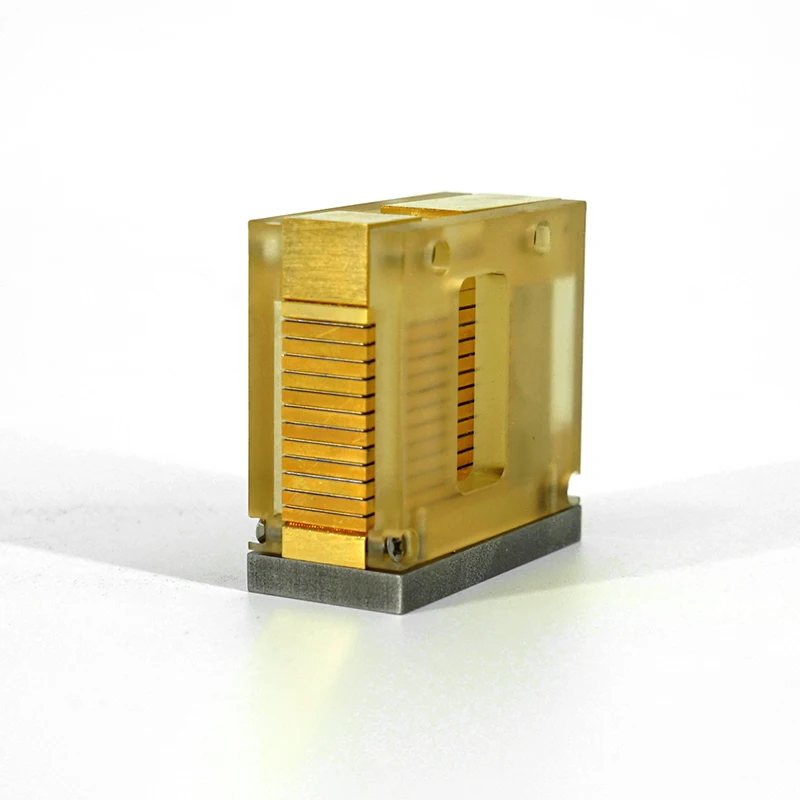

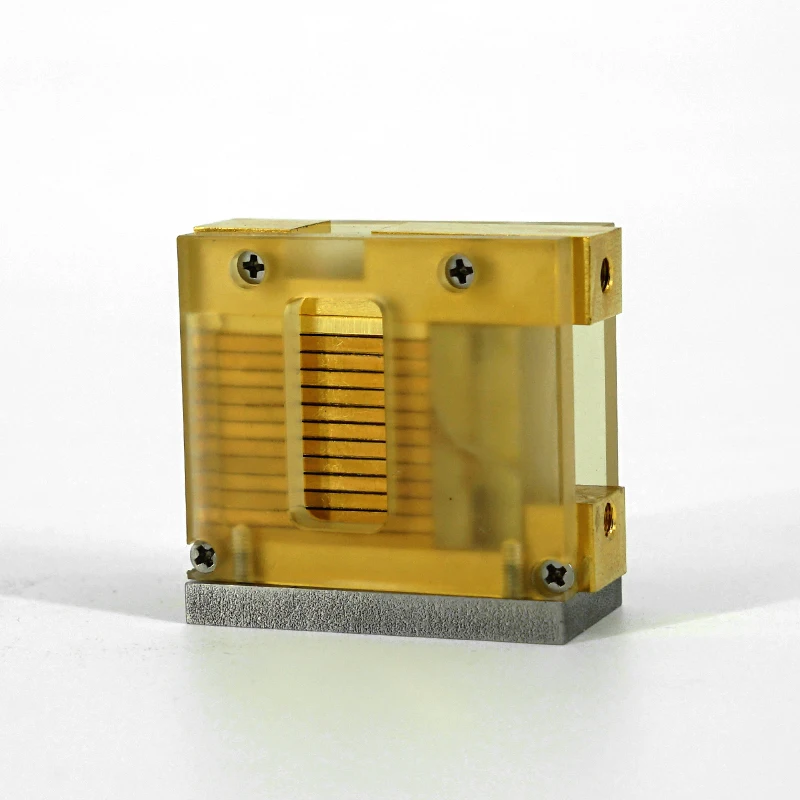

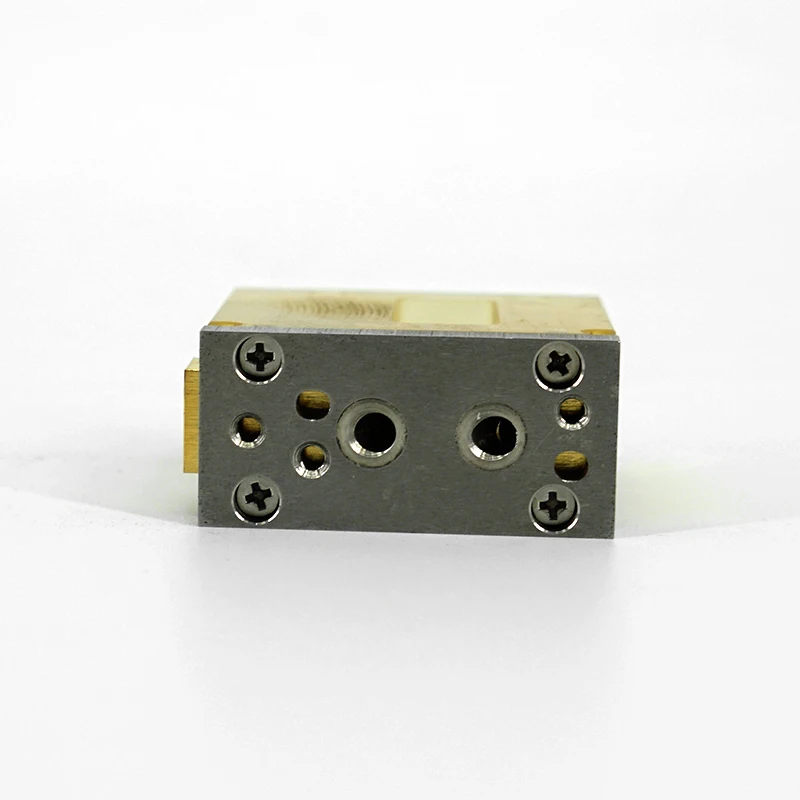

This diode laser hair removal handpiece model N is made of  3 pcs diode bar(4 decorate bars and 3 real bars) with micro channel cooler. The diode laser bars in this handpiece is VS-MI-100-12, laser power 300W.



Specification
Model No.	VS-MI-60-12-Alma-A
Application	Alma Handle Piece Repair And Replacement
Operation Mode	CW
Power per submounts	100W
Number of submounts in one stack	12bars
Central wavelength at 25℃	808 ± 5nm
Typical Operation current	60A
Maximum Operating current	90A
Typical Threshold current	15A
Maximum Operating Voltage	<24V
Fast Axis Divergence (FWHM)	39º
Slow Axis Divergence (FWHM)	8º
Operation Condition	non-condemsing atmosphere, cleaning room
Expected lifetime	10000hours
Typical pitch per bar	1.8mm
Cooling requirement
Flow rate	3.6L/min +-10%
Water Temperature	25+-3°C
Water Quality	Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
cooling system	Do not use any material that combination with copper







Laser stack drawing



Repairing procedure



>Choice A: Send the old broken handpiece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new handpiece back to you.(Please see follow repair process) 300w 808nm laser

>Choice B:  if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.(Please see follow repair process) 300w 808nm laser

>Choice C: Measure your stack and comfrim the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old handpiece.







Diode laser handle piece and laser stack repair process



First , after we received the old broken handle from customer, we check the apperance of handle to confirm whether all the parts are completed and in good condition. 300w 808nm laser

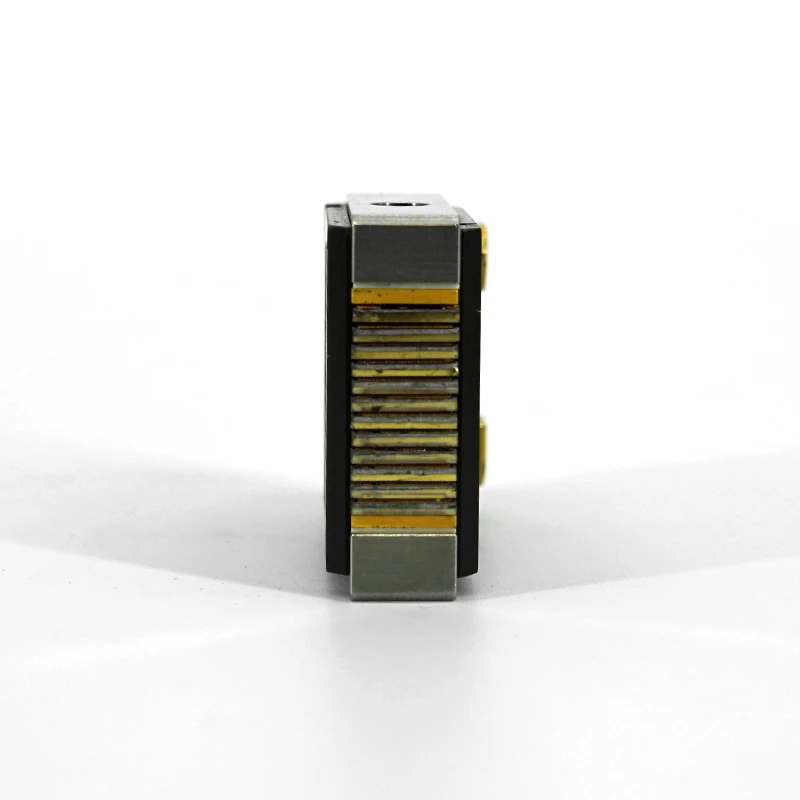

Second, we disassemble the handle piece, and test the old laser stack. For the nlight laser stack, we will test each laser plate one by one to confirm whether there are any one bars still can work. If there have some good bars, the repairing charge will be lower. 300w 808nm laser



Third, we choose best quality laser stack to replace the old broken one. Our bars are imported from Germany. We mounted bars and assemble them to laser stack in our lab. Every stack will be fully tested and had 8 hours buring test. 300w 808nm laser



Finally, our experienced technician will reassemble the handle piece. Which include:

a: Install the new laser stack into the handle piece 300w 808nm laser

b: Clean lens and check the TEC and other parts inside the handle piece

c: Test the power output of whole handle piece 300w 808nm laser

d: Clean the cover shell of handle piece and package it.





2. Professional technical team

Oriental laser majors in diode laser mounting more than 11 years, We are a true factory with a Federal Standards 209E clean room. And the newest Ausn mounting technology will be applied when repairing the Aroma laser hair removal handle.







Related Products

Packaging & Shipping

Packing: Aluminum case and carton box 300w 808nm laser

Delivery time: about 4 working days after received your payment.



Company Information



Oriental laser specializes in the diode laser field since 2008, as the golden manufacturer with 10000 square feet of class 10k clean room&class 1000 local clean zone(according to Federal Standards 209E) in Beijing. All our products meet CE/ISO9001 approved. And with RGD less than 2%.



Products and Service 300w 808nm laser

1. diode laser hair removal OEM parts and system 300w 808nm laser

2. Provide lasers diodes repair and refurbishment service for various laser heads from different manufacturers all over the world. 300w 808nm laser

(like:Almalaser &ICE, Jenoptick, Syneron elaser&elase, FOBA, Rofin, LEE, and other DPSS laser heads from NEC and etc) 300w 808nm laser

If any interested, more products specification as well as price,sample will be sent for your reference.
